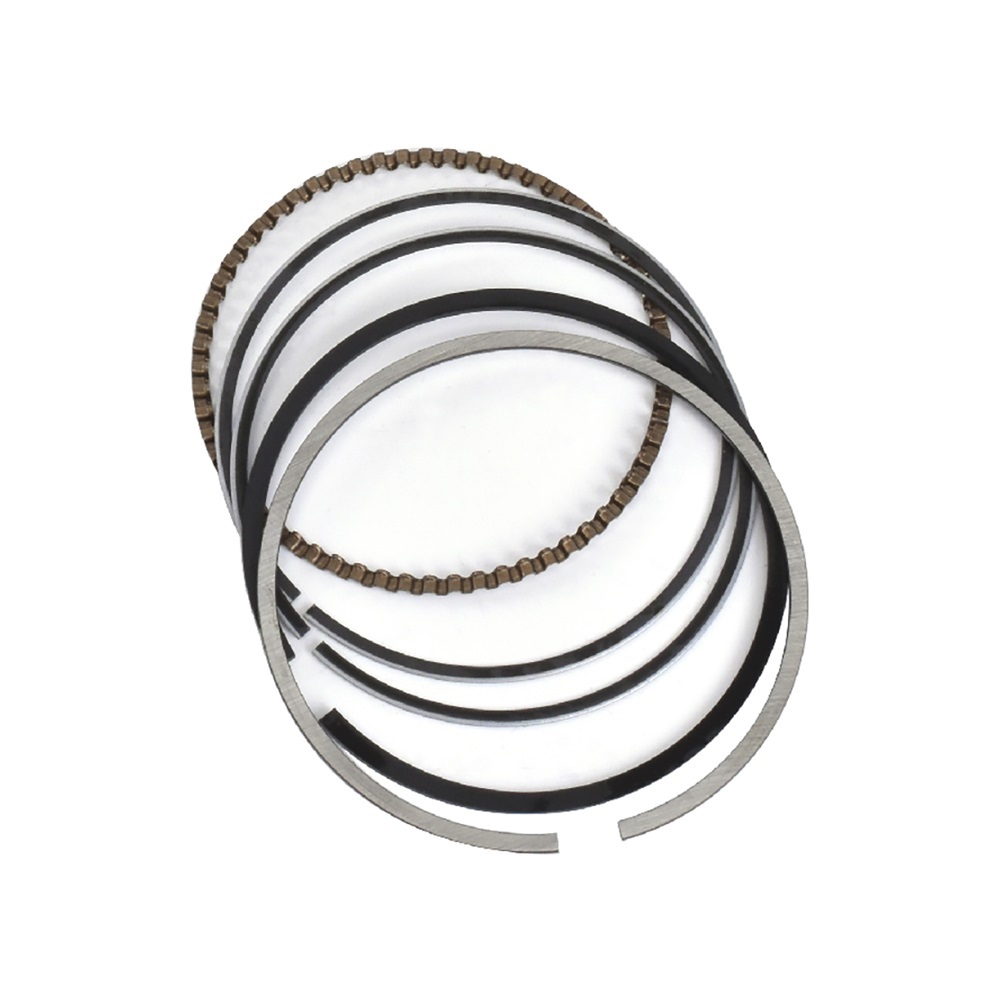

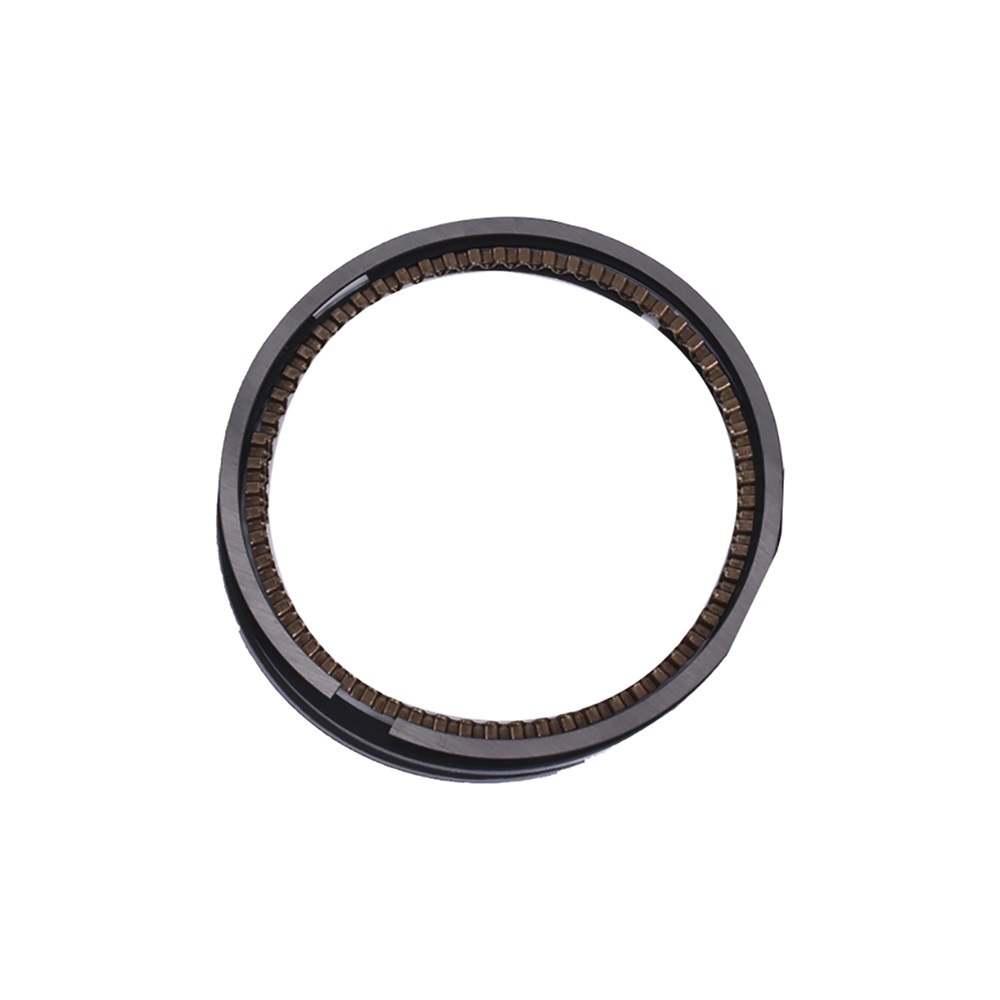

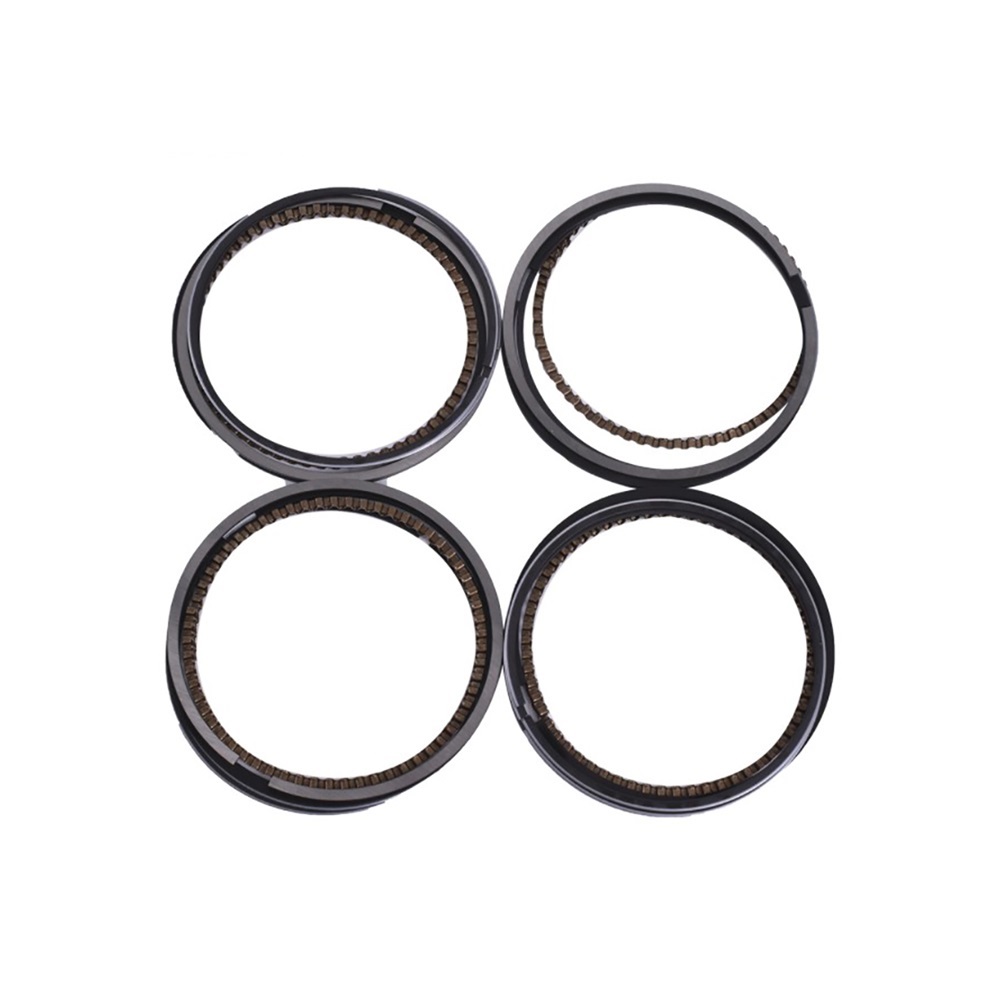

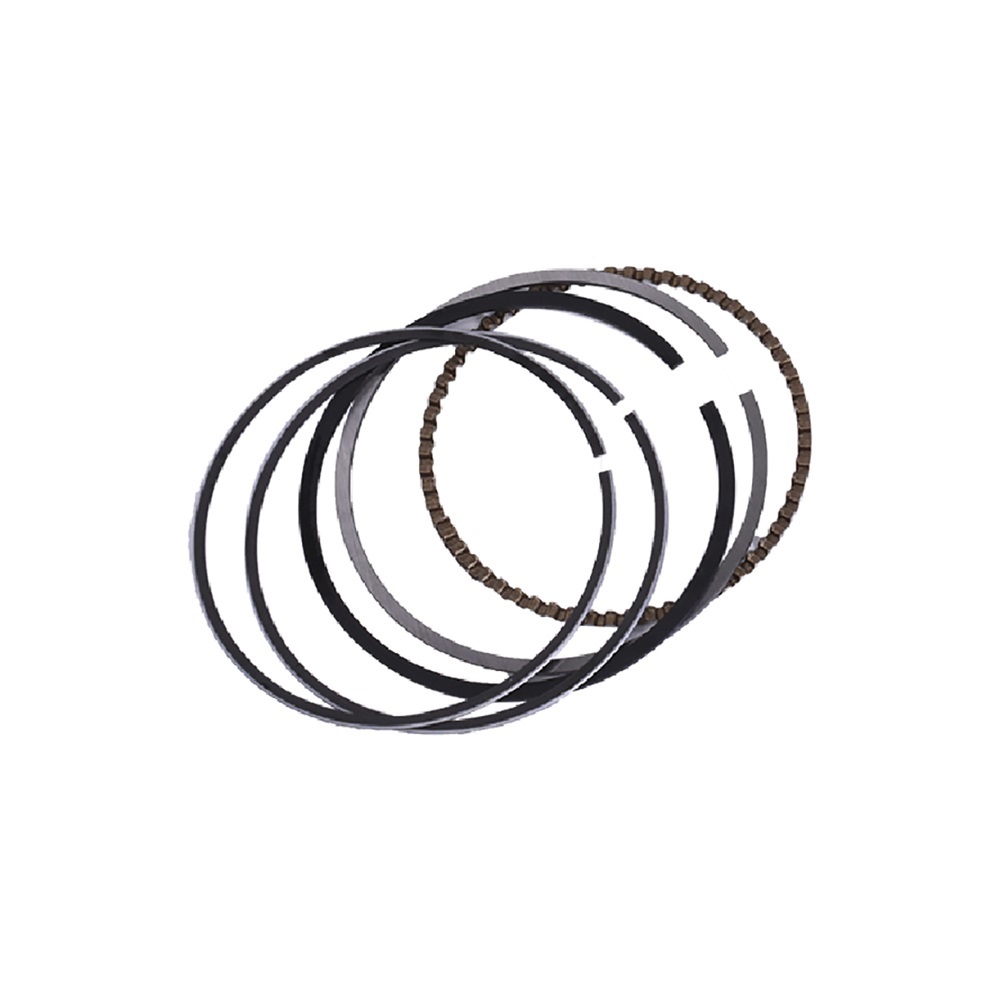

Installation Instructions for 54mm Motorcycle Engine Piston and Ring Kit for 1984-1986 FZ400 Compatible Engine Components

Required Tools:**

1. Socket set (10mm, 12mm, and 14mm)
2. Torx screwdriver (T20 and T25)
3. Piston ring compressor
4. Piston pin removal tool
5. Cylinder hone or bore gauge
6. Gasket scraper
7. Clean rags
8. Compressed air or a can of motor spray lubricant
9. New engine oil and filter
10. A clean, well-lit workspace

Pre-Installation Checks:

1. Ensure the engine is cool and free of debris.
2. Check the engine's cylinder head and piston for any signs of damage or wear.
3. Verify the piston ring kit is compatible with your FZ400 engine.

Step 1: Remove the Old Piston and Rings

1. Locate the pin and use a pin remove tool to remove it from the connecting rod.
2. Carefully pull out the old piston and rings from the cylinder.
3. Remove any remaining old gasket material and clean the area.

Step 2: Install the New Piston and Rings

1. Apply a thin layer of oil to the new piston rings.
2. Place the new piston ring onto the piston, making sure it's properly seated.
3. Install the new piston into the cylinder, using a piston ring compressor to ensure proper installation.
4. Use a torque wrong to tighten the pin to the specified torque.

Step 3: Install New Gaskets and O-rings

1. Apply a thin layer of engine oil to the new gaskets and O-rings.
2. Install the new gaskets and O-rings onto the cylinder head and engine components.

Step 4: Reassemble the Engine

1. Reinstall the cylinder head and tighten it to the specified torque.
2. Reinstall any other engine components that were removed.

Step 5: Fill with Oil and Check for Leaks

1. Fill the engine with new oil and replace the oil filter.
2. Start the engine and let it run for a few minutes to circle the oil.
3. Check for any signs of leaks around the cylinder head and engine components.

Step 6: Test Ride and Break-In

1. Take the motorcycle for a test ride to ensure everything is working properly.
2. Follow the manufacturer's recommended break-in procedure to ensure optimal engine performance.

Remember to consult your owner's manual or a qualified mechanic if you're unsure about any part of the installation process.
