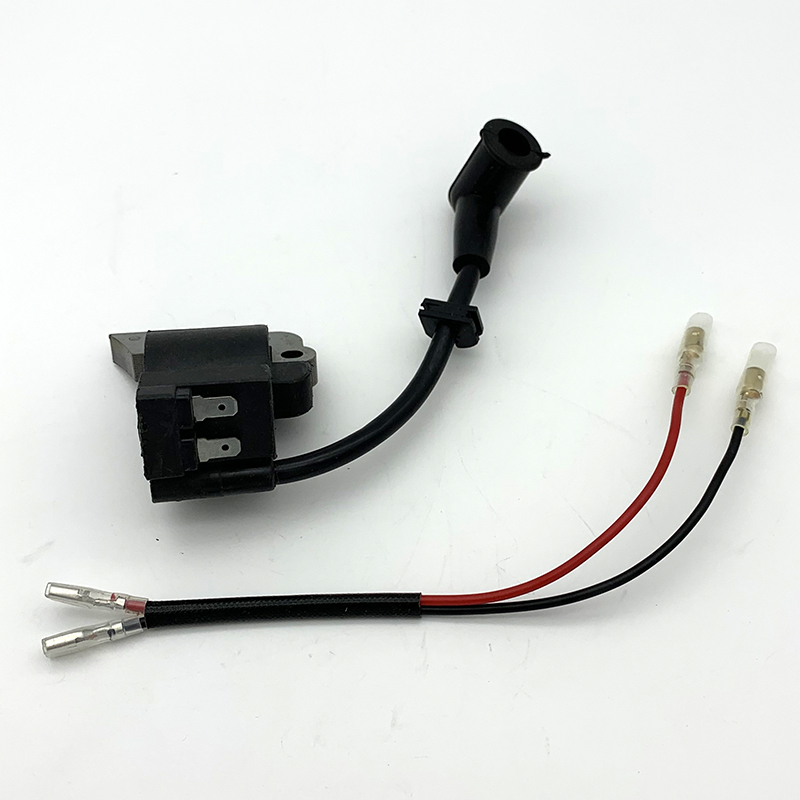

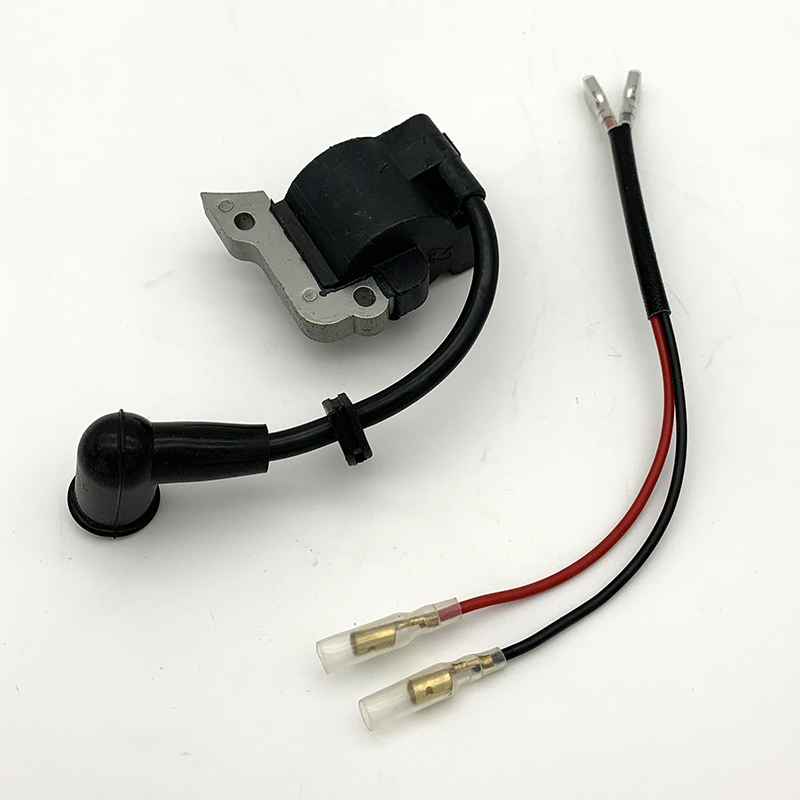

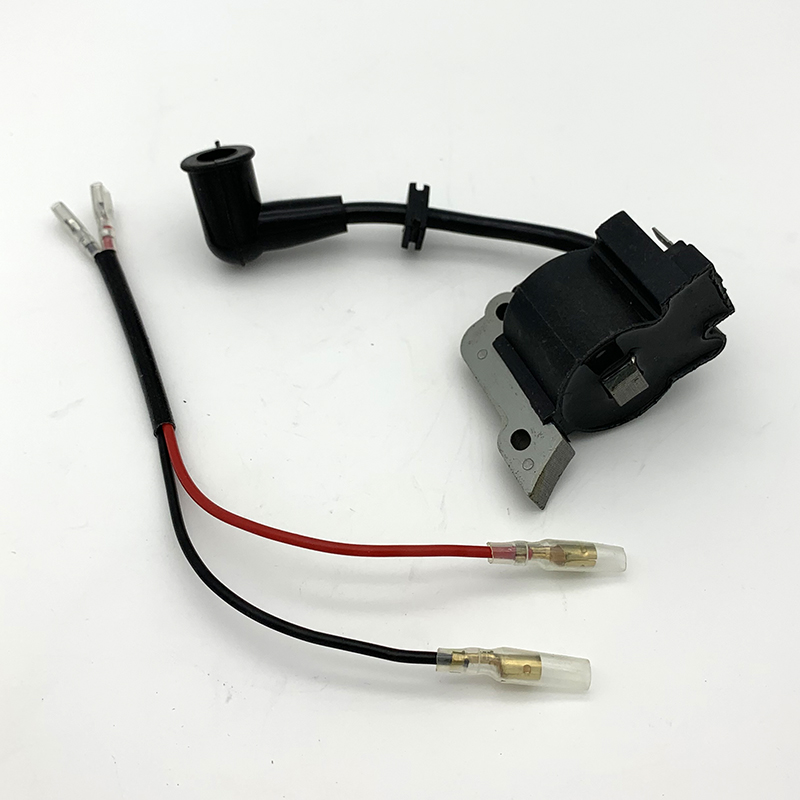

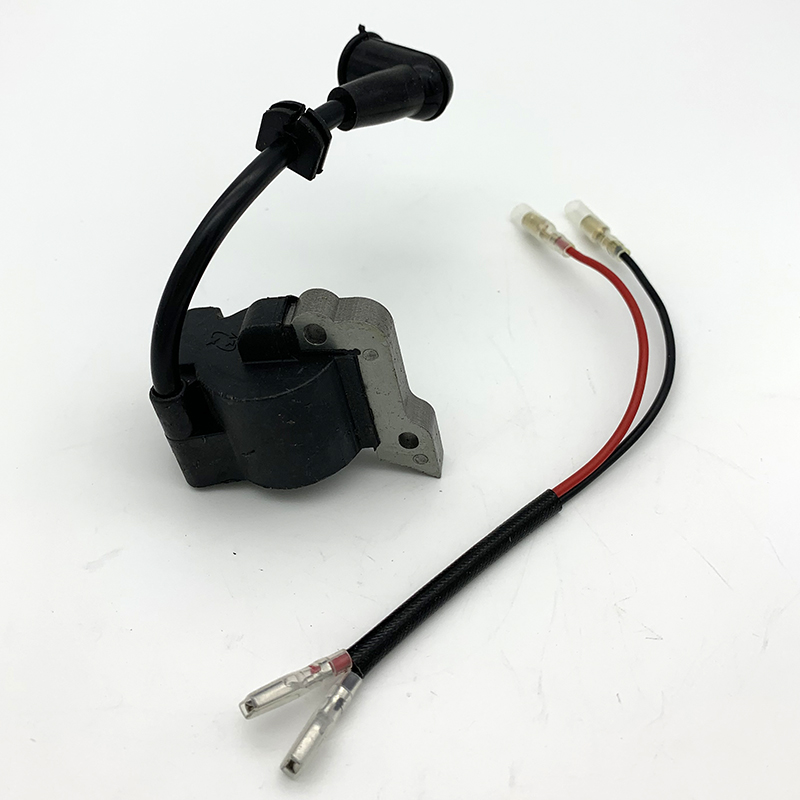

Product Installation Instructions for Ignition Coil Module Replacement

Compatibility:

This Ignition Coil Module is designed specifically for the following models:

• 143R
• 143R II
• 143AE
• 15
• 236R

Tools Required:

Before starting the installation process, please ensure you have the following tools ready:

1. Screwdriver Set (Both Phillips and Flathead)
2. Socket Wrench Set
3. Pliers
4. Torque Wrench
5. Wire Cutters/Strippers (if necessary)
6. Safety Goggles
7. Gloves

Installation Steps:

1. Safety First:

   • Ensure the engine is turned off and the spark plug is disconnected to prevent accidental starts. Wear safety goggles and gloves throughout the installation.

2. Remove the Cover:

   • Use the appropriate screwdriver to remove screws securing the engine cover. Carefully lift off the cover to expose the ignition coil.

3. Disconnect the Old Ignition Coil:

   • Locate the ignition coil module. Disconnect any wires attached to it, taking note of their positions for reinstallation. Use pliers if necessary.

4. Remove the Old Coil:

   • Use the socket wrench to remove any screws or bolts holding the old ignition coil in place. Carefully lift the coil out.

5. Install the New Ignition Coil:

   • Position the new ignition coil module in place. Align it with the mounting holes and secure it using the screws or bolts removed earlier. Ensure a snug fit.

6. Reconnect Wires:

   • Reconnect the wires to the new ignition coil module, ensuring they match the configuration previously noted.

7. Reattach the Engine Cover:

   • Once the ignition coil is installed and connected, replace the engine cover. Secure it with the screws removed at the beginning of the process.

8. Reconnect the Spark Plug:

   • Reconnect the spark plug and ensure all components are securely in place.

9. Final Checks:

   • Double-check all connections and fittings. Ensure that nothing interferes with moving parts.

10. Test the Equipment:

• Start the trimmer or brush cutter to ensure proper function. It should start reliably and run smoothly.

Conclusion:

By following these installation instructions, you will successfully replace the ignition coil module, enhancing the performance and reliability of your trimmer or brush cutter. Enjoy seamless operation and improved efficiency in your gardening tasks!
