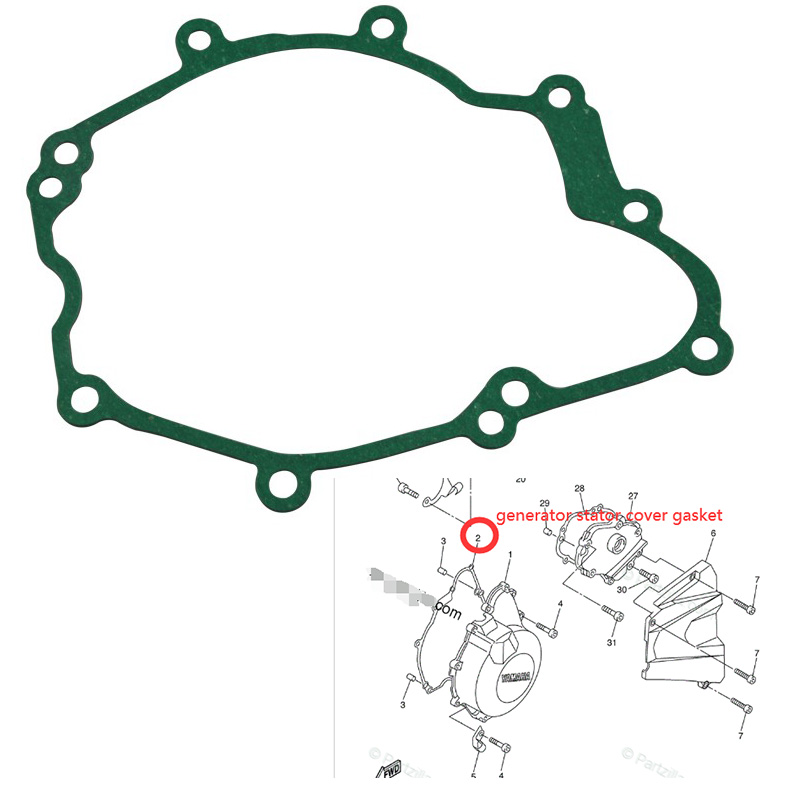

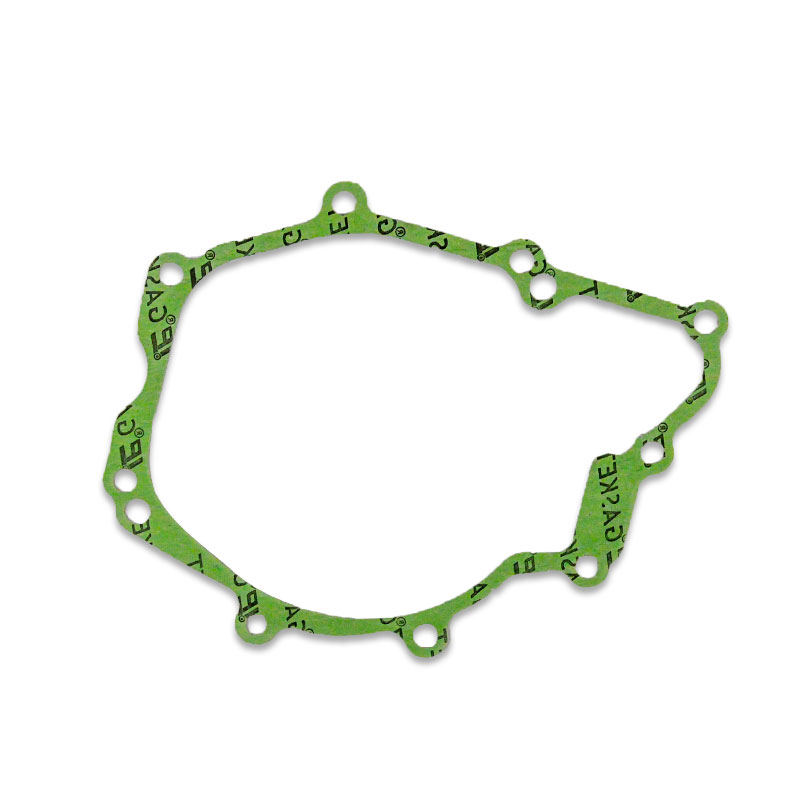

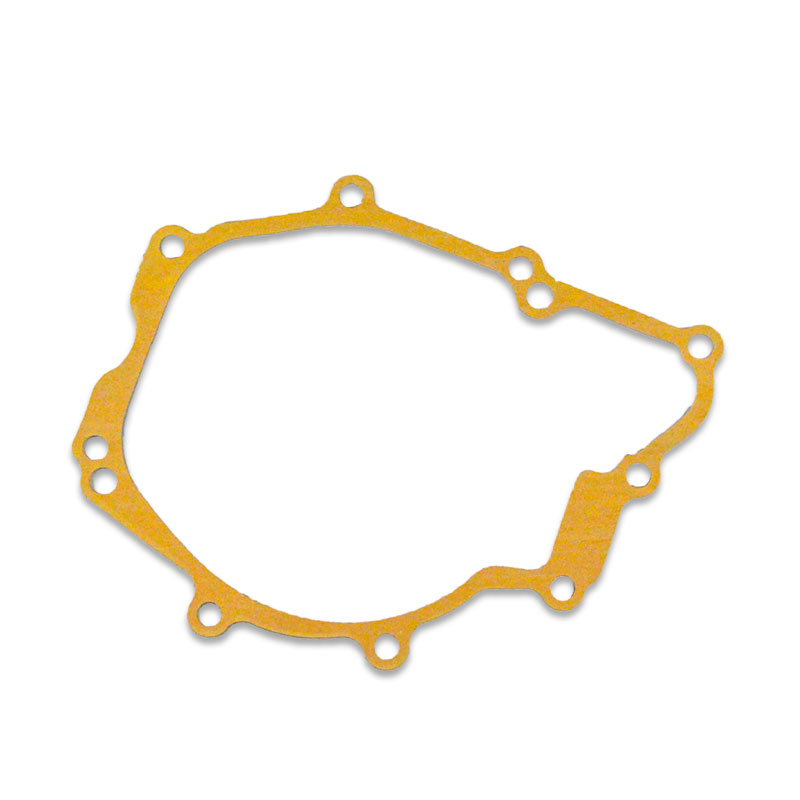

Installation Instructions for Motorcycle Engine Crankcase Generator Cover Gasket

Tools Required:

1. Socket Wrench Set
2. Torque Wrench
3. Screwdriver Set (Flathead and Phillips)
4. Gasket Scraper or Putty Knife
   5.Clean Cloth or Rags
5. Engine Oil or Gasket Sealer (if necessary)
6. Safety Goggles
   8.Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and the engine is cool.
   • Wear safety goggles and gloves for protection.

2. Remove Existing Cover:

   • Use the socket wrench to remove the bolts securing the generator cover.
   • Carefully lift off the cover and set it aside.

3. Clean the Surface:

   • Use a gasket scraper or putty knife to remove the old gasket material from the crankcase and generator cover.
   • Wipe the surfaces with a clean cloth to ensure they are free of debris and oil.

4. Inspect:

   • Check the crankcase and generator cover for any damage. Ensure everything is in good condition before proceeding.

5. Install New Gasket:

   • Position the new gasket onto the crankcase, aligning it properly with the bolt holes.
   • If using gasket sealer, apply a thin layer to one side of the gasket for extra sealing.

6. Reattach the Generator Cover:

   • Carefully place the generator cover back onto the crankcase, ensuring the gasket remains in place.
   • Insert and hand-tighten the bolts to secure the cover.

7. Torque the Bolts:

   • Using a torque wrench, tighten the bolts to the manufacturer's specified torque settings.

8. Final Checks:

   • Double-check that all bolts are securely fastened and there are no gaps in the gasket.
   • Clean any excess oil or sealing material from around the installation area.

9. Test for Leaks:

   • Start the motorcycle and let it run for a few minutes. Check for any signs of oil leaks around the new gasket.

10. Completion:

    • Once confirmed there are no leaks, your installation is complete. Dispose of the old gasket material appropriately.

Tips:

• Always refer to your motorcycle’s owner manual for specific instructions and torque settings.
• If you're unsure about any step, consult a professional mechanic.

Enjoy your ride with the confidence of a well-maintained engine!
