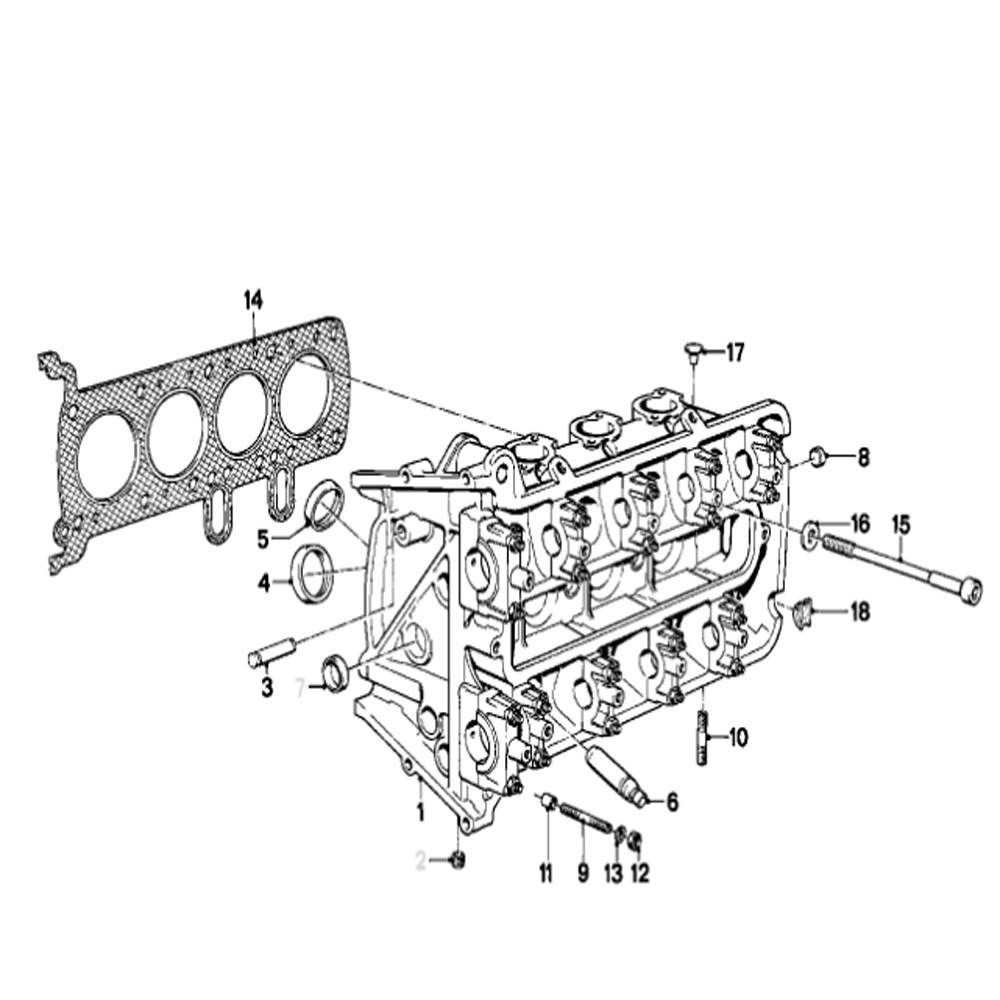

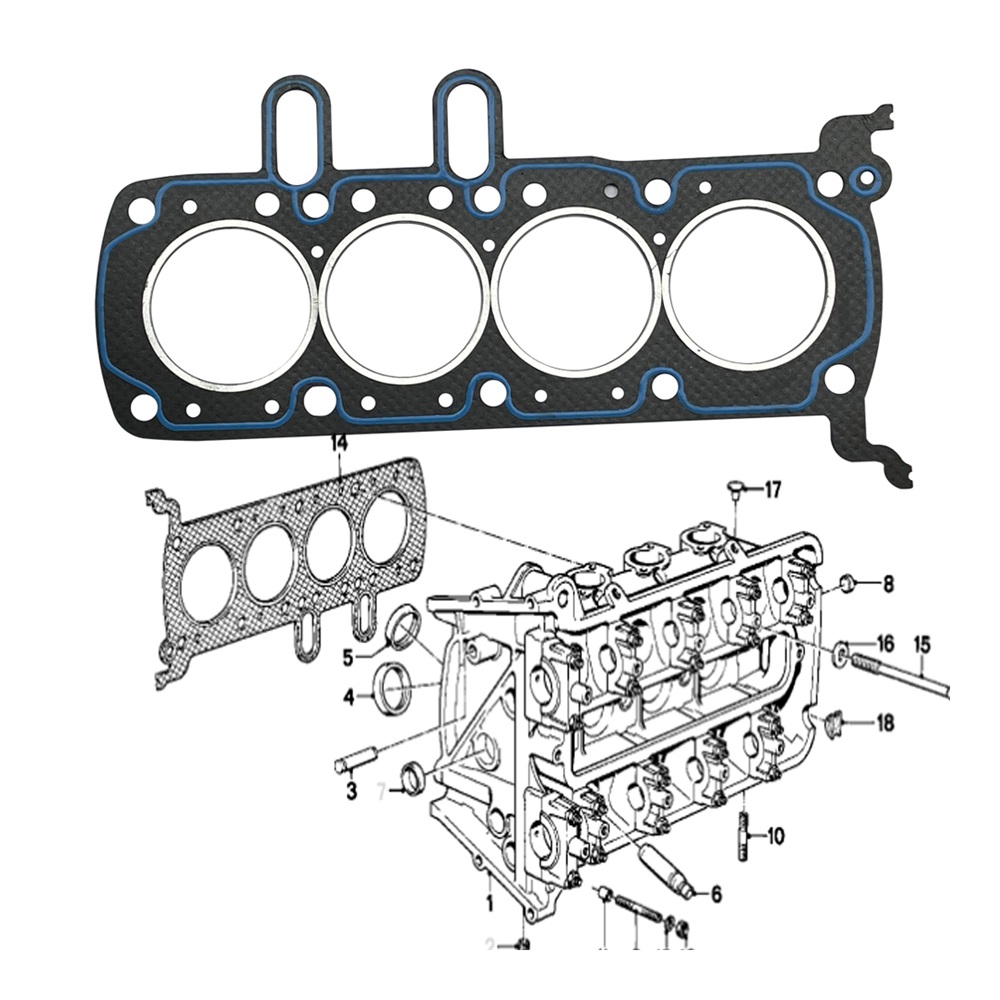

Installation Instructions for Replacement Cylinder Gasket for K100 K589 K100LT K100RT K100RS Motorcycles

Tools Required:

1. Socket Wrench Set
2. Torque Wrench
3. Screwdrivers (Flathead and Phillips)
4. Pliers
5. Gasket Scraper or Putty Knife
6. Clean Rags or Shop Towels
7. Engine Degreaser
8. Safety Goggles
   9.Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is parked on a stable surface and the engine is cool.
   • Disconnect the battery to prevent any electrical issues during the installation.

2. Remove Existing Components:

   • Using the socket wrench, remove any components obstructing access to the cylinder head (e.g., air intake systems, fairings, or exhaust).
   • Carefully detach the cylinder head from the engine block by loosening the bolts in a criss-cross pattern to prevent warping.

3. Clean the Surface:

   • Use the gasket scraper to remove the old gasket material from the cylinder head and engine block surfaces. Make sure the surfaces are clean and free from debris and grease.
   • Apply engine degreaser if necessary to ensure all residue is removed. Wipe down with clean rags.

4. Install New Gasket:

   • Align the new replacement cylinder gasket onto the engine block, ensuring it fits perfectly without any misalignment.

5. Reattach Cylinder Head:

   • Carefully place the cylinder head back onto the engine block, aligning it with the gasket.
   • Hand-tighten the bolts first, followed by a final tightening using the torque wrench according to the manufacturer’s specifications (refer to the motorcycle’s service manual for torque values).

6. Reassemble Remaining Components:

   • Reattach any components that were removed in step 2, ensuring that all screws and fittings are securely tightened.

7. Reconnect Battery:

   • Reconnect the motorcycle battery and ensure all connections are secure.

8. Final Check:

   • Start the engine and let it idle for a few minutes, monitoring for any leaks or unusual noises.
   • Check the oil level and ensure everything is functioning properly.

Safety Tips:

• Always wear safety goggles and gloves while working on your motorcycle.
• Consult your motorcycle’s service manual for specific instructions related to your model.

Conclusion:

By following these instructions, you will successfully install the Replacement Cylinder Gasket for your K100, K589, K100LT, K100RT, or K100RS motorcycle, ensuring improved performance and durability. Enjoy your ride!
