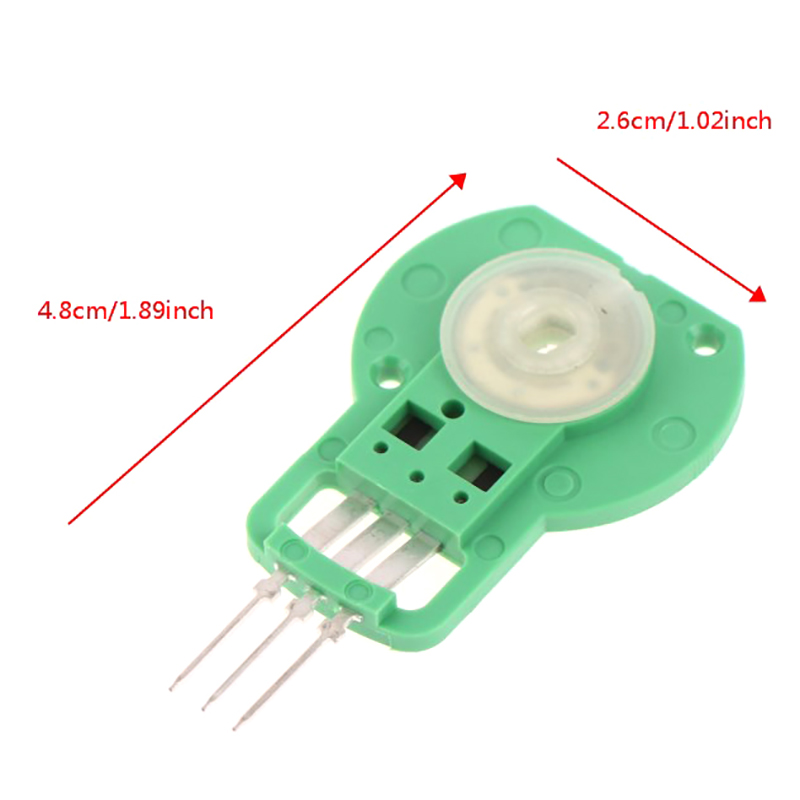

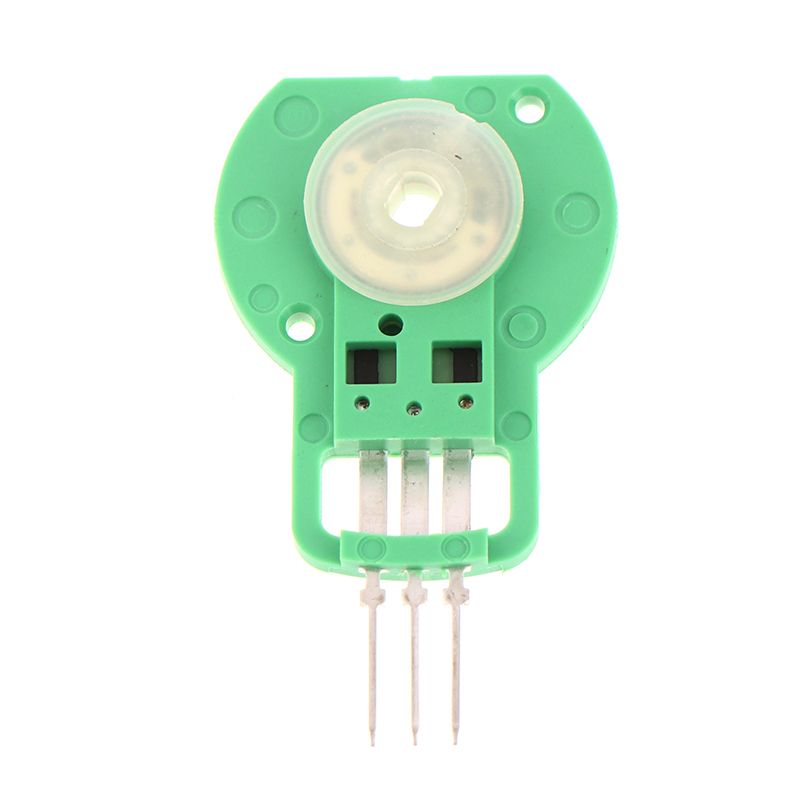

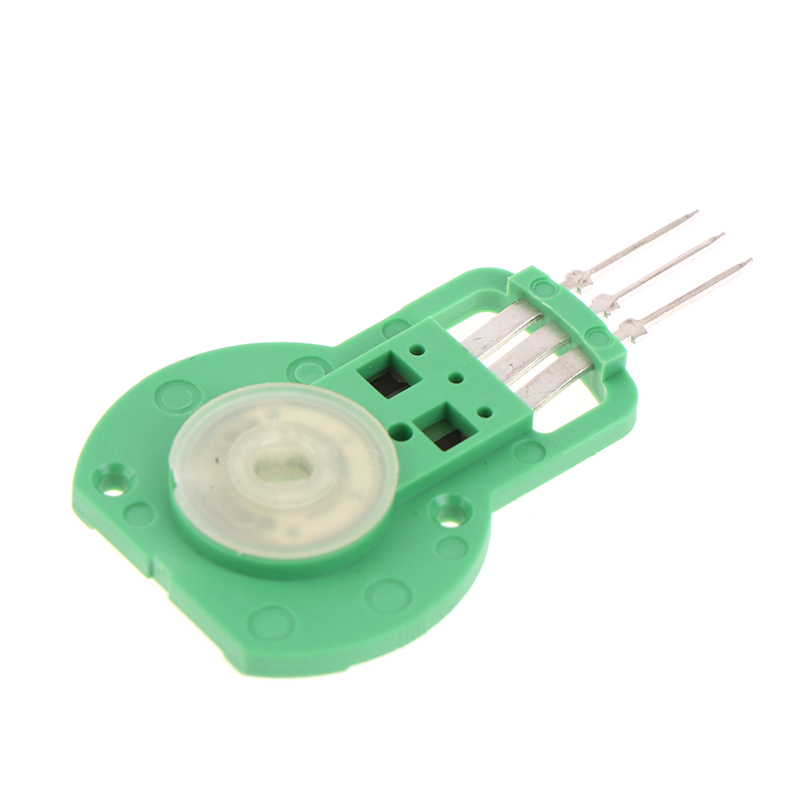

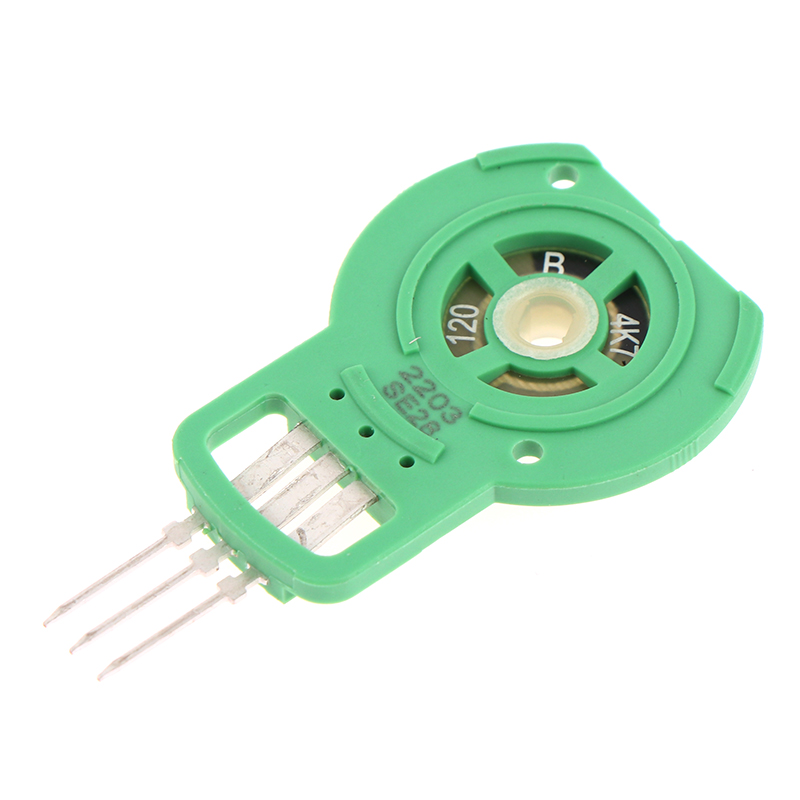

Installation Instructions for the Automotive Air Conditioning Resistance Sensor 4.7K FP01-WDK02

Introduction:
This guide provides step-by-step instructions for installing the Automotive Air Conditioning Resistance Sensor 4.7K FP01-WDK02. The sensor ensures efficient operation of your vehicle’s A/C system by providing accurate temperature feedback.

Tools You Will Need:

1. Screwdriver set (flathead and Phillips)
2. Socket wrench set
3. Pliers
4. Wire strippers
5. Electrical tape
6. Safety gloves and goggles (for protection)
7. Service manual for your vehicle (for specific instructions related to your model)

Installation Steps:

1. Preparation:

   • Ensure the vehicle is parked on a level surface with the engine turned off.
   • Disconnect the battery to prevent any electrical issues during installation.

2. Locate the Old Sensor:

   • Refer to your vehicle's service manual to find the location of the existing air conditioning resistance sensor.
   • If necessary, remove any panels or covers that obstruct access to the sensor.

3. Remove the Old Sensor:

   • Carefully unplug the electrical connector from the old sensor.
   • Use the appropriate socket or screwdriver to remove the mounting screws or bolts securing the sensor.
   • Gently pull the old sensor from its location.

4. Install the New Sensor:

   • Position the new Automotive Air Conditioning Resistance Sensor 4.7K FP01-WDK02 in the mounting area.
   • Secure it in place using the screws or bolts you previously removed.
   • Reconnect the electrical connector to the new sensor, ensuring it fits snugly.

5. Reassemble Any Removed Components:

   • Replace any panels or covers that were removed to access the sensor.

6. Reconnect the Battery:

   • Reconnect the vehicle's battery, ensuring the terminals are secure.

7. Test the A/C System:

   • Start the engine and allow the A/C system to run for a few minutes.
   • Check for proper operation of the air conditioning system. Ensure that it is cooling or heating as expected.

Conclusion:
With the installation of the Automotive Air Conditioning Resistance Sensor 4.7K FP01-WDK02 complete, your vehicle’s A/C system should now operate efficiently, providing a comfortable driving experience. Always refer to your vehicle’s manual for any model-specific requirements or troubleshooting tips.
