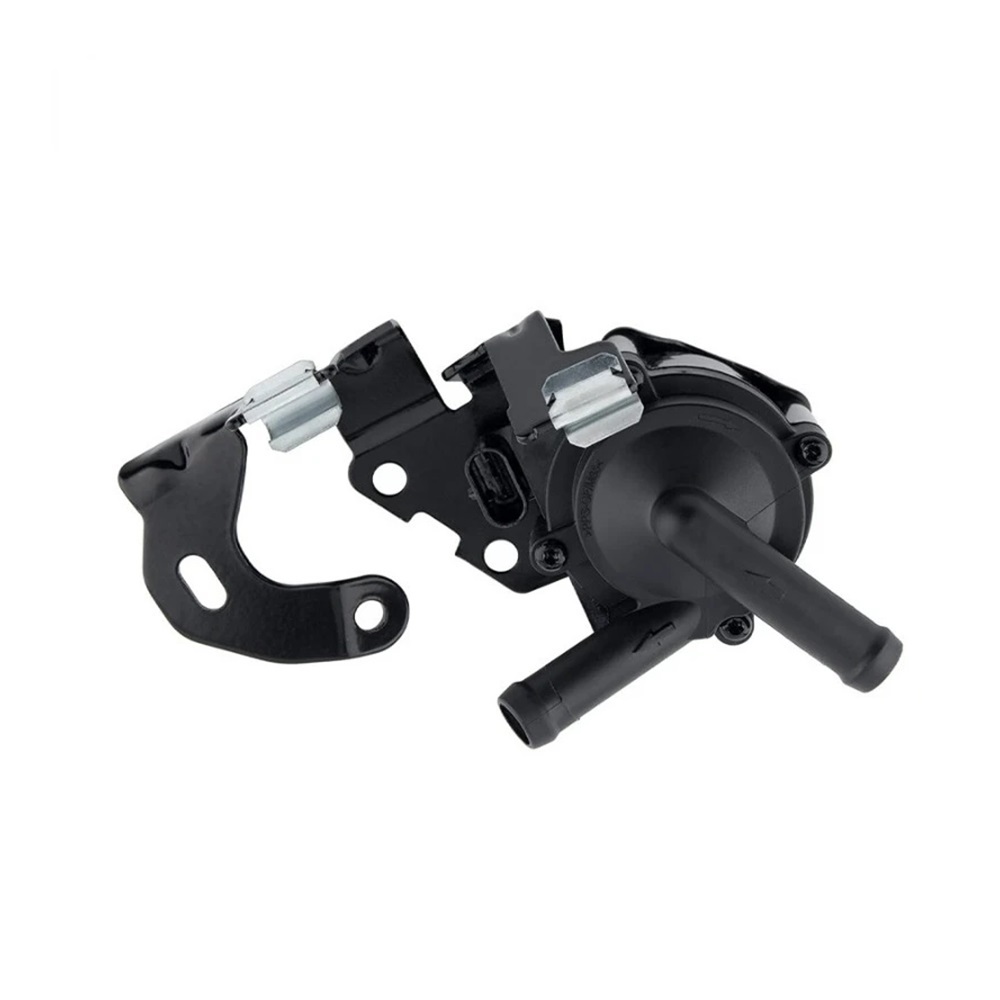

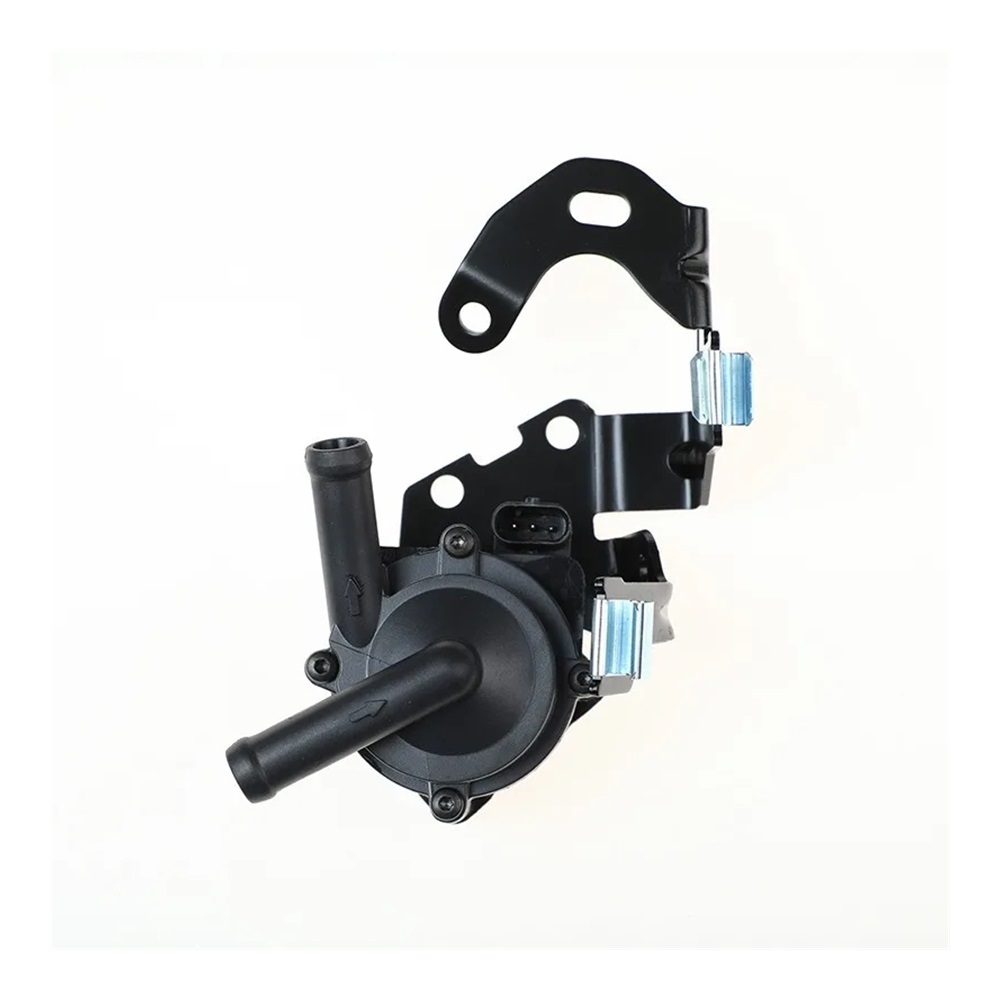

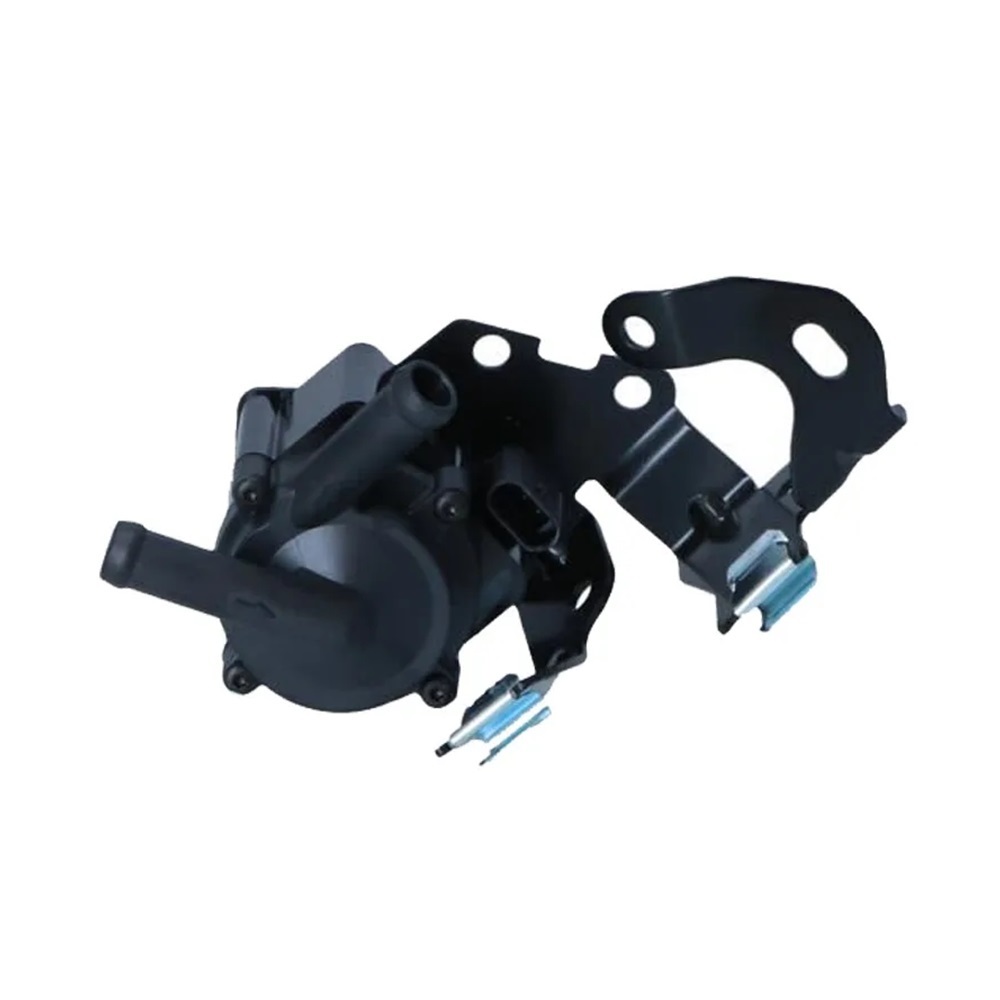

Installation Instructions for Water Pump Compatible with C4 C5 DS3 Parking Heater Systems

Tools Required:

-Socket wrench set

• Screwdriver set (flathead and Phillips)
  -Pliers
  -Hose clamps
• Bucket or container (for any excess coolant)
• Engine coolant (if needed for refilling)
• Torque wrench (for specific bolts, if necessary)

Installation Steps:

1. Preparation:

   • Ensure the vehicle is parked on a level surface and the engine is cool.
   • Disconnect the negative terminal of the battery to avoid any electrical shorts.

2. Drain the Coolant:

   • Position a bucket or container under the vehicle to catch any coolant.
   • Locate the radiator drain plug and open it to drain the coolant.

3. Remove the Old Water Pump:

   • Disconnect any hoses connected to the old water pump.
   • Remove the bolts securing the water pump using the appropriate socket wrench.
   • Carefully take out the old water pump. Dispose of it according to local regulations.

4. Prepare the New Water Pump:

   • Inspect the new water pump for any damage before installation.
   • Ensure all O-rings and gaskets are in place and properly seated.

5. Install the New Water Pump:

   • Position the new water pump in place and hand-tighten the bolts to secure it.
   • Use the torque wrench to tighten the bolts to the manufacturer's specified torque settings.

6. Reconnect Hoses:

   • Reattach the hoses to the water pump, ensuring they are secured with hose clamps.

7. Refill the Coolant:

   • Close the radiator drain plug and refill the cooling system with the appropriate engine coolant.

8. Reconnect the Battery:

   • Reattach the negative terminal of the battery.

9. Test the Installation:

   • Start the engine and let it idle for a few minutes. Check for any leaks around the water pump and hoses.
   • Verify that the parking heater system is functioning correctly and that the engine reaches the appropriate temperature.

10. Final Checks:

• Monitor the coolant level after a few days of operation and top off if necessary.

By following these instructions, you can successfully install the water pump and enhance the comfort of your vehicle's interior.
