Installation Instructions for 52.4mm Piston Kit for 125cc Engine

Introduction

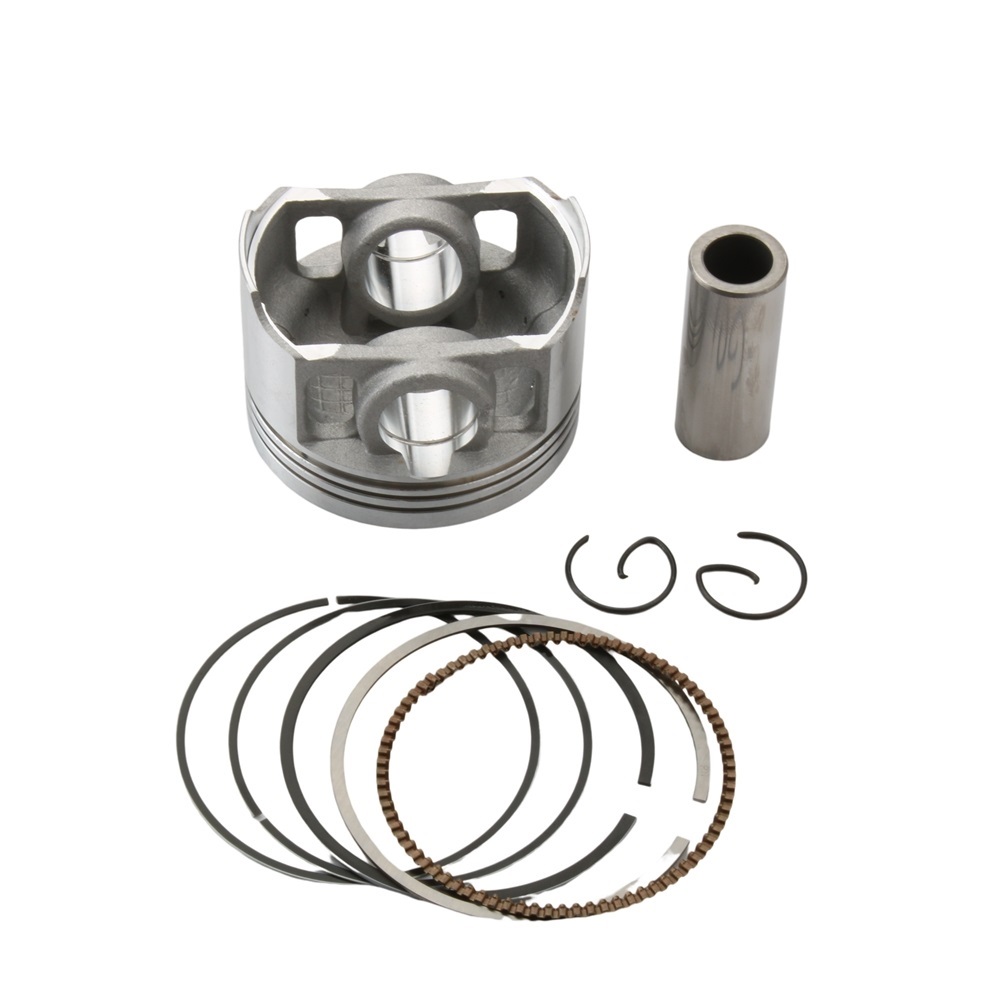

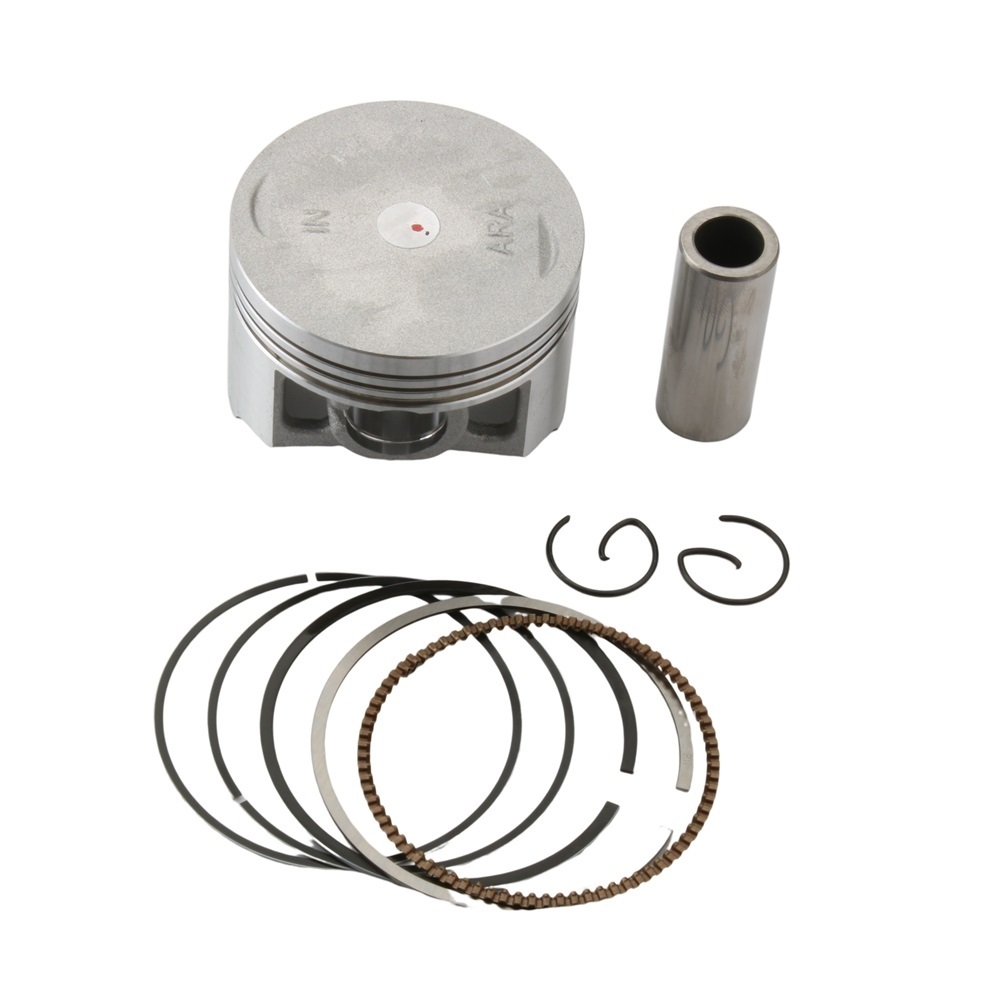

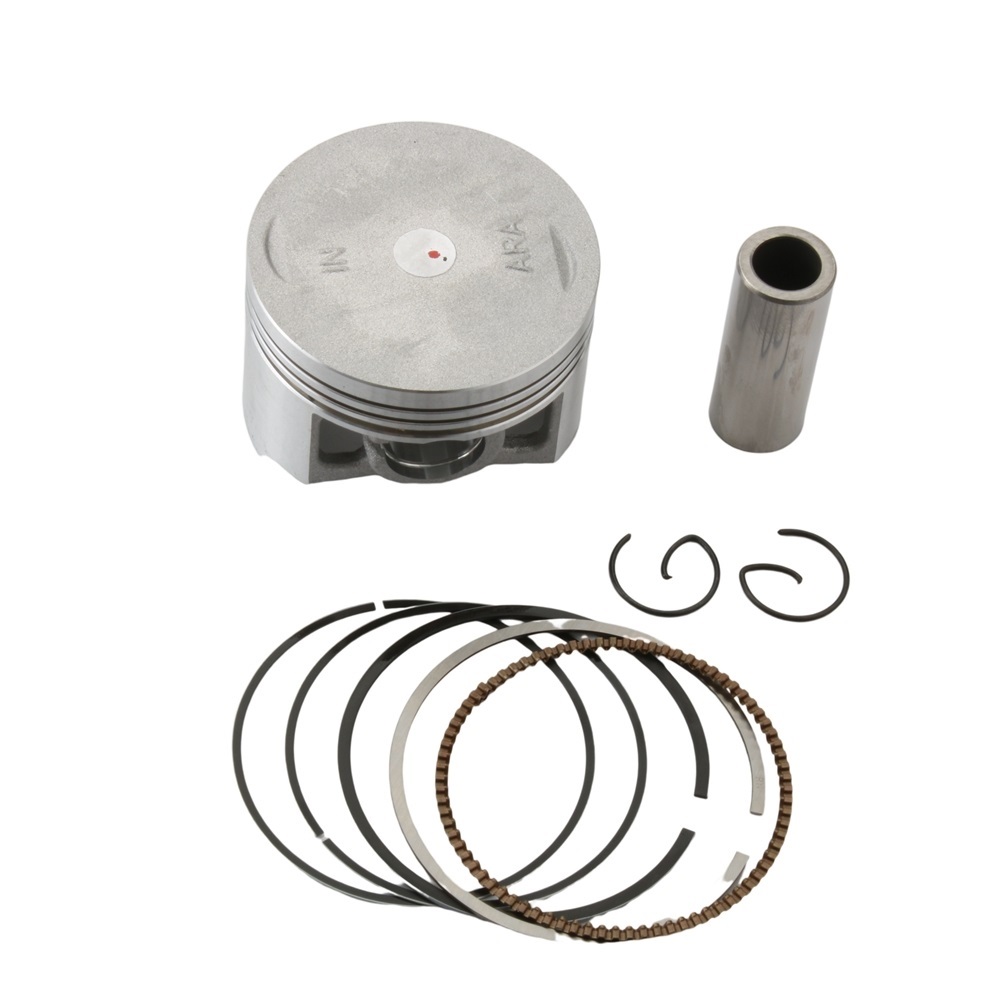

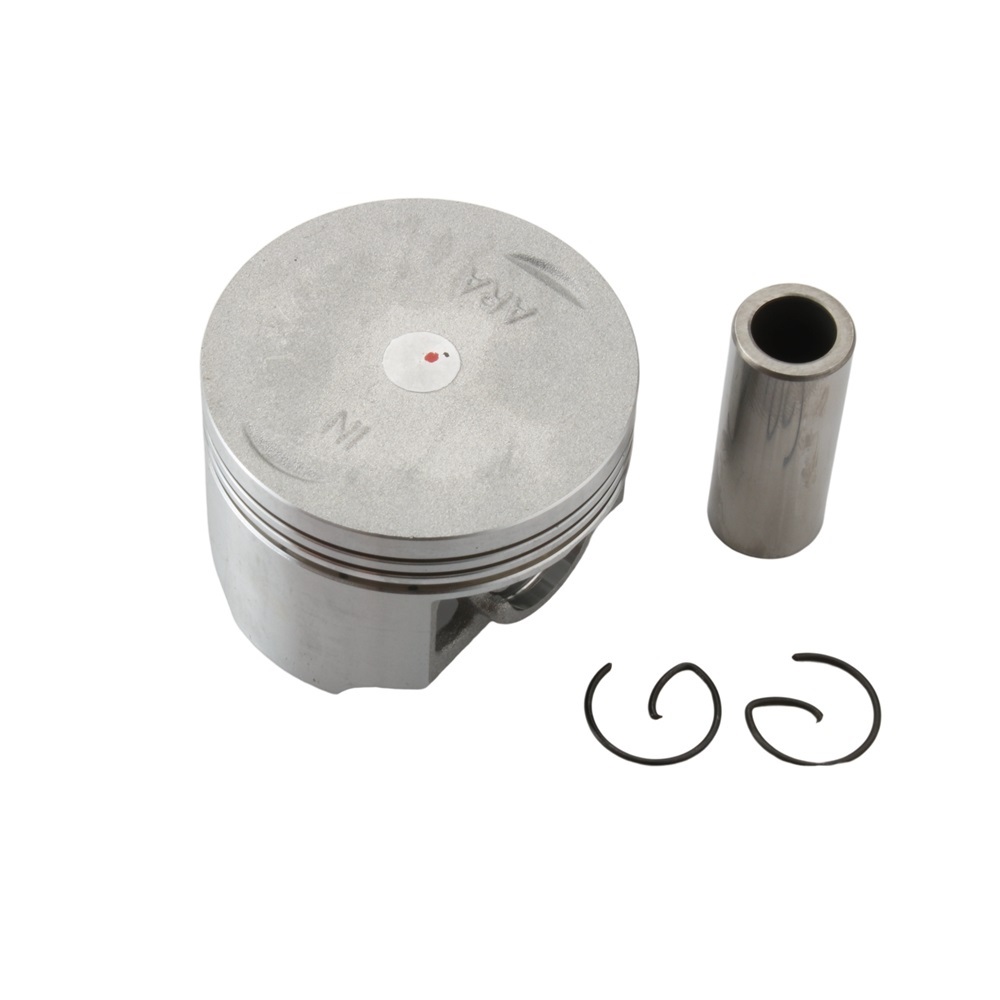

The 52.4mm Piston Kit is designed specifically for 125cc engines, ensuring a perfect fit and enhanced performance. This installation guide will help you successfully install your new piston kit.

Tools Required

Before you begin, please gather the following tools:

1. Socket Wrench Set - for removing screws and bolts.
2. Torque Wrench - to ensure the correct tightening of bolts to the manufacturer’s specifications.
3. Piston Ring Compressor - to assist in the installation of the piston.
4. Screwdrivers - both Phillips and flathead types.
5. Pliers - for handling small parts and removing circlips.
6. Feeler Gauge - to check gap measurements if necessary.
7. Work Gloves - to protect your hands during installation.
8. Clean Rags - for cleaning engine components during installation.
9. Engine Oil - to lubricate the piston and rings during installation.
10. Safety Glasses - to protect your eyes from debris.

Installation Steps

1. Preparation:

   • Ensure the engine is cool and the vehicle is on a stable, flat surface.
   • Disconnect the battery to prevent any electrical issues during installation.

2. Remove the Engine Cover:

   • Use the socket wrench set to remove the screws and access the engine.

3. Remove the Old Piston:

   • Carefully take out the old piston using pliers and a socket wrench.
   • Make sure to remove any circlips and other components holding the piston in place.

4. Clean Engine Components:

   • Use clean rags to wipe down the cylinder and surrounding areas to prevent debris from entering the engine.

5. Install the New Piston:

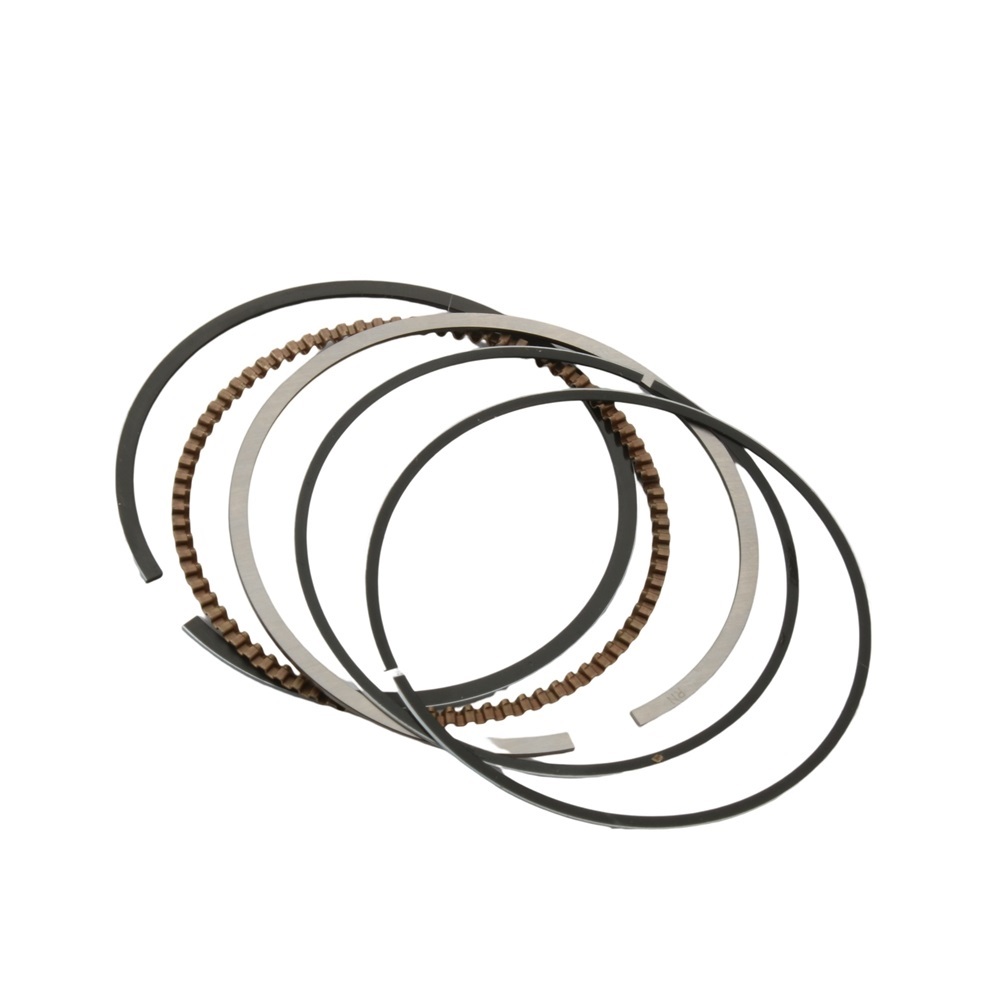

   • Apply a small amount of engine oil to the new piston and rings to facilitate smooth installation.
   • Use a piston ring compressor to securely fit the piston into the cylinder.

6. Secure the Piston:

   • Reinstall any circlips and components used to hold the piston in place, ensuring everything is properly secured.

7. Reassemble the Engine:

   • Replace the engine cover and screws. Use the torque wrench to ensure the bolts are tightened to the manufacturer’s specifications.

8. Final Checks:

   • Double-check all connections and make sure nothing is loose.
   • Reconnect the battery.

9. Test the Engine:

   • Start the engine and allow it to idle. Check for any unusual noises or leaks.

Conclusion

With your new 52.4mm Piston Kit installed, you should experience improved engine performance and a more exhilarating riding experience. Enjoy your ride!
