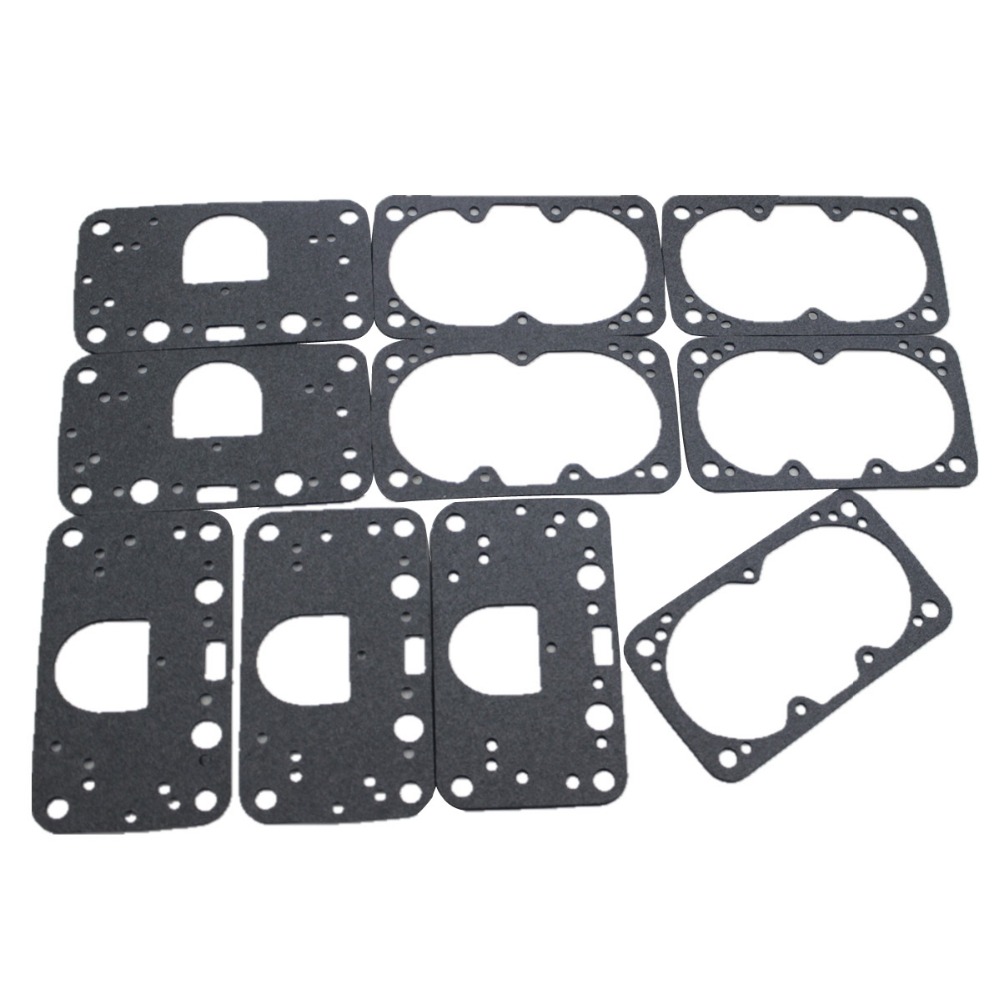

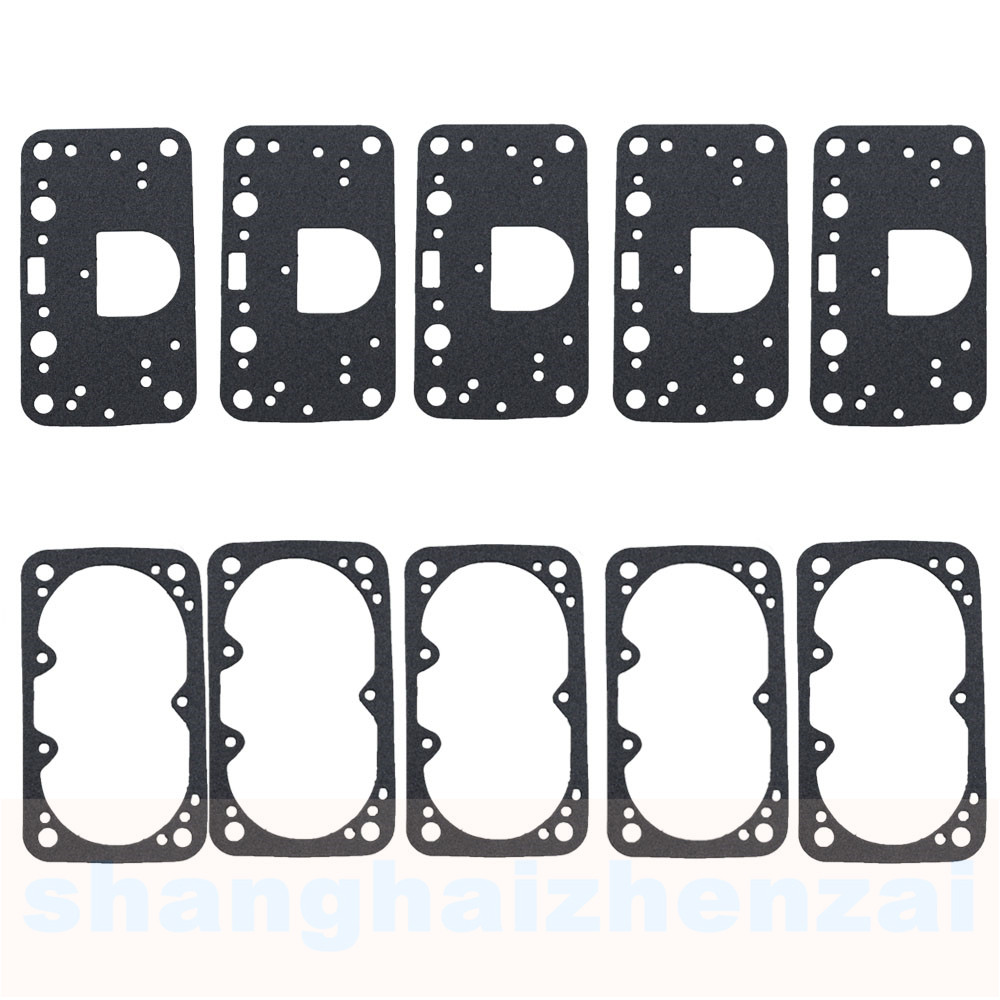

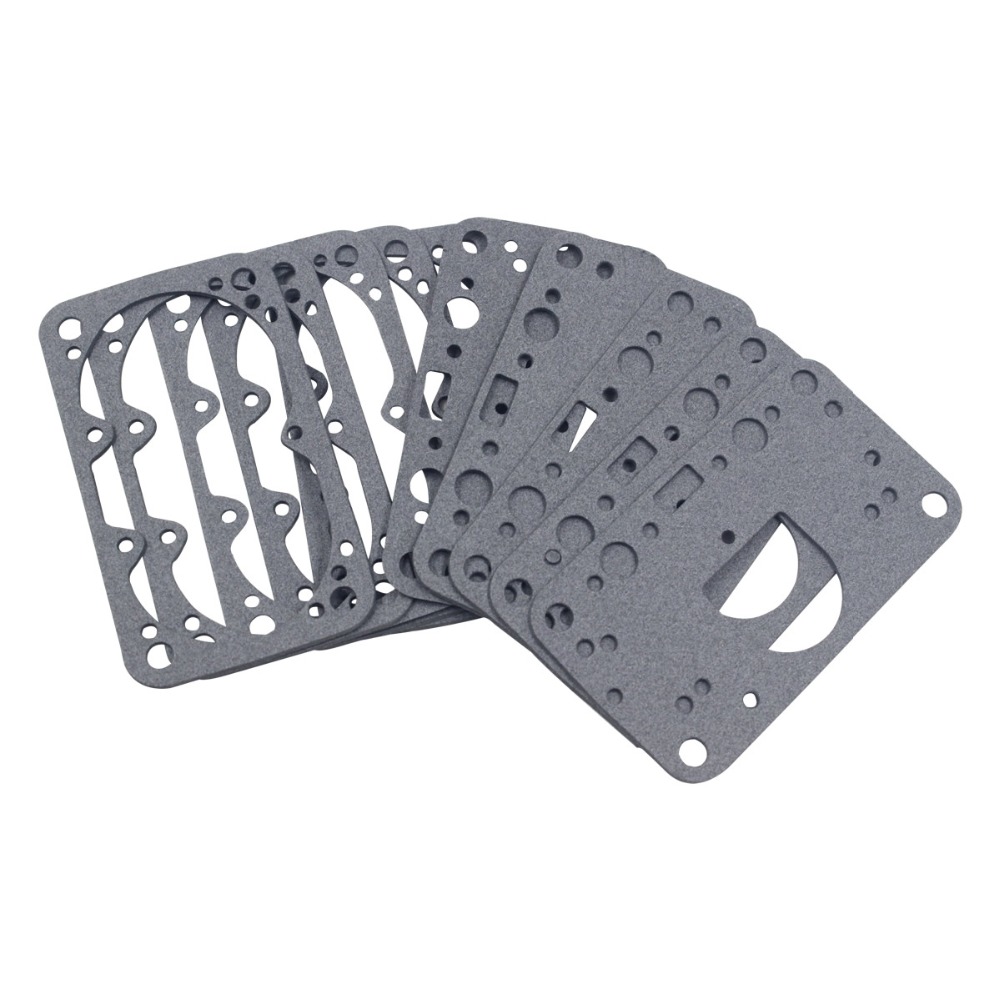

Product Installation Instructions for Float Bowl and Metering Block Gasket Set for 390-1050 Double Pumper 2 Carburetors

Tools Required:

• Socket Set (including socket wrench)
• Screwdrivers (flathead and Phillips)
  -Torque Wrench
• Gasket Scraper or Razor Blade
• Clean Cloth or Paper Towels
  -Carburetor Cleaner
  -Safety Goggles
• Gloves

Installation Steps:

1. Preparation:

   • Ensure the engine is turned off and cool to the touch.
   • Wear safety goggles and gloves for protection.

2. Remove the Carburetor:

   • Disconnect the carburetor from the intake manifold by unbolting it with the appropriate socket size.
   • Remove any attached fuel lines and throttle linkage carefully.

3. Clean the Surface:

   • Use a gasket scraper or razor blade to remove the old gaskets from the carburetor base and intake manifold.
   • Clean the surfaces thoroughly with carburetor cleaner and a clean cloth to ensure no debris or old gasket material remains.

4. Install New Gaskets:

   • Place the new float bowl gaskets and metering block gaskets provided in the set onto the respective areas of the carburetor.
   • Ensure that the gaskets are properly aligned and seated to prevent any leaks.

5. Reattach the Carburetor:

   • Carefully position the carburetor back onto the intake manifold.
   • Reattach any fuel lines and throttle linkage, ensuring all connections are secure.

6. Tighten Bolts:

   • Using a torque wrench, tighten the bolts to the manufacturer's specified torque settings to secure the carburetor in place.

7. Final Check:

   • Double-check all connections and make sure there are no loose parts.
   • Start the engine and let it idle to ensure there are no leaks and that the carburetor is functioning properly.

8. Cleanup:

   • Dispose of old gaskets and any waste materials responsibly.
   • Clean the work area and wash hands after the installation.

Note: Always refer to the specific manufacturer's instructions for the carburetor model for additional guidance and torque specifications.
