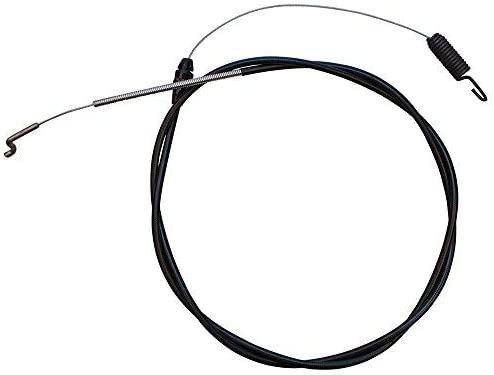

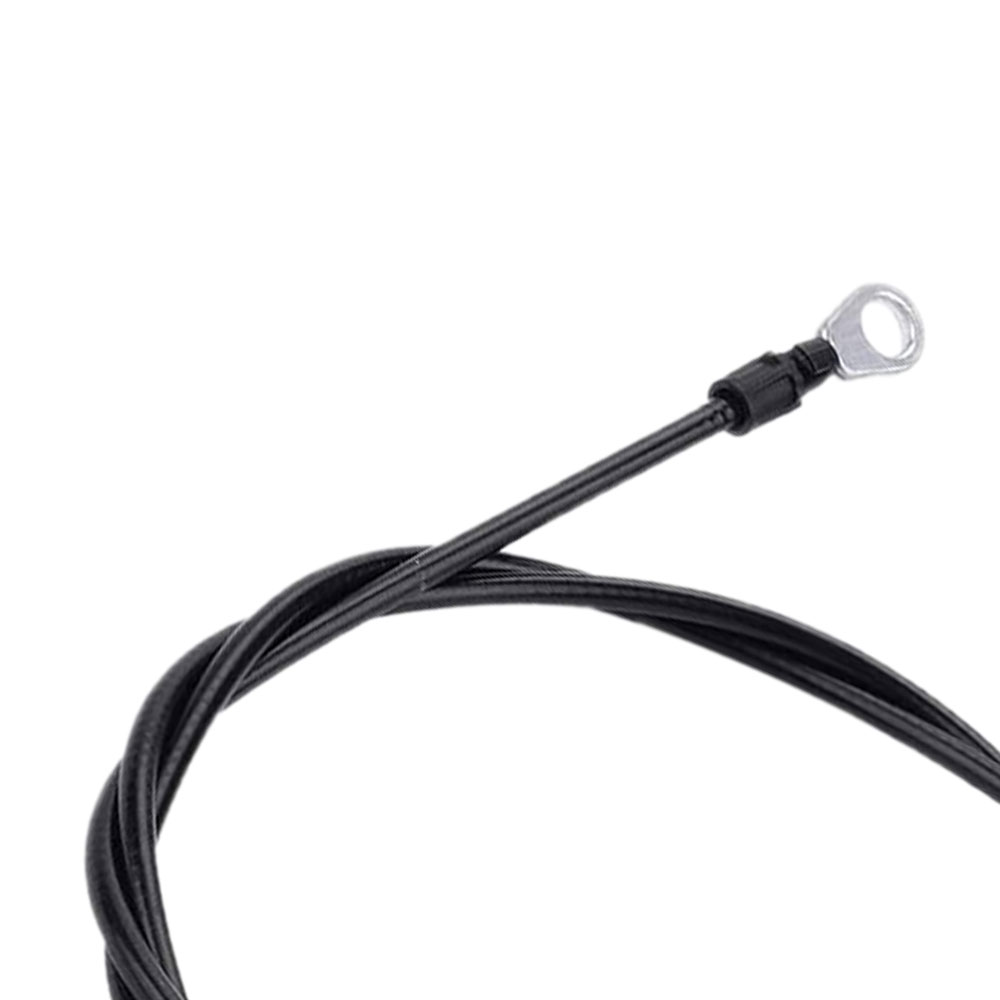

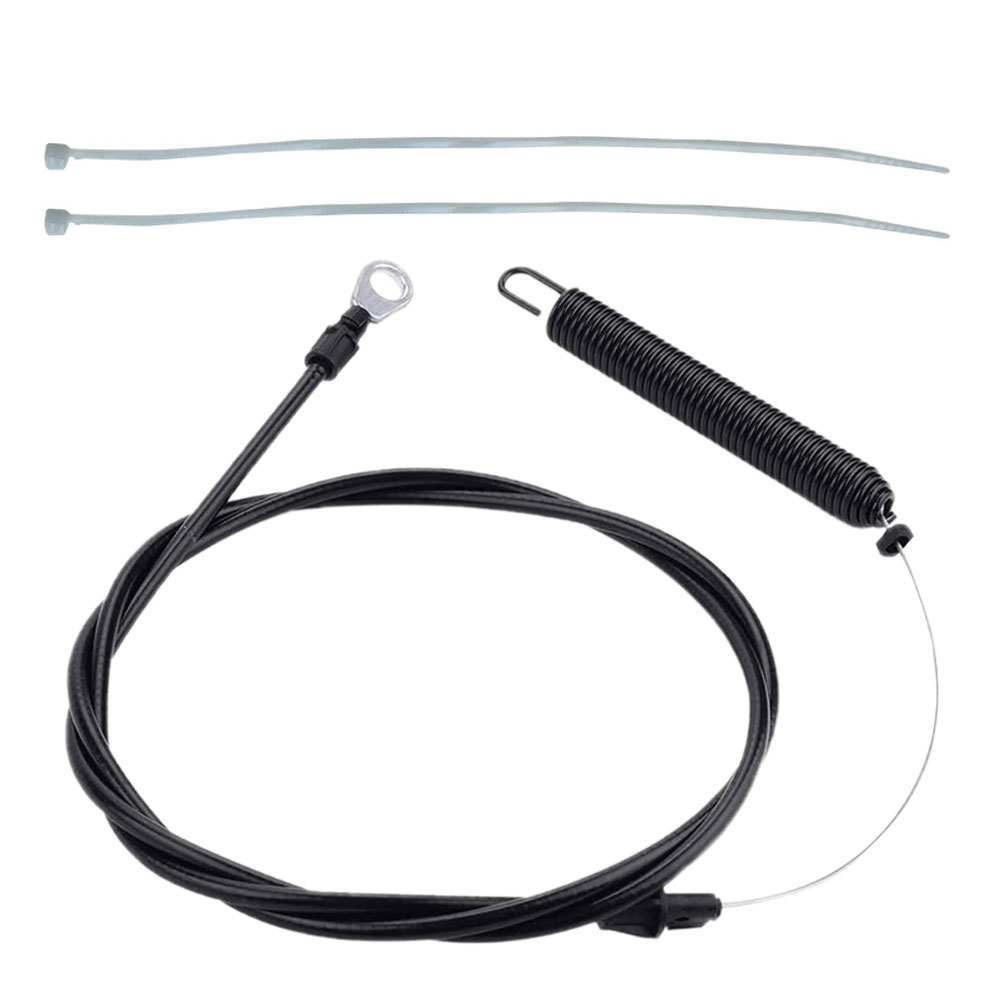

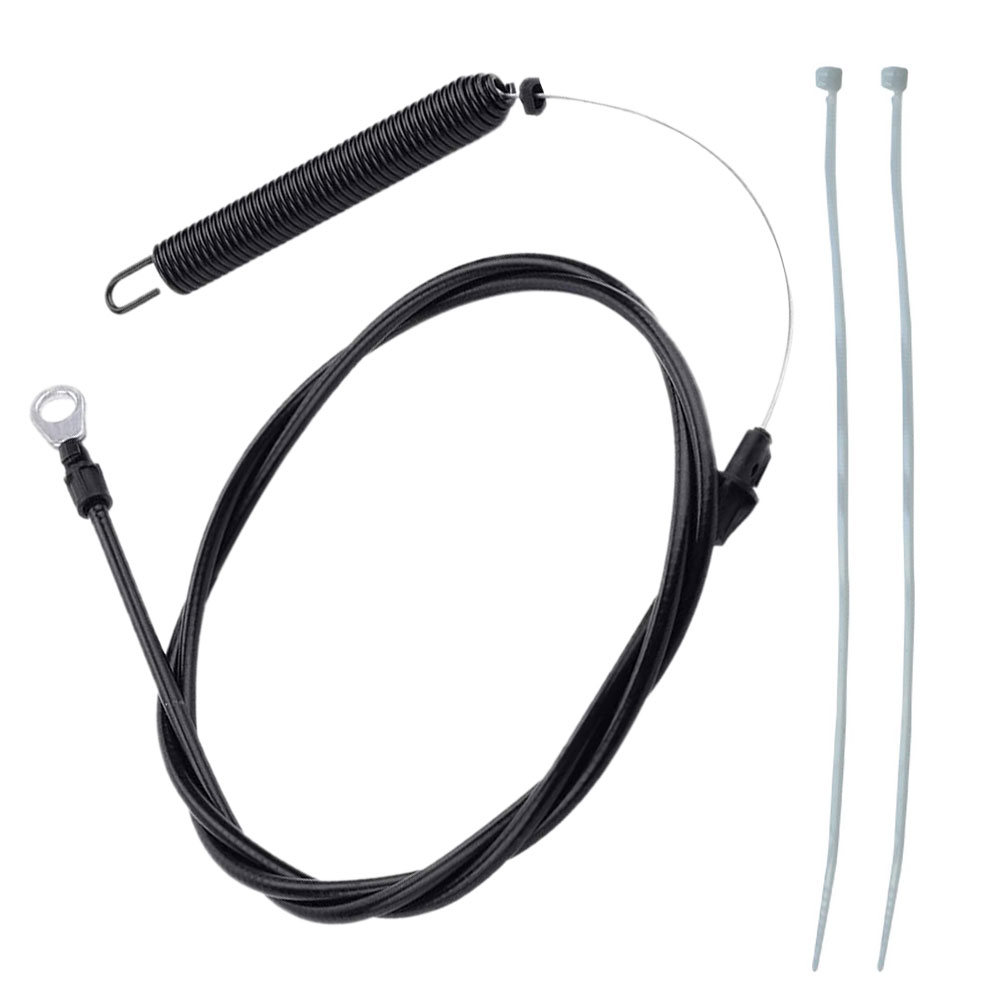

Product Installation Instructions for Compatible Deck Clutch

Compatible Models: C 197257, 435111, 408714, 532197257

Tools Required:

1. Wrench set (specific sizes may vary)
2. Screwdriver (Phillips and flathead)
3. Pliers
4. Torque wrench (optional, for specific torque settings)
5. Safety gloves
6. Safety goggles

Installation Steps:

1. Preparation:

   • Ensure the equipment is turned off and disconnected from any power source.
   • Wear safety gloves and goggles to protect yourself during the installation.

2. Remove the Existing Clutch:

   • Use the appropriate wrench to loosen and remove the bolts securing the old clutch.
   • Carefully detach the old clutch from its position. You may need to use pliers if it is stuck.

3. Install the New Clutch:

   • Align the new compatible clutch deck with the mounting holes.
   • Secure the clutch in place by tightening the bolts with your wrench. Ensure they are evenly tightened to prevent misalignment.

4. Check Connections:

   • Verify that all connections are secure and that the clutch is properly seated.
   • If applicable, refer to the equipment manual for any specific torque settings and use a torque wrench to tighten to specifications.

5. Final Checks:

   • Inspect the installation to ensure everything is secure and in place.
   • Reconnect the power source to the equipment and conduct a brief test run to ensure proper functionality.

6. Cleanup:

   • Dispose of any old parts according to local regulations.
   • Store your tools properly after use.

Note: Always consult the equipment manual for specific details regarding your model, and never hesitate to seek professional assistance if needed.
