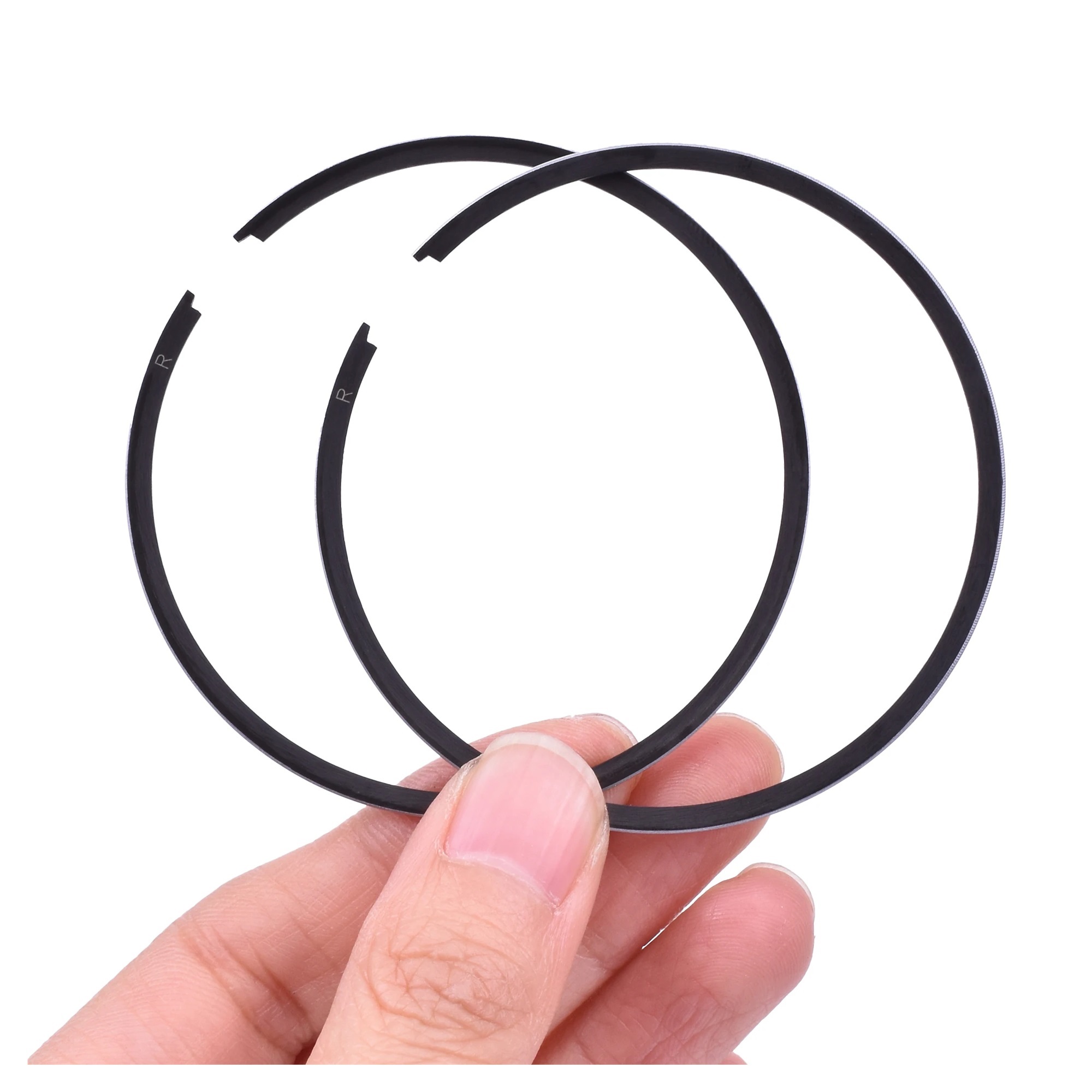

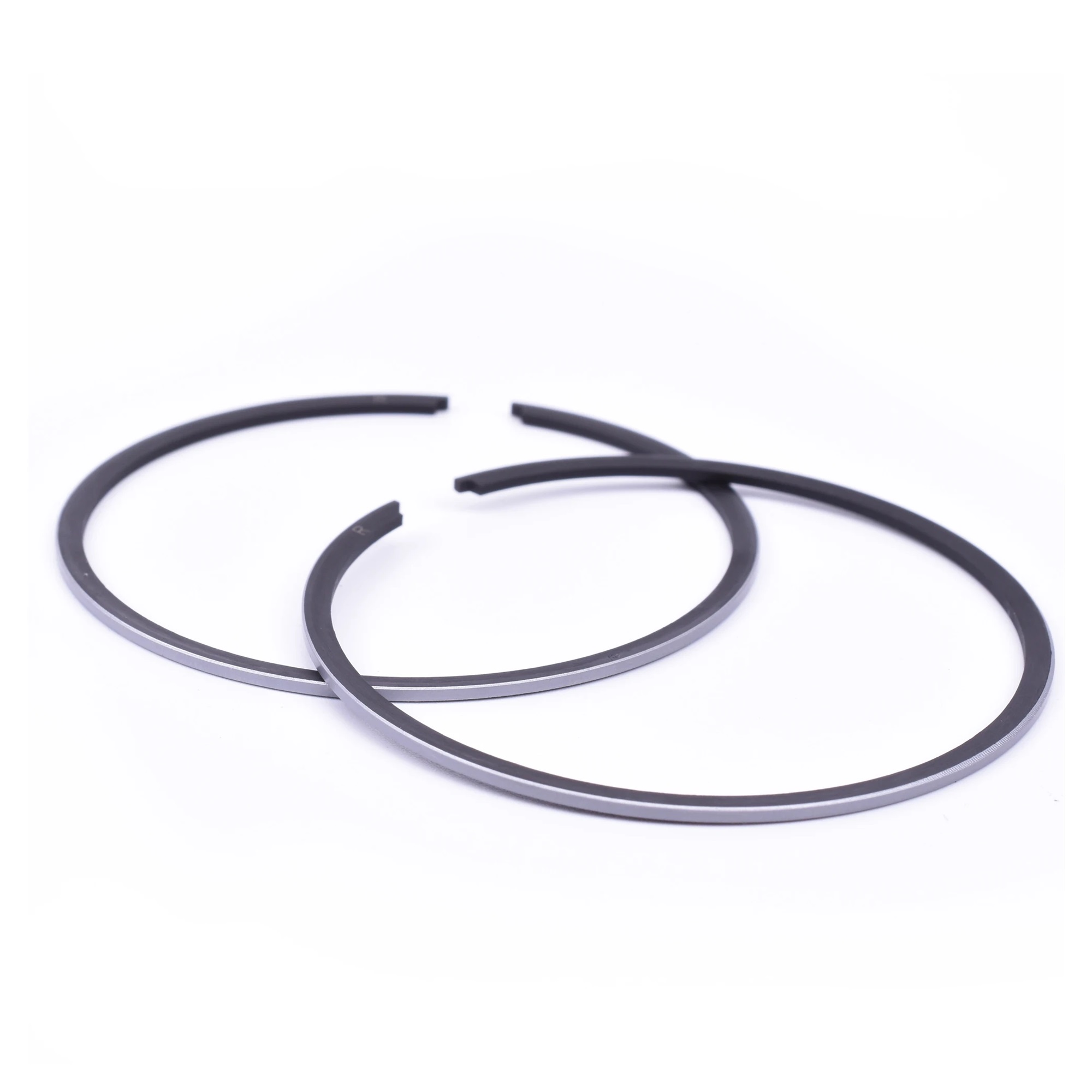

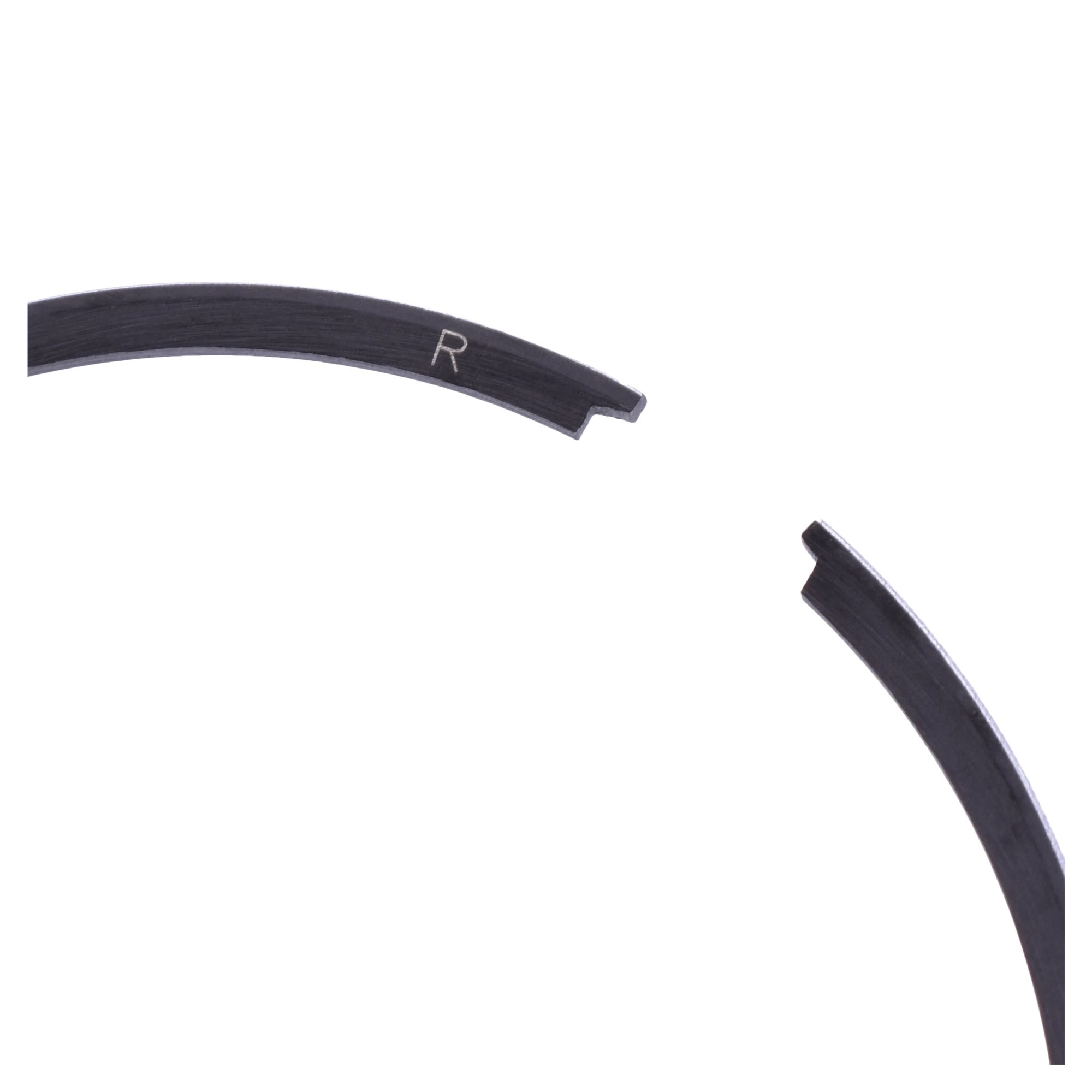

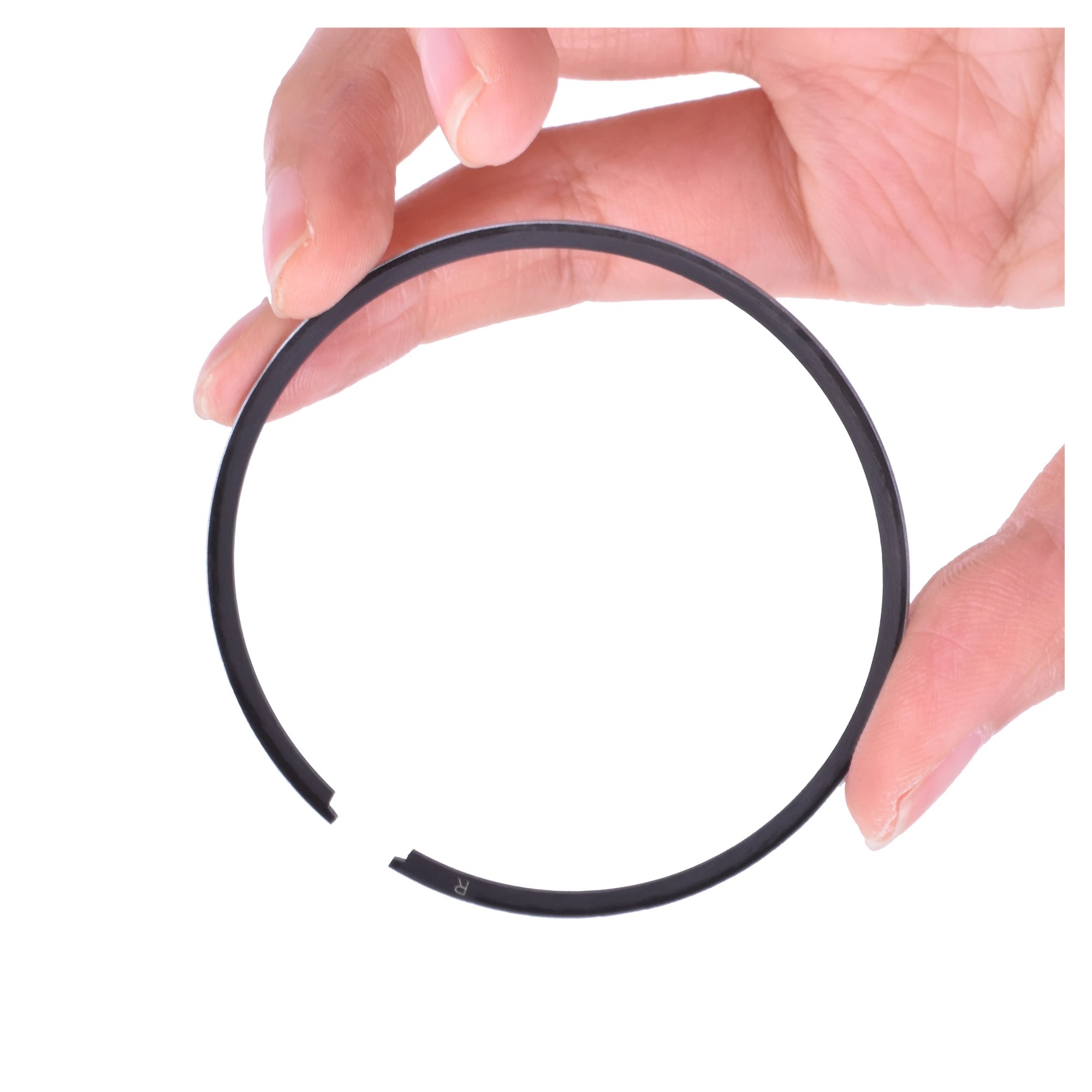

Motorcycle Piston Rings Set Installation Instructions

Tools Required:

1. Socket Wrench Set - For removing and installing engine components.
2. Torque Wrench - To ensure all bolts are tightened to the manufacturer’s specifications.
3. Piston Ring Compressor - To help in the installation of the piston rings onto the piston.
4. Pliers - For handling small parts and rings.
5. Gasket Scraper - To clean surface areas before fitting new components.
6. Rags or Shop Towels - To keep the work area clean and wipe off any excess oil or debris.
7. Engine Oil - For lubricating the piston and rings during installation.
8. Safety Goggles - To protect your eyes while working on the engine.

Installation Steps:

1. Preparation:

   • Disconnect the battery and remove any necessary fairings or covers to access the engine.
   • Drain the coolant and oil from the engine.

2. Remove the Cylinder Head:

   • Use the socket wrench to remove the bolts securing the cylinder head.
   • Carefully lift off the cylinder head, taking care not to damage any gaskets.

3. Remove the Old Piston Rings:

   • Use pliers to gently remove the old piston rings from the piston. Take note of the orientation and position for reference.

4. Clean the Piston and Cylinder:

   • Use a gasket scraper to thoroughly clean the top of the piston and the cylinder walls, ensuring no debris remains.

5. Install the New Piston Rings:

   • Lightly oil the new piston rings with engine oil.
   • Using the piston ring compressor, carefully install the new piston rings onto the piston. Ensure the rings are oriented correctly.

6. Reinstall the Piston:

   • Insert the piston into the cylinder. Use the piston ring compressor to help compress the rings as you push the piston down.

7. Reattach the Cylinder Head:

   • Place the cylinder head back onto the engine and secure it with the bolts. Use a torque wrench to tighten the bolts to the specified torque.

8. Reassemble the Engine:

   • Reinstall any removed parts and covers. Refill the engine with oil and coolant as necessary.

9. Final Check:

   • Reconnect the battery and perform a final inspection to ensure all tools are removed from the work area and components are properly secured.

Conclusion:

Follow these steps carefully to successfully install your Motorcycle Piston Rings Set. Always refer to your motorcycle's service manual for specific guidelines and specifications related to your model. Happy riding!
