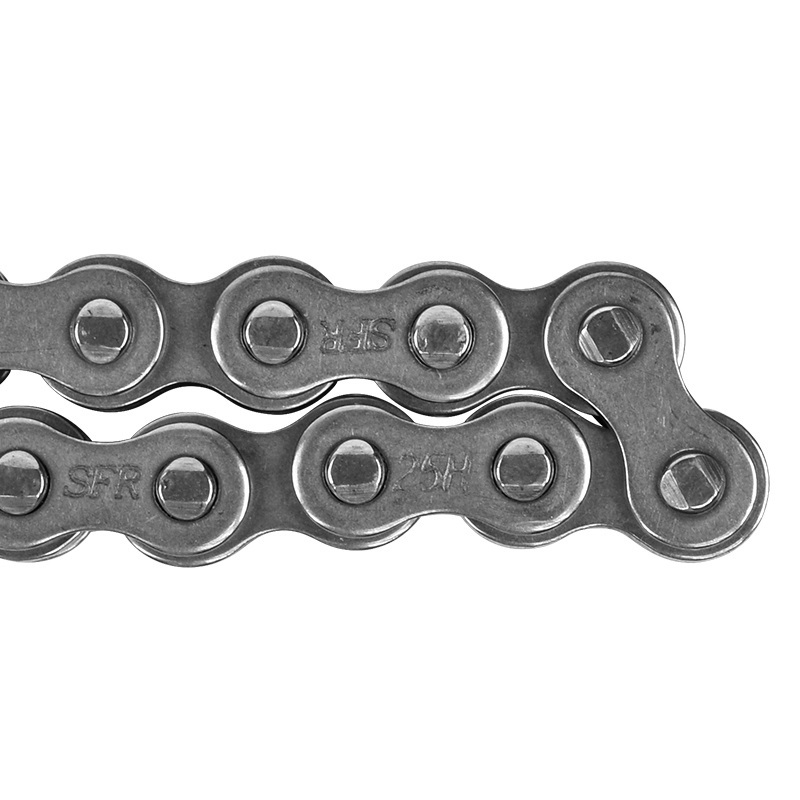

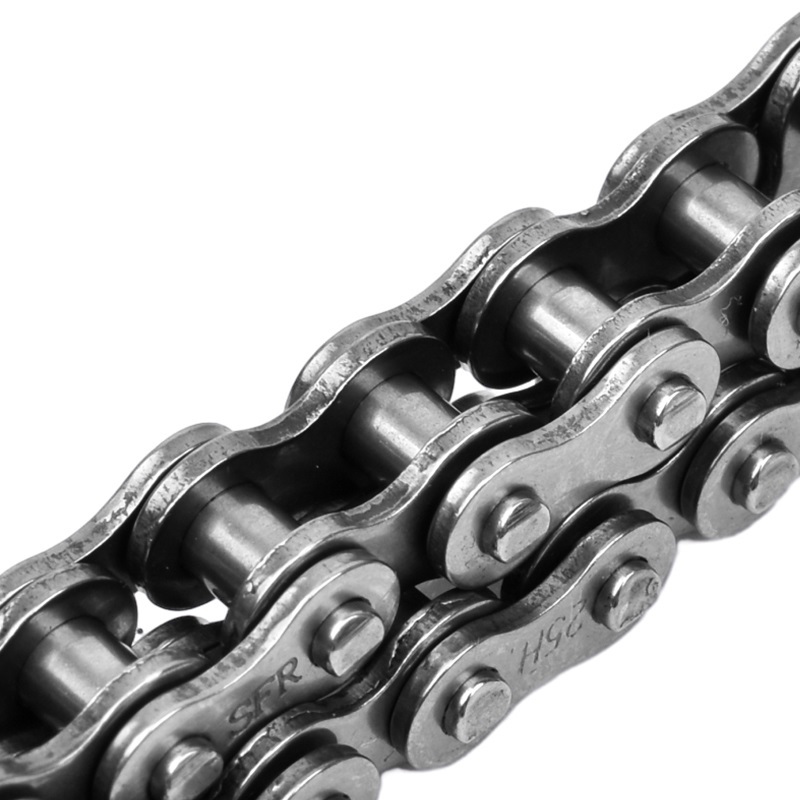

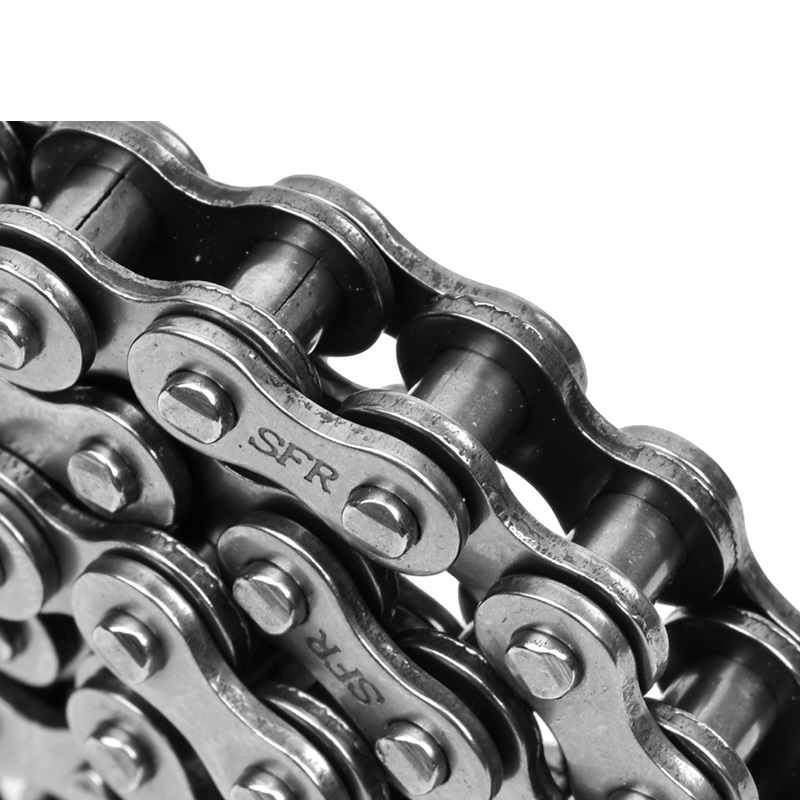

Product Installation Instructions for Motorcycle Crankshaft Cam Timing Chain

Compatibility:
This timing chain is designed to fit the following models:

• Z50RD (1986)
• Z50A (1969 to 1978)
• Z50R (1979 to 1999)

It perfectly matches a variety of classic motorcycles.

Installation Steps:

1. Preparation:
   Ensure you have a clean and safe workspace. Make sure the motorcycle is on a stable surface and turned off.

2. Tools Needed:
   Before starting the installation, gather the following tools:
   -Socket wrench set

   • Screwdriver set (both Phillips and flathead)
     -Torque wrench
     -Pliers
   • Chain breaker tool (optional, depending on your current setup)
   • Lubricant (chain oil)

3. Remove the Old Chain:

   • Disconnect the battery to ensure safety.
   • Remove any covers that obstruct access to the timing chain.
   • Use the chain breaker tool if necessary to break the old chain.
   • Carefully remove the old timing chain from the crankshaft and camshaft.

4. Inspect Components:
   Before installing the new chain, inspect the sprockets and tensioners for wear or damage. Replace any worn components as necessary.

5. Install the New Chain:

   • Position the new timing chain on the crankshaft and camshaft according to the manufacturer's markings for timing alignment.
   • Ensure the chain fits snugly over the sprockets.

6. Reassemble:

   • Reinstall any covers you removed earlier.
   • Reconnect the battery.

7. Check Alignment and Tension:

   • Verify that the timing chain is properly aligned and tensioned as per the specifications.
   • Use the torque wrench to tighten any bolts to the appropriate torque setting.

8. Final Checks:

   • Before starting the engine, double-check all connections and ensure there are no loose parts.
   • Apply lubricant to the timing chain for optimal performance.

9. Start the Engine:

   • Start the motorcycle and listen for any unusual noises.
   • Allow it to run for a few minutes and check for proper operation.

10. Routine Maintenance:
    Regularly check and maintain the timing chain and its components to ensure longevity and reliable performance.

Note:
If you are unsure about any step of the installation or if specific tools are required, it is recommended to consult a professional mechanic. Always prioritize safety during installation.
