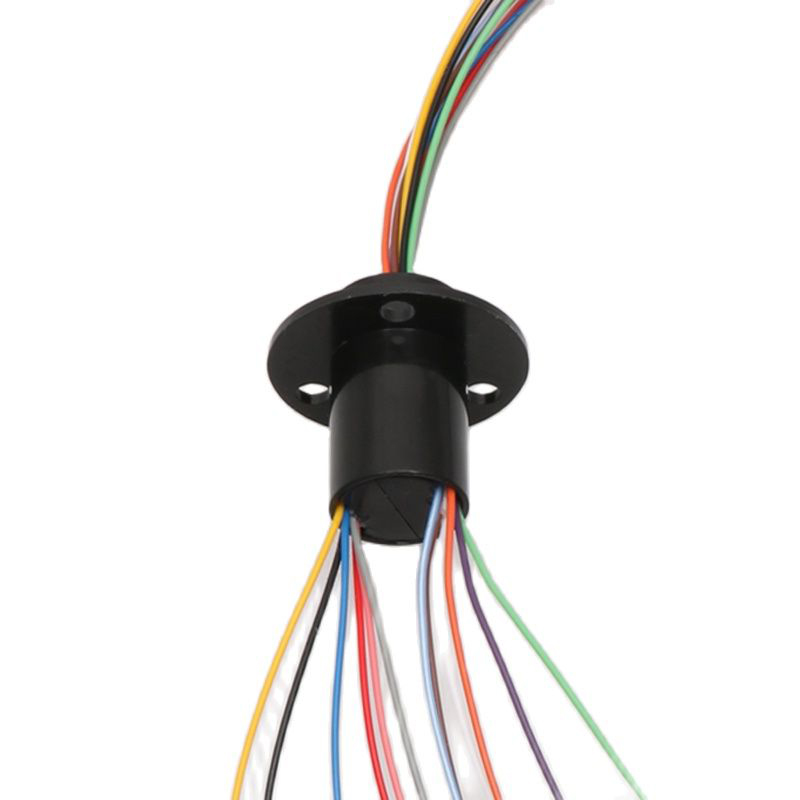

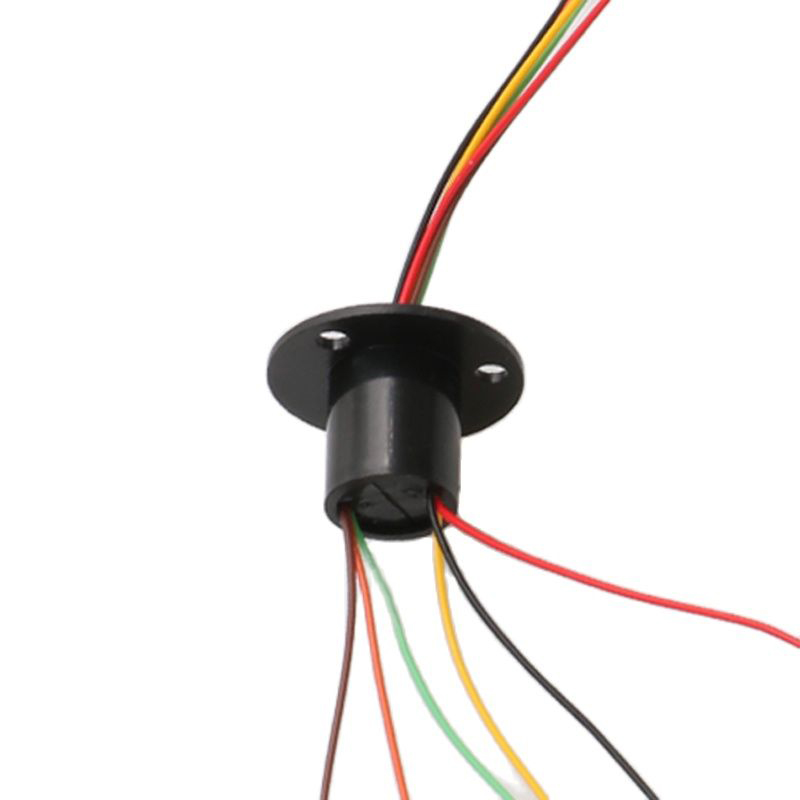

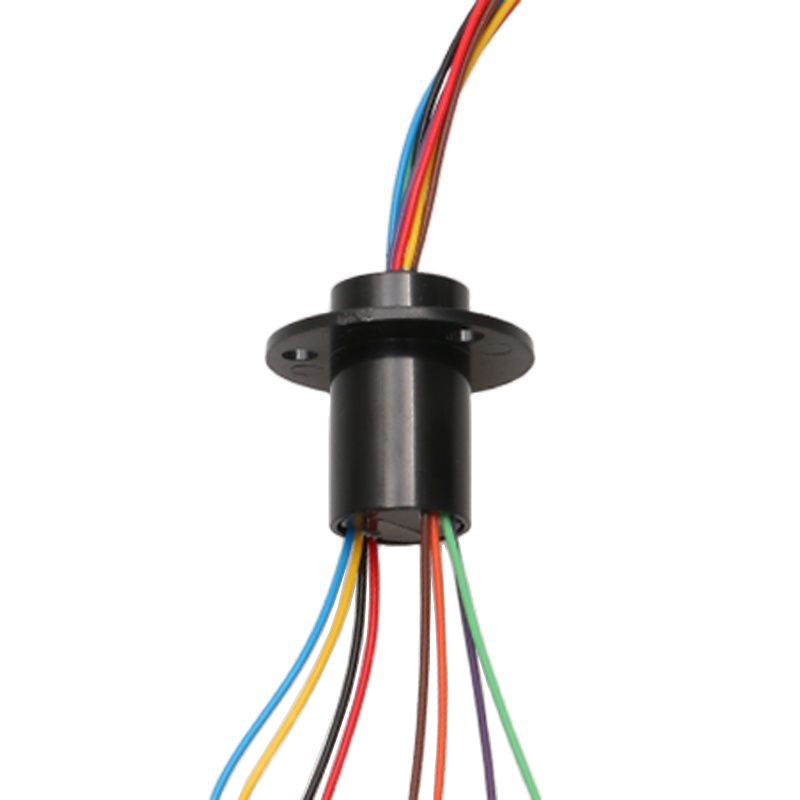

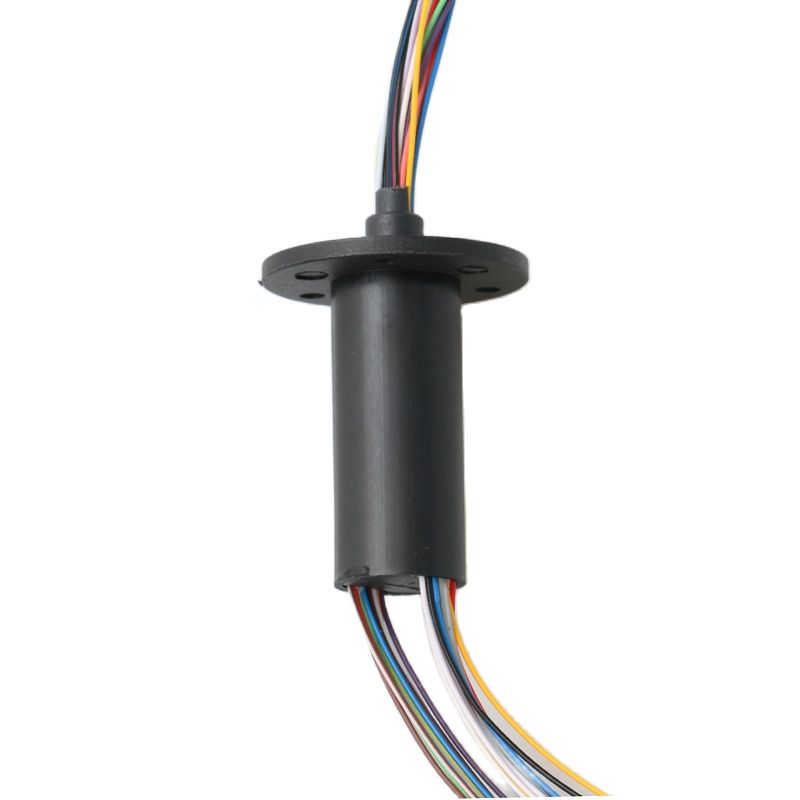

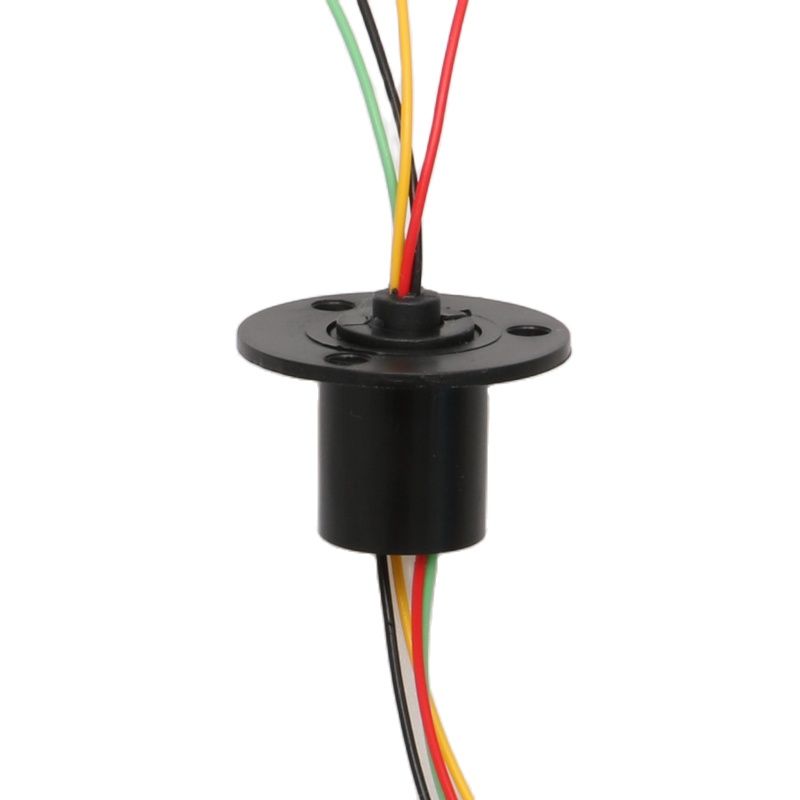

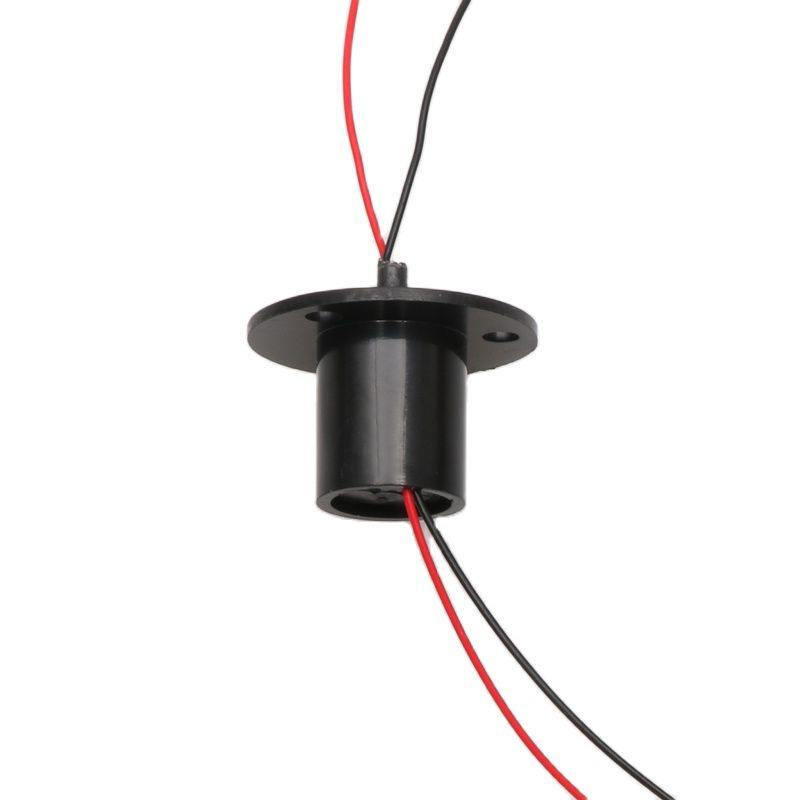

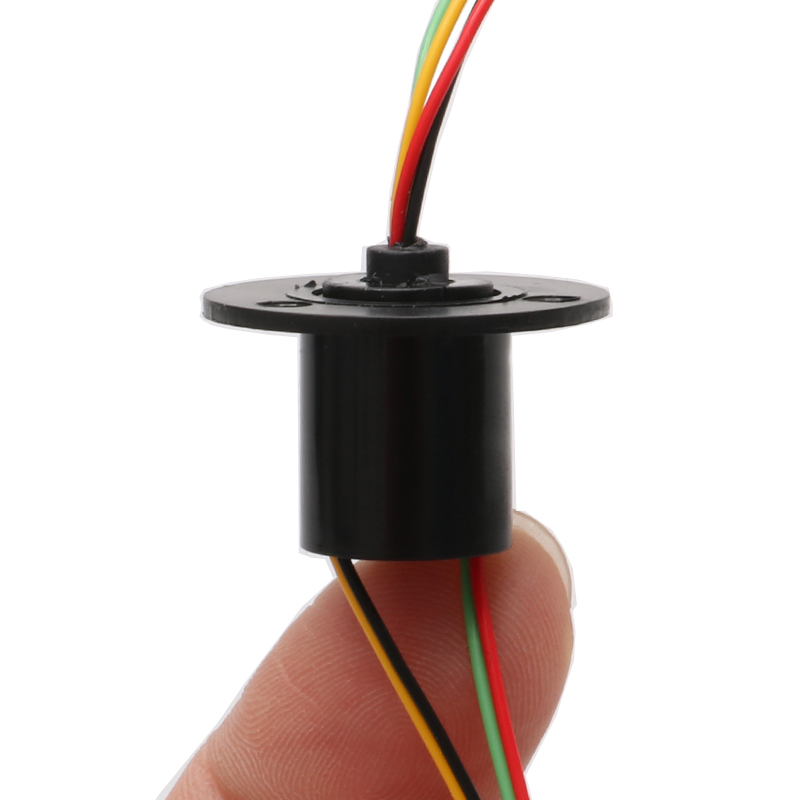

Installation Instructions for Micro Slip Ring 2/4/6/8/12/24 Channel Wires

Tools Required:

1. Screwdriver Set - For securing the slip ring to the designated surface.
2. Wire Strippers - To prepare the connecting wires for installation.
3. Soldering Iron - If solder connections are required for more secure and reliable electrical connections.
4. Heat Shrink Tubing (Optional) - To insulate any exposed wiring after connections are made.
5. Multimeter - To test electrical connections and ensure proper continuity.
6. Cable Ties - For organizing wires and ensuring a neat installation.

Installation Steps:

1. Preparation: Ensure that the installation area is clean and that all parts are free from damage. Verify that you have all necessary tools before starting.

2. Mounting the Slip Ring:

   • Identify the location where the slip ring will be mounted.
   • Use the screwdriver to secure the slip ring to the rotating surface (e.g., the base of the rotating dining table). Make sure it is firmly attached to withstand rotation.

3. Wiring Connections:

   • Cut and strip the ends of the wires you intend to connect to the slip ring, ensuring they are of appropriate length.
   • If soldering is needed, carefully solder the wires to the corresponding terminals on the slip ring, ensuring a secure and stable connection.
   • If using connectors, connect the wires according to the manufacturer's guidelines.

4. Insulation:

   • Use heat shrink tubing to cover any exposed wiring, ensuring that there are no short circuits during operation.

5. Testing:

   • Use a multimeter to check all connections for continuity. Make sure there are no open circuits or shorts before proceeding.

6. Organizing the Wires:

   • Use cable ties to bundle the wires together neatly. This will help minimize wear and tear during the rotation of the slip ring.

7. Final Check:

   • Double-check all connections and ensure that the slip ring is properly installed before using the rotating table.

8. Usage:

   • Once everything is securely connected and tested, you can now use your rotating dining table with confidence in the stability of the electrical connections.

Safety Precautions:

• Ensure the power is off during installation.
• Avoid exposure of the wiring to moisture or extreme temperatures.
• Regularly check the slip ring for wear and proper operation.

By following these steps and using the required tools, you will ensure a successful installation of the Micro Slip Ring for your rotating dining table.
