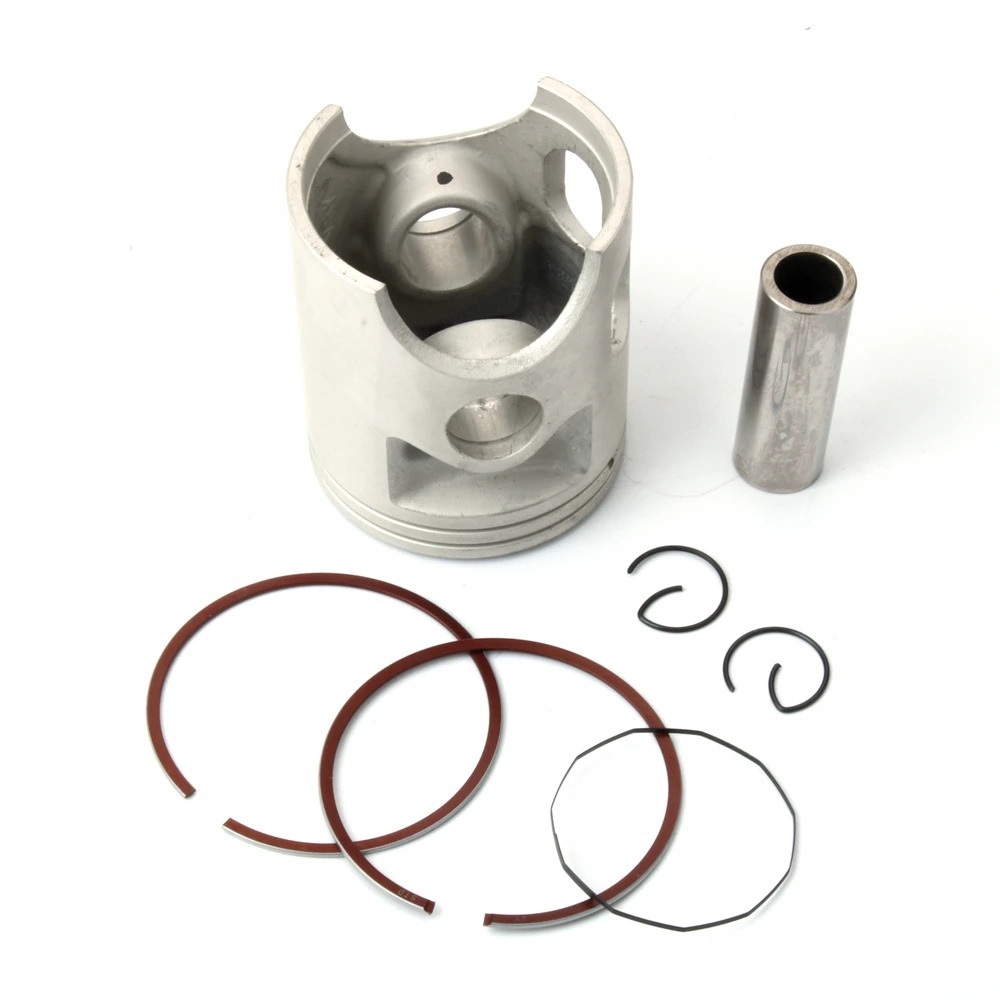

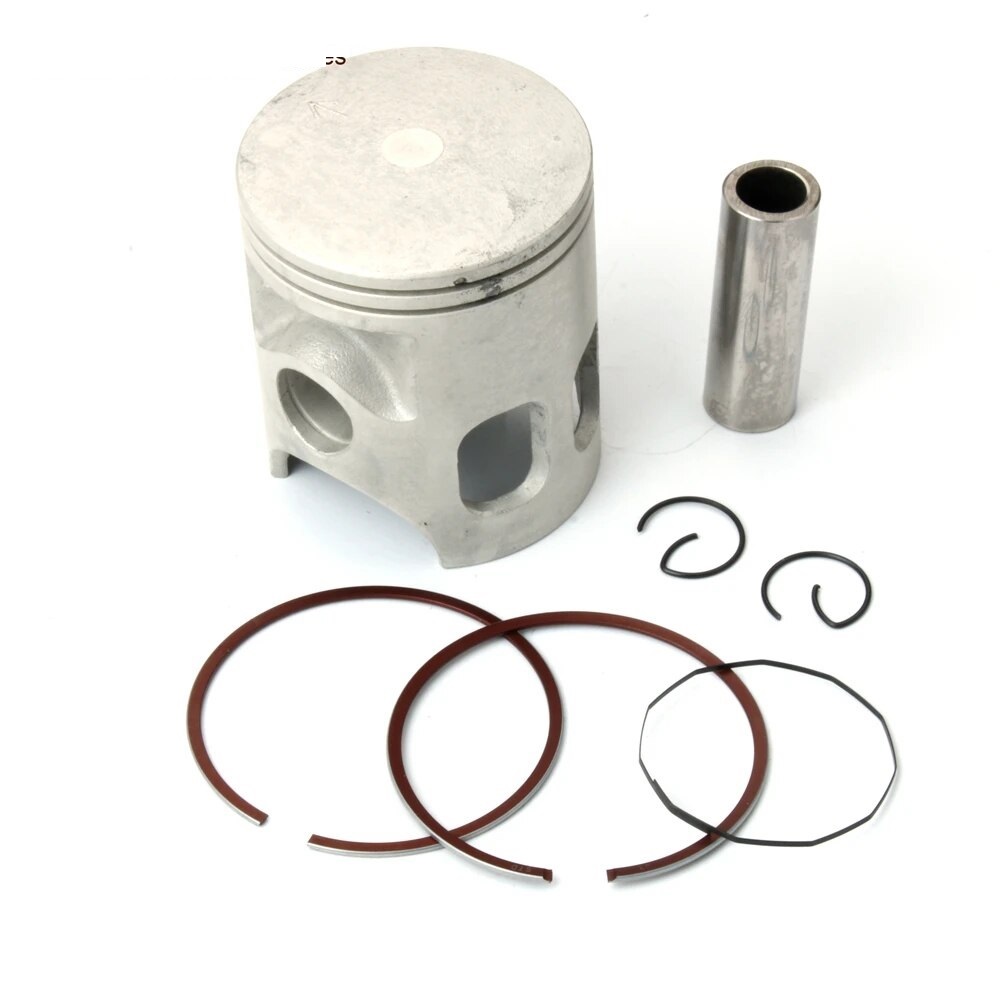

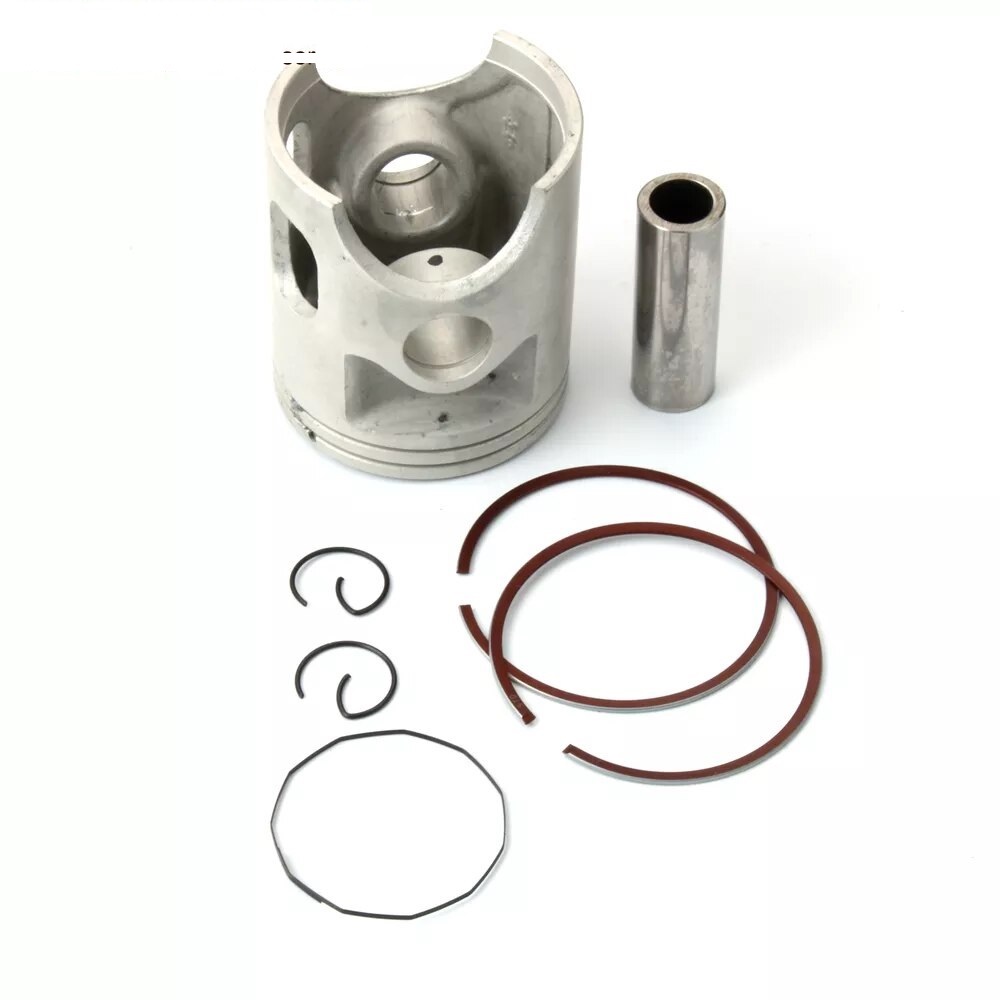

Installation Instructions for 125cc Motorcycle Piston Kit for 2-Stroke Engine

Tools Required:

1. Socket Wrench Set
2. Torque Wrench
3. Piston Ring Compressor Tool
4. Screwdriver Set (Flathead and Phillips)
5. Pliers
6. Rubber Mallet
7. Clean Cloth or Shop Towels
8. Engine Oil (for lubrication)
9. Safety Gear (gloves, goggles)

Installation Steps:

1. Preparation:

   • Ensure you have all the required tools on hand.
   • Make sure the motorcycle is parked on a flat surface and is stable.

2. Remove the Engine Cover:

   • Use the socket wrench to remove the bolts securing the engine cover.
   • Carefully lift the cover off and set it aside.

3. Remove the Old Piston:

   • Take note of the current arrangement of components.
   • Use the socket wrench to detach the cylinder head.
   • Gently pull out the old piston from the cylinder. If necessary, use a rubber mallet for leverage.

4. Install the Piston Kit:

   • Lubricate the new piston and piston rings with engine oil.
   • Utilize the piston ring compressor tool to install the piston rings onto the piston correctly.
   • Carefully insert the new piston into the cylinder.

5. Reattach the Cylinder Head:

   • Position the cylinder head back onto the engine.
   • Secure it with the bolts using the torque wrench to the manufacturer's recommended specifications.

6. Reinstall the Engine Cover:

   • Place the engine cover back onto the engine.
   • Tighten the bolts securely with the socket wrench.

7. Final Checks:

   • Double-check all connections and ensure everything is tightened properly.
   • Clean any spills or residual oil with a clean cloth or shop towel.

8. Testing:

   • Start the motorcycle and allow it to idle for a few minutes.
   • Listen for any unusual sounds and check for leaks.

Safety Precautions:

• Wear safety gloves and goggles while working on the engine.
• Ensure the motorcycle is turned off and cool to the touch before beginning the installation.

By following these instructions, you will have successfully installed the 125cc Motorcycle Piston Kit, enhancing your motorcycle's performance and efficiency.
