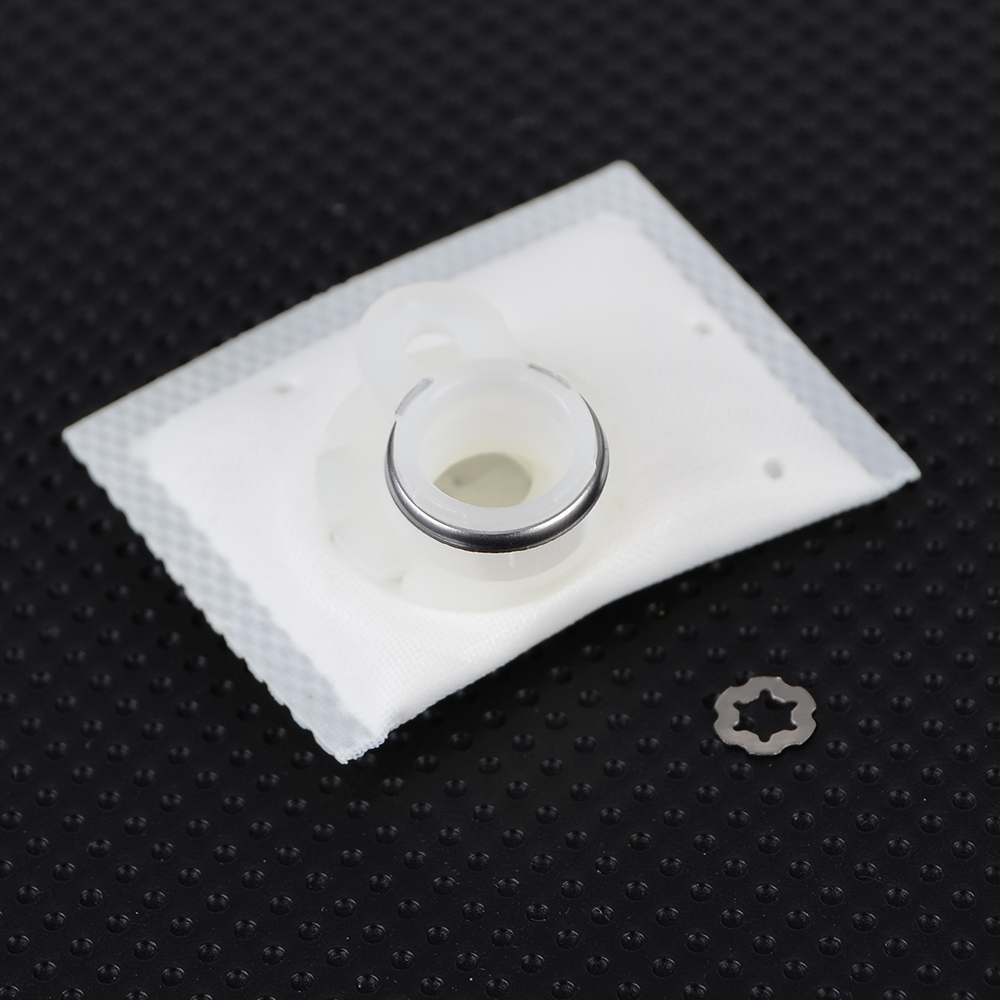

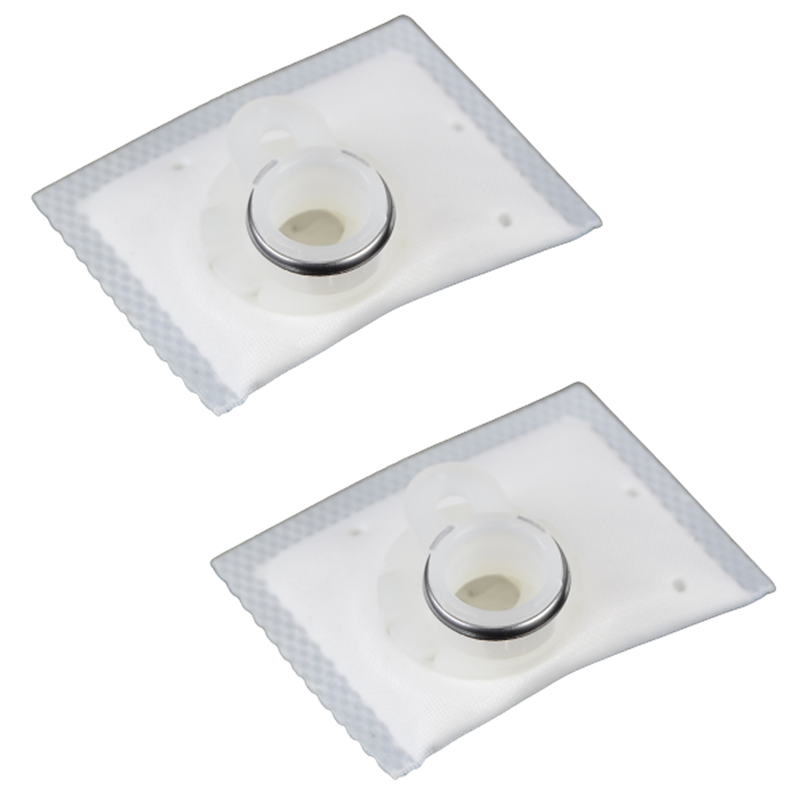

Product Installation Instructions for Motorcycle Fuel Pump Filters

Compatibility
This fuel pump filter is compatible with multiple motorcycle models, including FZ6N, FZ6S, FZ6 Fazer, FZ6R, FJR1300, YZF R1, R1S, R6, R6S, XTZ1200, and Bonneville.

Installation Requirements:

To successfully install your new fuel pump filter, you will need the following tools and materials:

1. Tools Needed:

   • Screwdriver (flathead and Phillips)
     -Pliers
     -Wrench set
   • Fuel line removal tool (optional, but recommended)
     -Clean cloth or paper towels
   • Safety goggles
   • Gloves

2. Materials Needed:

   • New fuel pump filter (included in this package)
   • Fuel line O-rings or seals (if needed for replacement)
   • Fuel system cleaner (optional, for cleaning the fuel system)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is parked on a flat surface and the engine is cool.
   • Put on your safety goggles and gloves.

2. Relieve Fuel Pressure:

   • Locate the fuel pressure relief valve (if applicable) and follow the manufacturer's instructions to relieve the fuel pressure.

3. Access the Fuel Pump:

   • Remove the seat or side panel to gain access to the fuel pump assembly.
   • Disconnect the fuel lines carefully using a fuel line removal tool if necessary.

4. Remove the Old Fuel Pump Filter:

   • Disconnect the old fuel pump filter from the fuel pump assembly. Use pliers if needed to loosen any clamps.
   • Take out the old filter and dispose of it properly.

5. Install the New Fuel Pump Filter:

   • Place the new fuel pump filter in position, ensuring it aligns with the fuel pump assembly.
   • Reattach any clamps or connections securely.

6. Reconnect Fuel Lines:

   • Reconnect the fuel lines, ensuring they are sealed properly.
   • Replace any O-rings or seals if needed.

7. Reassemble the Motorcycle:

   • Reinstall the seat or side panel and ensure all screws are tightened.

8. Check for Leaks:

   • Turn the ignition key to the 'on' position (do not start) to allow the fuel pump to pressurize the system. Check for any fuel leaks around the newly installed filter.

9. Start the Motorcycle:

   • Start the engine and let it run for a few minutes, ensuring that it operates smoothly and without issues.

Conclusion:

By following these installation instructions, you will ensure the optimal performance of your motorcycle's fuel system and enhance your riding experience. If you encounter any difficulties, it's advisable to consult a professional mechanic. Enjoy your ride!
