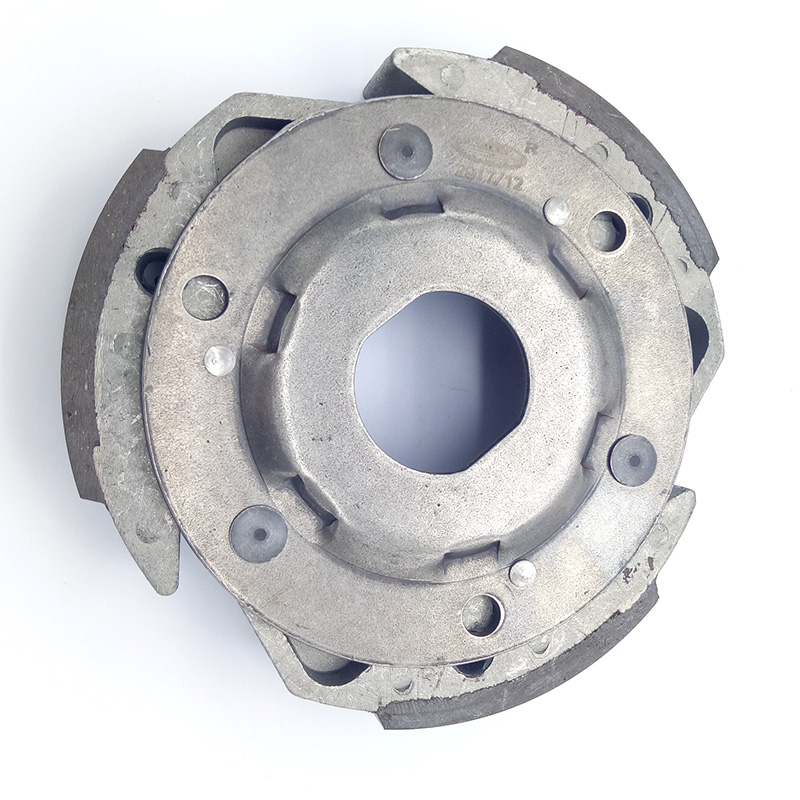

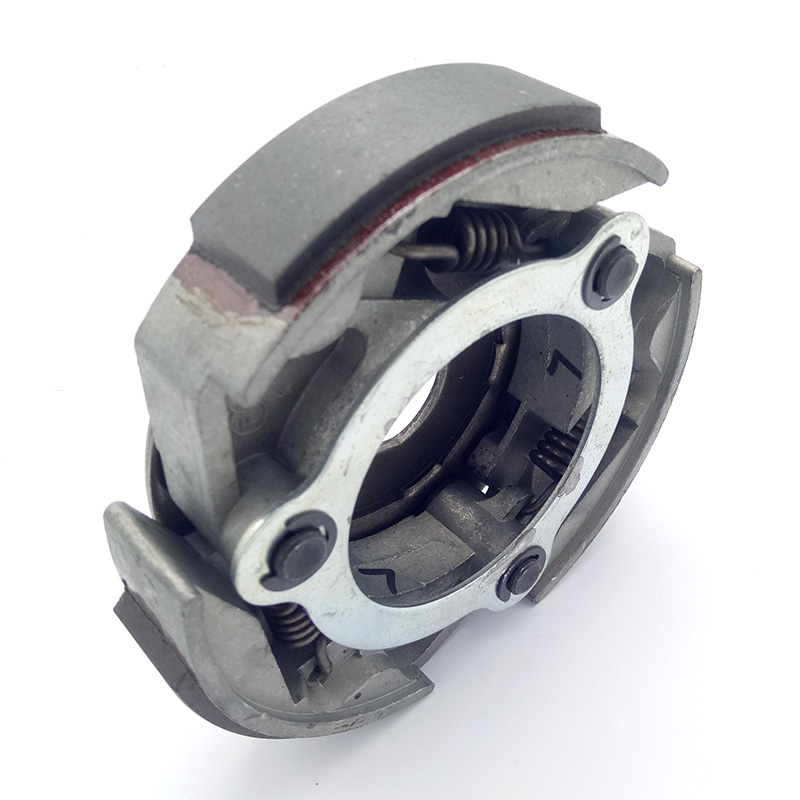

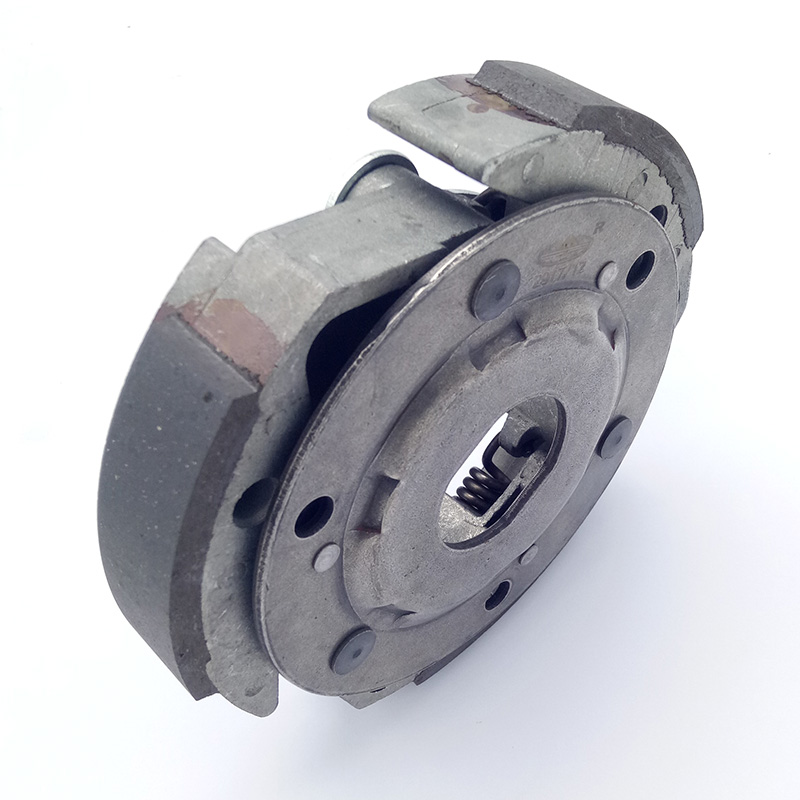

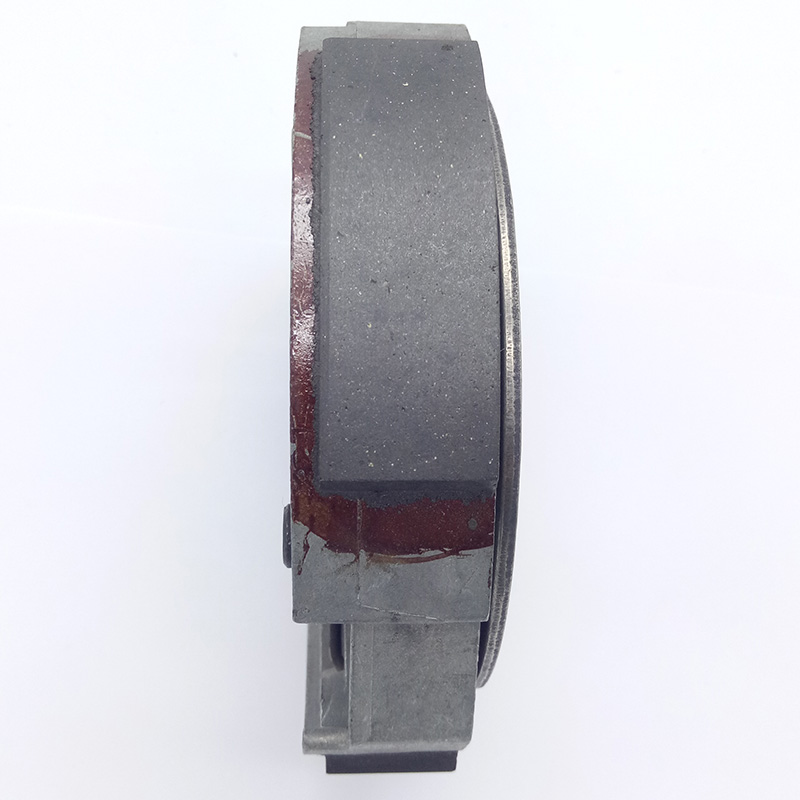

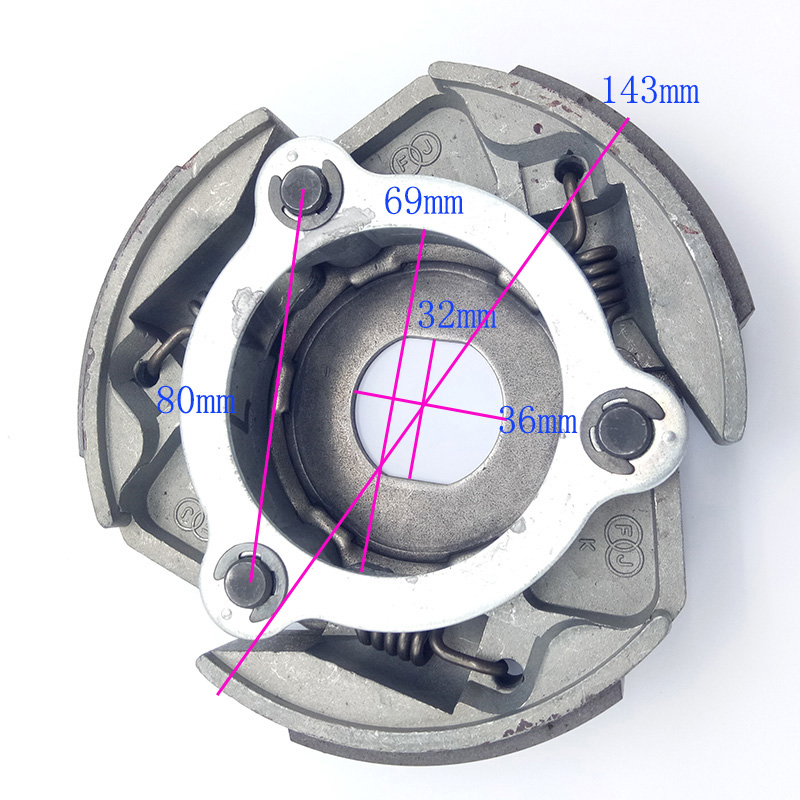

Product Installation Instructions for 143mm Universal Clutch

Compatibility:
This 143mm universal clutch is designed to be compatible with 250cc, 260cc, and 300cc engines, suitable for various ATVs, dune buggies, and off-road vehicles.

Tools Needed for Installation:
To ensure a smooth installation process, please have the following tools ready:

1. Socket Wrench Set

   • Various sizes to fit the clutch cover and assembly bolts.

2. Torque Wrench

   • To ensure that all bolts are tightened to the specified torque settings.

3. Pliers

   • For removing or securing clips and cables.

4. Screwdrivers

   • Flathead and Phillips screwdrivers for any additional screws that may be present.

5. Impact Wrench (optional)

   • For quicker removal and installation of bolts, especially if they are rusted or corroded.

6. Clean Cloth or Rag

   • For cleaning mating surfaces before installation to ensure a proper fit.

7. Grease or Lubricant

   • For applying to the clutch components to facilitate smoother operation.

8. Safety Goggles and Gloves

   • For personal safety during the installation process.

Installation Steps:

1. Preparation: Ensure the engine is off and cool.

2. Remove the Old Clutch:

   • Use the socket wrench to remove the clutch cover and the old clutch assembly.

3. Clean the Mating Surface:

   • Wipe down the surface where the new clutch will be installed to remove any debris or old gasket material.

4. Install the New Clutch:

   • Place the new 143mm universal clutch onto the engine, ensuring it aligns properly with the other components.

5. Secure the Clutch:

   • Use the socket wrench to tighten all bolts to the specified torque. Make sure the clutch is securely fastened.

6. Reassemble Clutch Cover:

   • Reattach the clutch cover using the appropriate screws.

7. Check for Proper Function:

   • Before fully assembling the vehicle, manually rotate the clutch to ensure it moves freely without any obstruction.

8. Final Recheck:

   • Double-check all connections and tighten any loose bolts.

Conclusion:
With the right tools and following these steps, you should be able to install the 143mm Universal Clutch with ease. Enjoy enhanced performance and a smooth driving experience!
