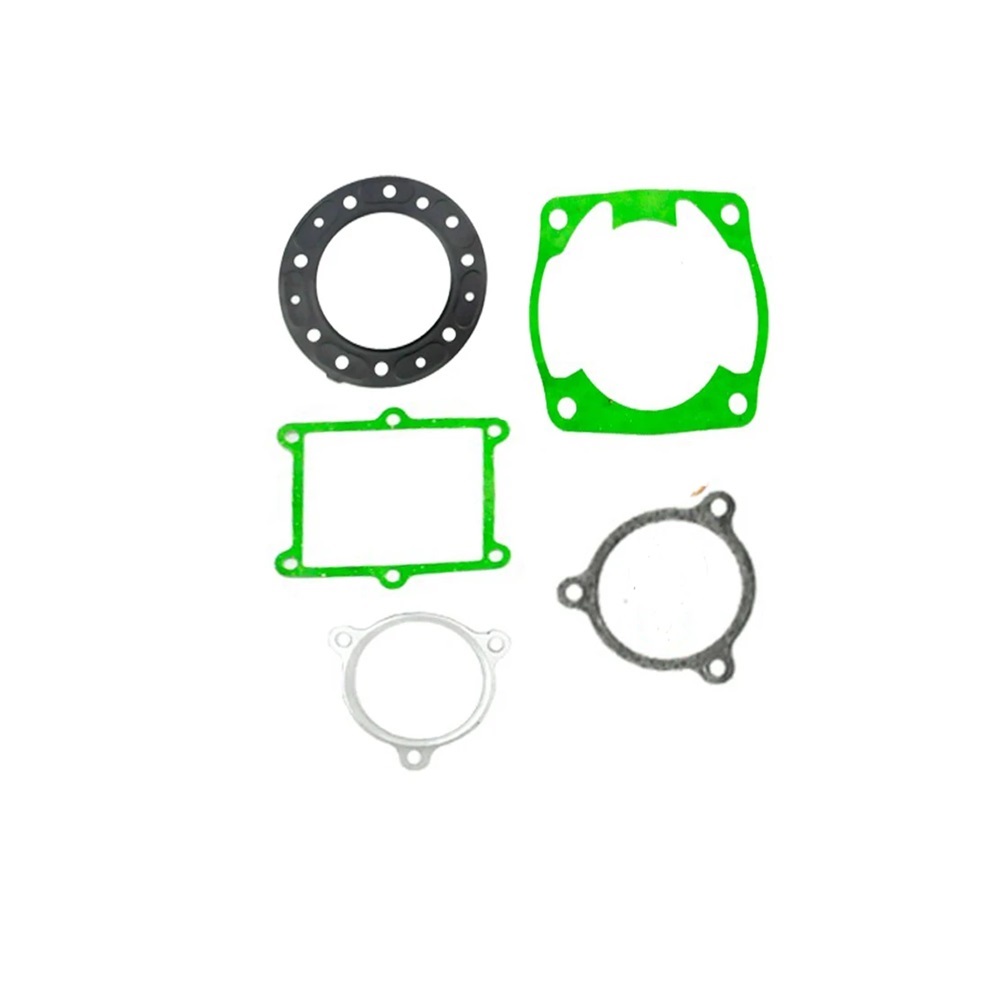

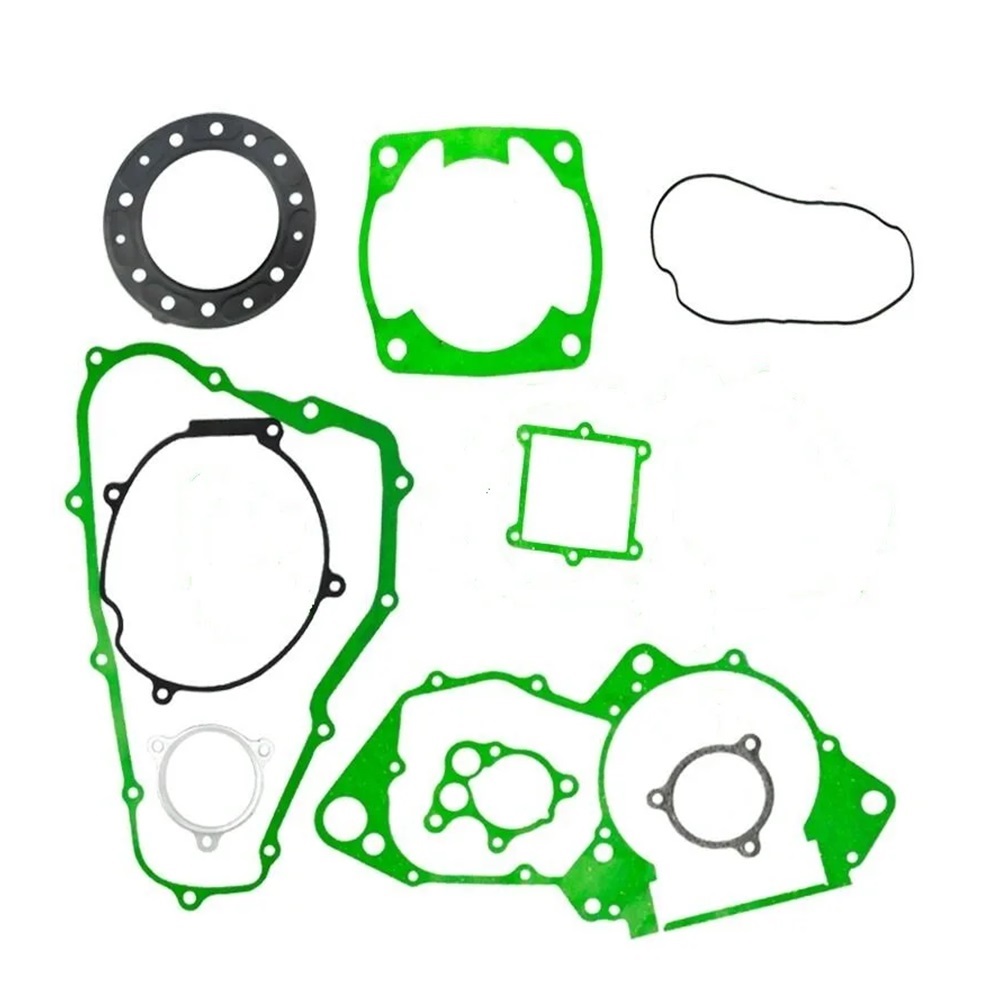

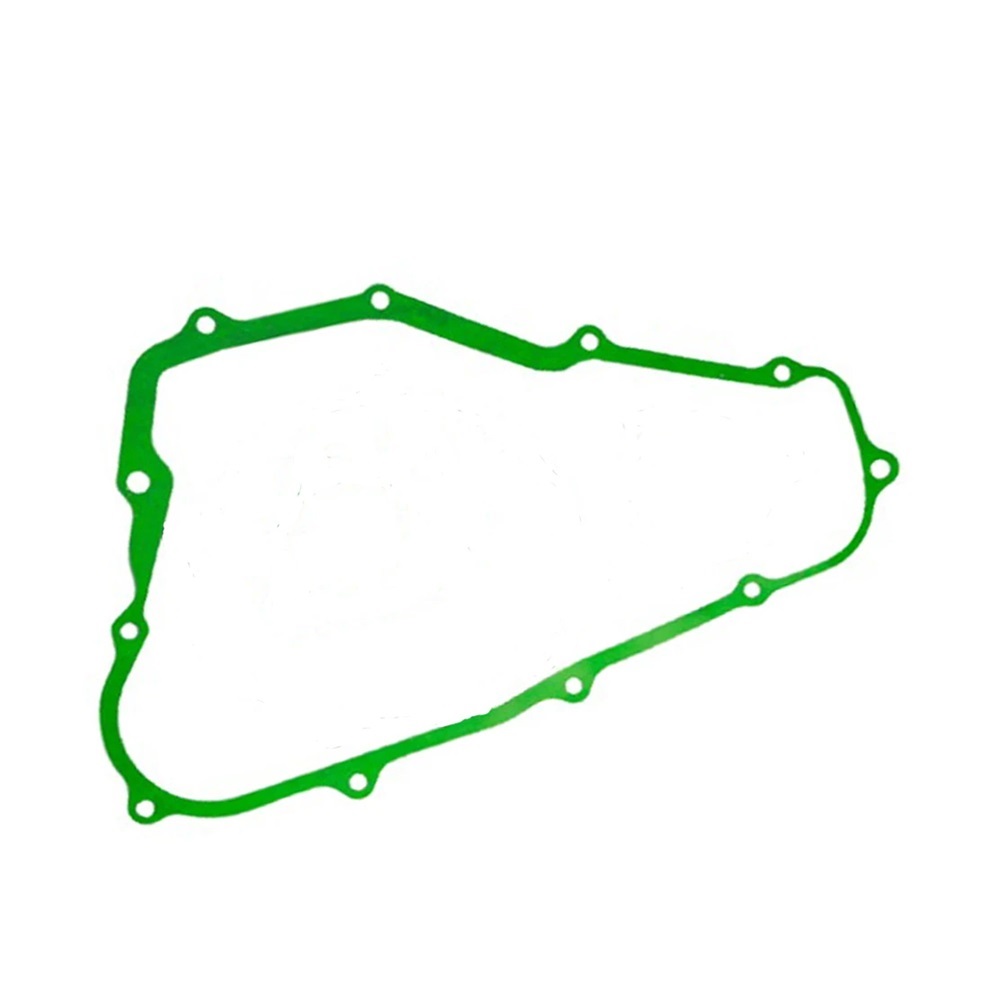

Installation Instructions for Motorcycle Engine Crankcase Covers and Cylinder Gasket Compatible with CR500 R Models (1985-1988)

Tools Required:

1. Socket Set:

   • 8mm, 10mm, and 12mm sockets
   • Ratchet wrench

2. Torque Wrench:

   • For precise tightening of bolts to manufacturer's specifications.

3. Screwdrivers:

   • Phillips and flathead screwdrivers for removing and securing screws.

4. Gasket Scraper:

   • To clean off the old gasket material from the crankcase and cylinder surfaces.

5. Cleaning Supplies:

   • Brake cleaner or degreaser for cleaning surfaces.
   • Lint-free rags or shop towels for drying and cleaning.

6. Digital Calipers (optional):

   • To check the surface flatness before installation.

7. Safety Gear:

   • Gloves and safety glasses to protect yourself during the installation process.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and can be securely supported.
   • Remove any panels or parts that obstruct access to the crankcase and cylinder area.

2. Drain Fluids:

   • Drain the engine oil and coolant as needed to prevent spills during installation.

3. Remove Old Covers and Gaskets:

   • Use the appropriate socket to remove the bolts securing the old crankcase covers.
   • Carefully detach the covers and replace the old gaskets. Use the gasket scraper to clean the surfaces thoroughly.

4. Install New Gasket:

   • Place the new cylinder gasket onto the designated area of ​​the cylinder.
   • Ensure that the gasket aligns properly with all bolt holes.

5. Install New Crankcase Covers:

   • Position the new crankcase covers over the gaskets.
   • Hand-tighten the bolts first to ensure even pressure across the surface.

6. Torque Bolts:

   • Use a torque wrench to tighten the bolts to the specifications indicated in the manufacturer’s manual.

7. Reattach Other Components:

   • Reinstall any parts or panels that were removed during the process.

8. Refill Fluids:

   • Refill the engine oil and coolant according to the manufacturer's recommendations.

9. Check for Leaks:

   • Start the engine and check for any leaks around the newly installed crankcase covers and gaskets.

10. Final Inspection:

    • After a brief test run, inspect for proper operation and tighten any bolts if necessary.

Safety Reminder: Always take proper safety precautions and consult a professional mechanic if unsure about any steps in the installation process.
