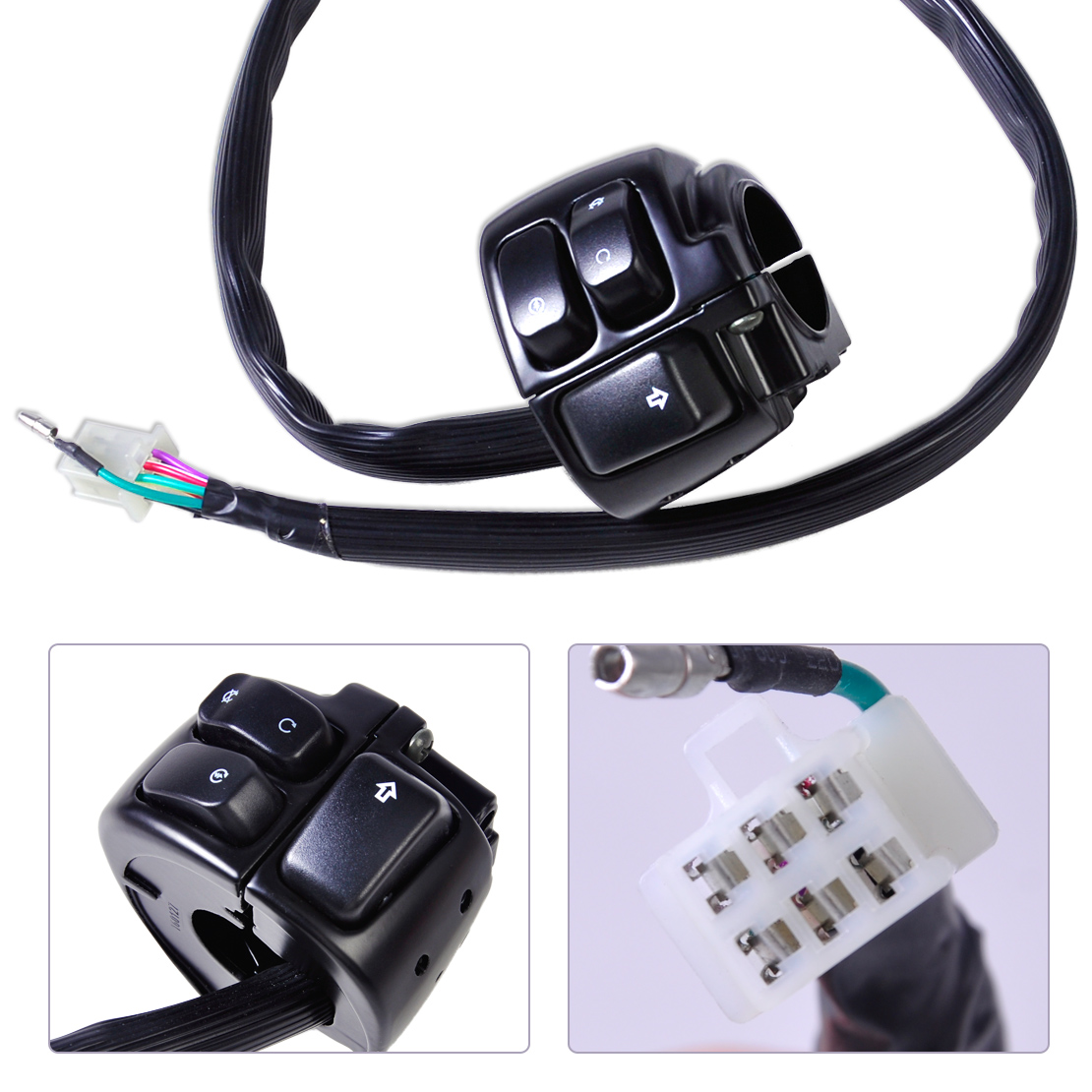

Installation Instructions for Motorcycle Handlebar Ignition Turn Switch Wiring Harness

Compatibility:

This wiring harness is compatible with Softail, Sportster 1200, 883, and VROD models, ensuring a perfect fit for a wide range of motorcycles.

Tools Required:

1. Flathead Screwdriver - For loosening and tightening screws.
2. Phillips Screwdriver - For screws requiring a Philips head.
3. Wire Cutters/Strippers - To cut and strip the wires as necessary.
4. Socket Wrench Set - To remove bolts and nuts if needed.
5. Electrical Tape or Heat Shrink Tubing - For securing and insulating connections.
6. Zip Ties - To organize and secure wiring.
7. Multimeter - To test electrical connections and voltages.

Installation Steps:

1. Prepare the Motorcycle: Ensure the motorcycle is on a flat surface and the ignition is turned off before starting the installation.

2. Remove Existing Handlebar Switch:

   • Use screwdrivers to remove the screws securing the current switch housing.
   • Disconnect the wiring harness from the existing ignition and turn switch.

3. Connect the New Wiring Harness:
   -Align the new wiring harness with the motorcycle's electrical system.

   • Connect the wires according to the color coding provided in the installation manual, ensuring secure connections.

4. Secure Connections:

   • Use electrical tape or heat shrink tubing to insulate and secure all wire connections.
   • Use zip ties to manage excess wire and keep the area tidy.

5. Reinstall Switch Housing:

   • Place the new ignition turn switch into the housing.
   • Screw the housing back into place securely.

6. Testing:

   • Use a multimeter to check all connections and ensure they are functioning properly.
   • Turn on the ignition and test the turn signals for proper operation.

7. Final Checks:

   • Verify that the switch operates smoothly and there are no loose connections.
   • Ensure that the handlebar functions are easily accessible and comfortable to use.

Safety Reminder:

Always wear appropriate safety gear and adhere to safety precautions while installing motorcycle accessories. If you are unsure about any step, consult a professional for assistance.

Enjoy your ride with your newly installed Motorcycle Handlebar Ignition Turn Switch Wiring Harness!
