Engine Gasket Kit Installation Instructions for 1990-1995 XT600E Motorcycle

Tools Required:

1. Socket Set - Various sizes (including a torque wrench)
2. Wrench Set - Open-end and box-end wrenches
3. Screwdriver Set - Both flat-head and Phillips
4. Pliers - Needle-nose and regular pliers
5. Torque Specs Chart - Refer to your motorcycle’s service manual
6. Gasket Scraper or Putty Knife - For removing old gasket material
7. Lint-free Rags - For cleaning surfaces
8. Cleaning Solution - (e.g., brake cleaner or degreaser)
9. Gloves - To protect hands from contaminants
10. Safety Goggles - For eye protection
11. Work Light - To illuminate the work area
12. Container for Bolts - To keep track of removed bolts and hardware

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface.
   • Disconnect the battery to prevent any electrical issues.

2. Remove Old Parts:

   • Use the socket and wrench set to remove the crankcase cover bolts.
   • Carefully take off the crankcase cover and clean any old gasket material using a scraper.

3. Cleaning:

   • Thoroughly clean the mating surfaces of the crankcase and cover using a lint-free rag and cleaning solution. Make sure there's no leftover debris.

4. Install New Gaskets:

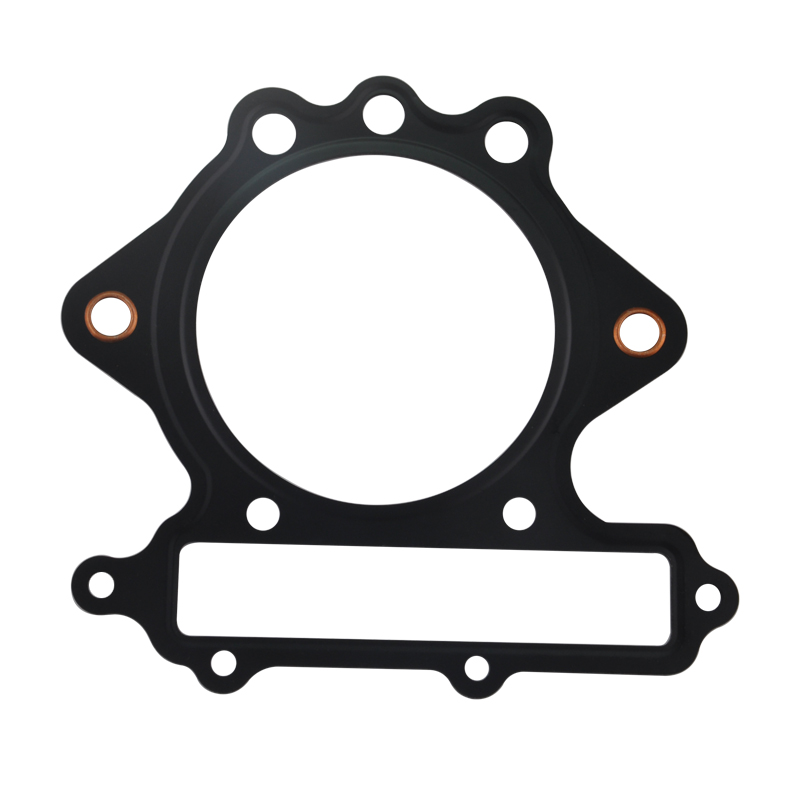

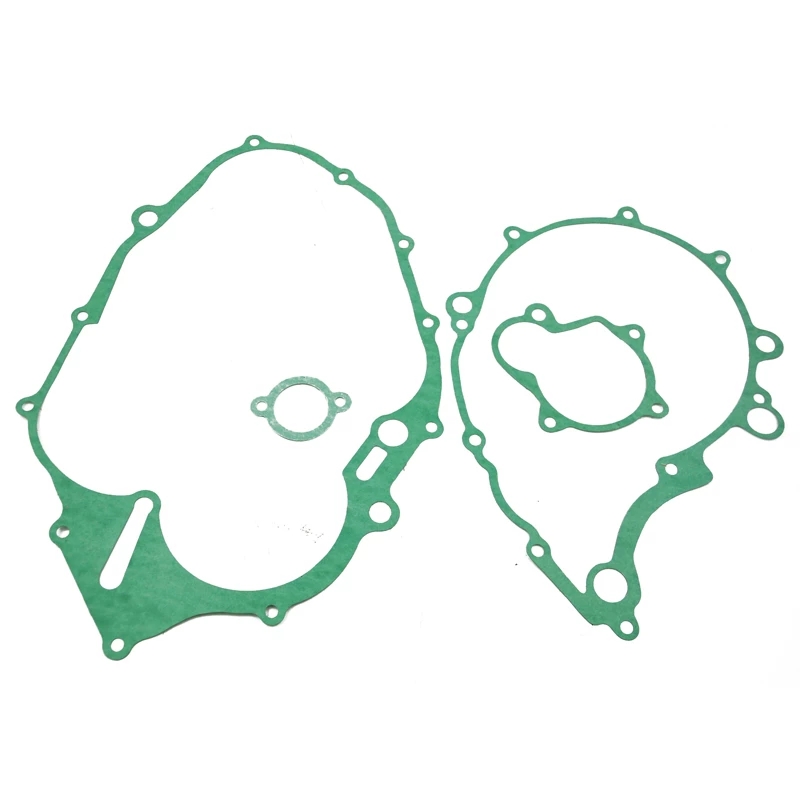

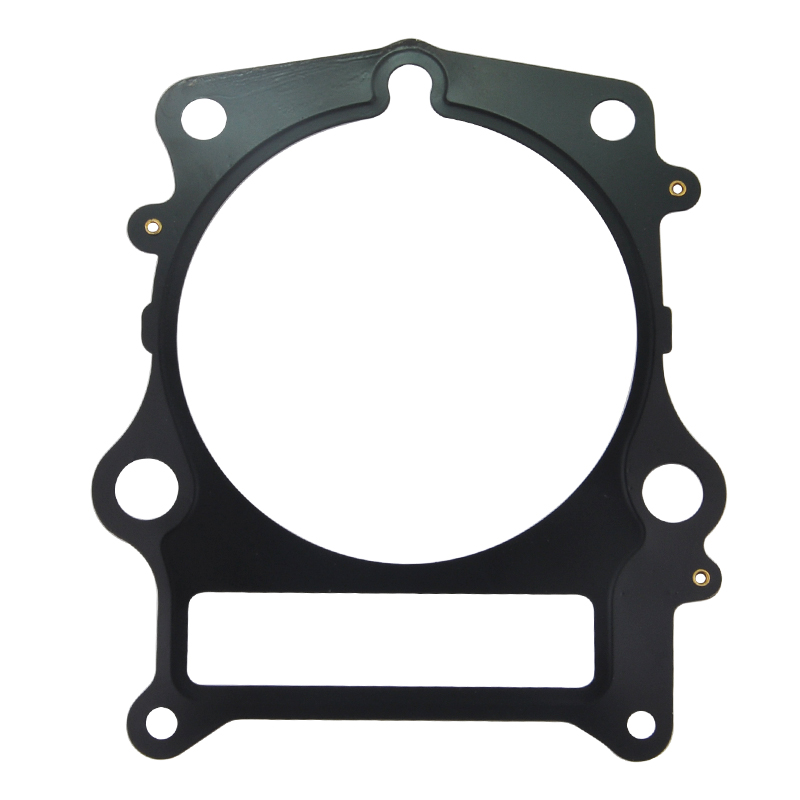

   • Select the correct gaskets from the engine gasket kit.
   • Apply a very light layer of gasket sealant if necessary (refer to manufacturer's instructions).

5. Reassemble:

   • Position the new gaskets in place and carefully place the crankcase cover back on.
   • Hand-tighten the bolts to hold the cover in place.

6. Torque the Bolts:

   • Follow the torque specifications outlined in your service manual to ensure each bolt is tightened properly.

7. Final Check:

   • Double-check that all bolts are securely fastened.
   • Reconnect the battery and ensure all electrical connections are intact.

8. Testing:

   • Start the motorcycle and check for any oil leaks around the newly installed gaskets.
   • Allow the engine to reach operating temperature and monitor for any irregularities.

Tips:

• Work in a clean environment to prevent dirt and debris from entering the engine.
• Always follow safety precautions while working on your motorcycle.
• If uncertain about any steps, consult the motorcycle’s service manual or a professional mechanic.

By following these instructions, you can successfully install the Engine Gasket Kit for your 1990-1995 XT600E motorcycle, ensuring a proper seal and improved engine performance.
