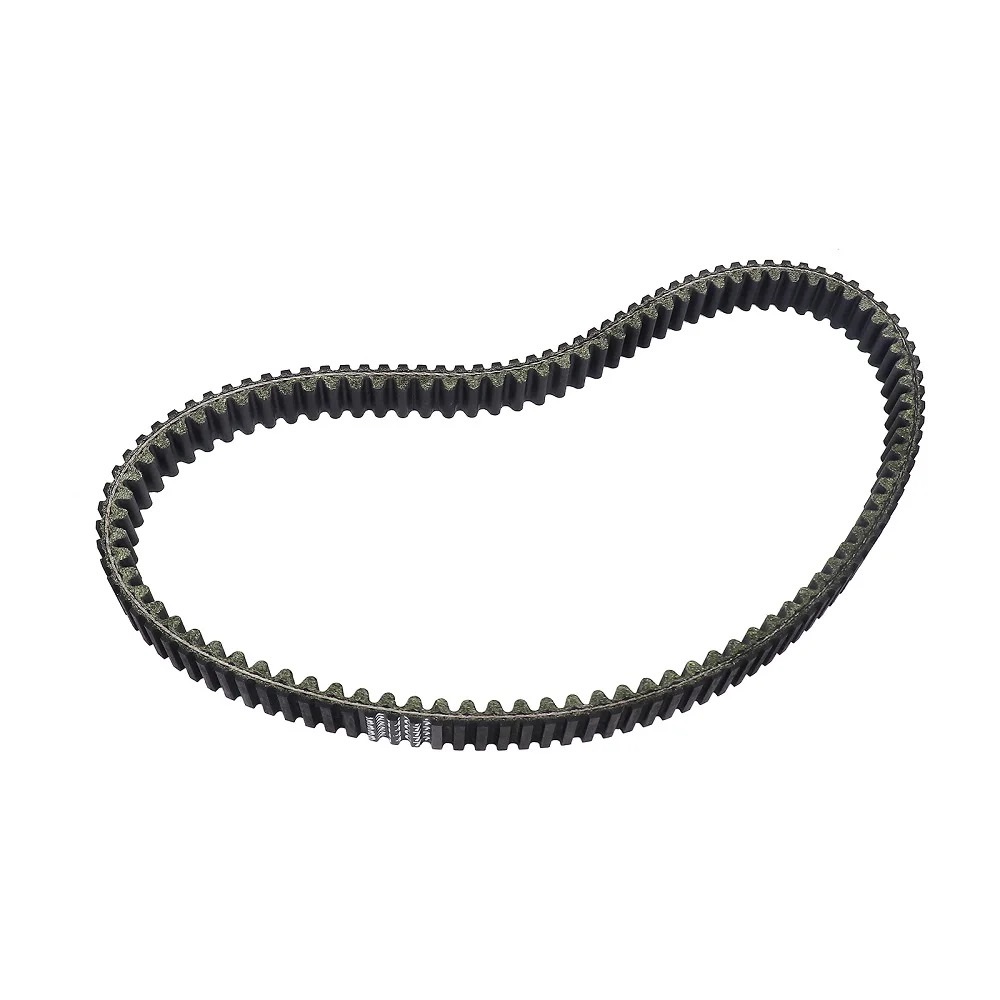

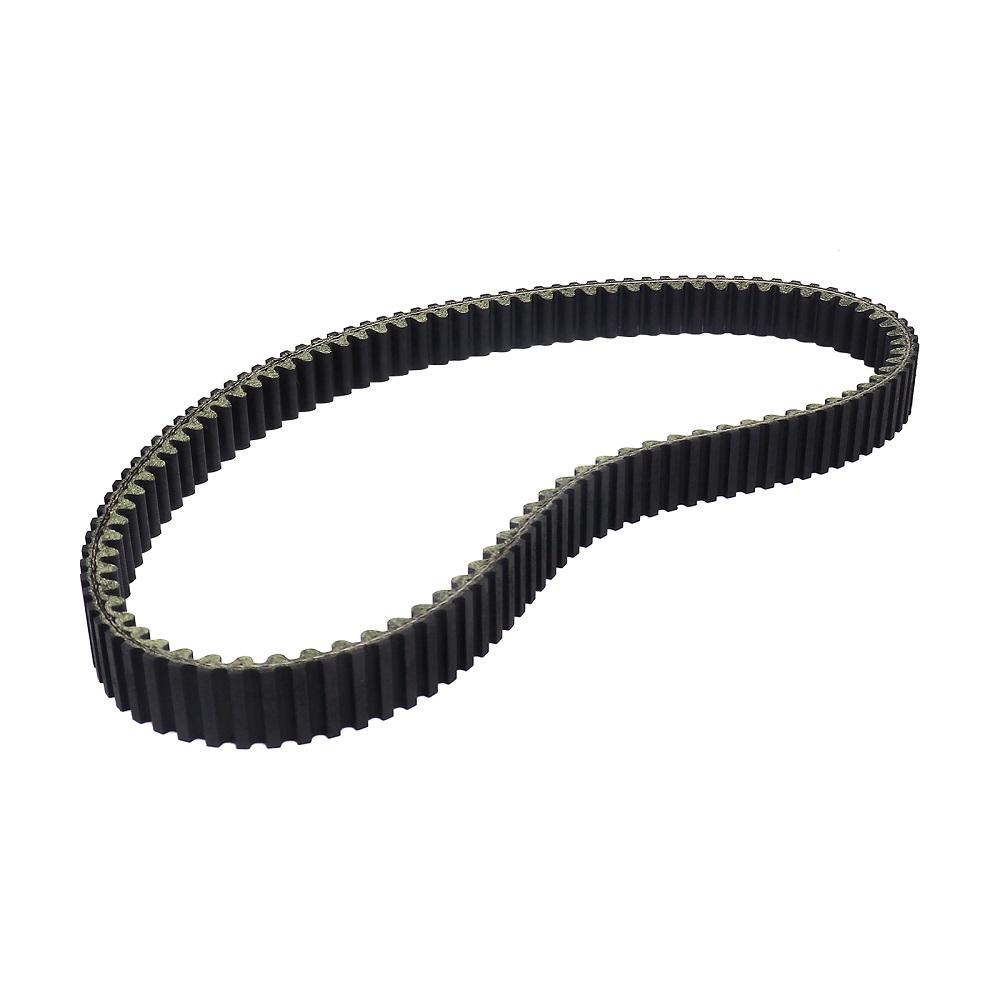

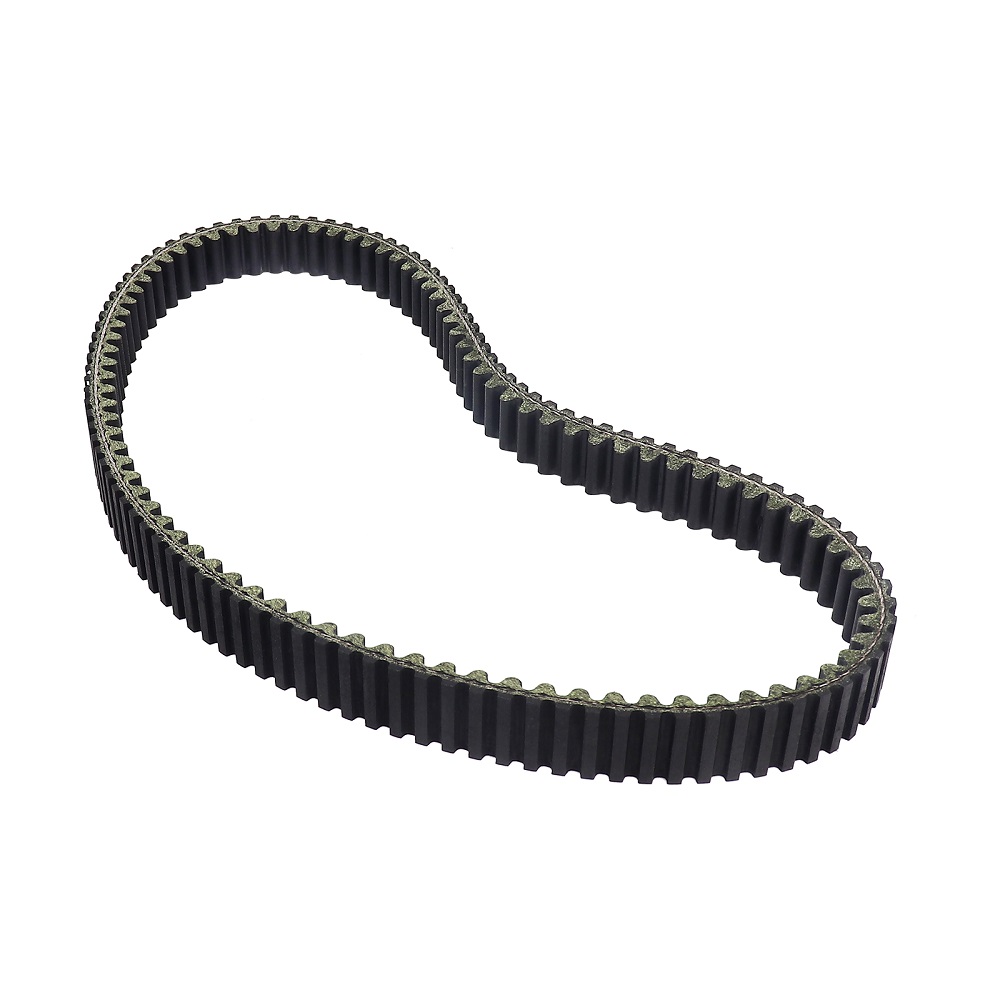

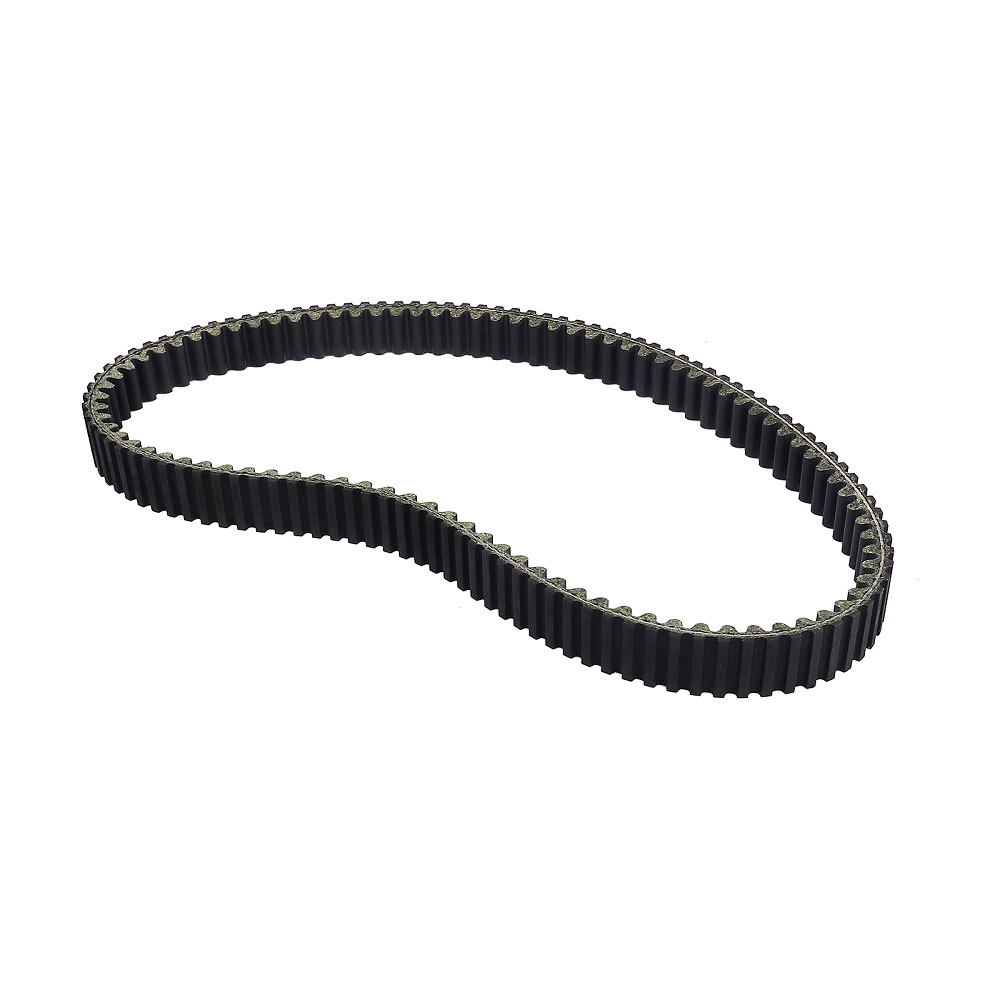

Product Installation Instructions for Drive Belt 3211048

Compatibility:

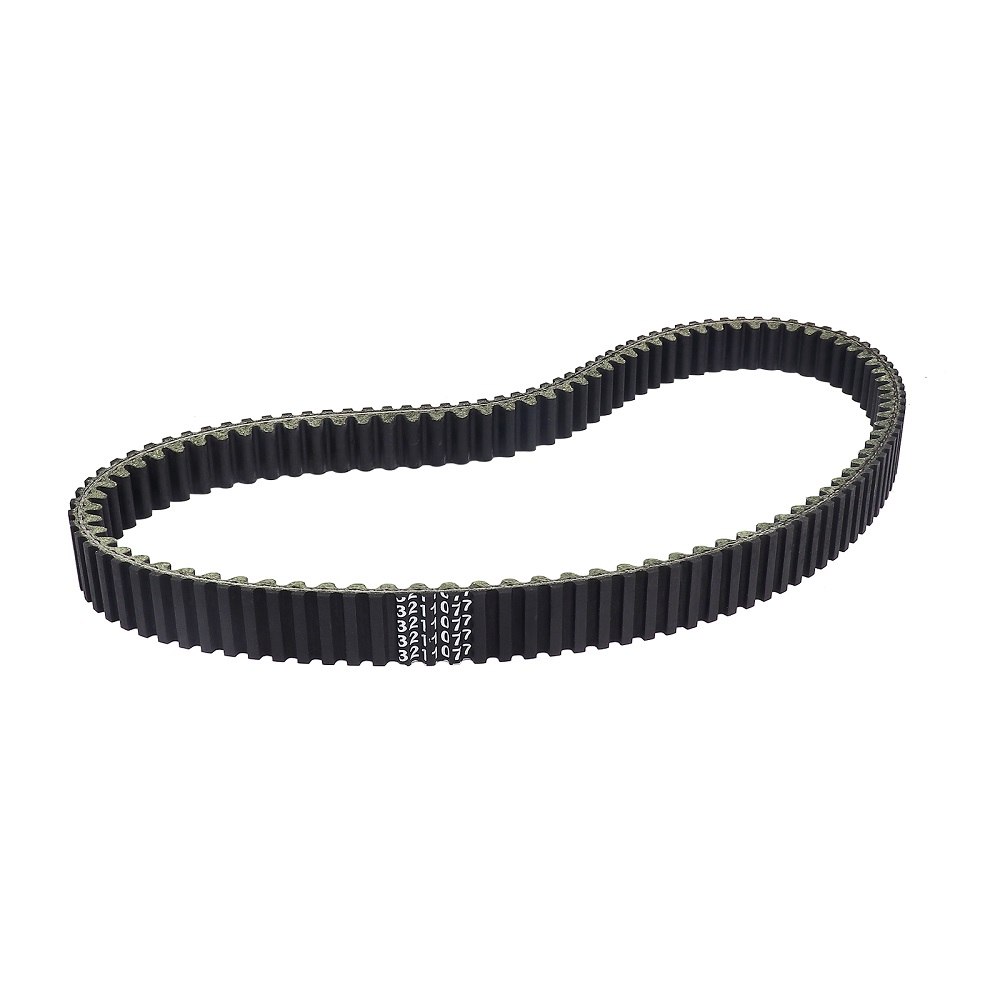

This drive belt is designed for various ATV models, including utility and sports. It is highly compatible with model numbers 3211048 and 3211077, ensuring a seamless replacement.

Tools Required:
Before beginning the installation, please ensure you have the following tools ready:

1. Socket Set:

   • Various socket sizes (generally 10mm to 17mm) for removing bolts.

2. Wrench Set:

   • A set of open-end or adjustable wrenches for additional leverage.

3. Screwdriver Set:

   • Phillips and flathead screwdrivers for removing any covers or guards.

4. Pliers:

   • For gripping and maneuvering small components.

5. Torque Wrench:

   • To ensure bolts are tightened to the manufacturer’s specifications.

6. Belt Installation Tool (if available):

   • Some models may benefit from specialized tools for belt installation.

7. Safety Gear:

   • Gloves and safety goggles for protection during installation.

Installation Steps:

1. Prepare the ATV:

   • Ensure the ATV is on a flat surface and securely parked. Disconnect the battery for safety.

2. Remove the Cover:

   • Using the socket and screwdriver, remove any necessary covers or guards from the engine compartment.

3. Access the Drive Belt:

   • Identify the location of the old drive belt. Note how it is positioned for easier installation of the new belt.

4. Remove the Old Drive Belt:

   • Carefully detach the old belt from its pulleys. This may require some manual manipulation or the use of pliers.

5. Install the New Drive Belt:

   • Position the new drive belt (3211048) over the pulleys as per the noted orientation. Ensure it fits snugly into place.

6. Reassemble Components:

   • Replace any covers or guards you previously removed, tightening them securely with the bolts.

7. Reconnect the Battery:

   • Once everything is reassembled, reconnect the battery.

8. Test the ATV:

   • Start the ATV and test for normal operation, ensuring there are no unusual noises or issues.

Maintenance Note:
Regularly check the drive belt for wear and tear to ensure optimal performance and longevity.

By following these instructions, you can ensure a successful installation of the Drive Belt 3211048, enhancing your ATV's performance and efficiency.
