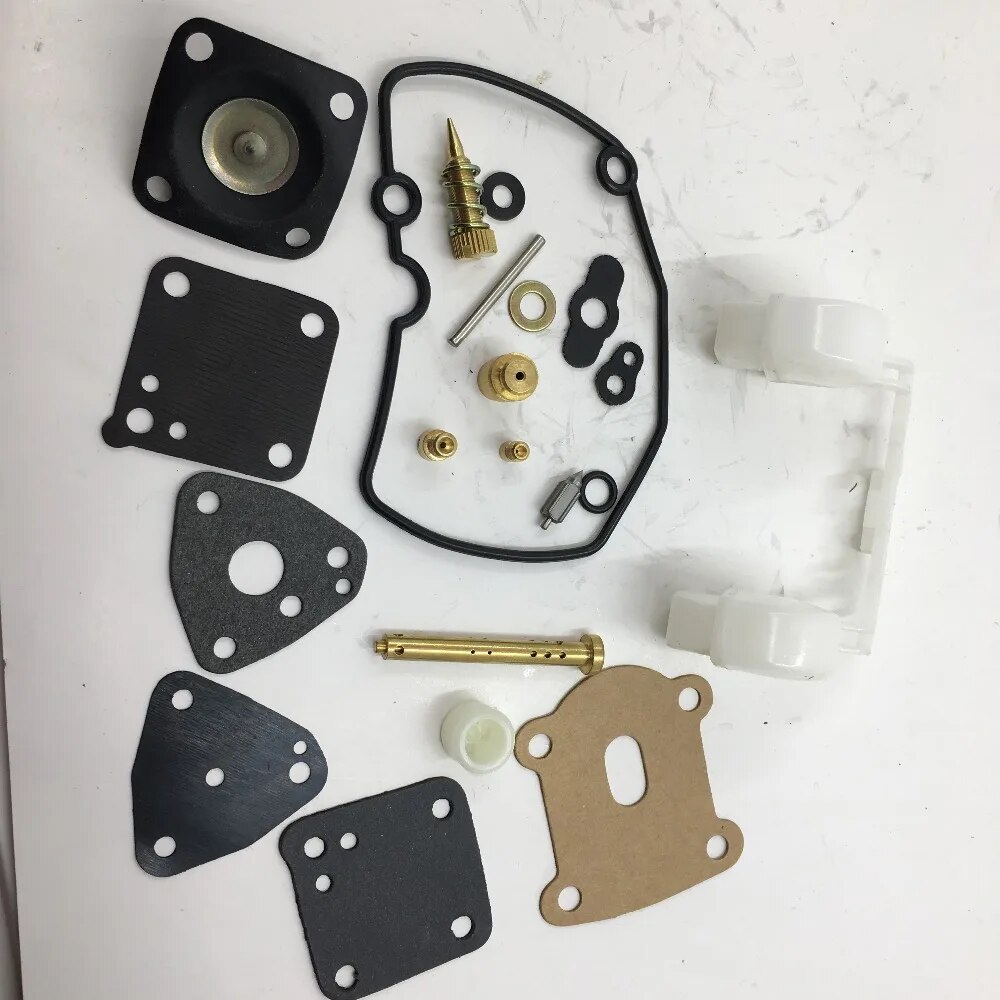

Installation Instructions for Carburetor Repair Gasket Kit Compatible with S Carburetor for Drover Gypsy SJ410 1.0 Ltr F10A

Tools Needed:

1. Flat-head screwdriver
2. Phillips screwdriver
3. Socket set (8mm and 10mm sockets recommended)
4. Wrench (8mm and 10mm)
5. Pliers
6. Gasket scraper or razor blade
7. Torque wrench
   8.Clean cloth or rag
   9.Carburetor cleaner
8. A small container for old fuel and debris

Installation Steps:

1. Preparation:

   • Before starting, ensure the engine is turned off and cool to avoid burns.
   • Disconnect the negative battery terminal to prevent any electrical issues.

2. Remove the Carburetor:

   • Locate the carburetor on your Drover Gypsy SJ410.
   • Use the socket and wrench to remove the bolts securing the carburetor to the intake manifold.
   • Carefully detach the fuel line and any linkages connected to the carburetor, noting their positions for reinstallation.

3. Disassemble the Carburetor:

   • Place the carburetor on a clean work surface.
   • Remove the screws holding the carburetor body together using the appropriate screwdriver.
   • Take apart the carburetor carefully, ensuring not to lose any small components.

4. Replace Gaskets and Float:

   • Remove old gaskets and the float from the carburetor.
   • Use a gasket scraper or razor blade to clean any remaining materials from the carburetor surfaces.
   • Install the new gaskets included in the repair kit and insert the new float, ensuring correct positioning.

5. Reassemble the Carburetor:

   • Reassemble the carburetor by carefully tightening the screws in a criss-cross pattern to ensure even pressure.
   • Double-check that all components are seated properly.

6. Reinstall the Carburetor:

   • Position the carburetor back onto the intake manifold and secure it with bolts using the socket and wrench.
   • Reattach the fuel line and linkages according to your notes from step 2.

7. Final Checks:

   • Reconnect the negative battery terminal.
   • Turn on the fuel supply and check for any leaks around the carburetor connections.
   • Start the engine and allow it to idle to ensure proper functionality.

8. Test Drive:

   • Take your vehicle for a test drive to assess the improved performance and response of the engine.

Note:
Always refer to the vehicle’s service manual for specific torque specifications and additional instructions if needed. If you encounter any difficulties during installation, consult a professional mechanic for assistance.
