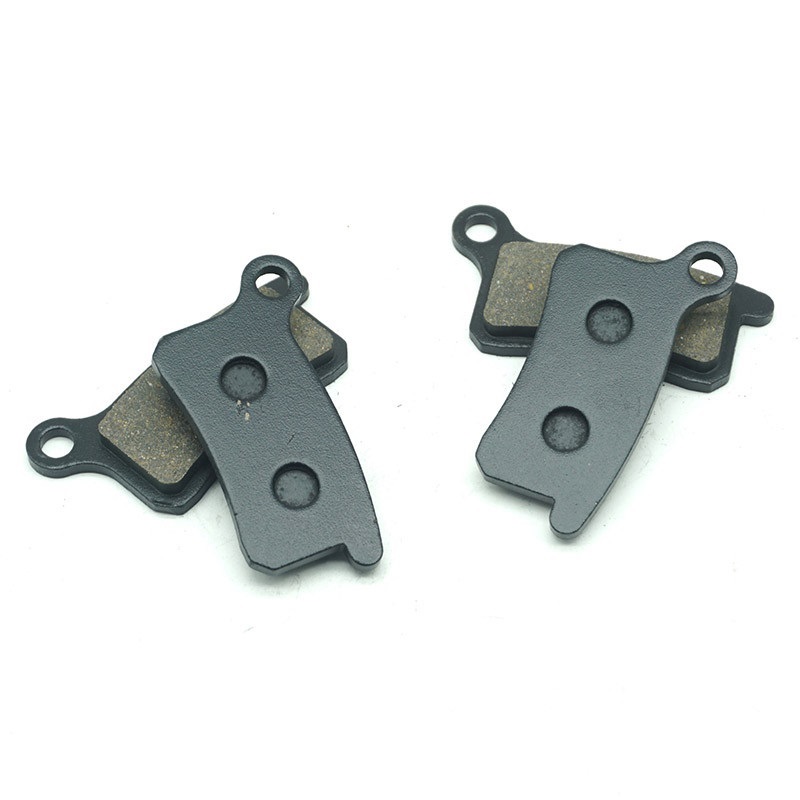

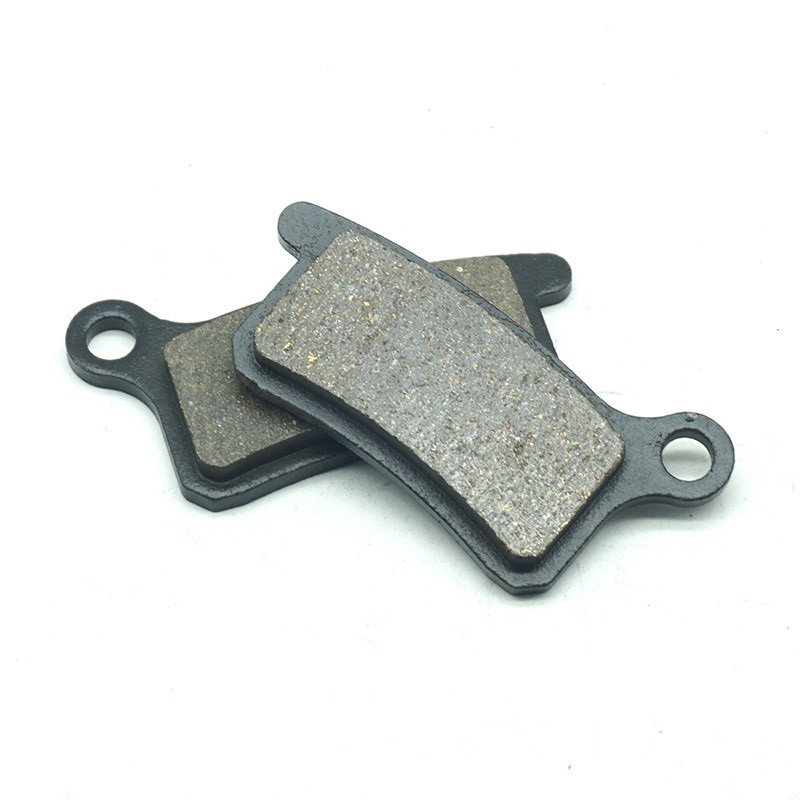

Installation Instructions for Brake Pads Set Compatible with SX 65, 85, and 105 Models (2003-2022)

Tools Required:

1. Socket Set – To remove the brake caliper and any other necessary components. A 10mm socket is commonly used.
2. Torque Wrench – To ensure that all screws and bolts are tightened to the manufacturer’s specifications.
3. Flathead Screwdriver – To help compress the brake caliper piston during installation.
4. Pliers – For removing retaining clips or pins if applicable.
5. Brake Cleaner – To clean the brake caliper and surrounding areas before installation.
6. Lint-Free Cloth – For cleaning surfaces to avoid contamination during the process.
7. Gloves – To keep your hands clean and to avoid oil or grease contamination on the brake pads.

Installation Steps:

1. Preparation:

   • Ensure the bike is on a stable surface, using a bike stand if available.
   • Wear gloves for protection and to maintain cleanliness.

2. Remove the Wheel:

   • Loosen the axle bolts with a socket wrench.
   • Carefully remove the wheel from the bike and place it on a stable surface.

3. Access the Brake Caliper:

   • Locate the brake caliper attached to the wheel.
   • Remove any mounting bolts using the appropriate socket size.

4. Remove the Old Brake Pads:

   • Carefully retract the brake caliper away from the rotor.
   • Remove the old brake pads from the caliper bracket.

5. Clean the Brake System:

   • Use brake cleaner and a lint-free cloth to clean the caliper and rotor areas.
   • Inspect the brake caliper for any signs of damage or wear.

6. Compress the Caliper Piston:

   • Use a flathead screwdriver to carefully push back the caliper piston to make room for the new brake pads.

7. Install the New Brake Pads:

   • Place the new brake pads into the caliper bracket, ensuring they are properly aligned.
   • Make sure the pads fit snugly against the caliper.

8. Reattach the Brake Caliper:

   • Position the caliper over the rotor and align it with the mounting holes.
   • Secure it with the removed bolts and use a torque wrench to tighten them to the recommended specifications.

9. Reinstall the Wheel:

   • Place the wheel back onto the axle.
   • Tighten the axle bolts securely.

10. Final Checks:

    • Pump the brake lever a few times to ensure that the pads are seated correctly against the rotor.
    • Check the brake fluid level if applicable.

11. Test Ride:

    • Conduct a short test ride to ensure proper brake functionality.

By following these steps, you’ll successfully install the brake pads and enhance your riding safety. Always refer to the manufacturer’s manual for specific recommendations related to your motorcycle model.
