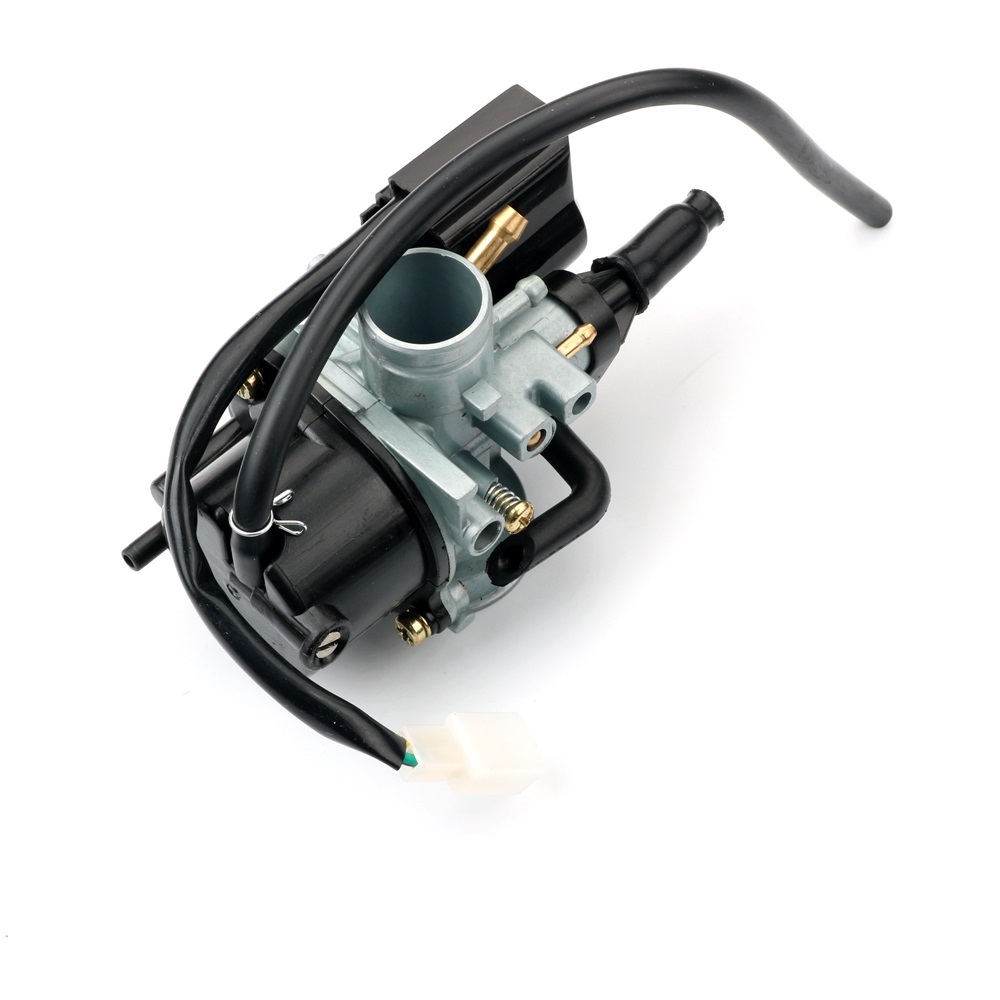

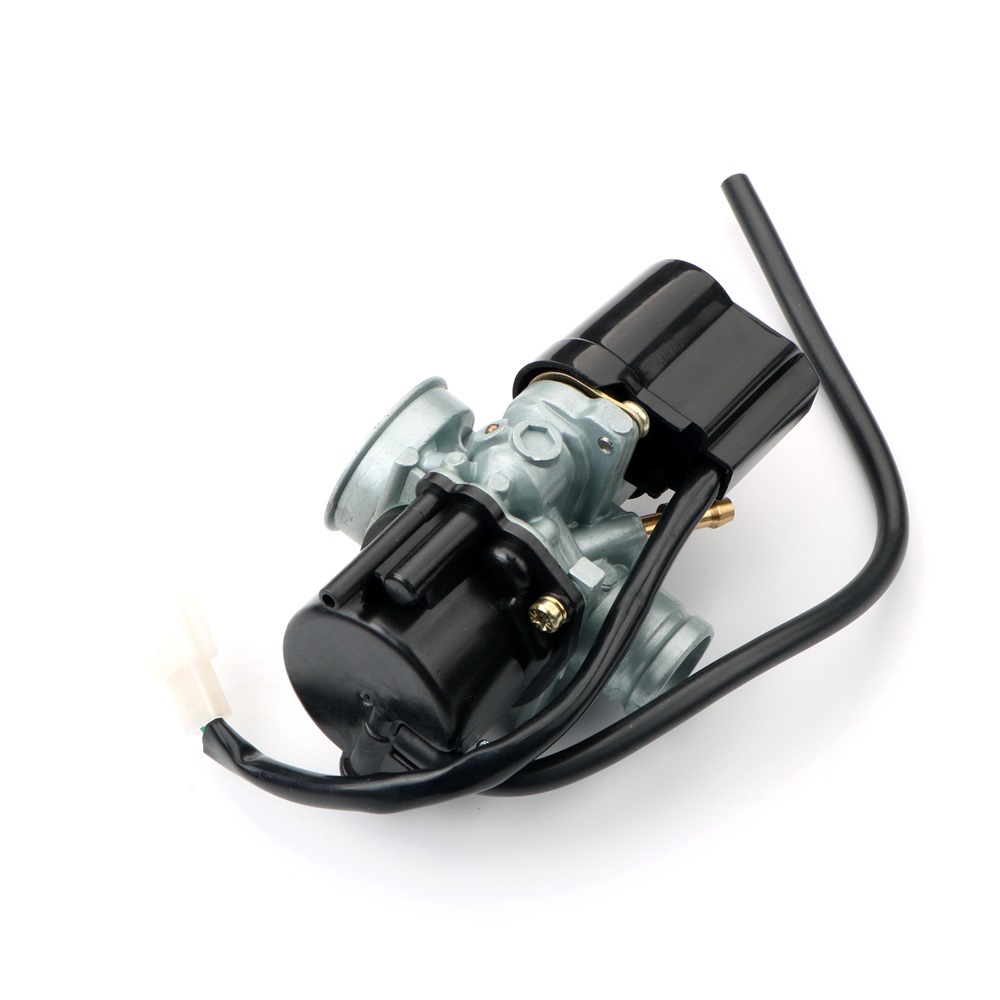

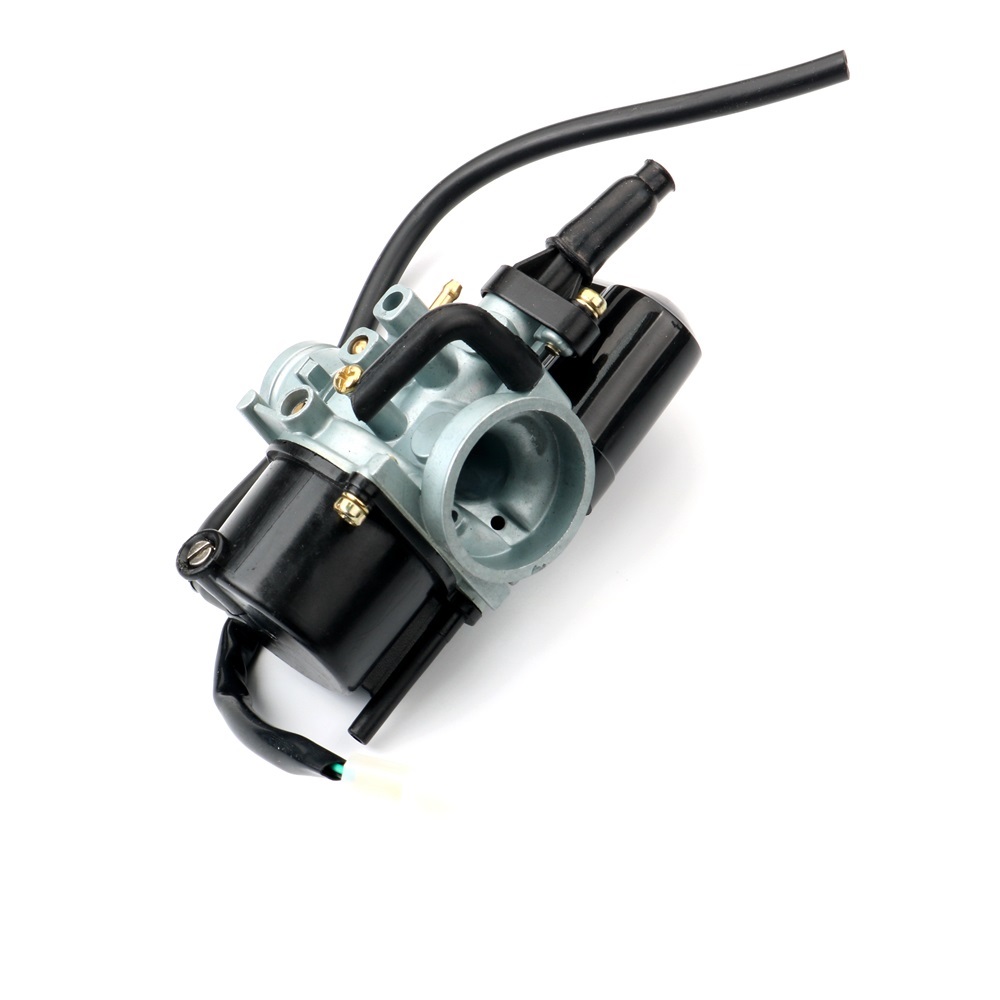

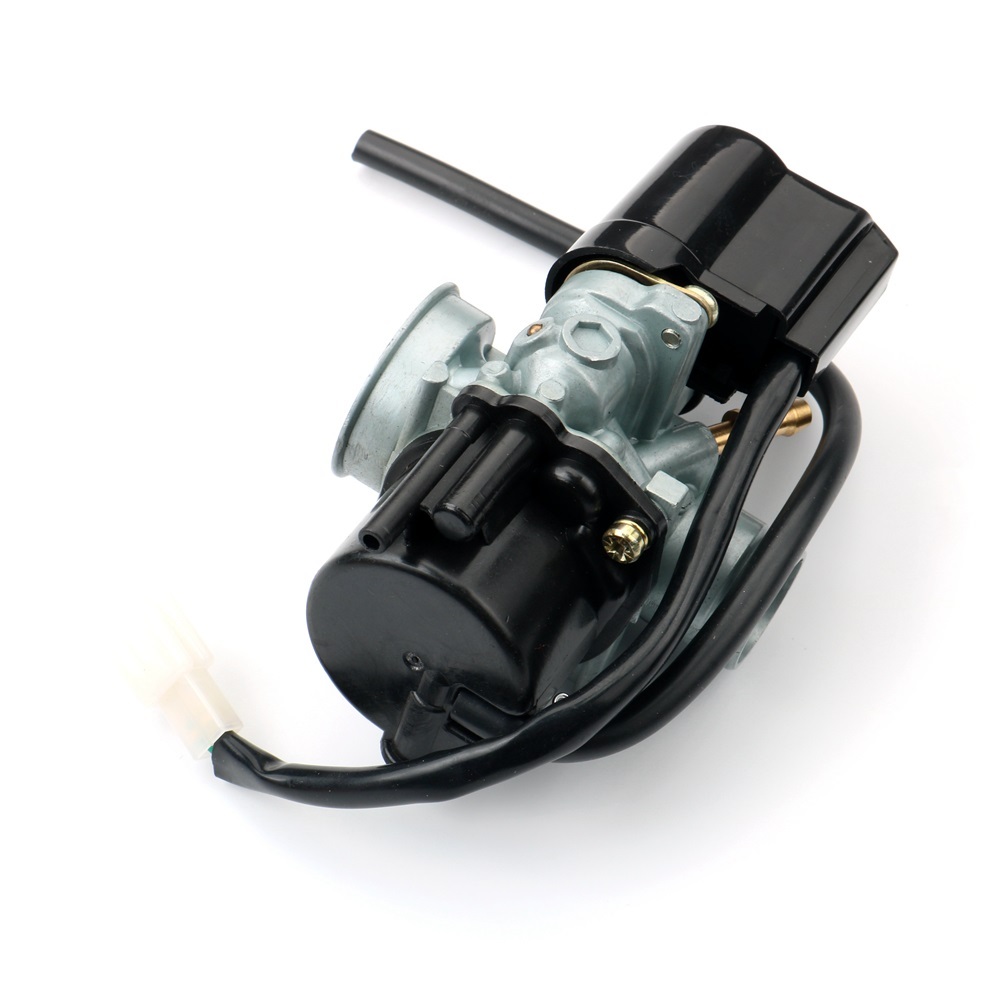

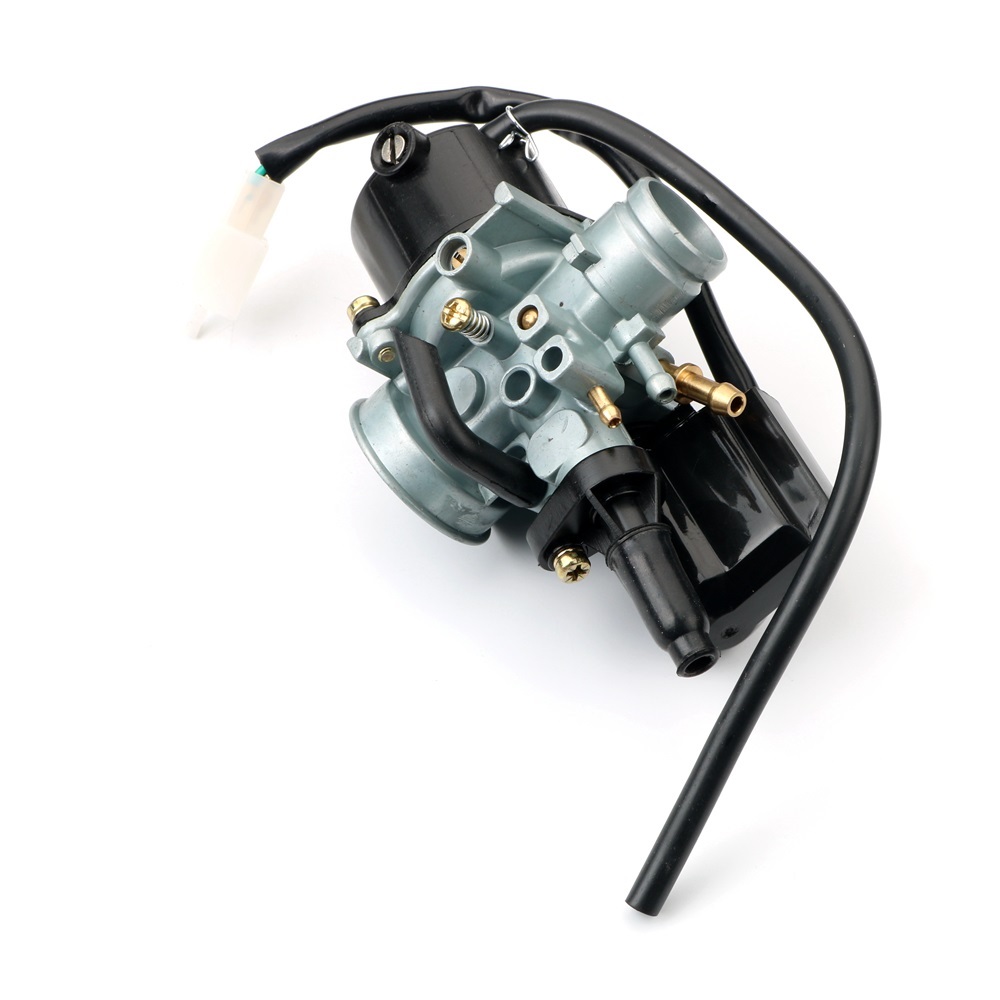

Installation Instructions for Compatible Carburetor for 50cc 2 Stroke Scooter (P Ludix and Speedfight 4 Models)

Tools Required:

1. Socket Wrench Set

   • Various socket sizes may be needed to remove the screws and bolts.

2. Screwdriver Set

   • A flathead and Phillips screwdriver will be required for different screws.

3. Pliers

   • To assist with clamping and removing hoses.

4. Fuel Line Cutter or Scissors

   • If you need to cut fuel lines, a specialized cutter or a sharp pair of scissors will be useful.

5. Torque Wrench (optional)

   • For ensuring bolts are tightened to the manufacturer's specifications.

6. Rags or Paper Towels

   • To clean up any spills and keep your workspace tidy.

7. Safety Goggles and Gloves

   • For personal protection during installation.

Installation Steps:

1. Preparation:

   • Ensure the scooter is turned off and cool to the touch.
   • Disconnect the battery for safety.

2. Remove the Existing Carburetor:

   • Locate the carburetor on the scooter.
   • Use the socket wrench to remove the bolts securing the carburetor.
   • Carefully disconnect any fuel lines and cables connected to the carburetor using the pliers.

3. Install the New Carburetor:

   • Position the new carburetor in place.
   • Reconnect the fuel lines and ensure they are clamped tightly.
   • Reattach any cables that were connected to the original carburetor.
   • Secure the carburetor with the bolts using the socket wrench. Ensure they are tightened adequately.

4. Check Connections:

   • Double-check all connections to ensure they are secure.
   • Make sure there are no leaks in the fuel lines.

5. Reconnect the Battery:

   • Once installation is complete, reconnect the scooter’s battery.

6. Test the Scooter:

   • Start the scooter and let it idle for a few minutes.
   • Check for any irregular sounds, leaks, or performance issues.

7. Adjustment (if necessary):

   • If the engine isn’t running properly, you may need to adjust the air-fuel mixture screw according to the manufacturer’s guidelines.

Safety Precautions:

• Always wear safety goggles and gloves while working on the scooter.
• Work in a well-ventilated area to avoid inhaling fumes.

By following these instructions and having the required tools ready, you can successfully install the compatible carburetor for your 50cc 2-stroke scooter. Enjoy enhanced performance and better fuel efficiency!
