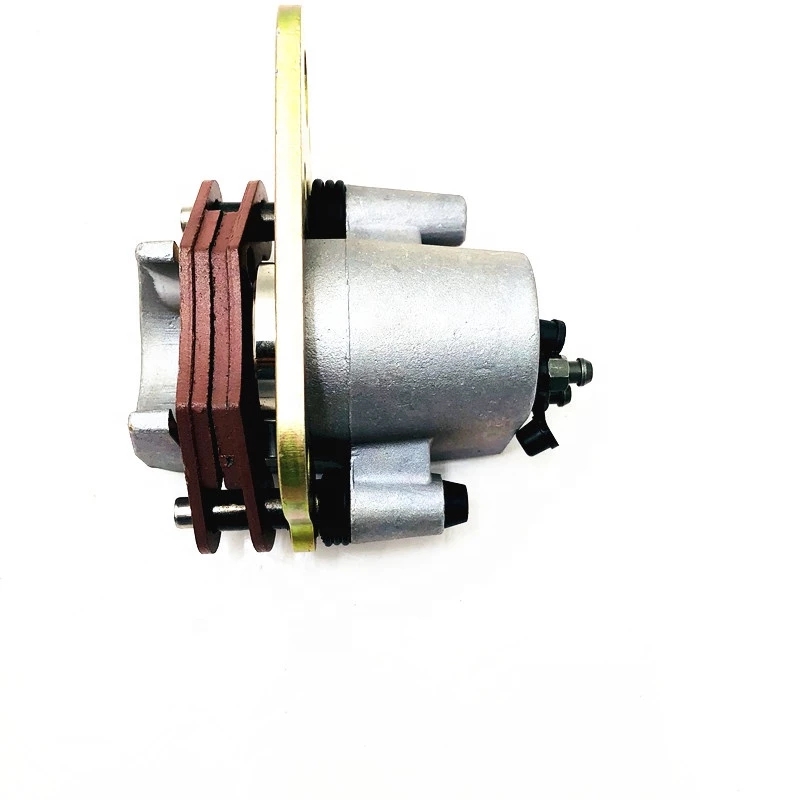

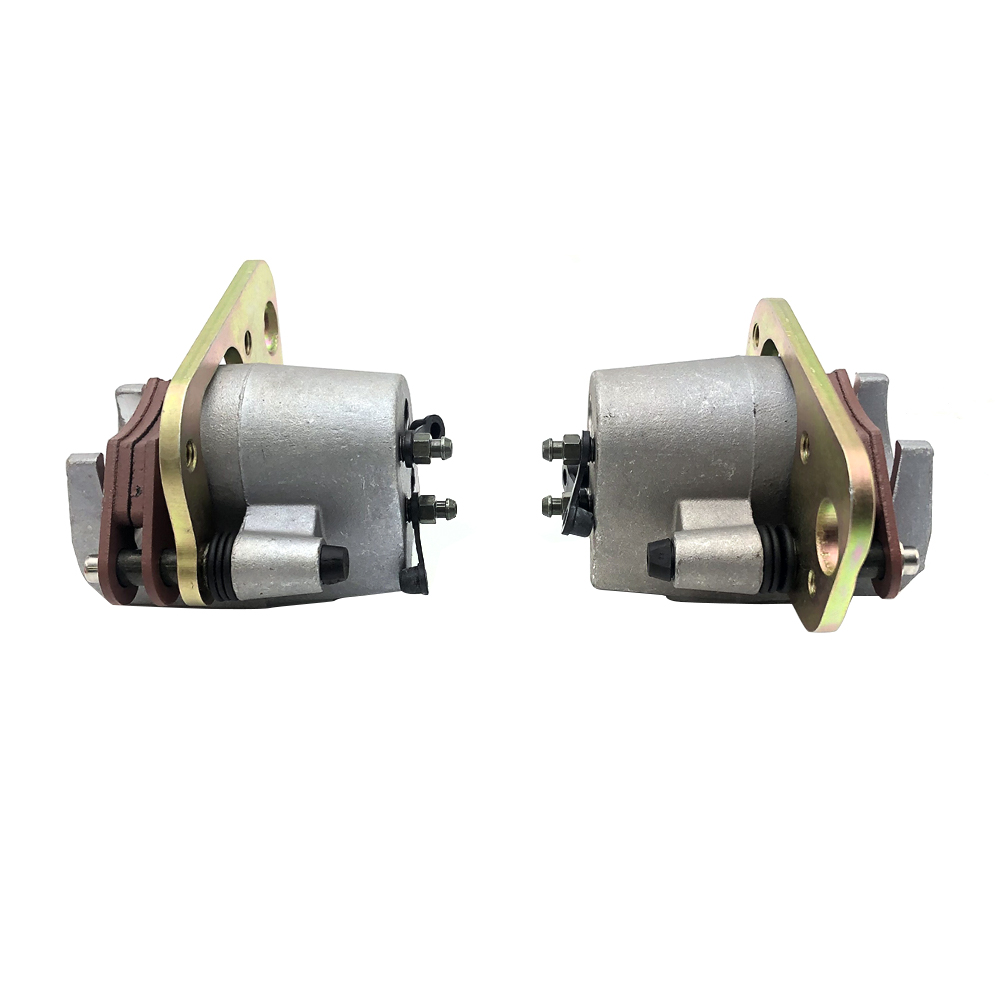

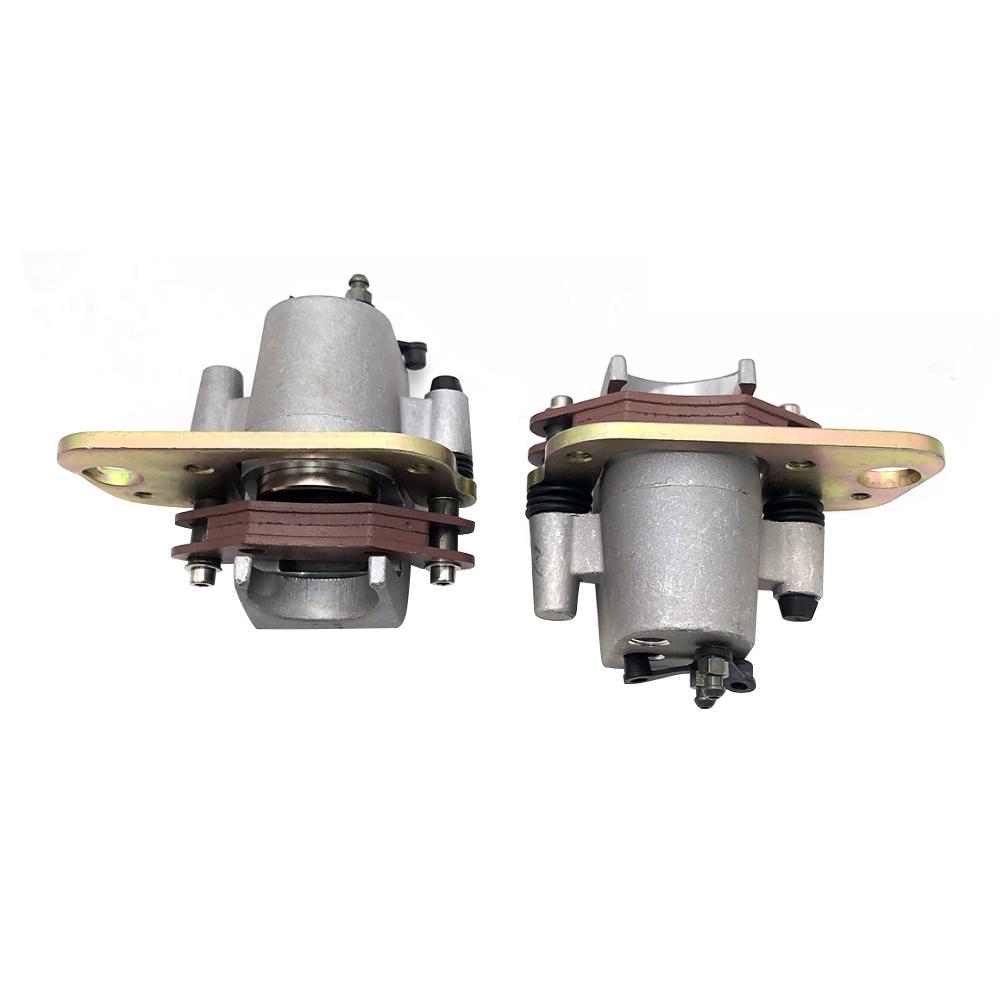

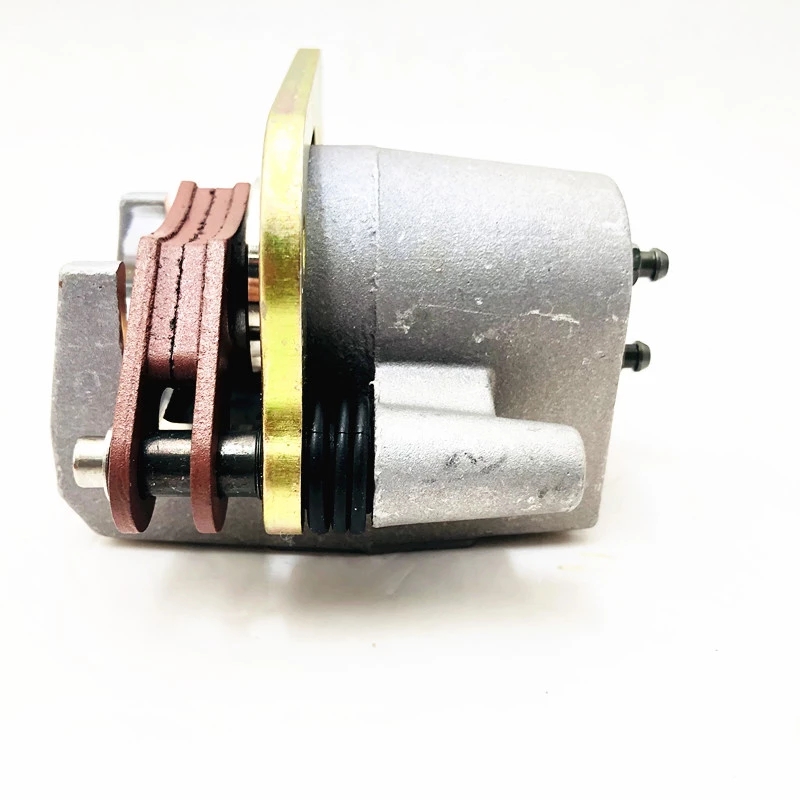

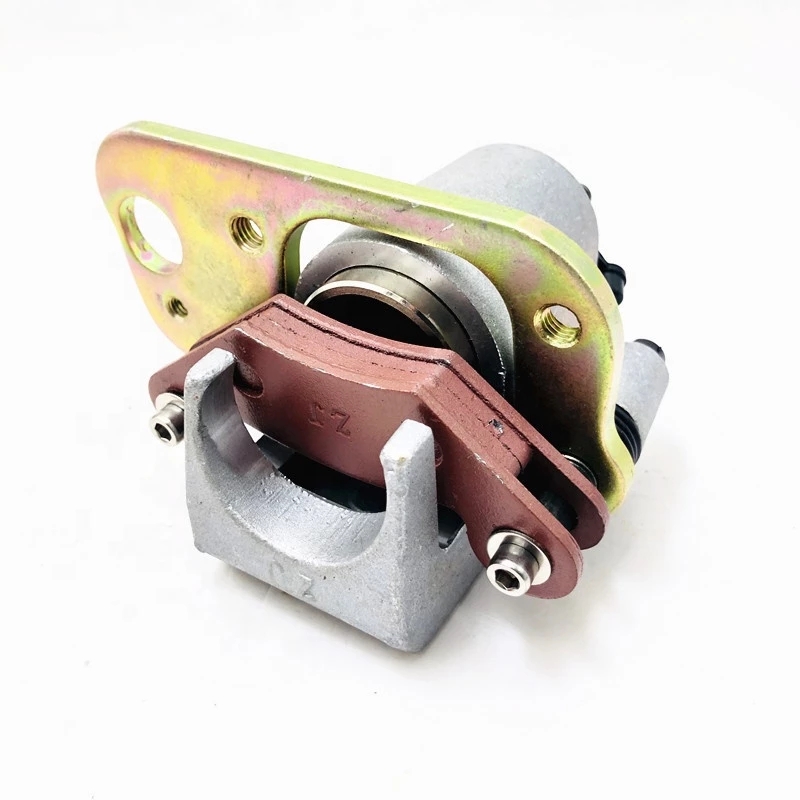

Product Installation Instructions for Front Left Right Brake Caliper for ATV UTV Models 260 300 400

Tools Required:

1. Socket Set:

   • To remove the existing brake caliper bolts.

2. Wrench Set:

   • For any additional adjustments and securing bolts.

3. Torque Wrench:

   • To ensure bolts are tightened to the manufacturer's specifications.

4. Screwdriver Set:

   • For any clips or components that may need to be removed or adjusted.

5. Pliers:

   • Helpful for managing brake line attachments or securing clips.

6. Brake Cleaner:

   • To clean the brake assembly before installation.

7. Rags or Shop Towels:

   • For cleanup and to wipe away any excess brake fluid.

8. Jack and Jack Stands:

   • To safely lift your ATV/UTV for easier access to the brake system.

9. Safety Gloves and Goggles:

   • To protect yourself during the installation process.

Installation Steps:

1. Preparation:

   • Ensure your ATV/UTV is parked on a flat surface. Use the jack to lift the vehicle and secure it with jack stands.

2. Remove the Old Caliper:

   • Use the socket set to remove the bolts securing the existing brake caliper. Carefully detach the brake line if necessary.

3. Clean the Area:

   • Use brake cleaner and rags to clean the disc and surrounding areas to ensure proper functioning of the new caliper.

4. Install the New Caliper:

   • Position the new brake caliper over the brake rotor and align it with the mounting holes. Secure it using the original bolts or new ones provided, and tighten them appropriately using the torque wrench.

5. Reconnect the Brake Line:

   • If you removed the brake line, reattach it to the new caliper, ensuring there are no leaks.

6. Final Checks:

   • Inspect all connections and bolts to ensure everything is secure. Replace any dust caps or clips as necessary.

7. Lower the Vehicle:

   • Carefully remove the jack stands and lower the ATV/UTV back to the ground.

8. Test the Brakes:

   • Before driving, press the brake lever a few times to seat the pads against the rotor. Check for any unusual noises or leaks.

Conclusion:
Following these instructions will allow for a smooth installation process for the Front Left Right Brake Caliper. If you encounter any issues, consult the product manual or a professional mechanic for assistance.
