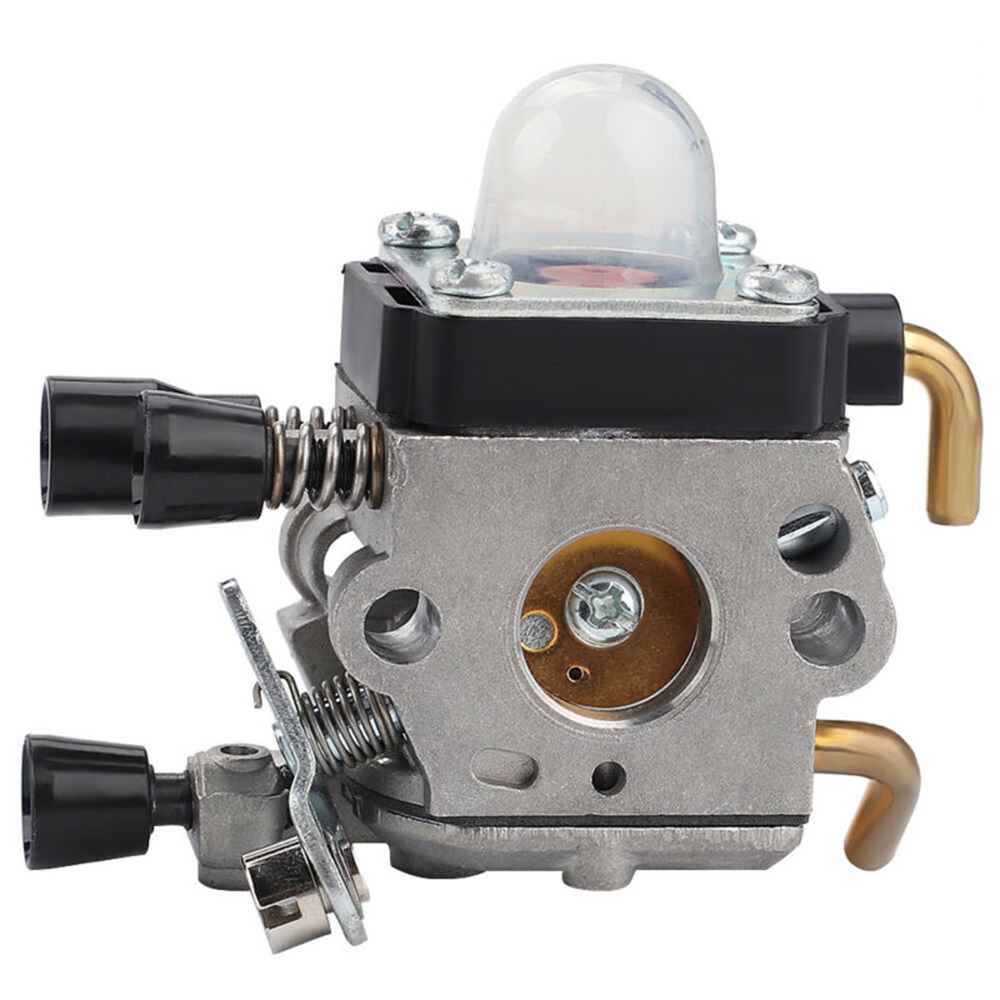

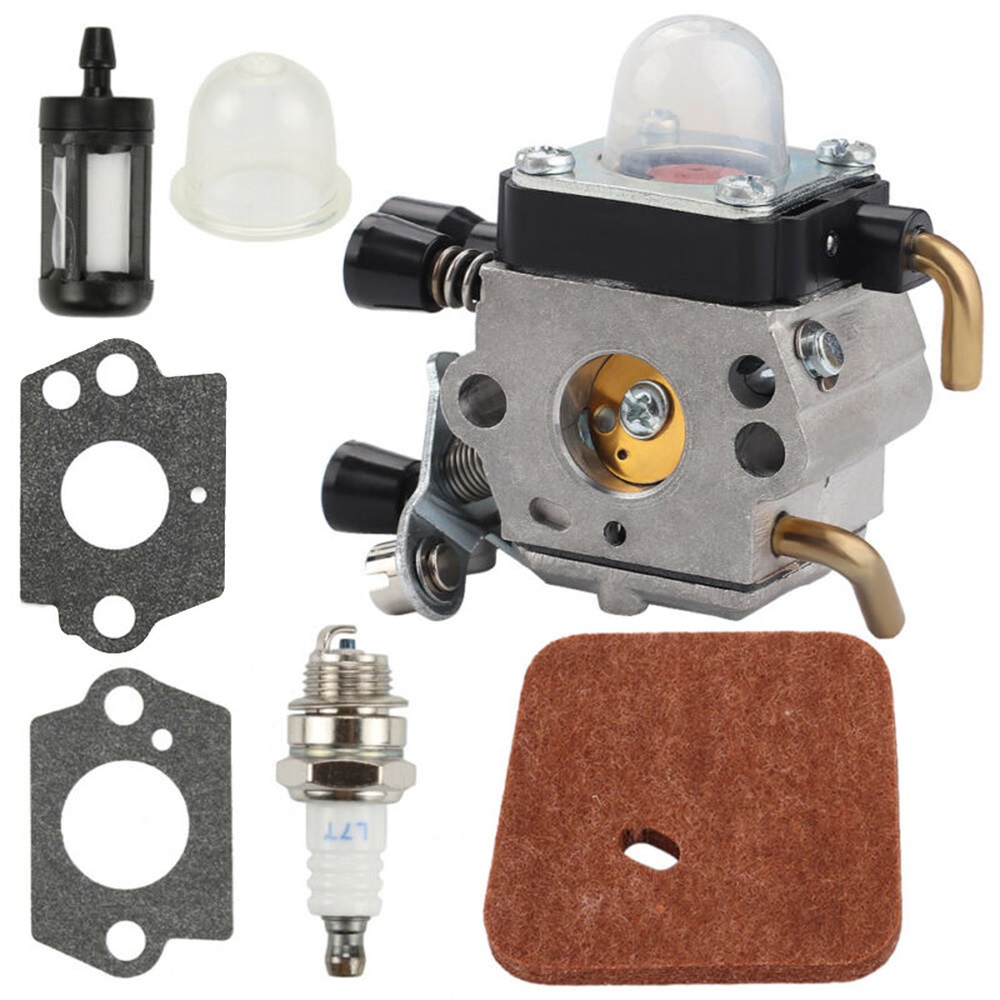

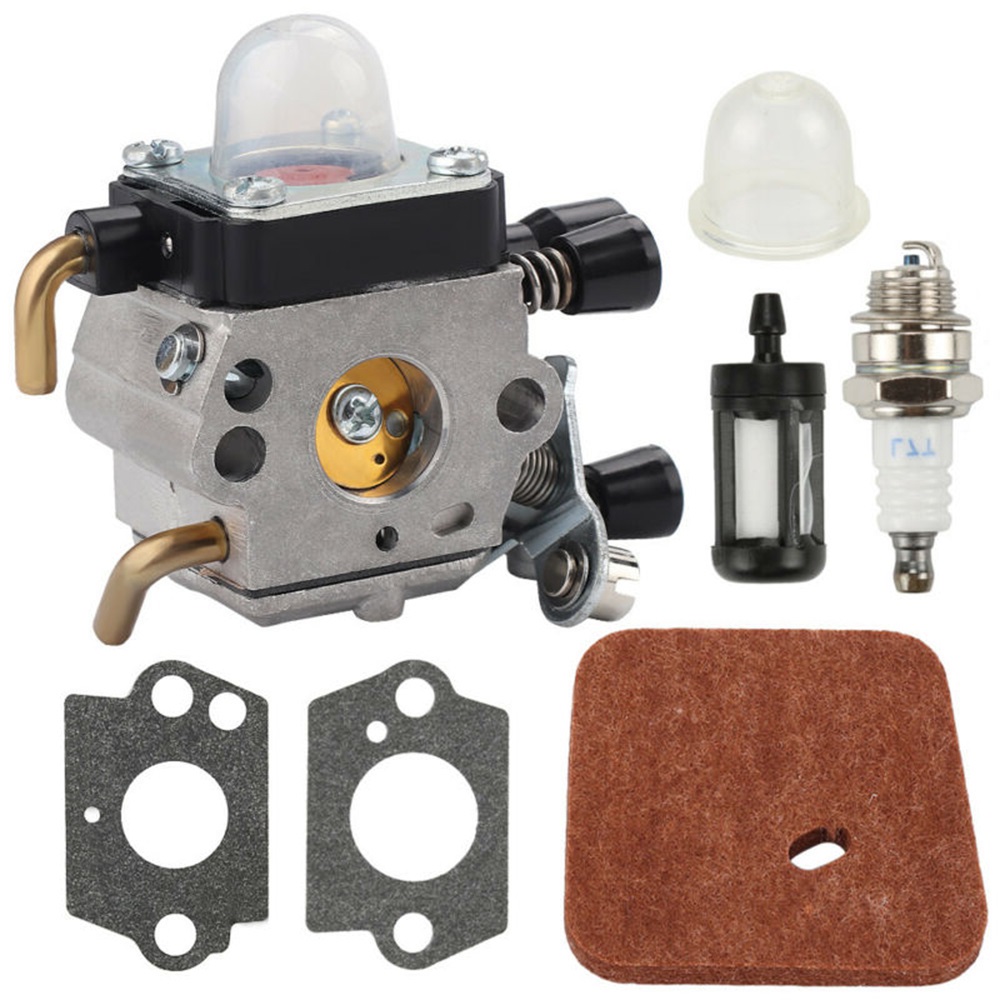

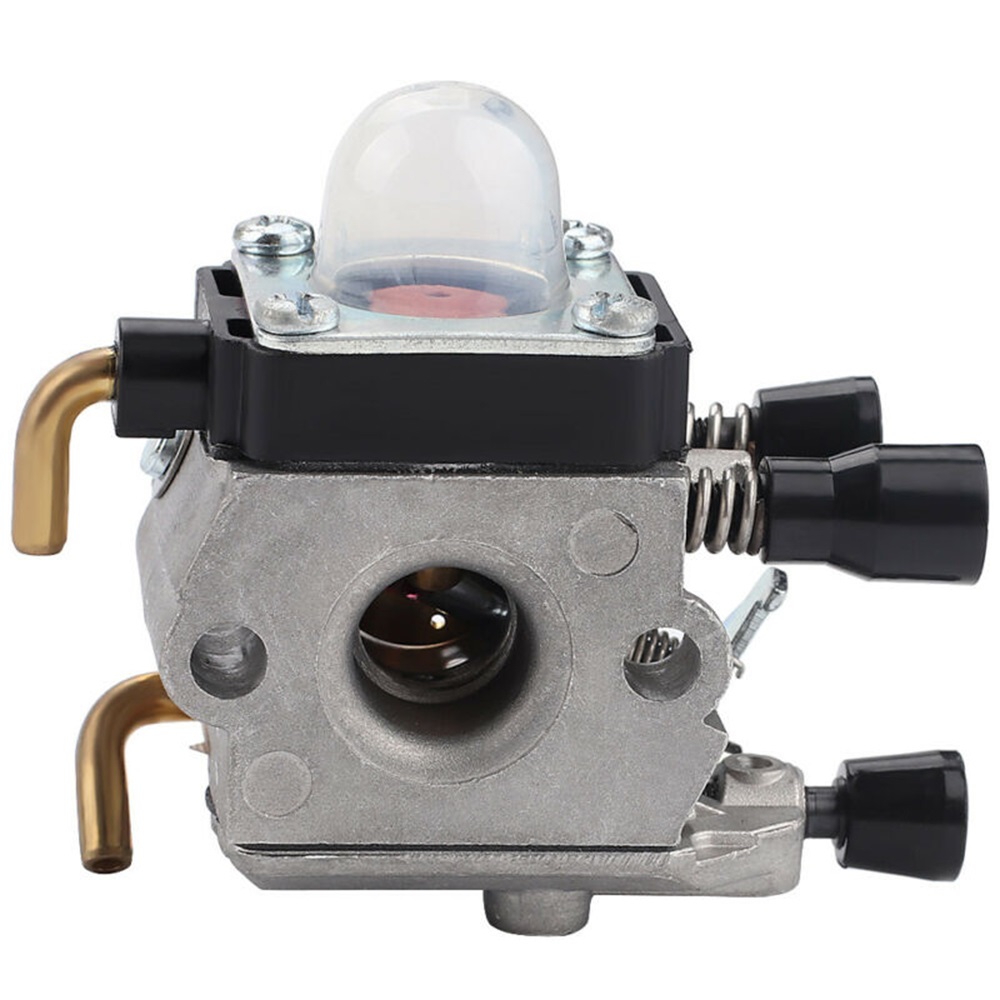

Product Installation Instructions for Compatible Carburetor Components for FS Series

Models: FS 38, 45, 46, 55, 55R, 55RC, 45C, 45L, 45EZ, 55EZ, 55C, 55T, 74, 75, 76, 80, 85, 310 KM 55 HL45 FC55

Preparation:

Before you begin the installation of the compatible carburetor components, please ensure you have the following tools ready:

1. Screwdriver Set: A set of Phillips and flathead screwdrivers to remove and tighten screws as necessary.
2. Wrench Set: Adjustable wrench or socket set for loosening and tightening nuts and bolts.
3. Pliers: Needle-nose and regular pliers for gripping small parts and hosts.
4. Clean Rag: For cleaning any excess debris from the carburetor area.
5. Safety Goggles: To protect your eyes during installation.
6. Work Gloves: To keep your hands safe and clean while handling components.

Installation Steps:

1. Safety First: Wear your safety goggles and work gloves to protect yourself.

2. Preparation: Ensure that the equipment is turned off and cool before beginning.

3. Remove Old Carburetor Parts:

   • Use the screwdriver to remove screws holding the carburetor in place.
   • Disconnect any hostes or electrical connections carefully.
   • Remove the carburetor from the engine.

4. Install New Compatible Carburetor Components:

   • Align the new carburetor component with the mounting locations.
   • Reconnect any hostes and electrical connections as needed.
   • Secure it in place using screws and tighten with the screwdriver.

5. Check Connections: Ensure all connections are secure but not overly tightened to avoid damage.

6. Final Inspection: Give the area a final check for any loose parts or tools left behind.

Performance Check:
Once installed, start the engine and monitor its operation. Ensure that it runs smoothly without any leaks or unusual noises.

Conclusion:

These compatible carburetor components are designed to meet original equipment standards, ensuring ease of assembly and stable performance. Regular maintenance will ext end the life of your engine and optimize its efficiency. Enjoy your improved equipment performance!
