Installation Instructions for 5 in 1 Shock Absorber Damping Plate Power Module ESC Power Distribution Board

Introduction:
The 5 in 1 Shock Absorber Damping Plate Power Module is designed for DIY FPV and drone enthusiasts. It integrates multiple functions while ensuring compatibility with APM, PX4, and various other flight control systems.

Tools Needed:

1. Screwdriver Set

   • Phillips and flathead screwdrivers for securing components.

2. Soldering Iron and Solder

   • For connecting ESCs and other components, if necessary.

3. Multimeter

   • To check voltage levels and ensure proper connections.

4. Heat Shrink Tubing or Electrical Tape

   • For insulating any exposed wires or connections.

5. Wire Cutters/Strippers

   • To prepare and trim wires as needed.

6. Small Zip Ties or Velcro Straps

   • For securing wires and keeping the setup tidy.

7. Double-sided Tape or Mounting Adhesive

   • To affix the power distribution board to the drone frame securely.

8. Computer with Flight Control Software

   • Necessary for configuration and adjustments.

Installation Steps:

1. Prepare the Drone Frame:

   • Ensure the frame is clean and free from any debris.

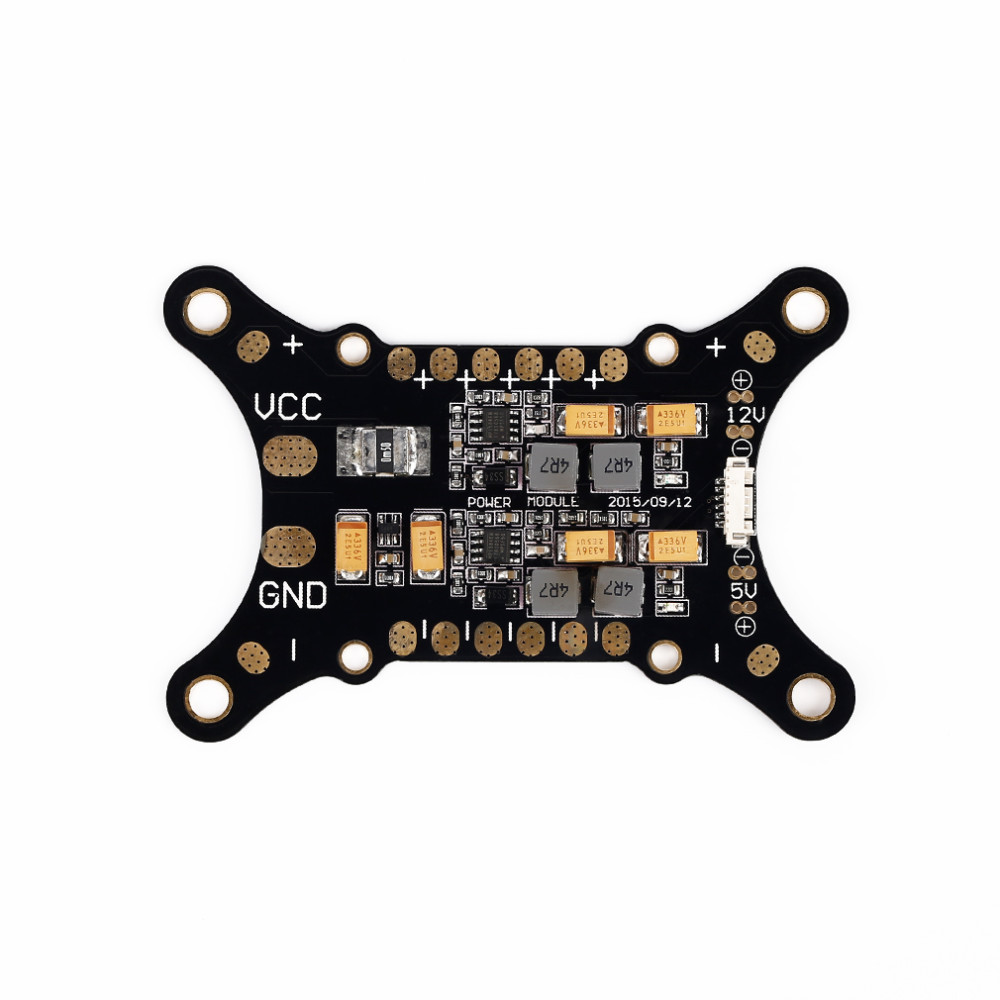

2. Mount the Power Distribution Board:

   • Use double-sided tape or mounting adhesive to secure the distribution board to the frame in a stable position.

3. Connect the ESCs:

   • Use the wire cutters/strippers to prepare the ESC wires and solder them to the appropriate pads on the power distribution board. Ensure proper polarity.

4. Verify Voltage Output:

   • Before connecting additional components, use the multimeter to check the 5V and 12V outputs to ensure stability.

5. Connect Power Inputs:

   • If applicable, connect your battery leads to the designated input on the power distribution board.

6. Secure Wiring:

   • Use zip ties or Velcro straps to keep wires organized and avoid any interference with moving parts.

7. Run Configuration Software:

   • Connect your flight controller to your computer and use the flight control software to finalize settings and ensure correct configuration.

8. Final Inspection:

   • Double-check all connections and ensure nothing is loose. Make sure to insulate any exposed wires.

9. Conduct a Test Flight:

   • Before fully deploying the drone, conduct test flights in a safe area to check functionality and stability.

Conclusion:
With this 5 in 1 Power Distribution Board, you can enhance the performance and stability of your drone while enjoying a streamlined installation process. Happy flying!
