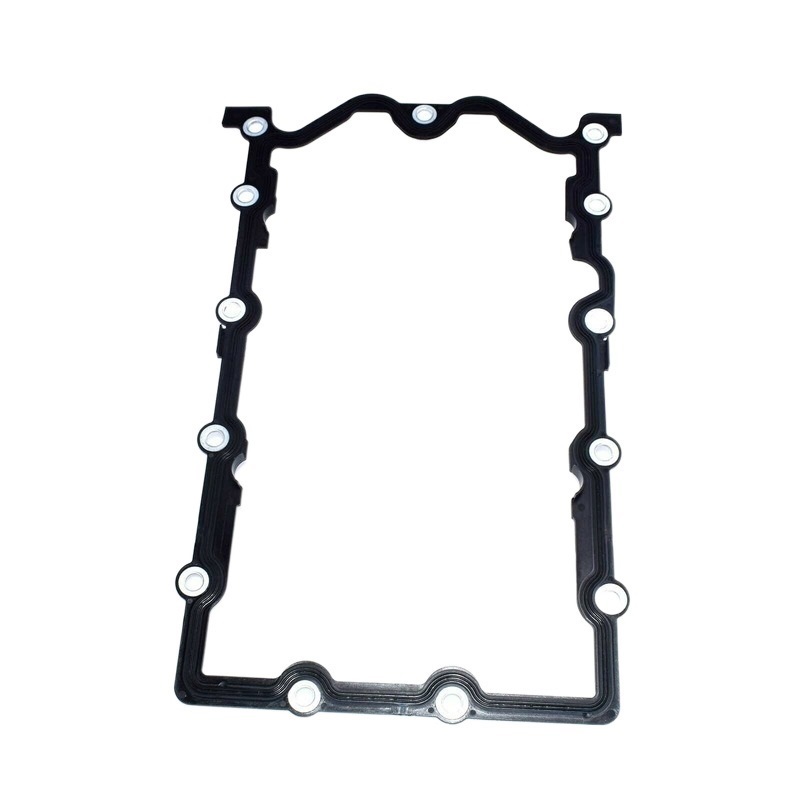

Product Installation Instructions for Engine Oil Pan Gasket

Compatible with: MI NI R50/R53 and other related models
Part Numbers: 11131487221, 11 13 1 487 221, 21506061071, 14089700

Tools Needed:

1. Socket Wrench Set

   • To remove and install the oil pan bolts.

2. Torque Wrench

   • To ensure that bolts are tightened to the manufacturer’s specifications.

3. Gasket Scraper or Blade

   • To clean the oil pan and engine surface before installation.

4. Clean Rags or Shop Towels

   • For cleaning surfaces and removing old gasket material.

5. Oil Drain Pan

   • To catch any remaining oil when removing the oil pan.

6. Funnel

   • To help pour new oil without spilling.

7. Safety Goggles

   • To protect your eyes during the installation process.

8. Gloves

   • Optional but recommended to keep hands clean and protected.

Installation Steps:

1. Preparation:

   • Ensure the vehicle is on a level surface and secure it with wheel chocks.
   • Allow the engine to cool down before starting.

2. Drain Engine Oil:

   • Open the oil drain plug and let the oil flow into the oil drain pan.
   • Replace the drain plug once all the oil has been removed.

3. Remove the Oil Pan:

   • Use a socket wrench to remove the bolts securing the oil pan in place.
   • Carefully lower the oil pan and remove it from the engine.

4. Clean the Surfaces:

   • Use a gasket scraper to remove any residual gasket material from the oil pan and engine surface.
   • Wipe the surfaces clean with rags or shop towels.

5. Install the New Gasket:

   • Place the new oil pan gasket onto the oil pan or engine surface, ensuring it fits snugly in place.

6. Reattach the Oil Pan:

   • Carefully position the oil pan back onto the engine and start threading the bolts by hand.
   • Use a socket wrench to tighten the bolts in a criss-cross pattern to ensure even pressure.
   • Use the torque wrench to tighten bolts to the manufacturer’s specifications.

7. Refill Engine Oil:

   • Remove the oil fill cap and use a funnel to pour new engine oil into the engine.
   • Replace the oil fill cap securely.

8. Check for Leaks:

   • Start the engine and let it idle for a few minutes.
   • Check underneath the vehicle for any signs of oil leaks.

Tips:

• Always refer to the vehicle's service manual for specific torque specifications and installation instructions.
• Dispose of old oil and the used gasket properly at a recycling center.

By following these steps, you’ll ensure a smooth replacement of the engine oil pan gasket, helping to maintain the optimum performance of your engine.
