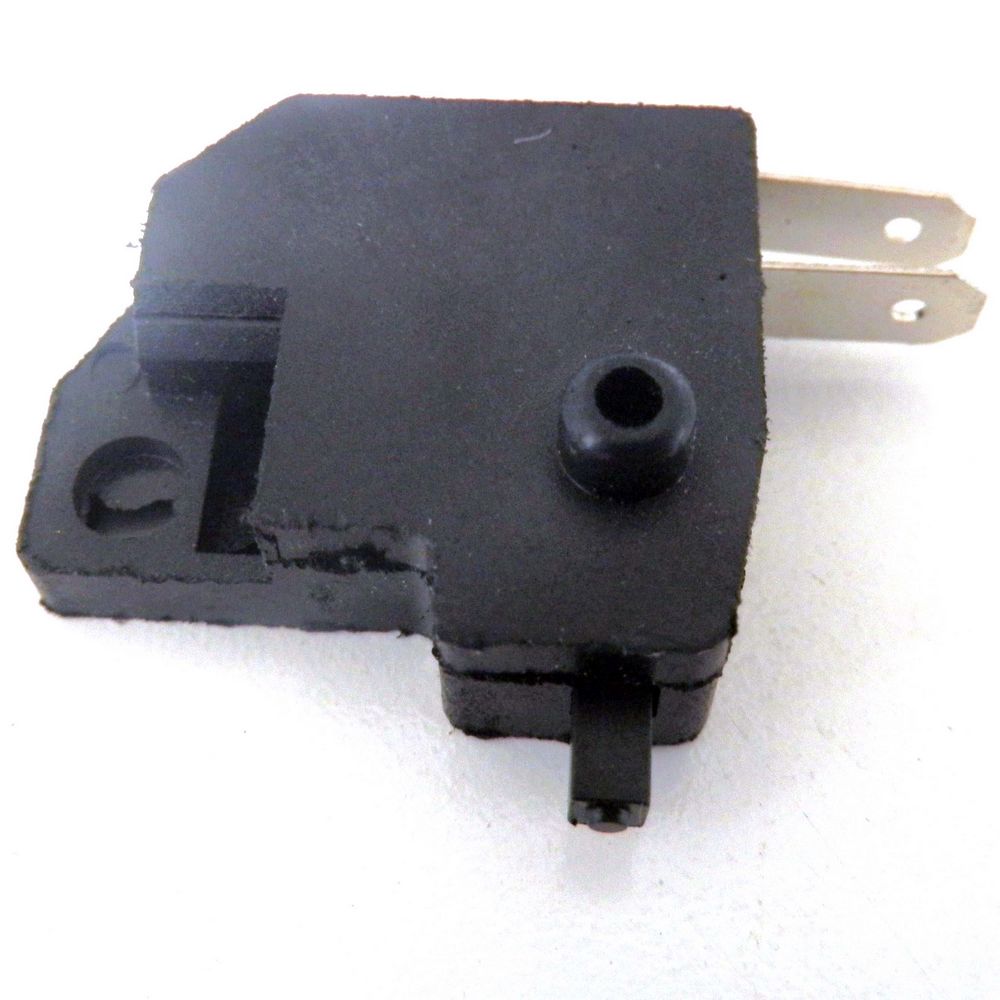

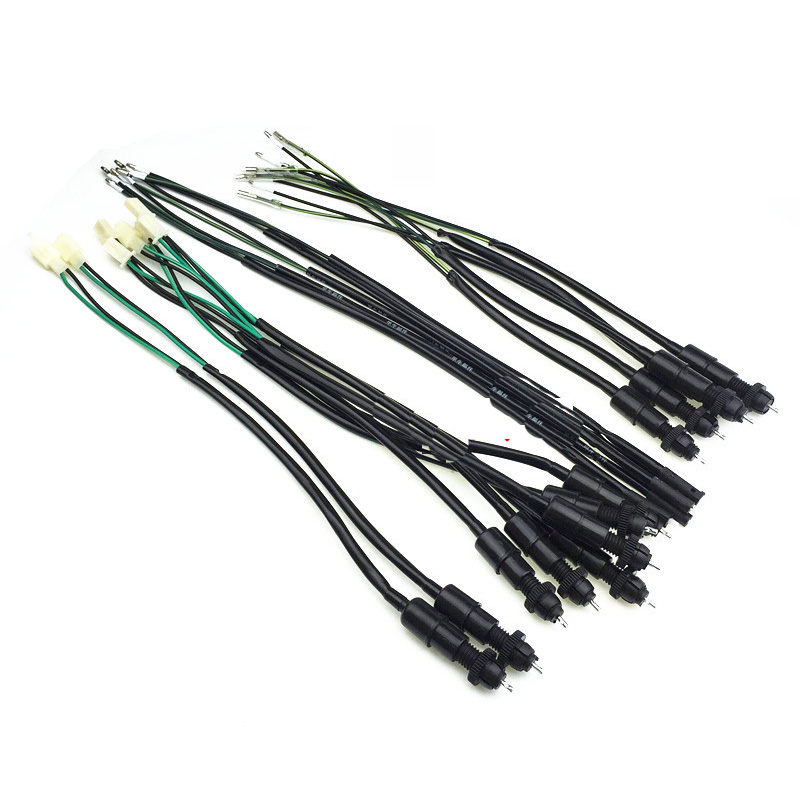

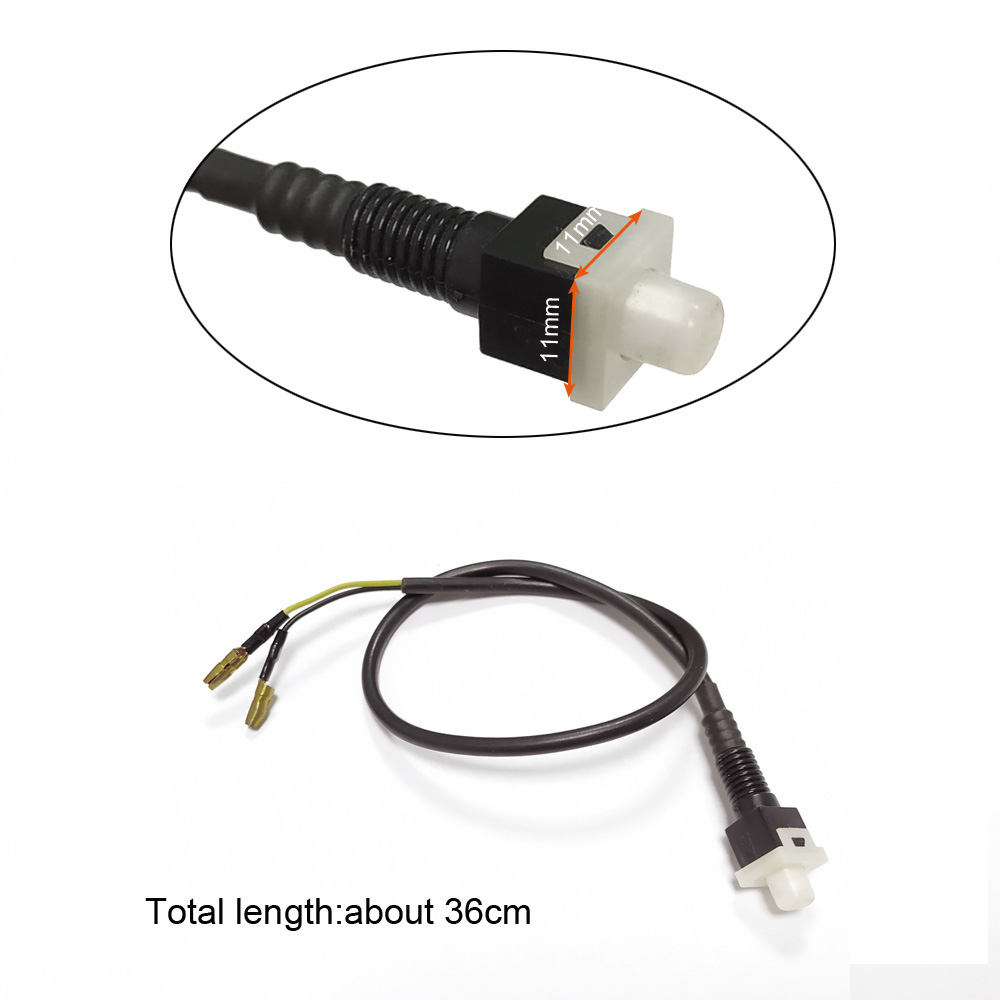

Product Installation Instructions for Rear Front Brake Light Switch Connector

Compatible Models
This brake light switch connector is designed to be compatible with various models, including electric scooters, mopeds, motorcycles, and ATVs.

Tools Required for Installation
To ensure a smooth installation process, please prepare the following tools:

• Screwdriver (Phillips or flat-head, depending on your vehicle)
• Wire strippers/cutters
• Electrical tape or heat shrink tubing
• Crimping tool (if applicable)
• Multimeter (optional, for testing)
• Safety gloves

Installation Steps

1. Safety First

   • Make sure the vehicle is turned off and unaffiliated with any power source.
   • Wear safety gloves for protection during installation.

2. Locate the Old Connector

   • Identify the existing brake light switch connector on your vehicle. It is typically located near the rear or front brake lever.

3. Remove the Old Connector

   • Use a screwdriver to remove any screws or fasteners holding the old connector in place.
   • Disconnect the old connector by gently pulling it apart.

4. Prepare the New Connector

   • Take the Rear Front Brake Light Switch Connector out of its packaging.
   • If needed, cut and strip the wires of the vehicle's harness to create a clean connection.

5. Connect the New Connector

   • Align the wires of the new connector with the corresponding wires of the vehicle's harness.
   • Use the crimping tool to securely attach the new connector to the vehicle's harness (if using a crimp-type connector).
   • Alternatively, twist the wires together and use electrical tape or heat shrink tubing for insulation.

6. Test the Connection

   • If you have a multimeter, check for continuity to ensure a proper connection.
   • Turn on the vehicle and test the brake lights to confirm they are functioning correctly.

7. Secure and Finalize

   • Once the installation is verified, secure the connector with any screws or fasteners initially removed.
   • Tidy up any excess wiring to maintain a clean look and ensure it does not interfere with other components.

8. Enjoy Your Ride

   • With the brake light switch connector successfully installed, you can now ride with enhanced safety knowing your brake lights will function correctly!

Conclusion
This brake light switch connector is designed for easy installation and provides stable performance to enhance your riding safety. If you encounter any issues, please consult a professional mechanic for assistance.
