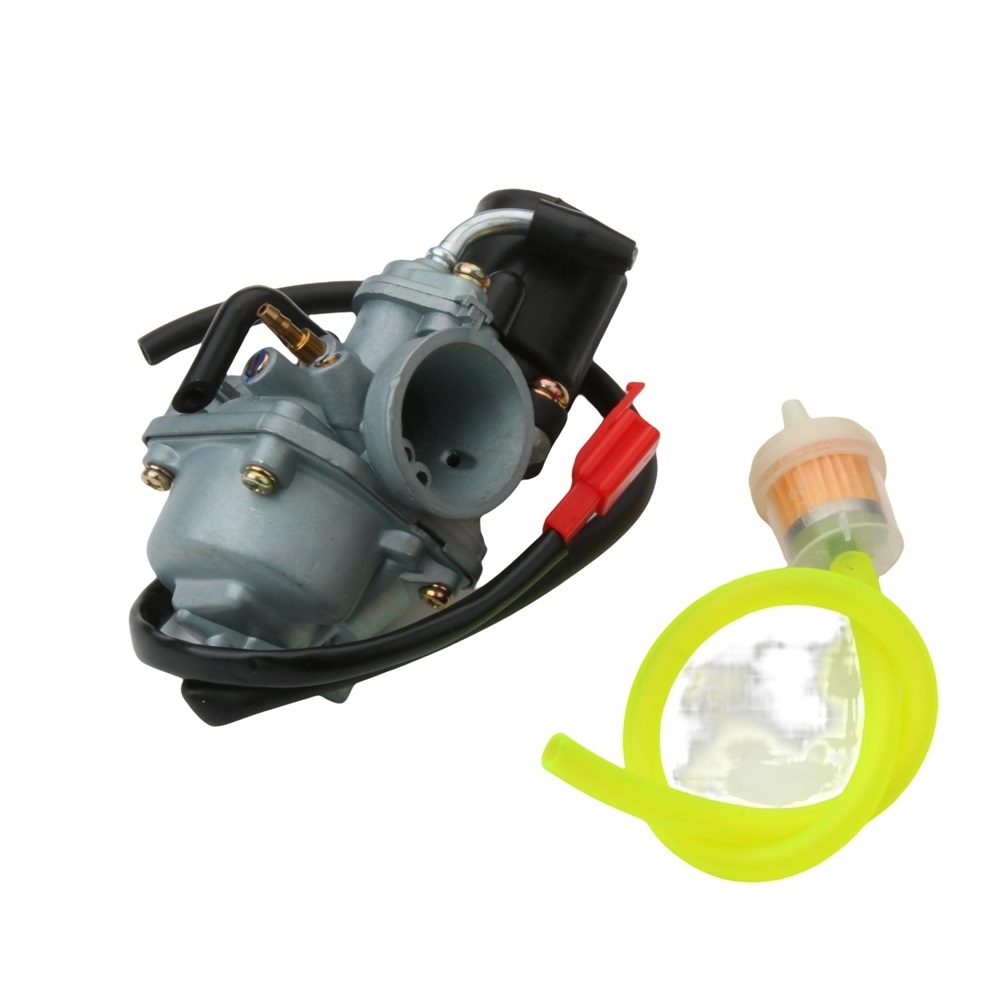

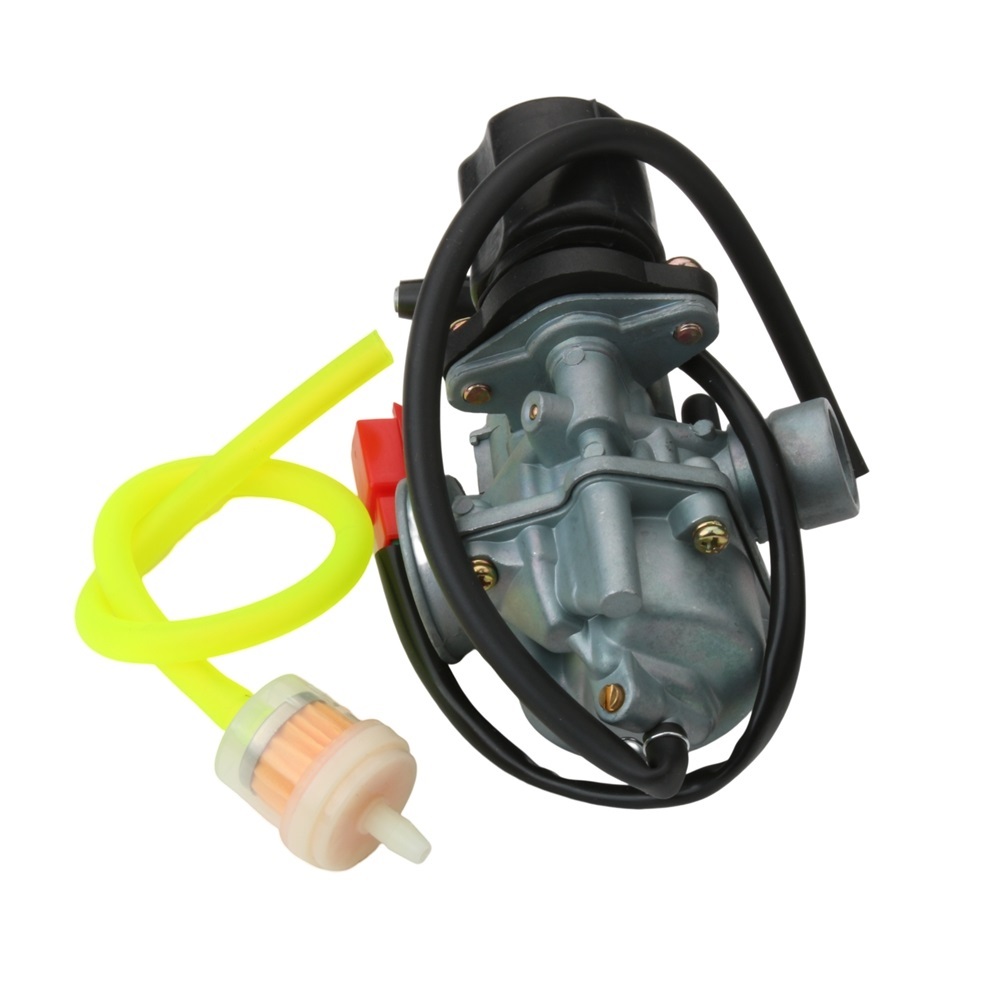

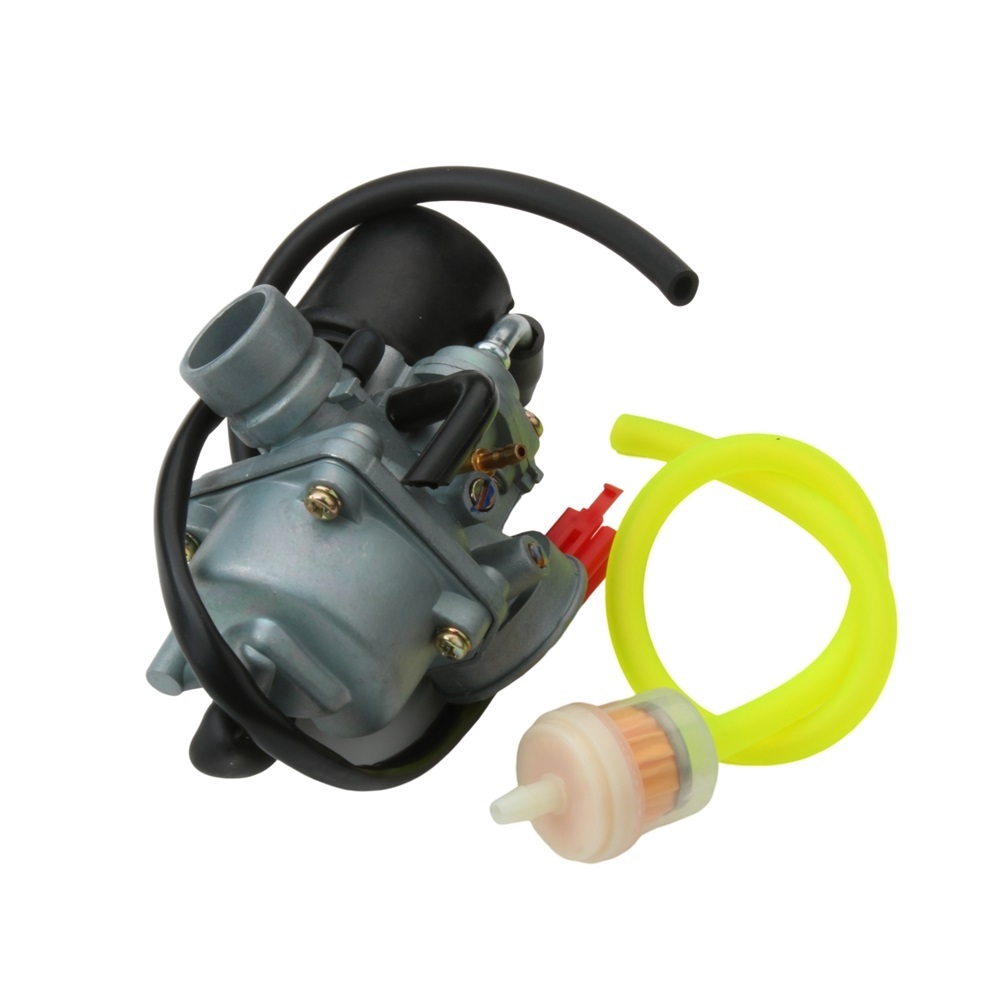

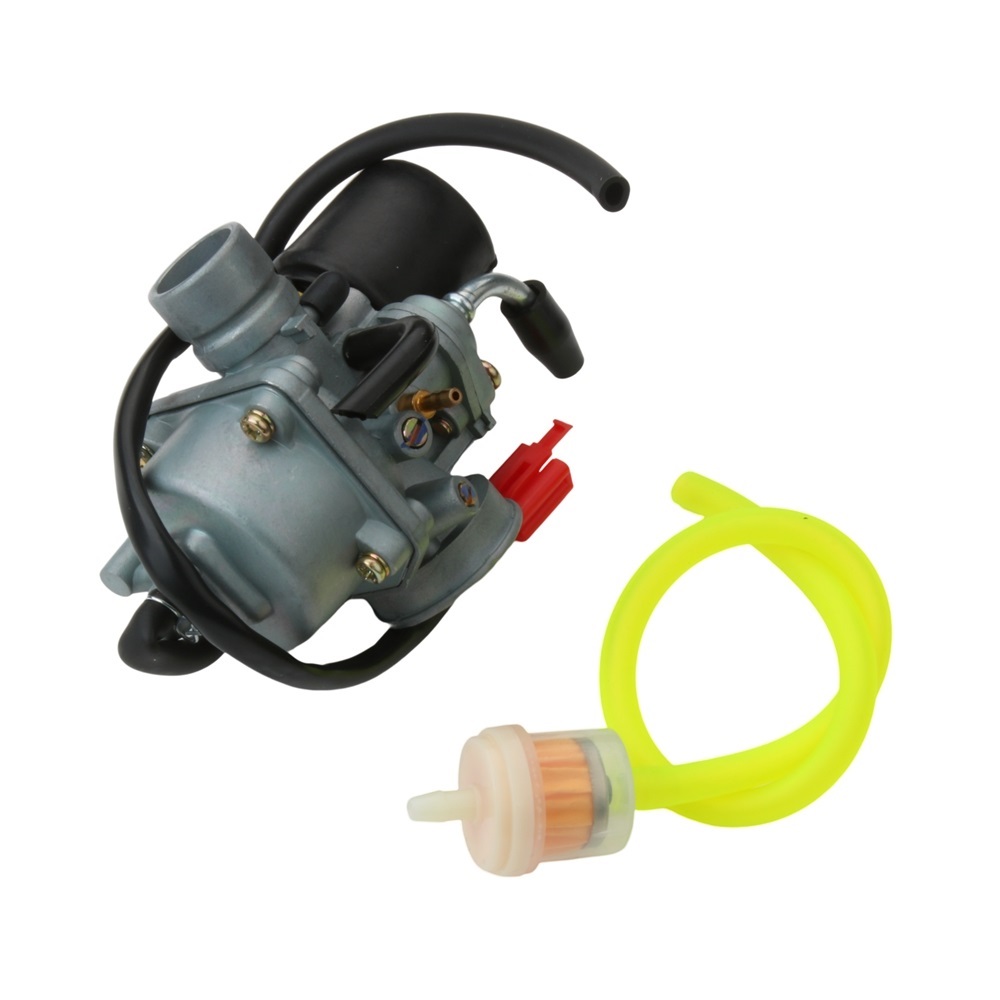

Product Installation Instructions for 19mm Carburetor for 50cc AC 2-Stroke Engine

Tools Needed:

1. Wrench Set – To remove and tighten bolts.
2. Screwdriver Set – To disconnect and secure hoses and connections.
3. Pliers – Helpful for gripping and pulling off hoses or clamps.
4. Shop Towels or Rags – To clean any spills and keep the workspace tidy.
5. Fuel Line Cutter or Scissors – To cut new fuel lines if necessary.
6. Torque Wrench – For ensuring that bolts are properly tightened to manufacturer specifications (if applicable).
7. Measuring Tape – For measuring the length of the fuel line (if you need to replace it).
8. Safety Goggles – To protect your eyes during the installation process.

Installation Steps:

1. Preparation:

   • Ensure the engine is cool and the vehicle is on a flat surface.
   • Disconnect the battery to prevent any electrical issues.

2. Remove the Old Carburetor:

   • Use the wrench to loosen and remove the bolts securing the old carburetor.
   • Disconnect the throttle cable and fuel line using the screwdriver or pliers.

3. Clean the Area:

   • Use shop towels to clean any debris or dirt around the intake manifold and surrounding areas.

4. Install the New Carburetor:

   • Align the new 19mm carburetor to the intake manifold.
   • Secure it using the provided bolts, tightening them evenly with the wrench.
   • Reconnect the throttle cable and fuel line, ensuring a tight fit to prevent leaks.

5. Check for Leaks:

   • After installation, turn on the fuel supply and check for any leaks around the carburetor and fuel line connections.

6. Final Adjustments:

   • Start the engine and allow it to idle for a few minutes.
   • Adjust the idle speed and mixture settings as recommended in the carburetor manual.

7. Test Ride:

   • Take the vehicle for a short test ride to ensure everything is functioning properly and the acceleration feels smooth.

Safety Precautions:

• Always wear safety goggles when working near gasoline or the engine.
• Dispose of any old fuel and oil properly to avoid environmental contamination.

By following these instructions and using the necessary tools, you will successfully install your 19mm carburetor for your 50cc AC 2-Stroke Engine, enhancing its performance and reliability.
