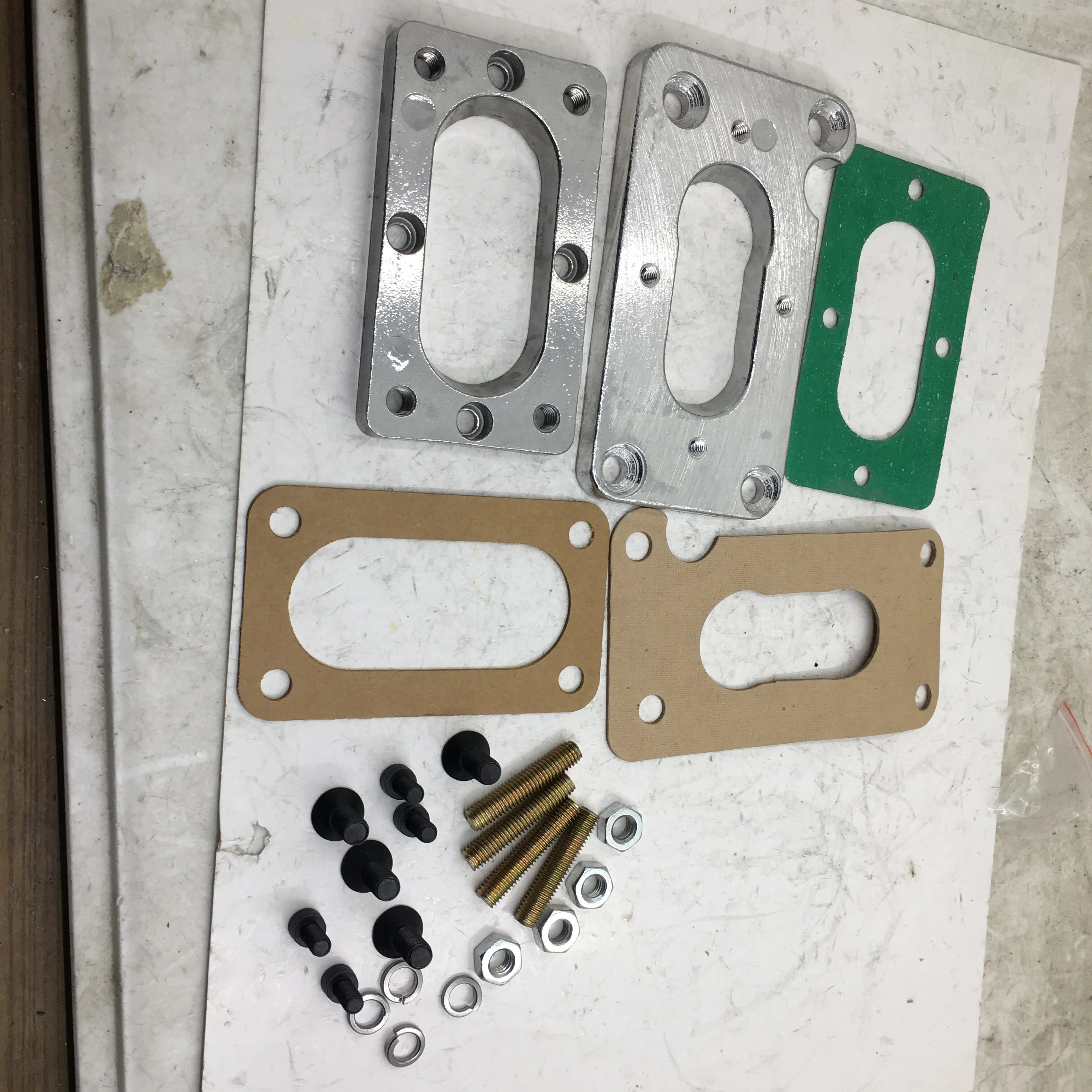

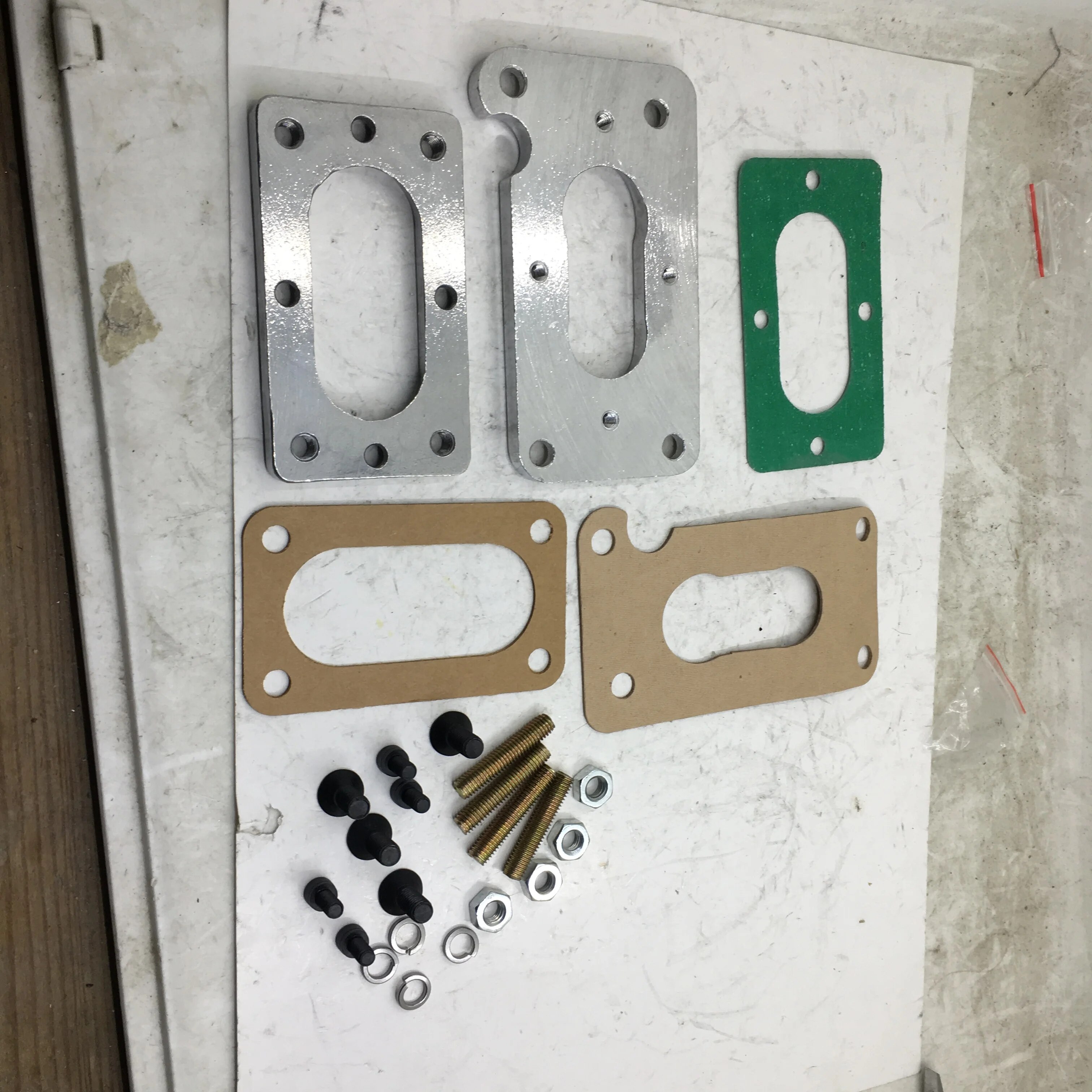

Installation Instructions for Carburetor Adapter Plate Kit Suitable for Mazda B2000 B2200 for 32/36 Carburetor

Required Tools:

• Screwdriver set (Phillips and flathead)
  -Wrench set
  -Socket set
  -Torque wrench
  -Pliers
• Gasket scraper or razor blade
  -Cleaning cloth
• Engine oil or lubricant
• Torque specifications sheet (if applicable)

Installation Steps:

1. Preparation:

   • Ensure the vehicle is parked on a level surface, and the engine is turned off and cool.
   • Disconnect the negative battery terminal for safety.

2. Remove the existing carburetor:

   • Carefully disconnect any fuel lines connected to the original carburetor. Use pliers if necessary.
   • Remove any electrical connections.
   • Unbolt and lift off the existing carburetor from the intake manifold.

3. Clean the surface:

   • Use a gasket scraper or razor blade to remove any old gasket material from the intake manifold. Ensure the surface is clean and smooth.
   • Wipe down the area with a cleaning cloth to remove debris.

4. Install the adapter plate:

   • Place the carburetor adapter plate onto the intake manifold, ensuring it is seated correctly.
   • Check that the holes align with the manifold and the carburetor.

5. Attach the carburetor:

   • Position the 32/36 carburetor onto the adapter plate.
   • Use the supplied bolts and washers to secure the carburetor to the adapter plate.
   • Tighten bolts in a criss-cross pattern, referring to the torque specifications sheet if available.

6. Reattach fuel lines and electrical connections:

   • Connect the fuel lines, ensuring they are secure and not leaking.
   • Reconnect any electrical connections to the carburetor.

7. Check the installation:

   • Double-check all connections, bolts, and adjustments to ensure everything is properly secured.
   • Reconnect the negative battery terminal.

8. Final steps:

   • Start the engine and let it run for a few minutes to ensure proper operation.
   • Check for any leaks around the carburetor and lines.

9. Test drive:

   • Take the vehicle for a test drive to experience the enhanced performance and fuel efficiency.

Tips:

• Always wear safety glasses and gloves while working on your vehicle.
• Keep track of all small parts and hardware during the installation process.
• If unsure about any step, consult a professional mechanic for assistance.

By following these steps, you can successfully install the Carburetor Adapter Plate Kit and enjoy the improved performance of your Mazda B2000 or B2200.
