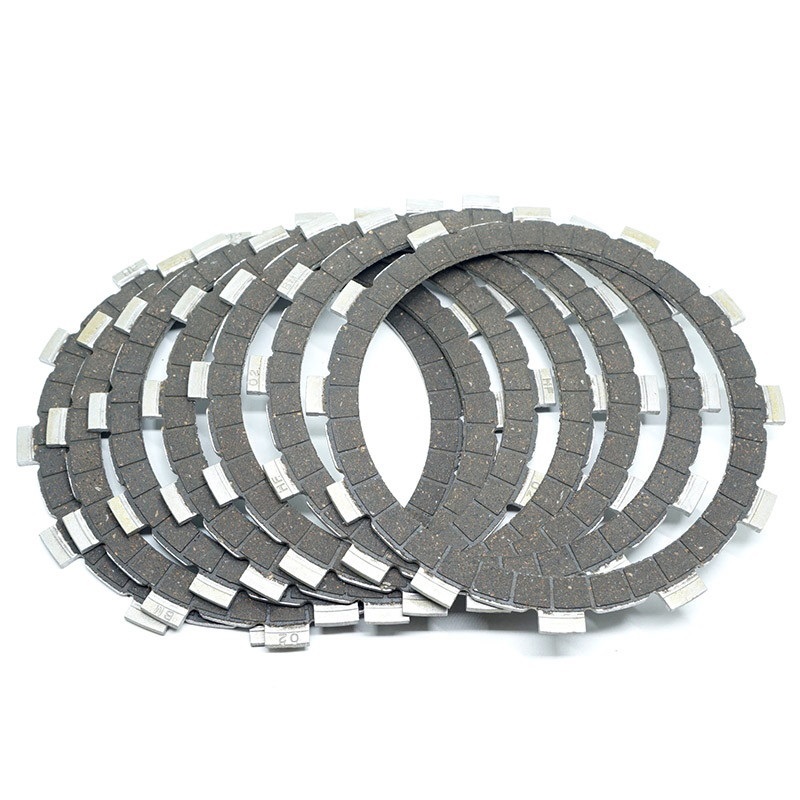

Installation Instructions for 7-Piece Clutch Friction Plate Set

Compatibility:

This 7-piece clutch friction plate set is compatible with the following motorcycle models:
-ZR400

• ZRX
  -ZX400
  -ZZR400
  -EN450
  -EN500
  -Vulcan 500
  -EX500

Tools Required:

To successfully install the 7-piece clutch friction plate set, you will need the following tools:

1. Basic Hand Tools

   • Socket set (including the appropriate sizes for your motorcycle)
   • Wrenches (open-end and/or combination)
   • Screwdrivers (Phillips and flathead)

2. Torque Wrench

   • To ensure proper torque specifications when reassembling components.

3. Pliers

   • To help with removing any clips or fittings.

4. Oil Drain Pan

   • To catch any oil that may spill during removal.

5. Cleaning Supplies

   • Brake cleaner or degreaser
   • Rags or paper towels for cleanup

6. Safety Gear

   • Gloves to protect your hands
   • Safety goggles to protect your eyes from debris

Installation Steps:

1. Preparation

   • Place your motorcycle on a stable surface and ensure it is securely parked.
   • Remove any necessary fairings or covers to access the clutch assembly.

2. Drain the Oil

   • Place the oil drain pan under the motorcycle and drain the engine oil as per the manufacturer’s instructions.

3. Remove the Clutch Cover

   • Use the socket set to remove the bolts securing the clutch cover. Carefully take off the cover and set it aside.

4. Remove Old Friction Plates

   • Once the cover is off, remove the old friction plates from the clutch assembly. Note the order and orientation of the plates for reassembly.

5. Clean the Area

   • Use brake cleaner or degreaser to clean any grime or oil residue from the clutch assembly.

6. Install New Friction Plates

   • Begin installing the new friction plates according to the noted order and orientation. Ensure they are seated properly in the clutch basket.

7. Reassemble Clutch Cover

   • Replace the clutch cover and tighten the bolts to the manufacturer’s torque specifications using the torque wrench.

8. Refill Engine Oil

   • Refill the engine with the appropriate type and amount of oil.

9. Test the Clutch

   • Start the motorcycle and engage the clutch lever to check for smooth operation.

10. Final Check

    • Test ride the motorcycle to ensure everything is functioning correctly.

Conclusion:

With the appropriate tools and careful installation, you will enhance your motorcycle's performance and riding experience. Enjoy your rides with the newly installed clutch friction plate set!
