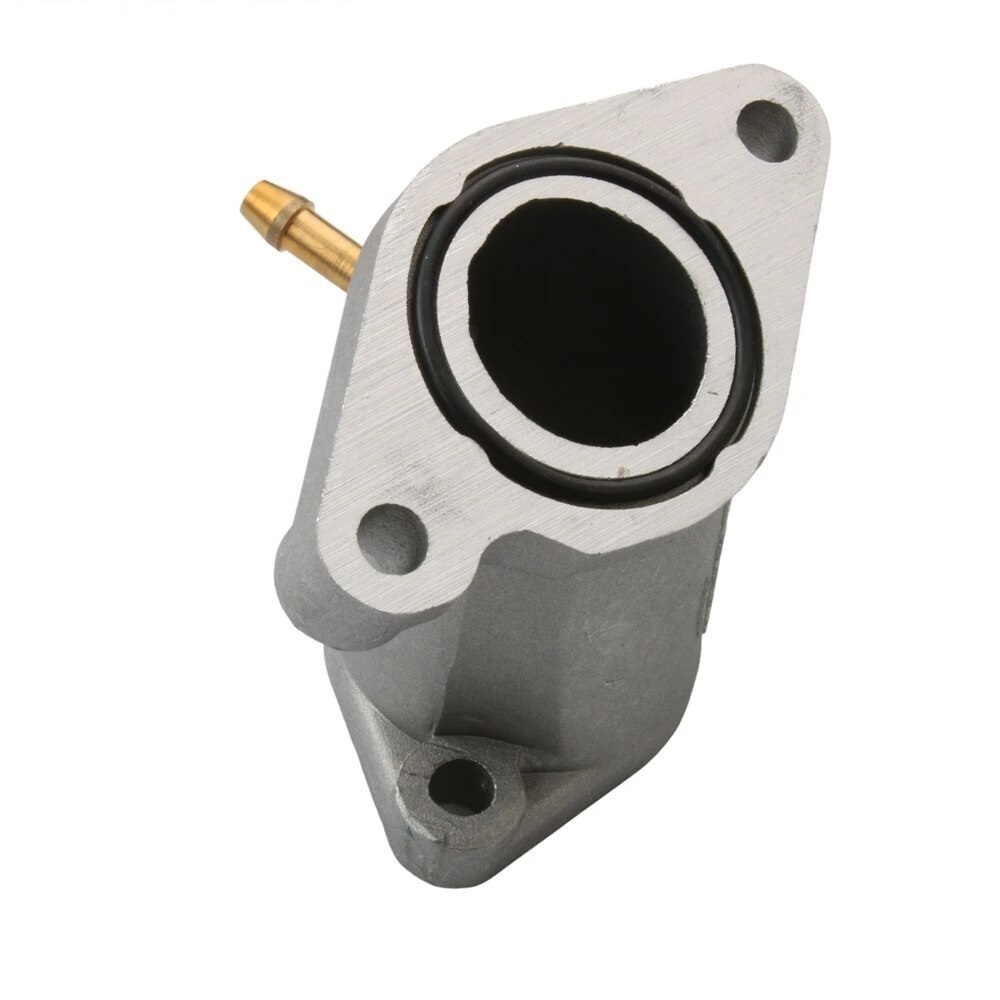

Product Installation Instructions for 125cc Motorbike Intake Manifold (Model: 5VL-E3586-30)

Compatible With:

• YBR 4-Stroke Engine
• 125cc Small Motorbike

Tools Required:

1. Socket Wrench Set - To remove and tighten bolts securely.
2. Torque Wrench - To ensure bolts are tightened to the manufacturer’s specifications.
3. Screwdriver Set - To remove any screws, if applicable.
4. Pliers - For gripping and manipulating small parts.
5. Rubber Gasket or Sealant - To ensure a leak-proof seal when installing the manifold.
6. Cleaning Cloths - To clean the surfaces before installation.
7. Engine Oil - For lubrication of gaskets and seals, if necessary.
8. Safety Goggles - To protect your eyes during the installation process.
9. Gloves - To keep your hands clean and protected.

Installation Steps:

1. Preparation: Ensure the motorbike is on a stable surface and turned off. Disconnect the battery for safety.

2. Remove Old Intake Manifold:

   • Use the socket wrench to remove the bolts securing the old manifold.
   • Carefully detach the manifold from the engine and intake tract.

3. Clean Surface:

   • Use cleaning cloths to wipe the surfaces where the new manifold will be installed. Ensure there is no debris or old gasket material left.

4. Apply Gasket or Sealant:

   • Apply a rubber gasket or appropriate sealant on the end of the new intake manifold to ensure a proper fit.

5. Install New Intake Manifold:

   • Position the new intake manifold onto the engine.
   • Align the bolt holes properly and insert the bolts.

6. Secure Bolts:

   • Use the socket wrench to tighten the bolts evenly. Follow up with the torque wrench to ensure each bolt is tightened to the manufacturer’s specifications.

7. Reconnect Battery:

   • Once the installation is complete, reconnect the battery.

8. Final Inspection:

   • Check all connections and ensure everything is secure before starting the engine.

Important Notes:

• Always refer to your motorbike's service manual for specific torque specifications and additional instructions.
• If you are unfamiliar with motorcycle maintenance, consider consulting a professional mechanic for assistance.

By following these installation instructions, you can ensure a safe and effective installation of your new 125cc Motorbike Intake Manifold. Enjoy your riding experience!
