Installation Instructions for Carburetor Gasket Set for ZAMA Chainsaw Models 2500, 3800, 4500, 5200, 5800

Tools Needed:

1. Screwdrivers:

   • Flathead screwdriver
   • Phillips screwdriver

2. Wrenches:

   • A set of metric wrenches for various bolt sizes

3. Socket Set:

   • A metric socket set for quicker removal and installation of components

4. Pliers:

   • Needle-nose pliers for handling small parts

5. Clean Cloth/Rag:

   • For cleaning surfaces before assembly

6. Gasket Scraper:

   • For removing old gasket material from surfaces

7. Torque Wrench (optional):

   • To ensure bolts are tightened to the manufacturer's specifications

Installation Steps:

1. Prepare the Workspace:

   • Ensure you have a clean, well-lit area to work in, and lay out your tools for easy access.

2. Remove the Chainsaw Cover:

   • Use the appropriate screwdriver or wrench to take off the chainsaw cover.

3. Disconnect the Carburetor:

   • Carefully disconnect fuel lines and any attached components, taking note of their positions for reassembly.

4. Clean the Carburetor Surface:

   • Using the gasket scraper, remove any old gasket material from the carburetor and the intake manifold surfaces. Wipe clean with a rag.

5. Install the New Gasket Set:

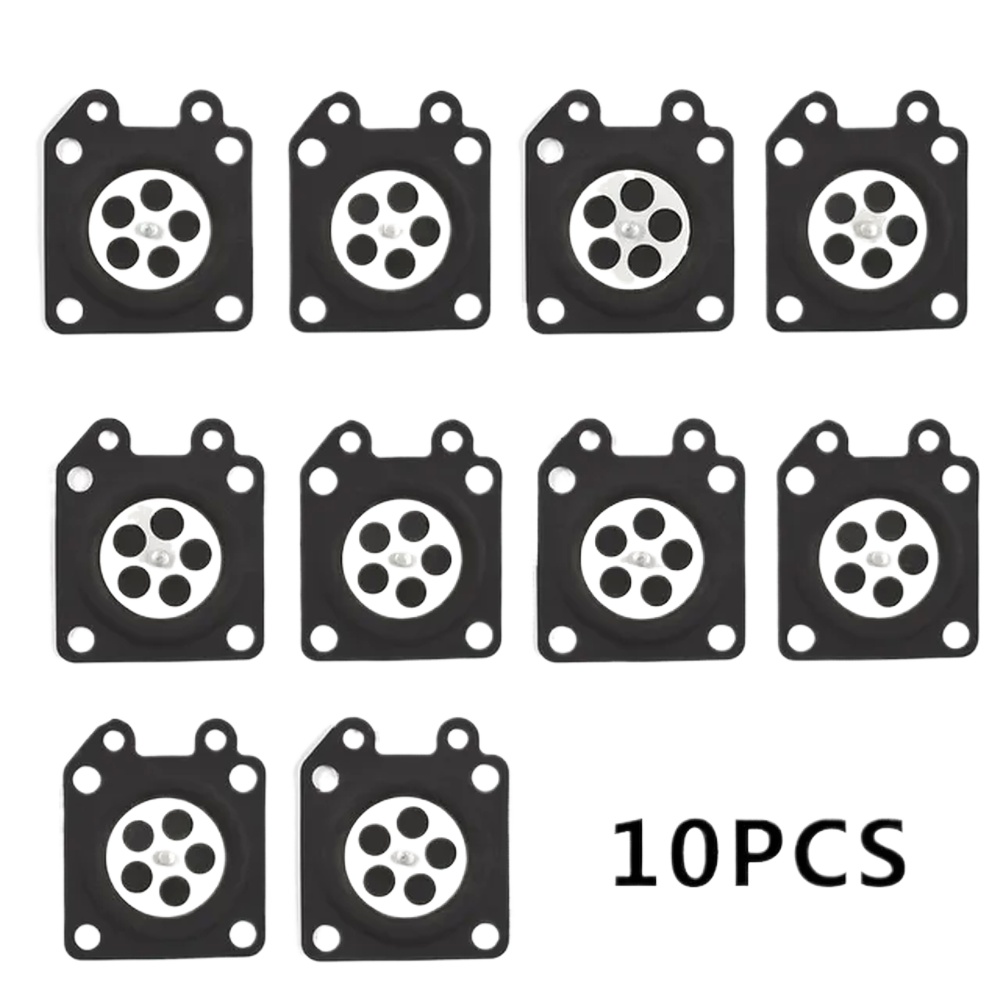

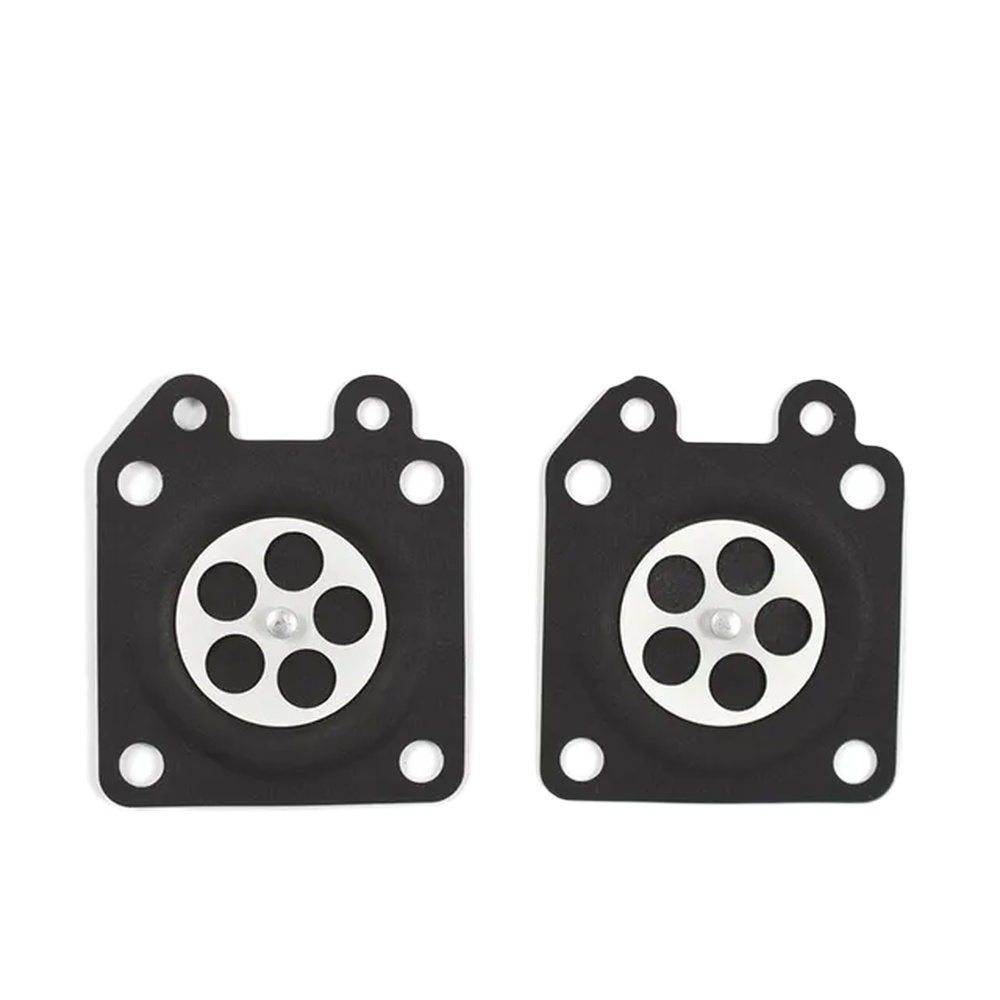

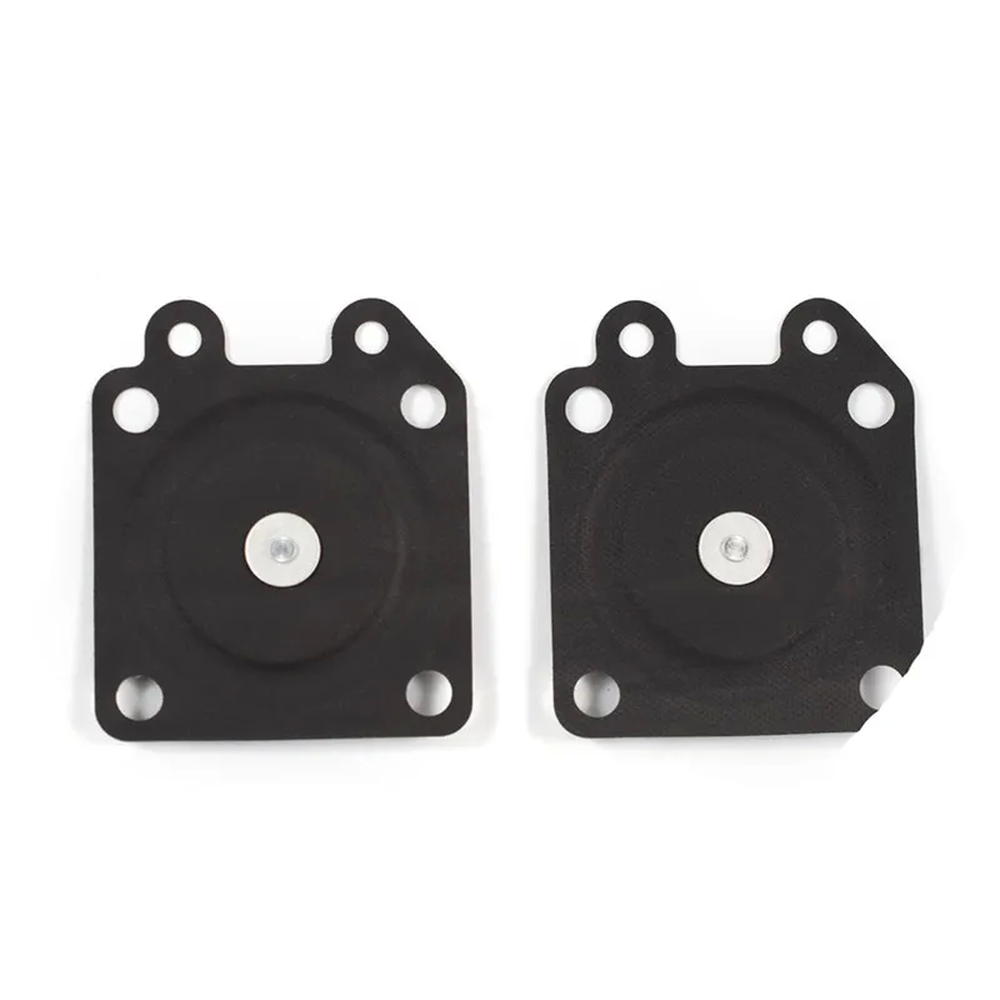

   • Place the new metering diaphragm and gasket assembly onto the carburetor, ensuring proper alignment.

6. Reattach the Carburetor:

   • Position the carburetor back onto the chainsaw and reconnect the fuel lines and components you previously removed.

7. Test the Connections:

   • Check all connections for any leaks or loose fittings before closing up the chainsaw.

8. Reassemble the Chainsaw Cover:

   • Replace the chainsaw cover and secure it with screws or bolts.

9. Final Checks:

   • Double-check all fasteners for tightness and ensure the area is clear of tools before starting the chainsaw.

Maintenance Tips:

• Regularly inspect the carburetor and gasket for wear or damage to maintain optimal performance.
• Clean the carburetor periodically to prevent buildup of debris and ensure smooth operation.

By following these instructions, you'll ensure a successful installation of the Carburetor Gasket Set and maintain the performance of your ZAMA chainsaw. Happy sawing!
