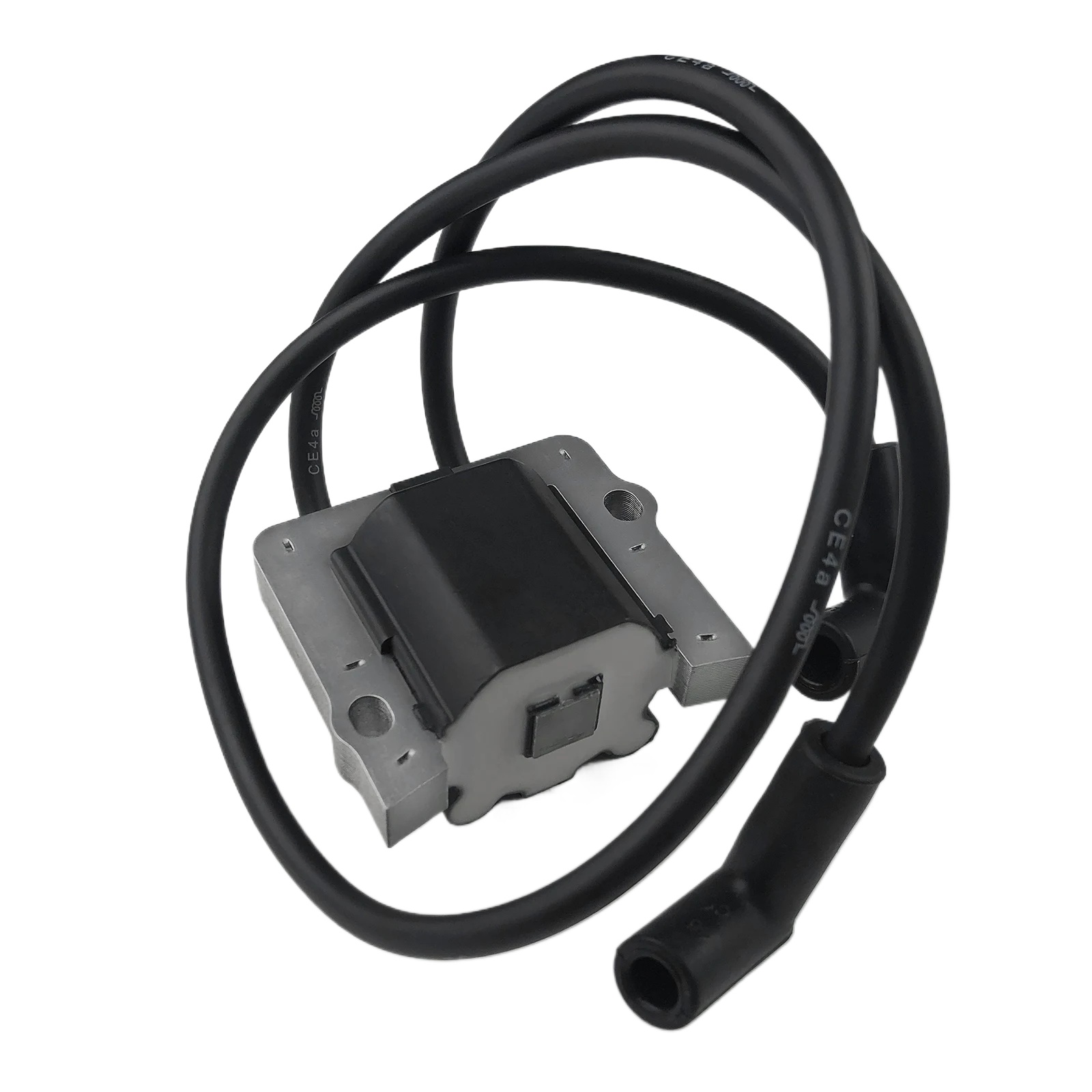

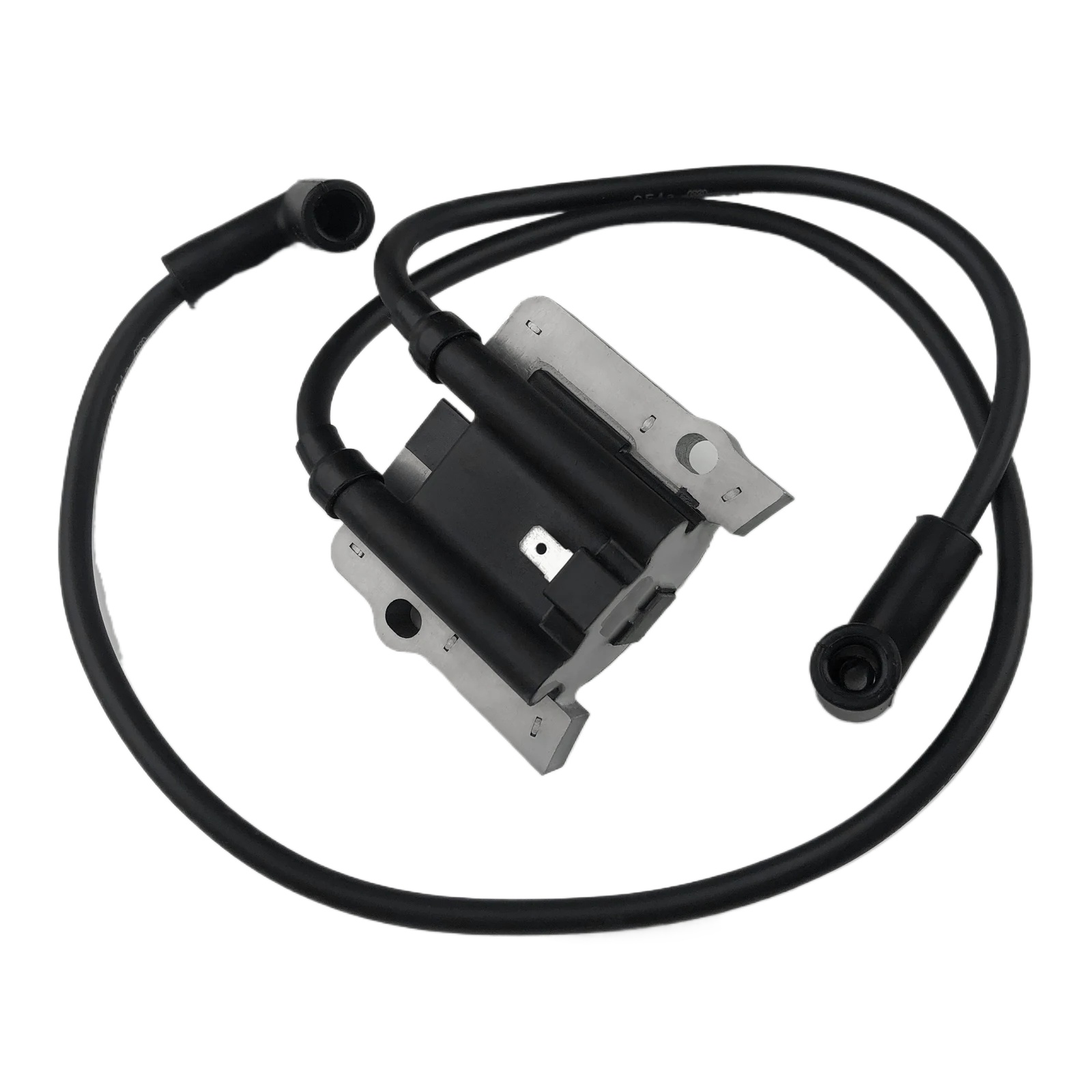

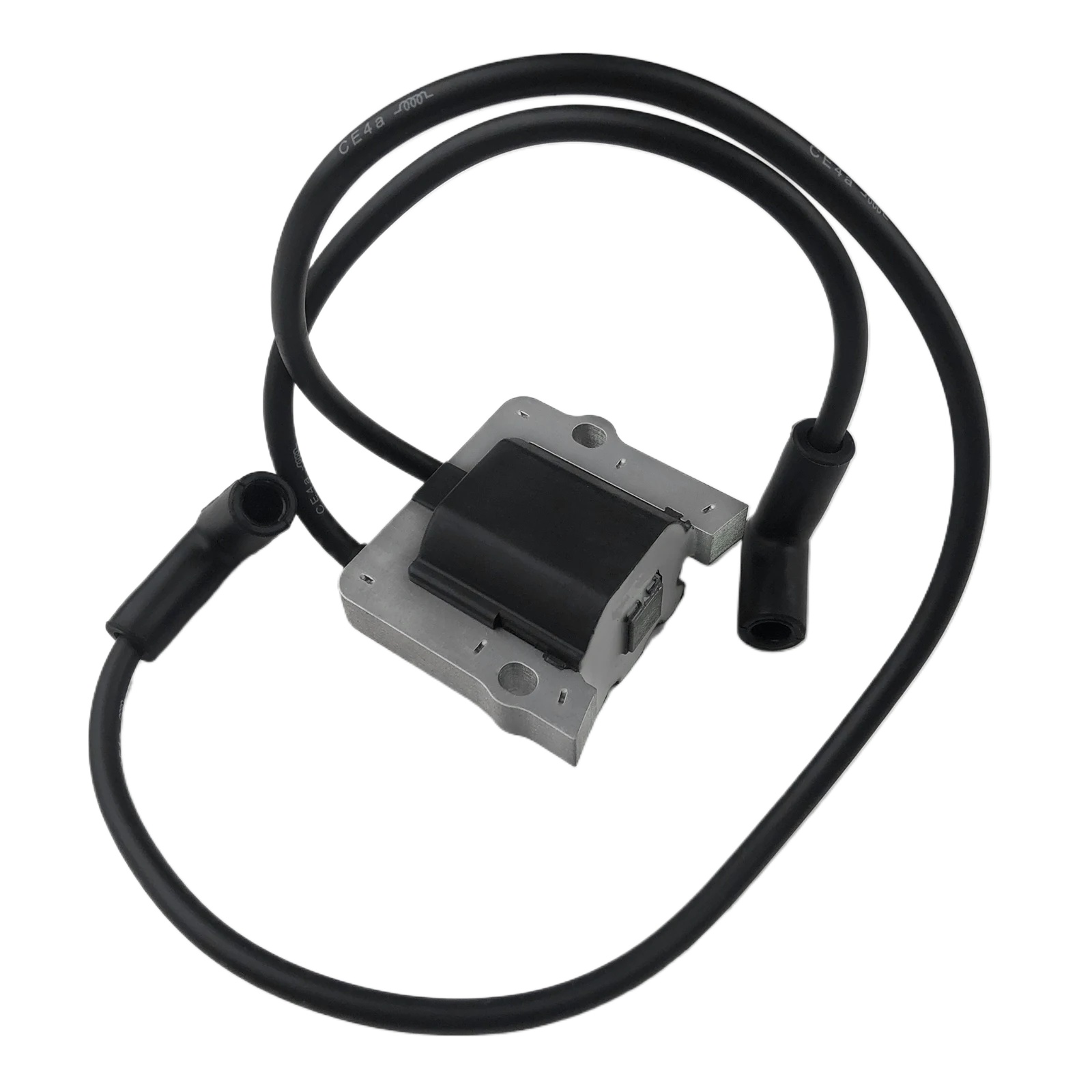

Installation Instructions for Ignition Coil Module Compatible with Kohler 5258402S

Tools Required:

1. Socket Wrench Set
2. Screwdriver Set (Flathead and Phillips)
3. Torque Wrench
4. Wire Crimping Tool (if necessary)
5. Safety Gloves
6. Safety Goggles
7. Flat Workspace (to avoid losing small parts)

Installation Steps:

1. Prepare the Work Area:

   • Ensure you are working in a clean and flat workspace to prevent any small parts from being lost.

2. Safety First:

   • Wear safety gloves and goggles to protect yourself from any debris or sharp edges.

3. Disconnect the Power:

   • Turn off the garden equipment and disconnect the battery or power source to avoid any electric shocks.

4. Remove the Old Ignition Coil Module:

   • Using a socket wrench, remove any bolts or screws securing the existing ignition coil module.
   • Carefully disconnect the wiring harness from the old module. If it is difficult to remove, use a wire crimping tool.

5. Install the New Ignition Coil Module:

   • Align the new ignition coil module with the mounting holes and secure it using the previously removed screws or bolts.
   • Ensure that the module fits snugly and is properly aligned.

6. Reconnect the Wiring Harness:

   • Attach the wiring harness to the new ignition coil module, ensuring a secure and reliable connection.

7. Test the Installation:

   • Reconnect the battery or power source and start the garden equipment to test the newly installed module.
   • Ensure the engine runs smoothly and the ignition operates efficiently.

8. Final Checks:

   • Double-check all connections and ensure that there are no tools left in the work area before concluding the installation.

By following these instructions, you can easily replace the ignition coil module and ensure your garden equipment runs more efficiently. Enjoy your gardening!
