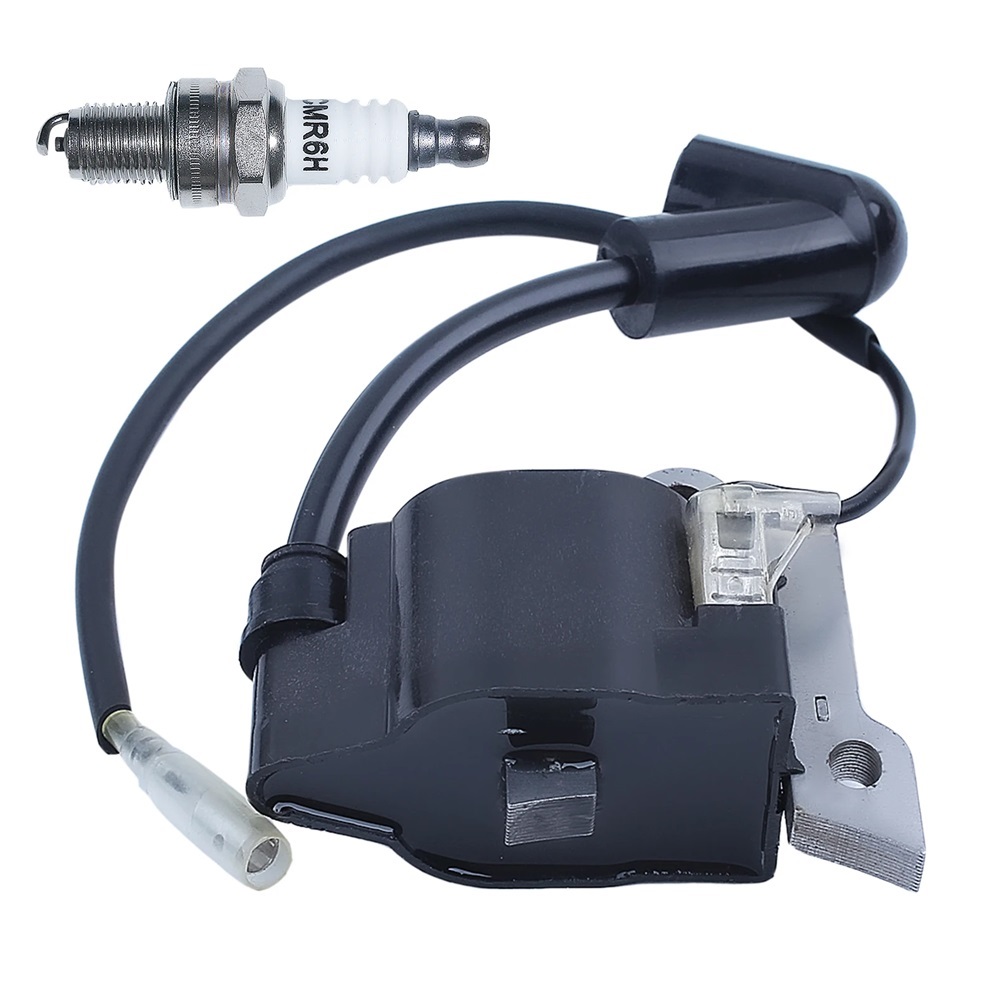

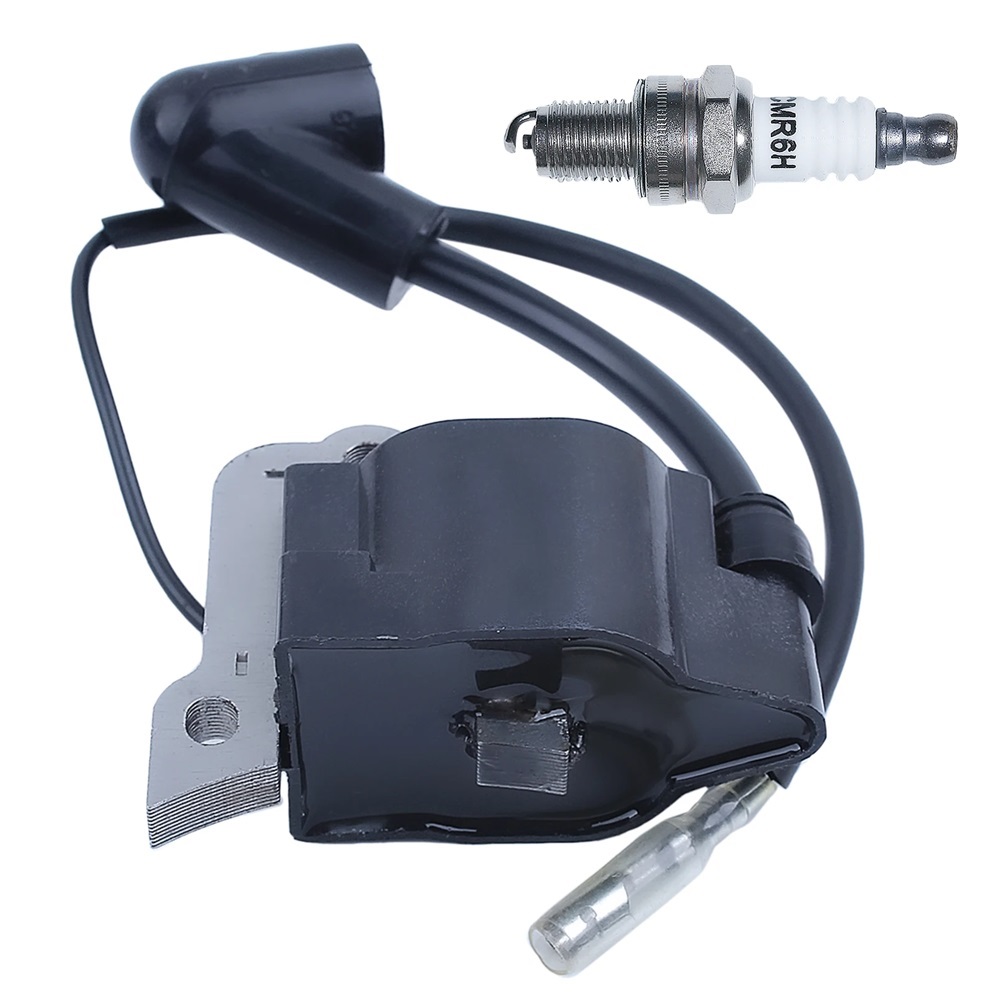

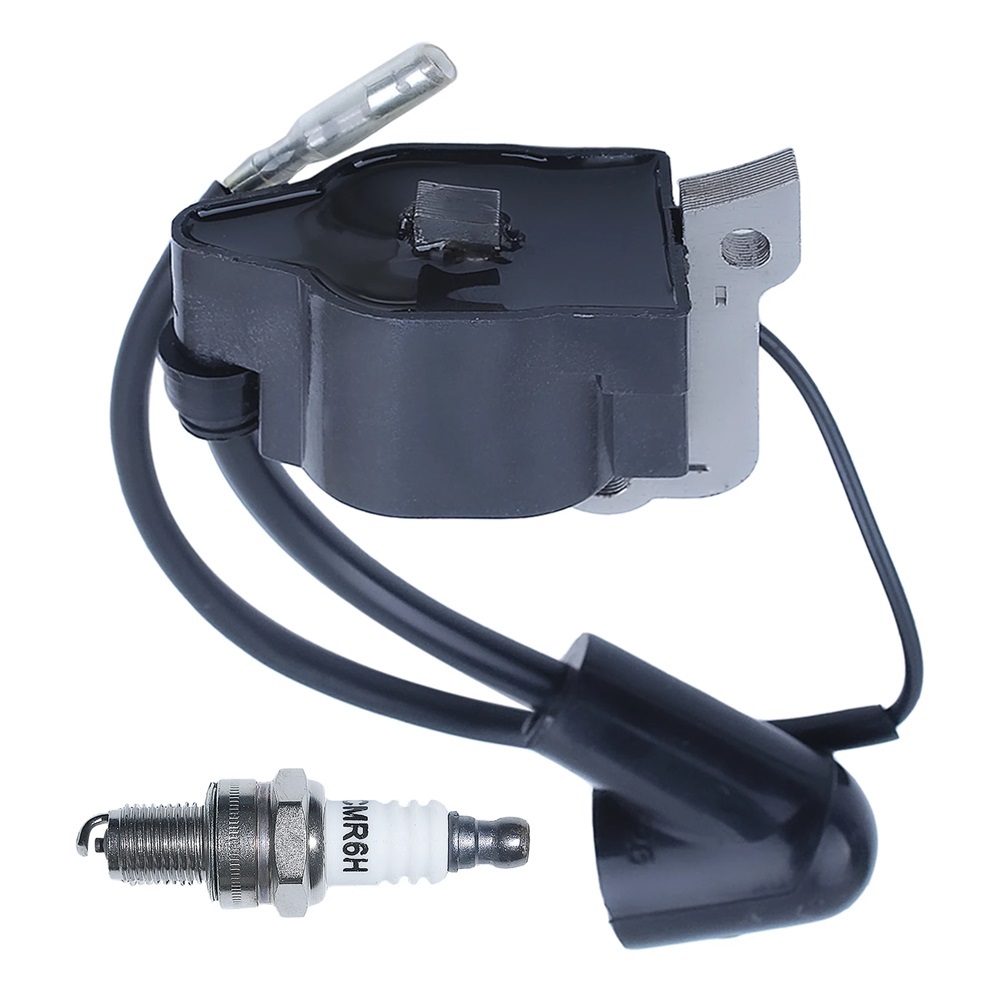

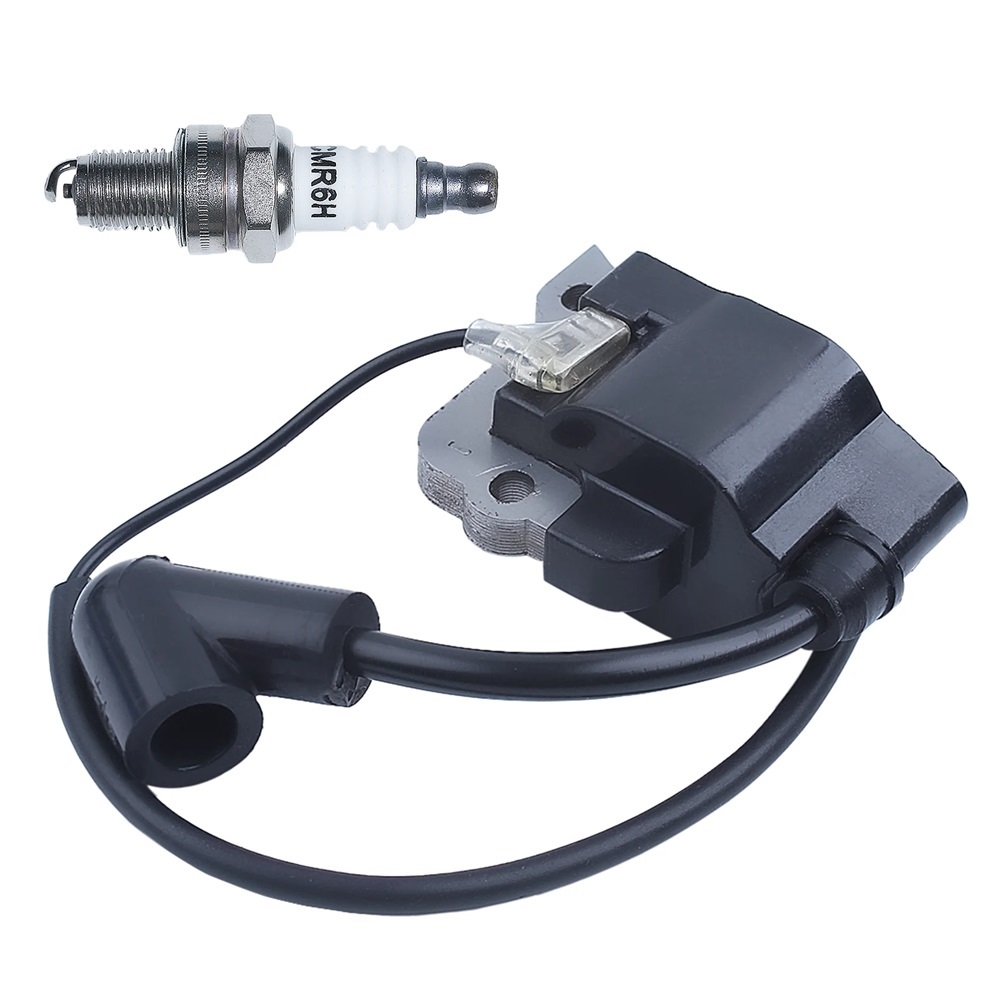

Installation Instructions for the Ignition Coil Module Spark Plug Compatible with GX25 Series Small Engines

Tools Required:

1. Socket Wrench Set - To remove and install the screws securing the ignition coil.
2. Screwdriver Set - Both Phillips and flathead screwdrivers may be needed for various screws.
3. Pliers - For any adjustments or gripping needs.
4. Torque Wrench - To ensure screws are tightened to the manufacturer’s specifications, if applicable.
5. Safety Goggles - To protect your eyes during installation.
6. Work Gloves - To protect your hands and provide grip while working.

Installation Steps:

1. Preparation:

   • Ensure the engine is turned off and completely cooled down before starting any work.
   • Disconnect the spark plug wire to prevent accidental starting.

2. Remove the Old Ignition Coil:

   • Use the socket wrench to remove any bolts securing the ignition coil.
   • Carefully disconnect the electrical connectors attached to the ignition coil.
   • Remove the old ignition coil from the engine.

3. Install the New Ignition Coil:
   -Align the new ignition coil with the mounting holes on the engine.

   • Connect the electrical connectors to the new ignition coil securely.
   • Use the socket wrench to install and tighten the screws that hold the ignition coil in place.

4. Reconnect Spark Plug Wire:

   • Reattach the spark plug wire to the spark plug.

5. Final Checks:

   • Ensure all bolts and connections are secure.
   • Check for any tools left in the engine compartment before starting the engine.

6. Start the Engine:

   • Turn on the engine to ensure it starts smoothly and the new ignition coil is functioning correctly.

Safety Precautions:

• Always wear safety goggles and work gloves during the installation to safeguard against potential injuries.
• Ensure the workspace is clean and well-lit to facilitate the installation process.

By following these instructions, you can easily install the ignition coil module and enjoy improved engine performance and efficiency.
