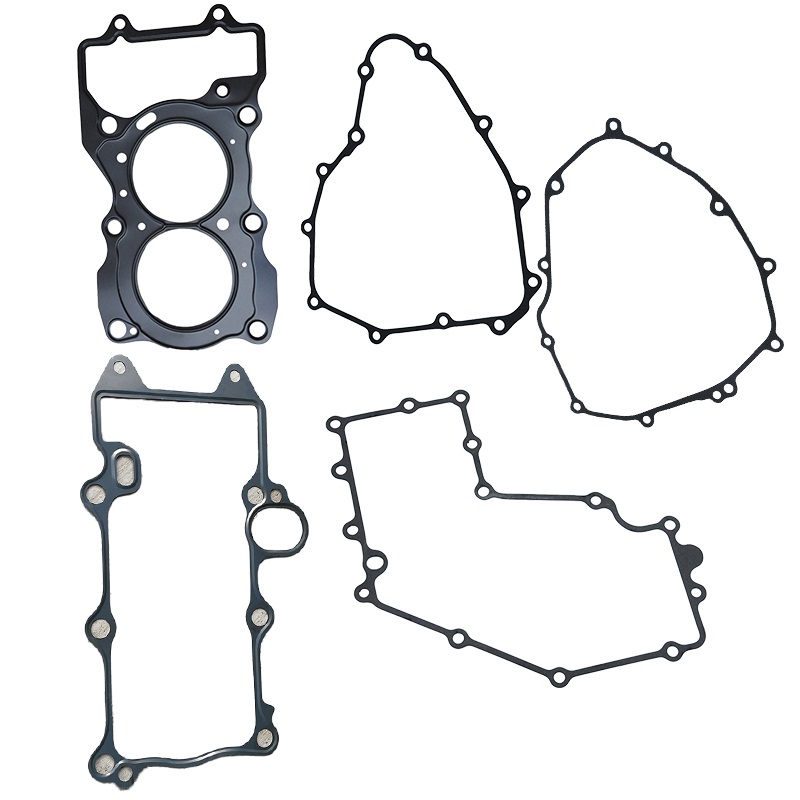

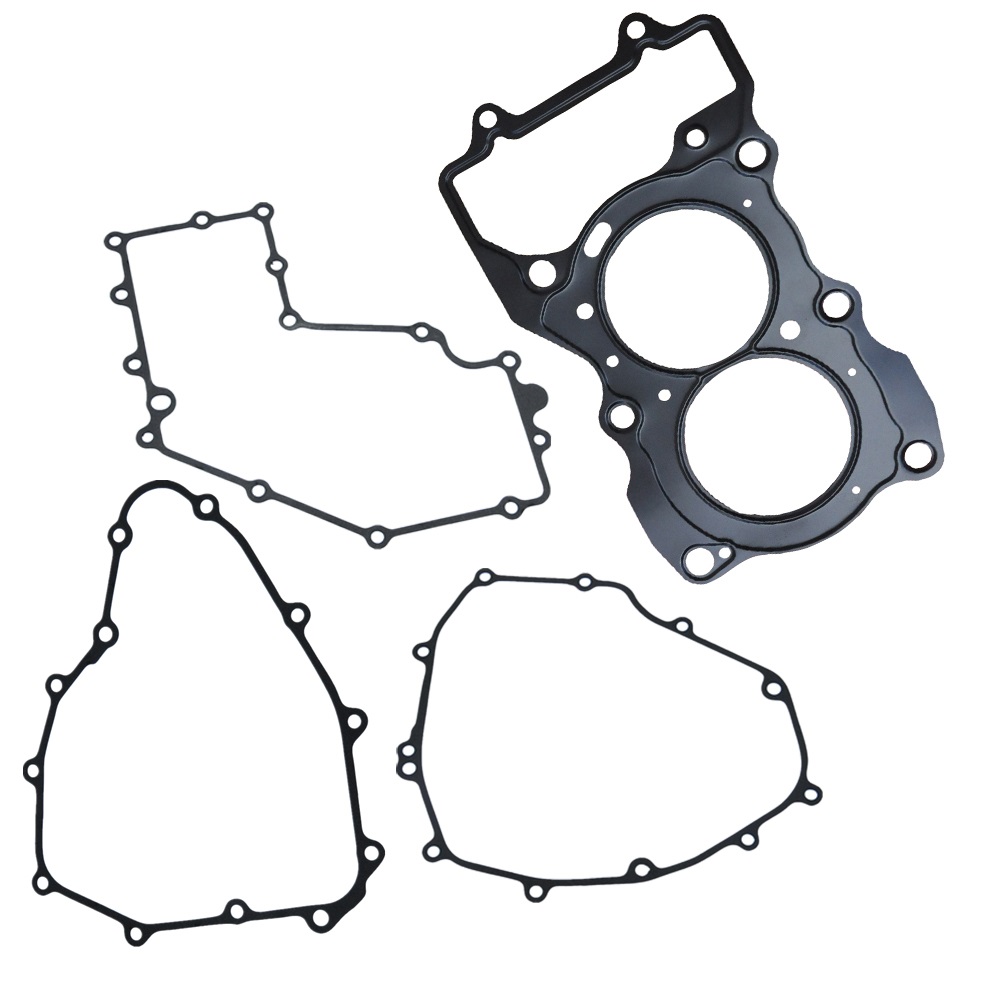

Installation Instructions for Compatible Complete Cylinder Base Generator Clutch Covers Gasket Set for K N 400 EX400 (2018-2022) & Z400 ZR400 (2019-2022)

Tools Required:

1. Socket Wrench Set
2. Torque Wrench
3. Screwdriver Set (Phillips and Flathead)
4. Gasket Scraper or Razor Blade
5. Clean Rags or Paper Towels
6. Engine Oil or Gasket Sealant (if required)
7. Safety Gloves
8. Safety Goggles

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and support it with a motorcycle stand.
   • Disconnect the battery to prevent any electrical issues during the installation.

2. Removing the Old Gasket:

   • Use a gasket scraper or razor blade to carefully remove the old gasket from the engine cover and the cylinder base.
   • Clean the surfaces thoroughly using clean rags or paper towels to remove any oil or debris.

3. Inspecting the Components:

   • Check the generator clutch cover and surrounding areas for any signs of wear or damage. Ensure that all mounting points are intact.

4. Installing the New Gasket:

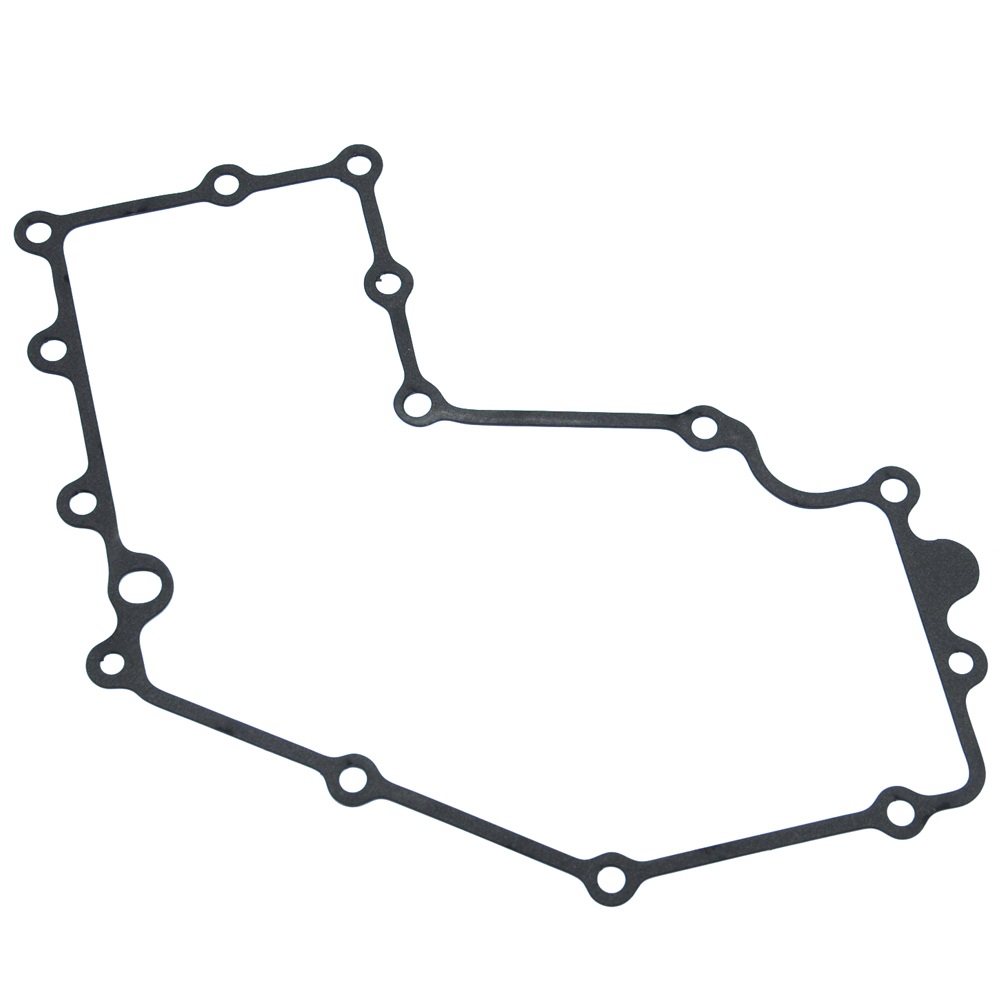

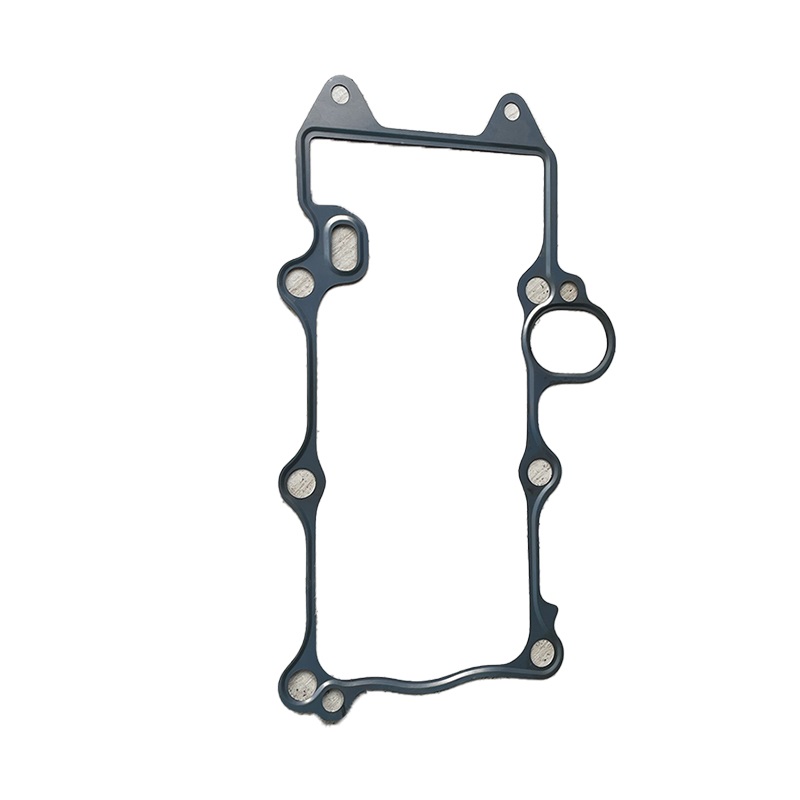

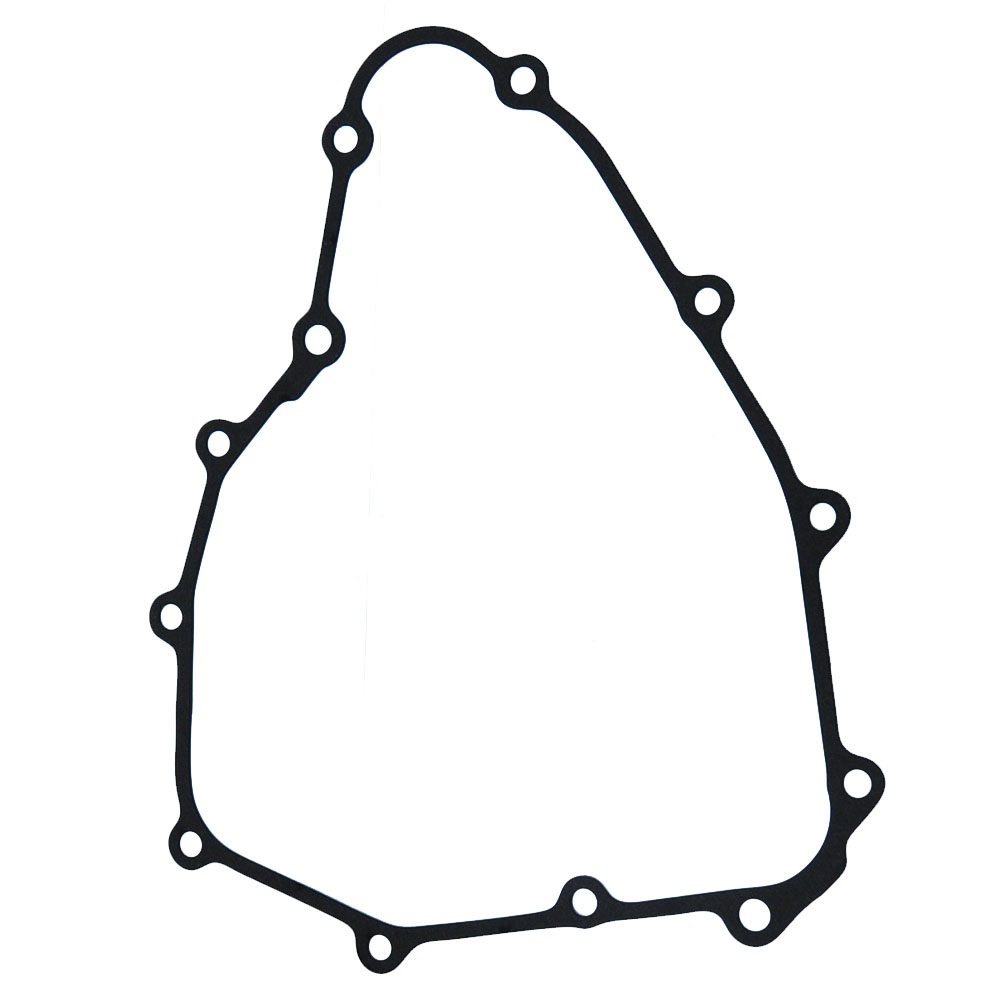

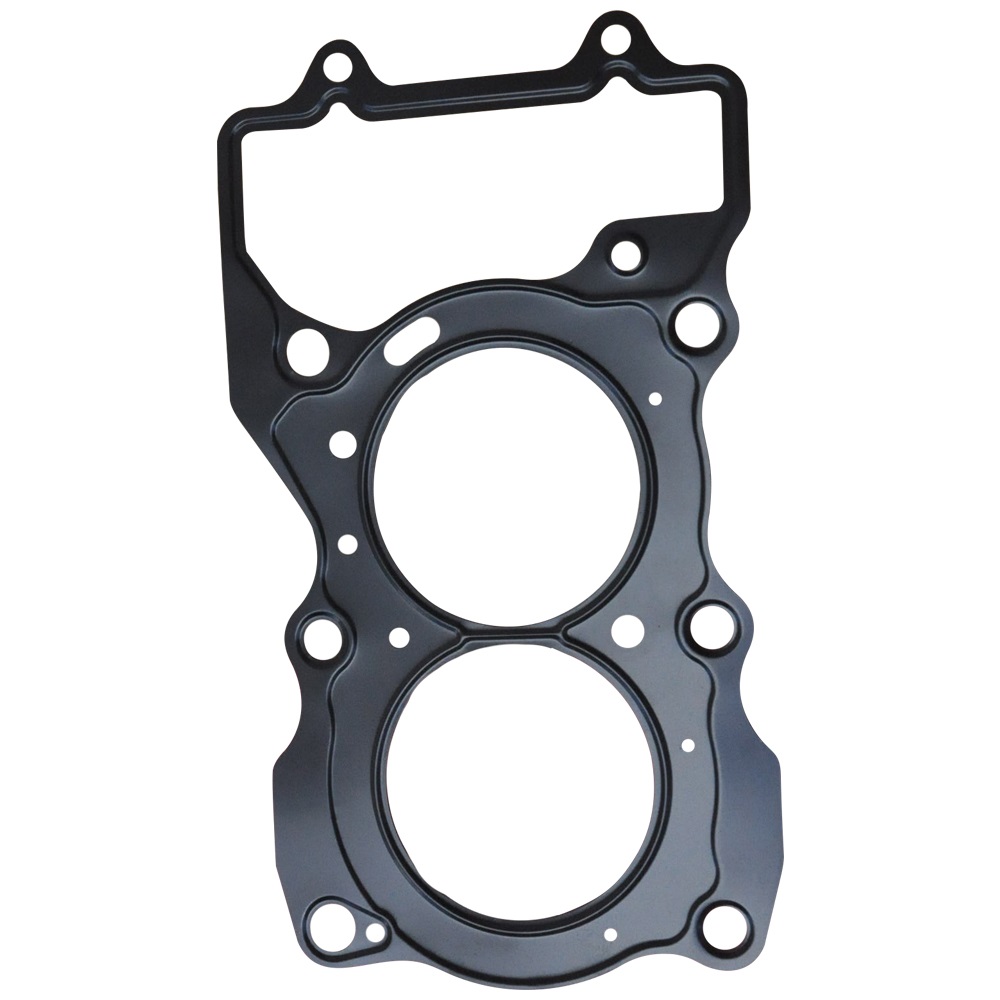

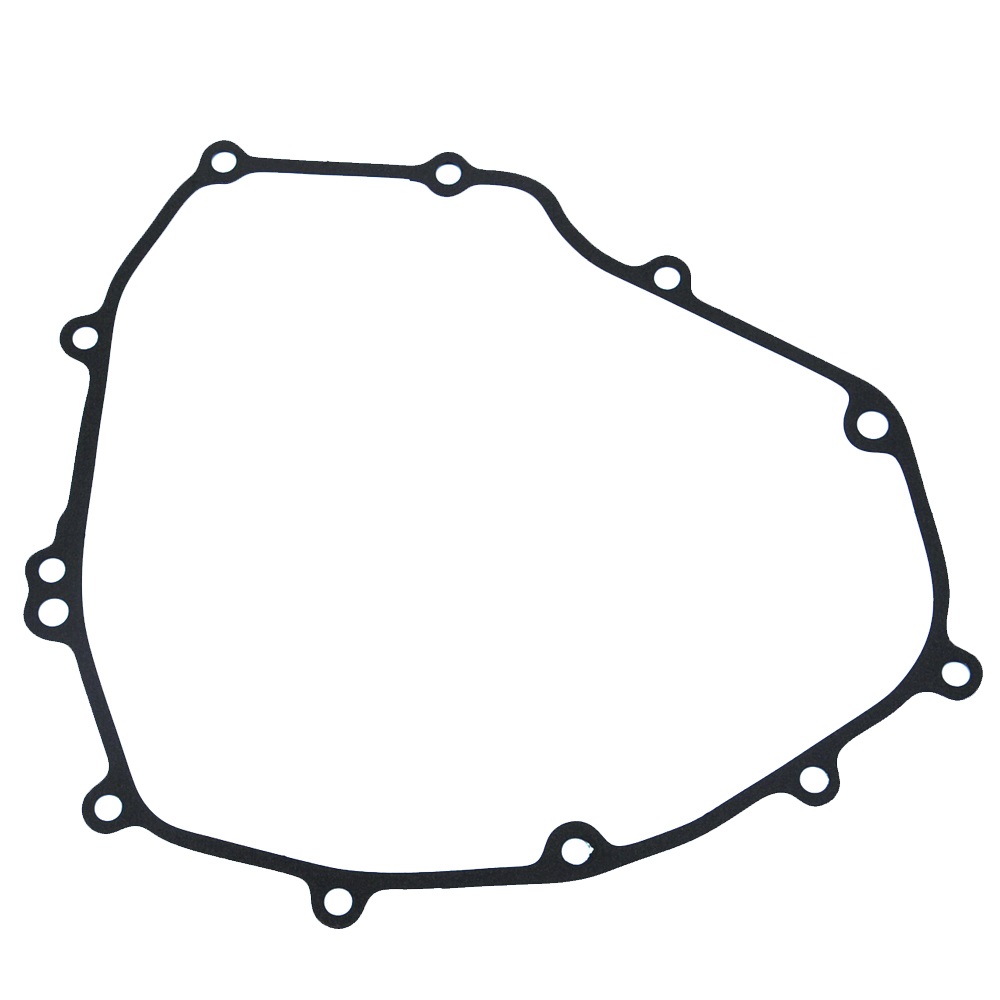

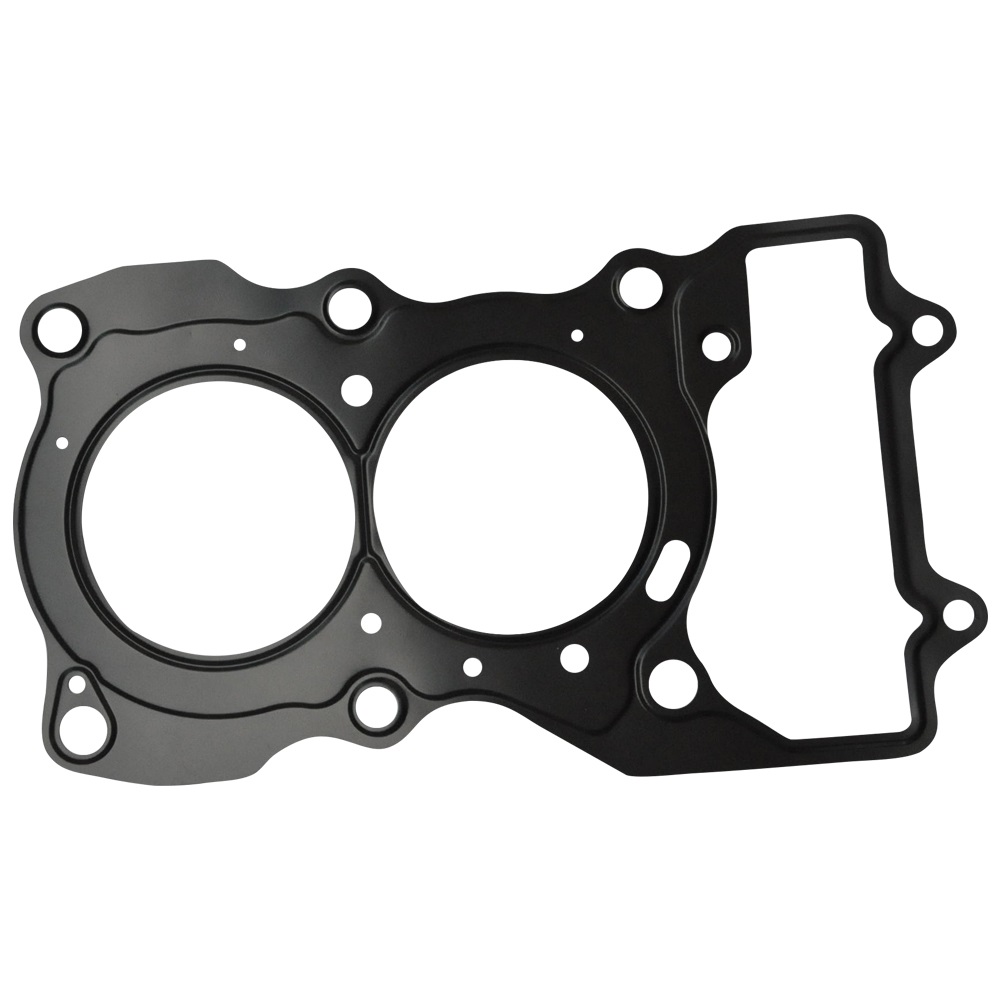

   • Align the new gasket from the Compatible Complete Cylinder Base Generator Clutch Covers Gasket Set with the mounting holes on the engine cover and cylinder base.
   • Make sure the gasket fits snugly to prevent any leakage.

5. Reattaching the Generator Clutch Cover:

   • Position the generator clutch cover back in place carefully.
   • Insert the bolts and use a socket wrench to finger-tighten them.

6. Torquing the Bolts:

   • Use a torque wrench to tighten the bolts to the manufacturer’s specifications. This ensures proper sealing and prevents over-tightening.

7. Final Checks:

   • Reconnect the battery and check for leaks around the newly installed gasket.
   • Start the engine and let it run for a few minutes while monitoring for any signs of oil leaks.

8. Clean Up:

   • Dispose of the old gasket material and any rags used during installation in accordance with local regulations.

Note: Always refer to your motorcycle’s service manual for specific instructions and torque specifications related to your particular model.

By following these steps, you will ensure a successful installation of the gasket set, enhancing the performance and reliability of your motorcycle.
