Motorcycle Crankcase Oil Pump Clutch Cover Gasket Kit Installation Instructions

Compatible Models:

• Yamaha R1 YZF-R1 (2004-2008)
• Yamaha FZ1 FZ-1 (2006-2014)

Tools Needed:
-Socket wrench set

• Screwdrivers (Flathead and Phillips)
  -Torque wrench
• Gasket scraper or razor blade
  -Clean cloth or rag
• Oil drain pan
• Motorcycle stand (optional but recommended)
• Safety gloves

Installation Steps:

1. Prepare the Motorcycle:

   • Ensure the motorcycle is on a level surface.
   • Use the motorcycle stand to stabilize the bike if necessary.
   • Allow the engine to cool completely before beginning the installation.

2. Drain Engine Oil:

   • Place the oil drain pan underneath the crankcase.
   • Remove the oil drain plug and let the oil drain completely. Replace the plug once done.

3. Remove the Old Gasket:

   • Use the gasket scraper or razor blade to carefully remove the old gasket material from the clutch cover and crankcase surfaces.
   • Make sure the surfaces are clean and free of debris.

4. Inspect the Clutch Cover:

   • Check the clutch cover for any damage or wear. Ensure all bolt holes are intact and not stripped.

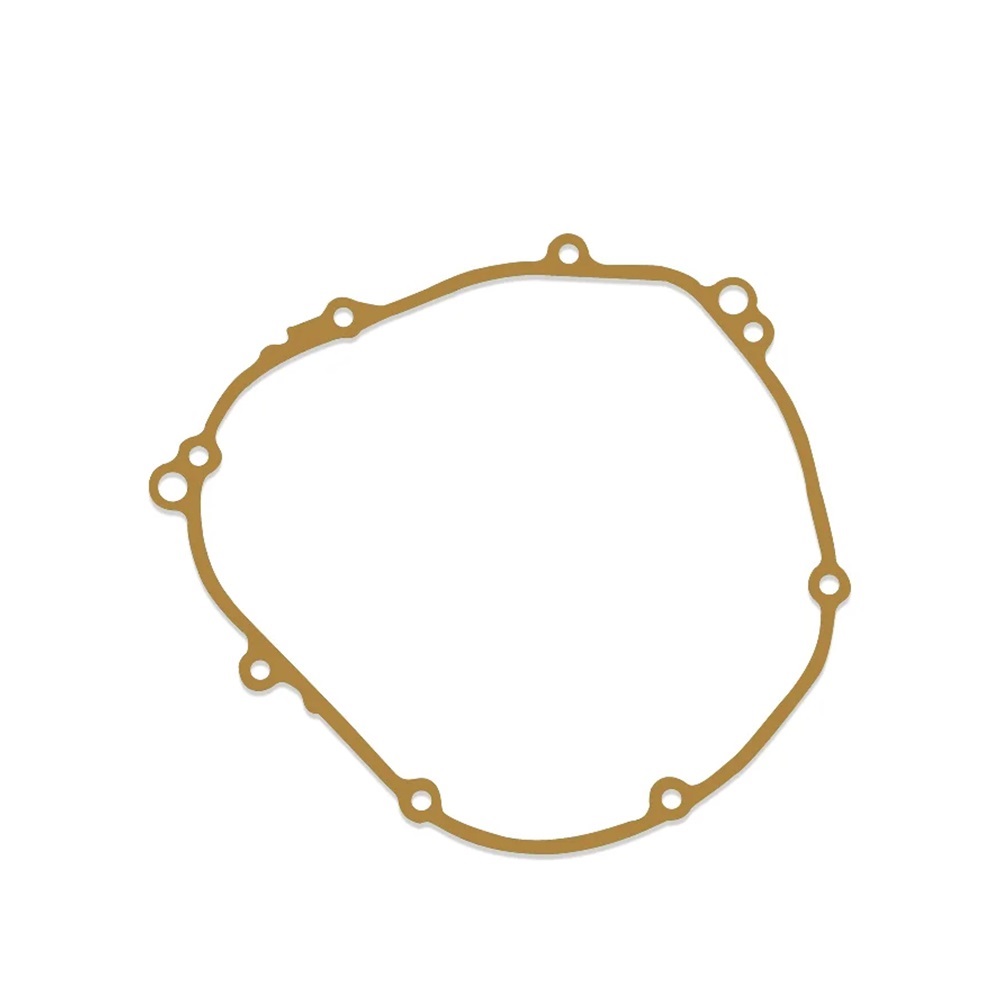

5. Install the New Gasket:

   • Place the new gasket into position on the clutch cover, ensuring it fits perfectly without any twists or folds.

6. Reattach the Clutch Cover:
   -Align the clutch cover with the crankcase and gently press it into place.

   • Hand-tighten the bolts before using the torque wrench.

7. Torque the Bolts:

   • Use the torque wrench to tighten the bolts to the manufacturer's specifications.
   • Follow a criss-cross pattern to ensure even pressure on the gasket.

8. Refill Engine Oil:

   • Remove the oil filler cap and pour in the appropriate engine oil for your motorcycle.
   • Replace the oil filler cap securely.

9. Check for Leaks:

   • Start the engine and allow it to idle for a few minutes.
   • Inspect the area around the clutch cover for any signs of oil leaks.

10. Final Inspection:

    • After a short ride, check once more for any leaks and ensure all bolts remain tight.

Conclusion:
By following these instructions and using the appropriate tools, you can successfully install the Motorcycle Crankcase Oil Pump Clutch Cover Gasket Kit. This installation will improve engine performance and prevent leaks, ensuring your motorcycle runs smoothly and efficiently.
