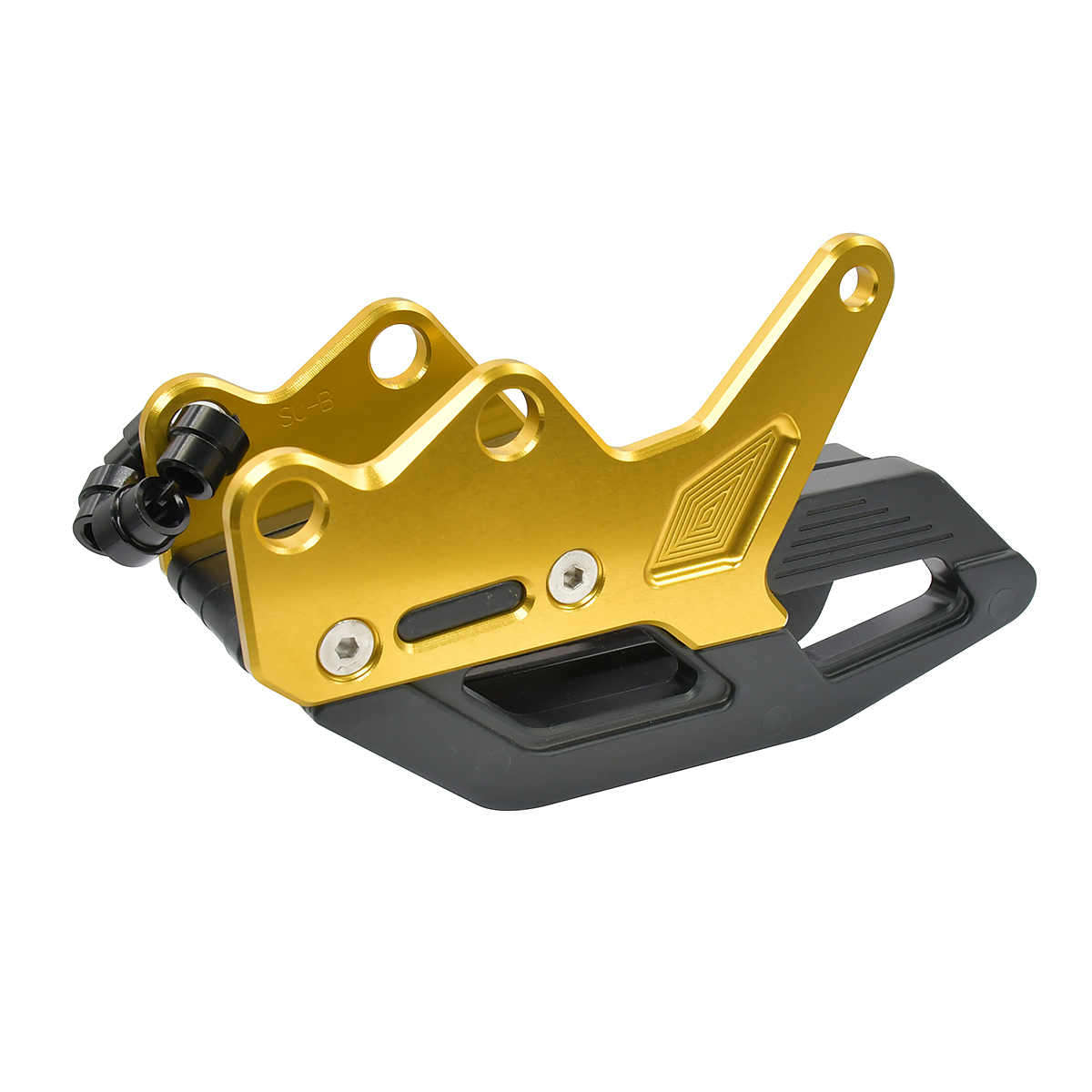

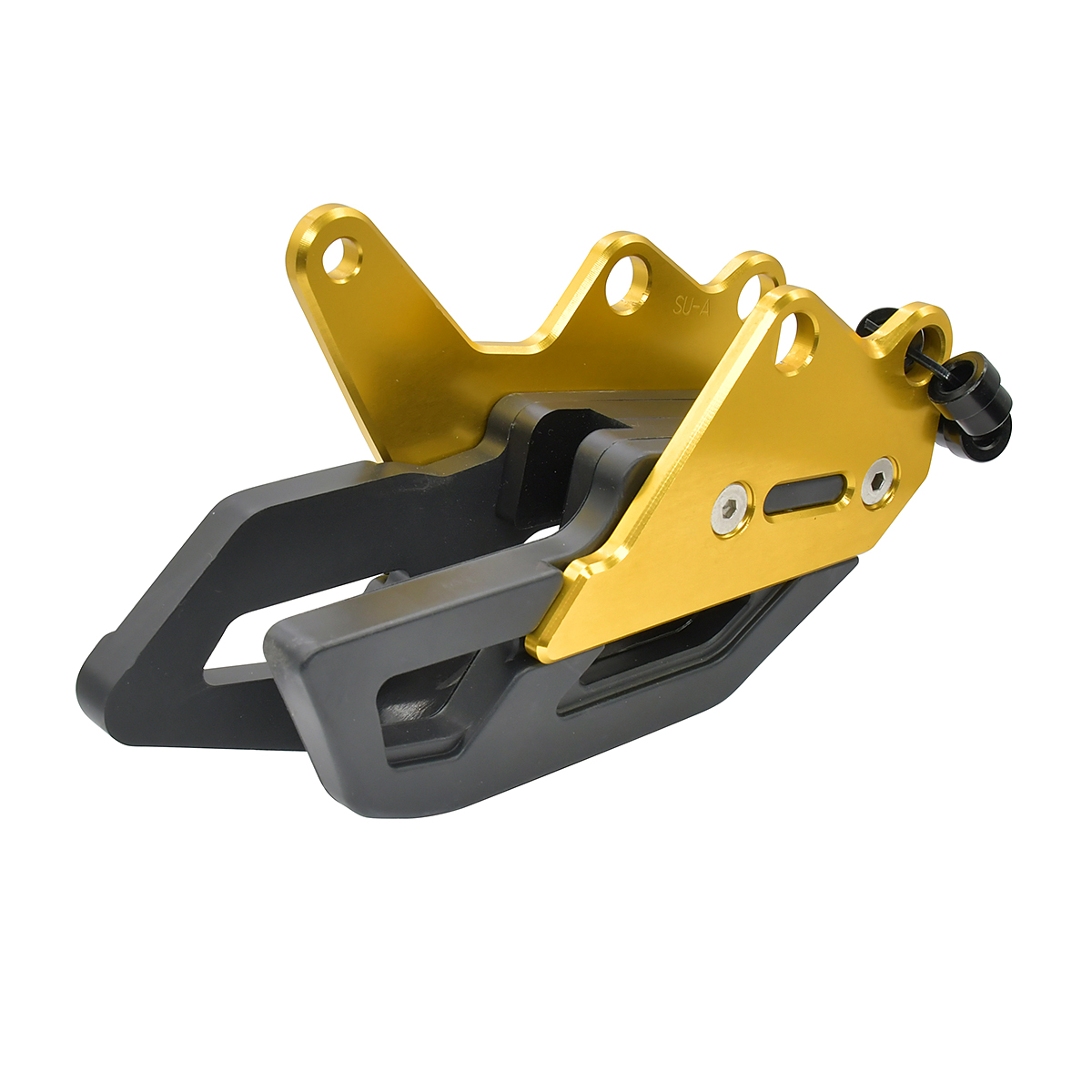

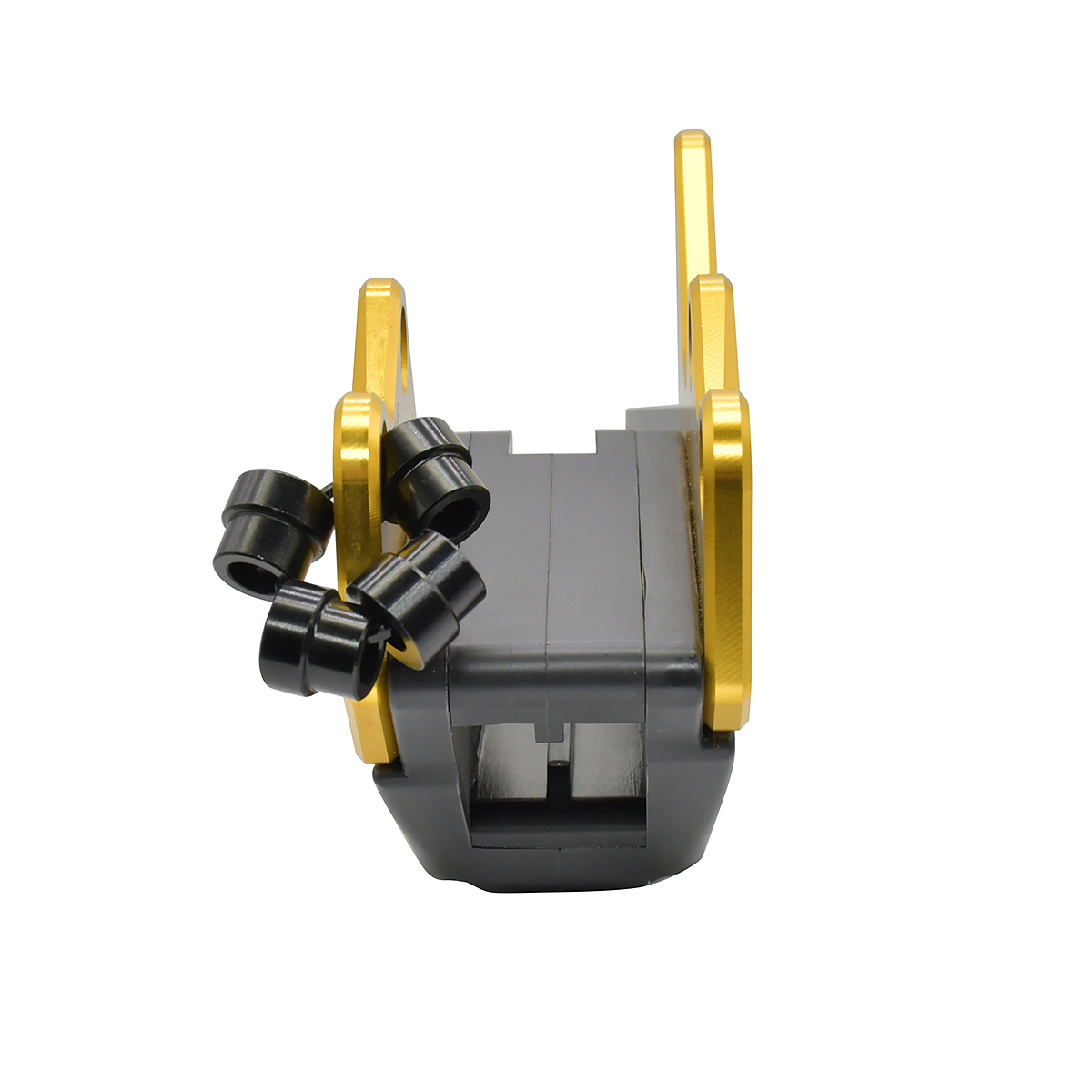

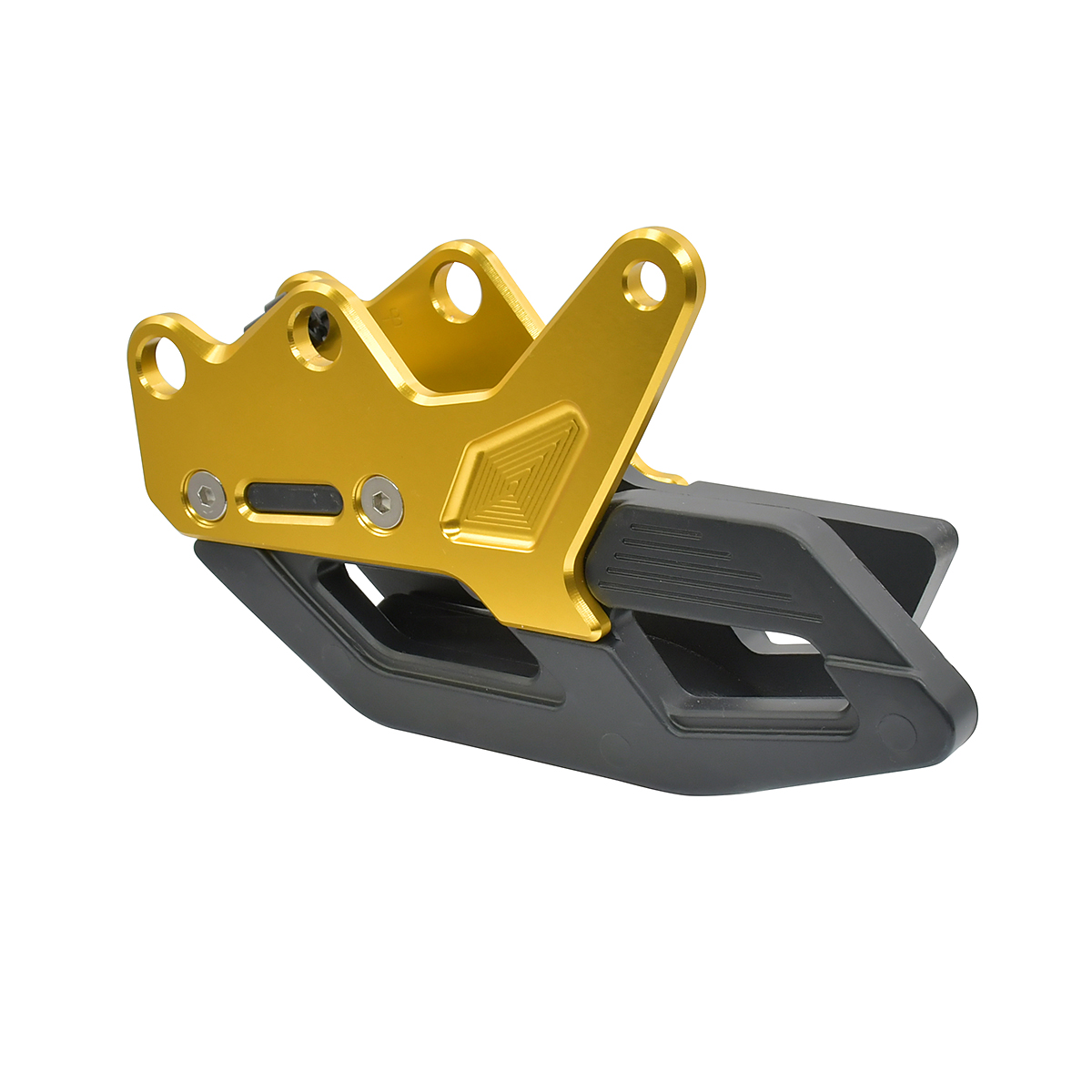

CNC Motorcycle Chain Guide Guard Replacement Installation Instructions

Compatibility:
This Chain Guide Guard is compatible with multiple motorcycle models, including RM125, RM250, RMZ250, RMZ450, RMZ450Z, DRZ400SM, 125, 250, Z250, Z450, Z450Z, and Z400SM.

Tools Required:

1. Socket wrench set (10mm, 12mm, and 14mm sockets recommended)
2. Torque wrench
3. Screwdriver set (flathead and Phillips)
4. Pliers
5. Allen wrench set
   6.Clean cloth or rag
6. Motorcycle stand (optional, but recommended for stability)

Installation Steps:

1. Prepare Your Motorcycle:

   • Ensure your motorcycle is on a stable surface. If possible, use a motorcycle stand to elevate the rear wheel for easier access.

2. Gather Your Tools:

   • Collect all the necessary tools listed above and keep them within reach.

3. Remove the Old Chain Guide Guard:

   • Use the appropriate socket wrench to remove the bolts securing the old chain guide guard.
   • Carefully detach the guard from the motorcycle frame.

4. Clean the Area:

   • Wipe down the area where the new guard will be installed using a clean cloth. This will ensure a proper fit and avoid any debris during installation.

5. Install the New Chain Guide Guard:

   • Position the new CNC Chain Guide Guard in place, aligning it with the mounting holes.
   • Insert the bolts and hand-tighten them.

6. Tighten the Bolts:

   • Use a torque wrench to tighten the bolts to the manufacturer’s specified torque setting. Ensure they are secure but be cautious not to overtighten.

7. Final Checks:

   • Inspect the installation to ensure everything is aligned and secure.
   • Check for any movement or noise when the chain passes through the guide.

8. Test Ride:

   • Take the motorcycle for a short test ride to ensure the chain guide is functioning correctly and there are no unusual sounds.

Note:
If you encounter any difficulties during installation, consult with a professional mechanic or refer to your motorcycle's service manual for additional guidance. Regularly inspect the chain guide guard for wear and tear to ensure optimal performance and safety.
