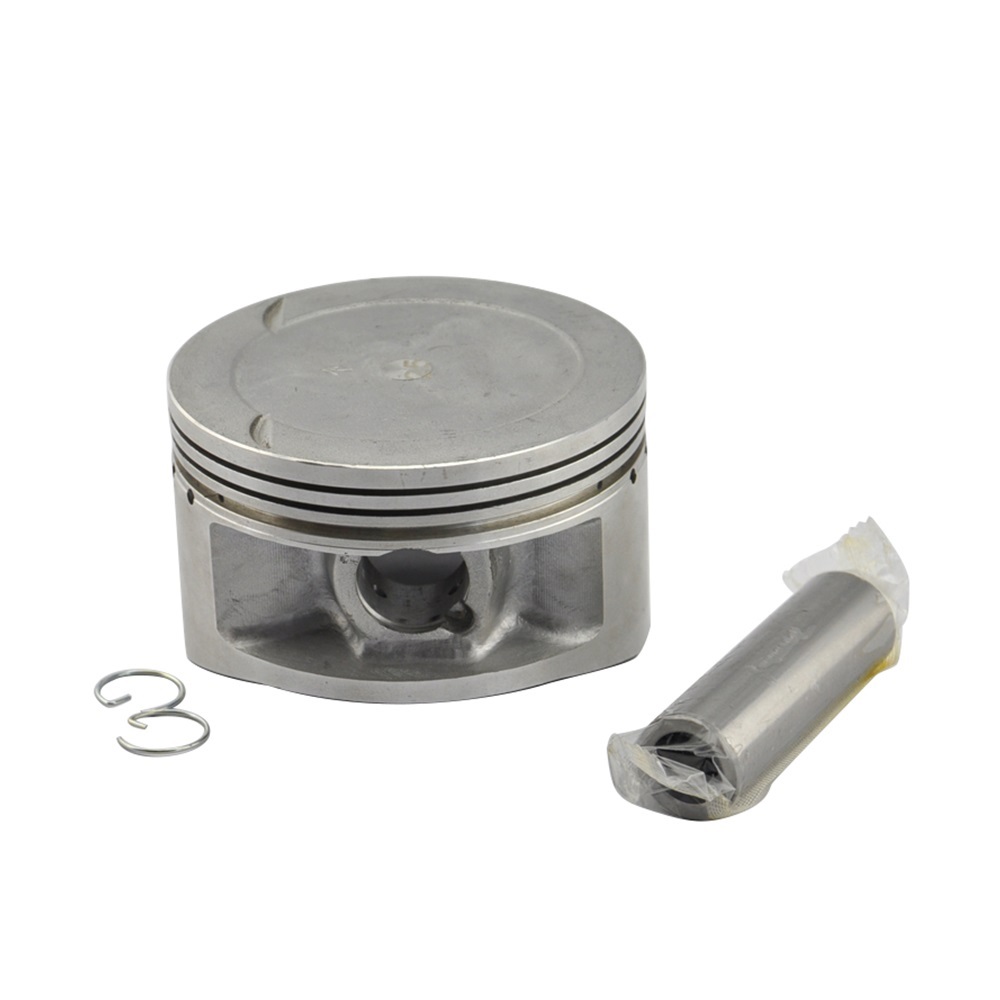

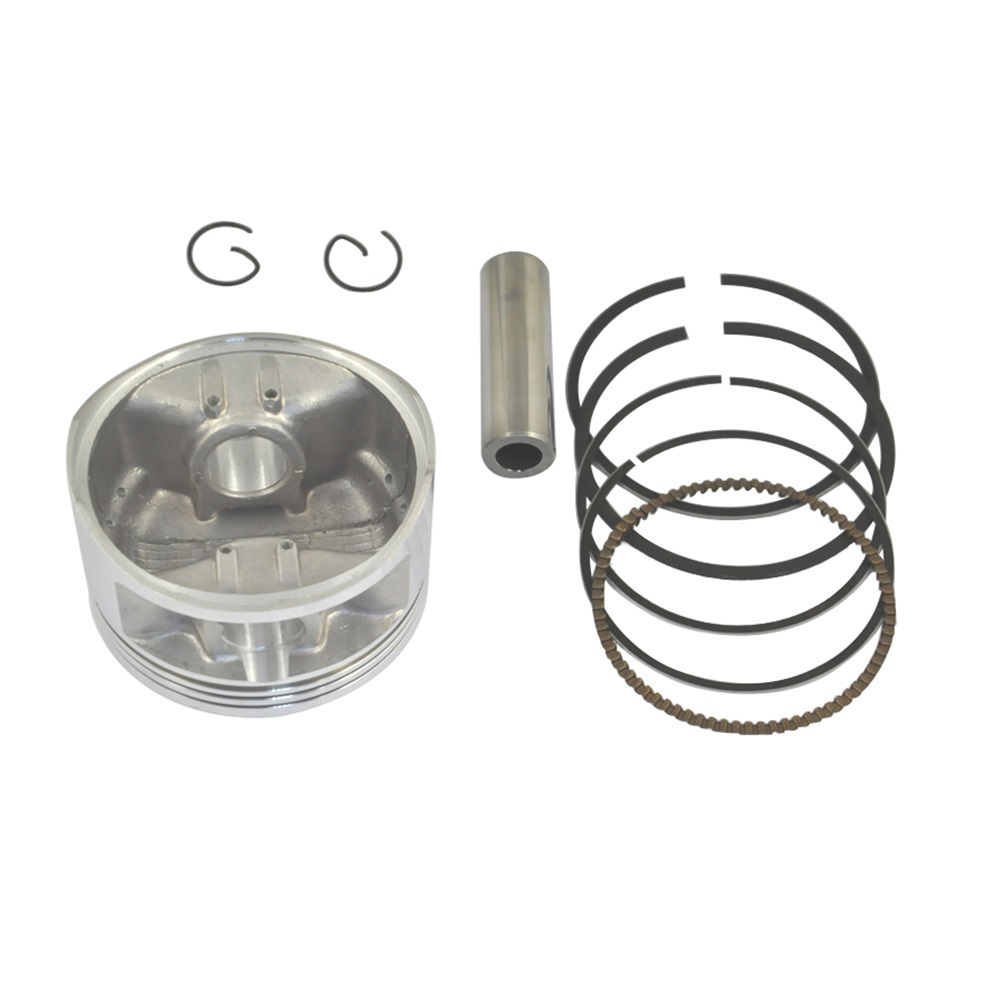

Motorcycle Engine Piston Ring Kit Installation Instructions

Compatible Models:

• Yamaha XT600 (1984-1989)
• Yamaha XT600Z Tenere (1986-1990)

Bore Sizes:

• 95mm
• 95.25mm
• 95.5mm

Tools Required:

1. Basic Hand Tools:

   • Screwdrivers (flat and Phillips)
   • Wrenches (metric sizes)
   • Socket set (metric sizes)
     -Pliers

2. Specialized Tools:

   • Piston Ring Compressor
     -Torque Wrench
   • Feeler Gauge
   • Gasket Scraper

3. Safety Equipment:

   • Safety Glasses
   • Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and turned off.
   • Disconnect the battery to prevent any electrical issues.
   • Remove the seat and side panels for easier access to the engine.

2. Remove the Cylinder Head:

   • Follow the manufacturer's manual for the specific torque sequence and requirements to safely detach the cylinder head.
   • Keep all bolts and components organized.

3. Remove the Piston:

   • Remove the existing piston and any old piston rings.
   • Clean the piston grooves thoroughly to prevent debris from damaging the new rings.

4. Install New Piston Rings:

   • Carefully expand the new piston rings using a ring compressor.
   • Ensure the gaps of the new rings are positioned in accordance with specifications.

5. Reinstall the Piston:

   • With the piston rings installed, insert the piston back into the cylinder carefully.
   • Make sure the piston is positioned correctly in the cylinder.

6. Reattach Cylinder Head:

   • Follow the proper sequence for bolting the cylinder head back onto the engine.
   • Use a torque wrench to ensure proper tension according to specifications.

7. Final Assembly:

   • Reinstall any components, panels, or accessories that were removed during the process.
   • Reconnect the battery.

8. Testing:

   • Start the motorcycle and let it idle to check for any leaks or unusual noises.
   • Allow the engine to reach operating temperature and monitor performance.

Maintenance Tips:

• Regularly check for oil leaks and maintain proper oil levels.
• Perform periodic checks on the engine performance to ensure longevity and optimal function.

Note: Always refer to the motorcycle's service manual for specific torque values ​​and additional details on the installation process. If you are unsure or uncomfortable performing this installation, it's recommended to seek professional assistance.
