Installation Instructions for Ignition Coil for Electric Chainsaw Models CS310S and 305S

Product Overview:

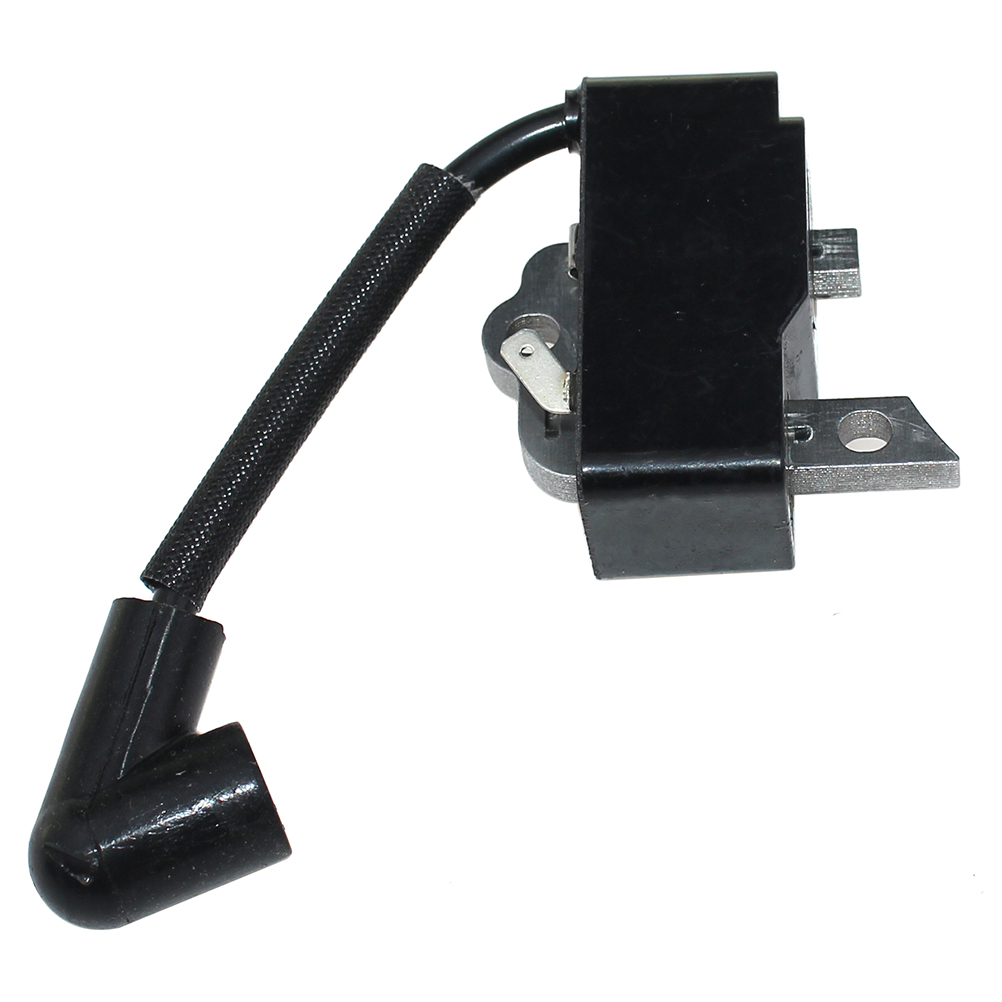

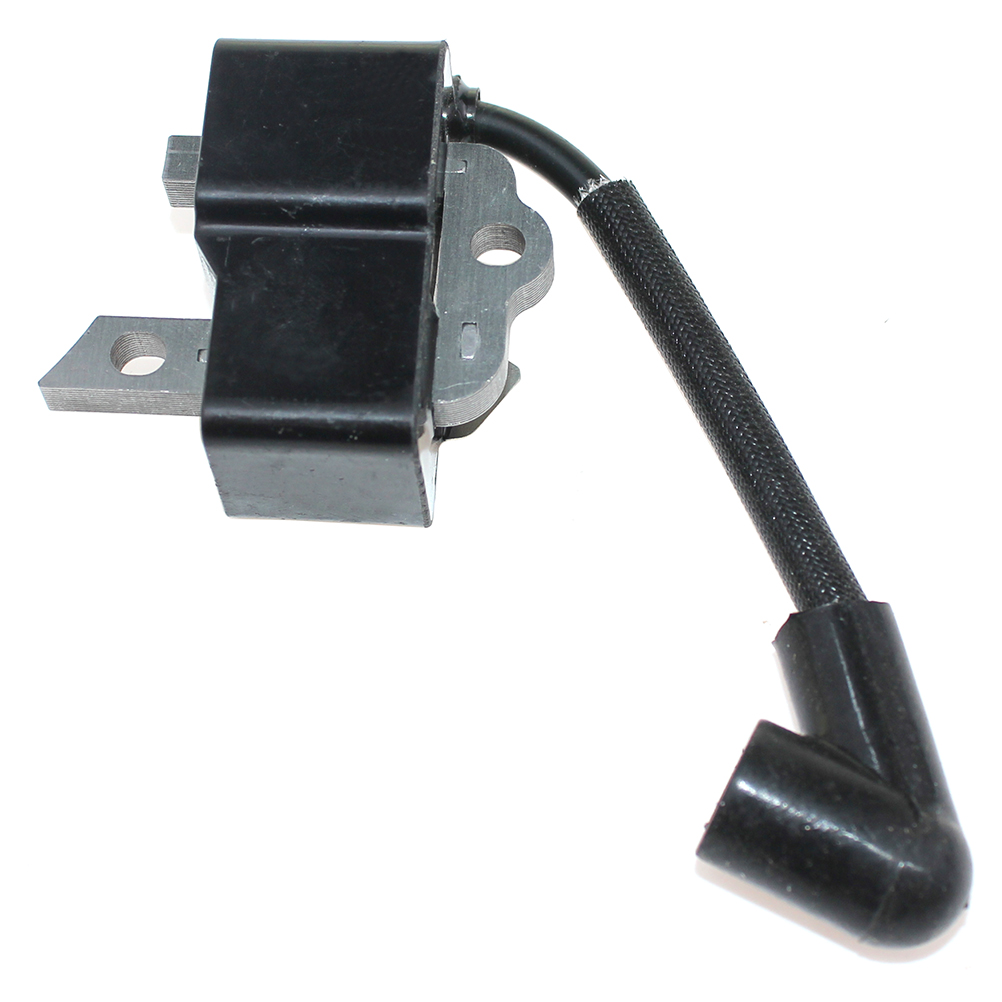

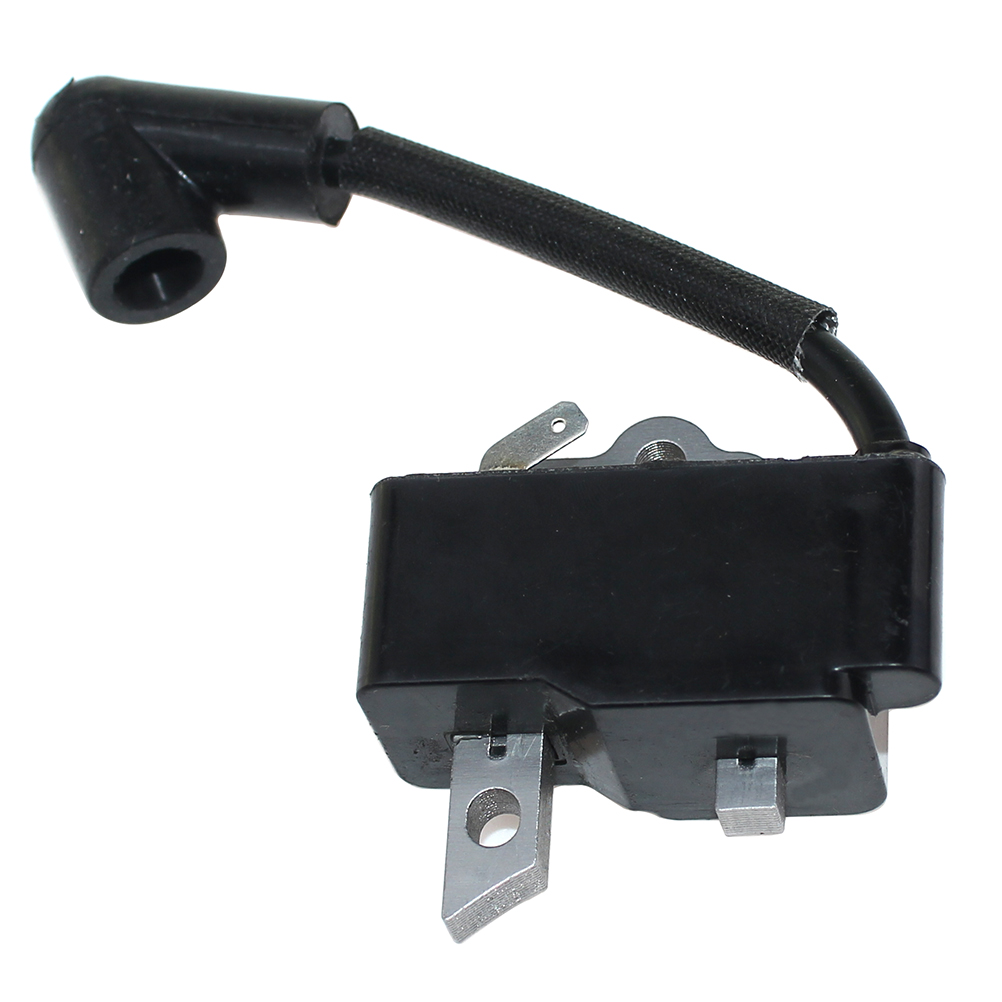

This ignition coil is specifically designed for electric chainsaw models CS310S and 305S. It ensures stable ignition and improves cutting efficiency. Compatible with part number A411000460, it allows for seamless replacement and easy installation.

Tools Required:

• Screwdriver (Philips or flathead, depending on your chainsaw model)
• Pliers (for grip, if needed)
• Safety gloves
• Safety goggles

Installation Steps:

1. Preparation:

   • Ensure the chainsaw is unplugged and cool to the touch.
   • Wear safety gloves and goggles to protect yourself during installation.

2. Remove the Old Ignition Coil:

   • Locate the ignition coil on your chainsaw.
   • Use the screwdriver to remove any screws securing the ignition coil.
   • Carefully pull the old ignition coil out of its housing. You may need pliers to gently wiggle it free if it’s stuck.

3. Install the New Ignition Coil:

   • Take the new ignition coil and align it with the mounting points.
   • Insert the coil into the housing carefully, ensuring it fits snugly.
   • Secure the ignition coil with the screws you removed earlier, making sure it’s tight but not overly so to avoid damaging the coil.

4. Reassembly:

   • Reassemble any other components you may have removed to access the ignition coil.
   • Double-check that all screws are securely fastened.

5. Testing:

   • Plug in the chainsaw and start it to ensure the new ignition coil is functioning properly.
   • Listen for smooth operation and verify that cutting efficiency has improved.

Final Notes:

• If you encounter any difficulties during installation, consult the chainsaw’s manual for troubleshooting tips.
• Proper maintenance will prolong the life of your chainsaw and its components.

Disclaimer:
Always follow safety precautions while working with electric tools. If you’re uncertain about any steps, consider seeking assistance from a professional.
