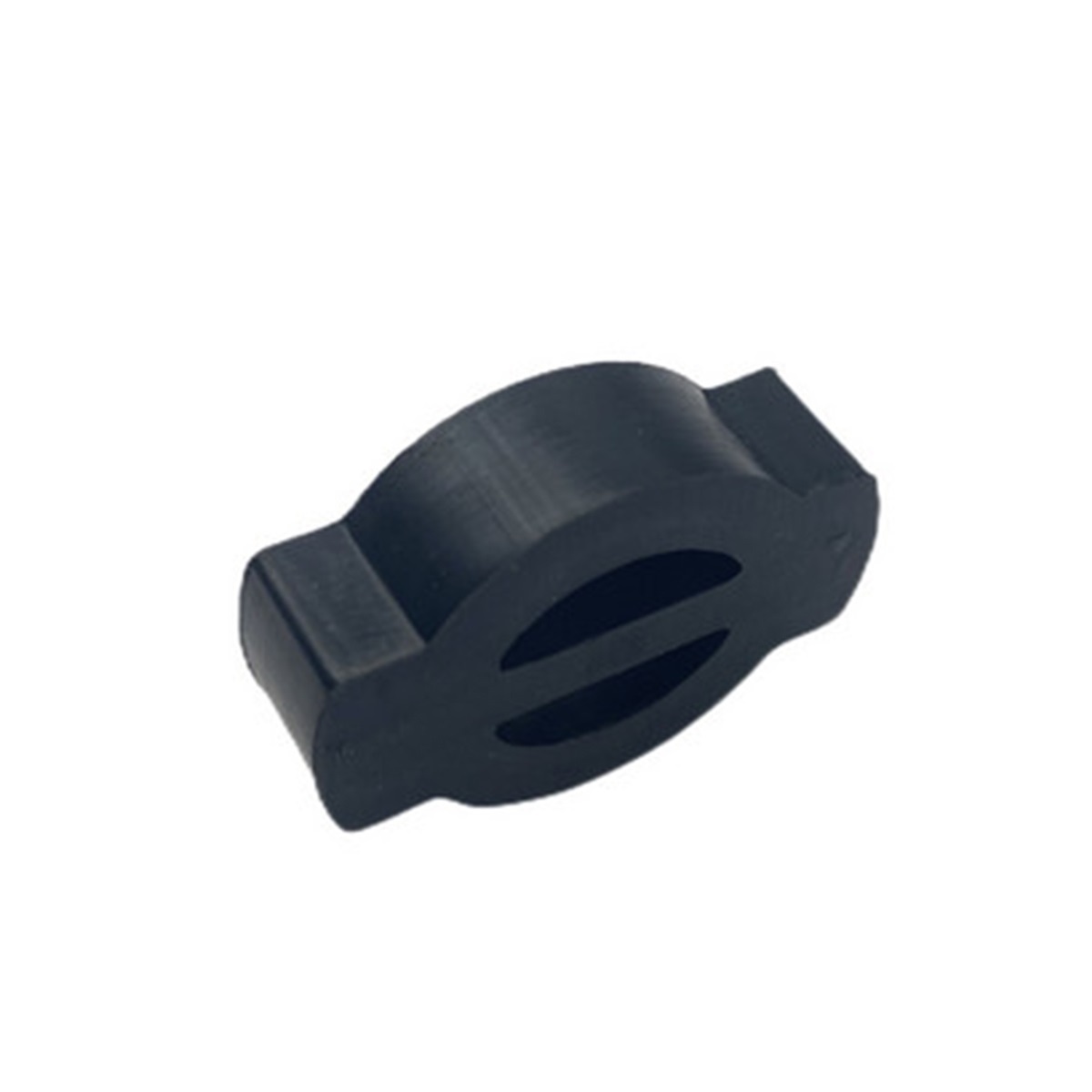

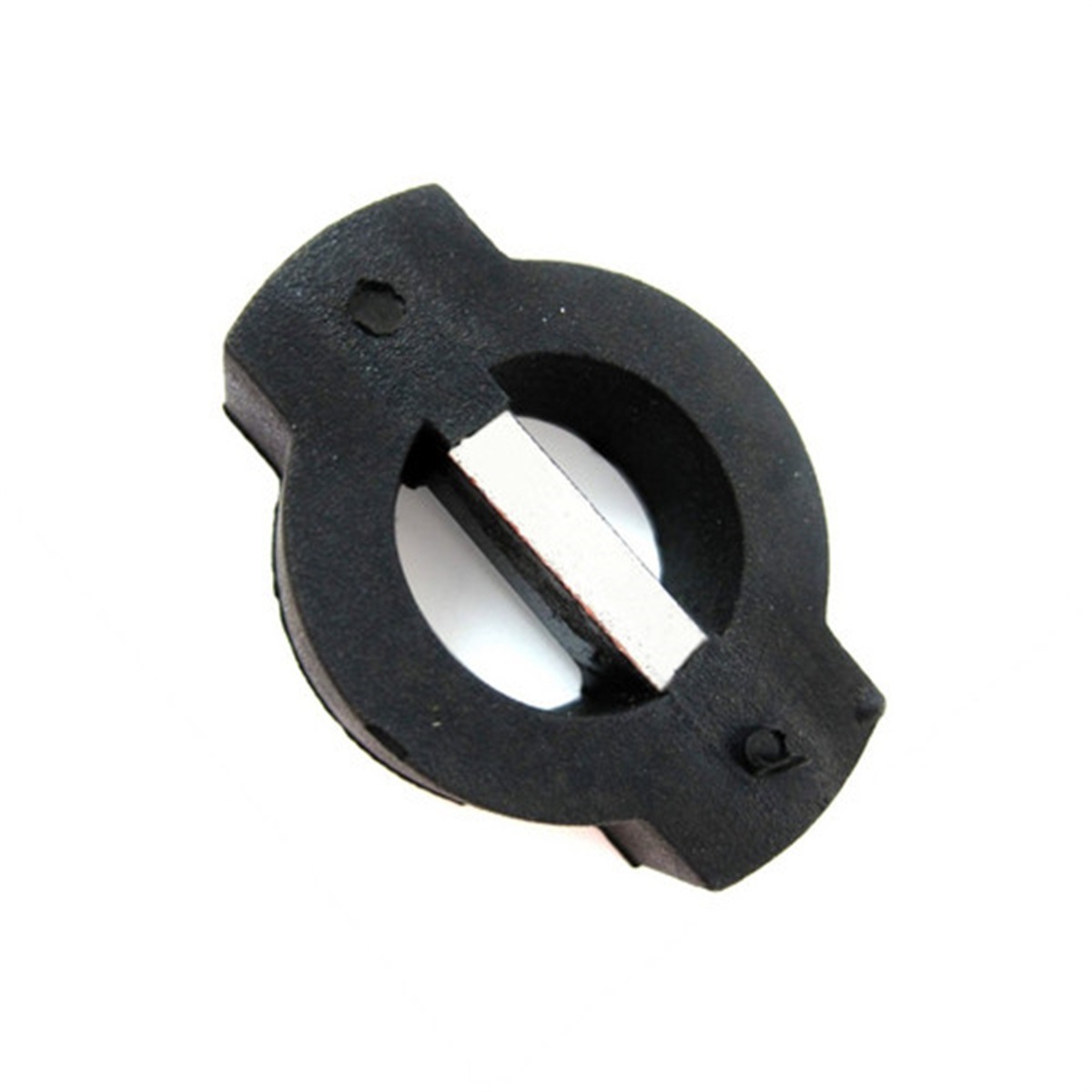

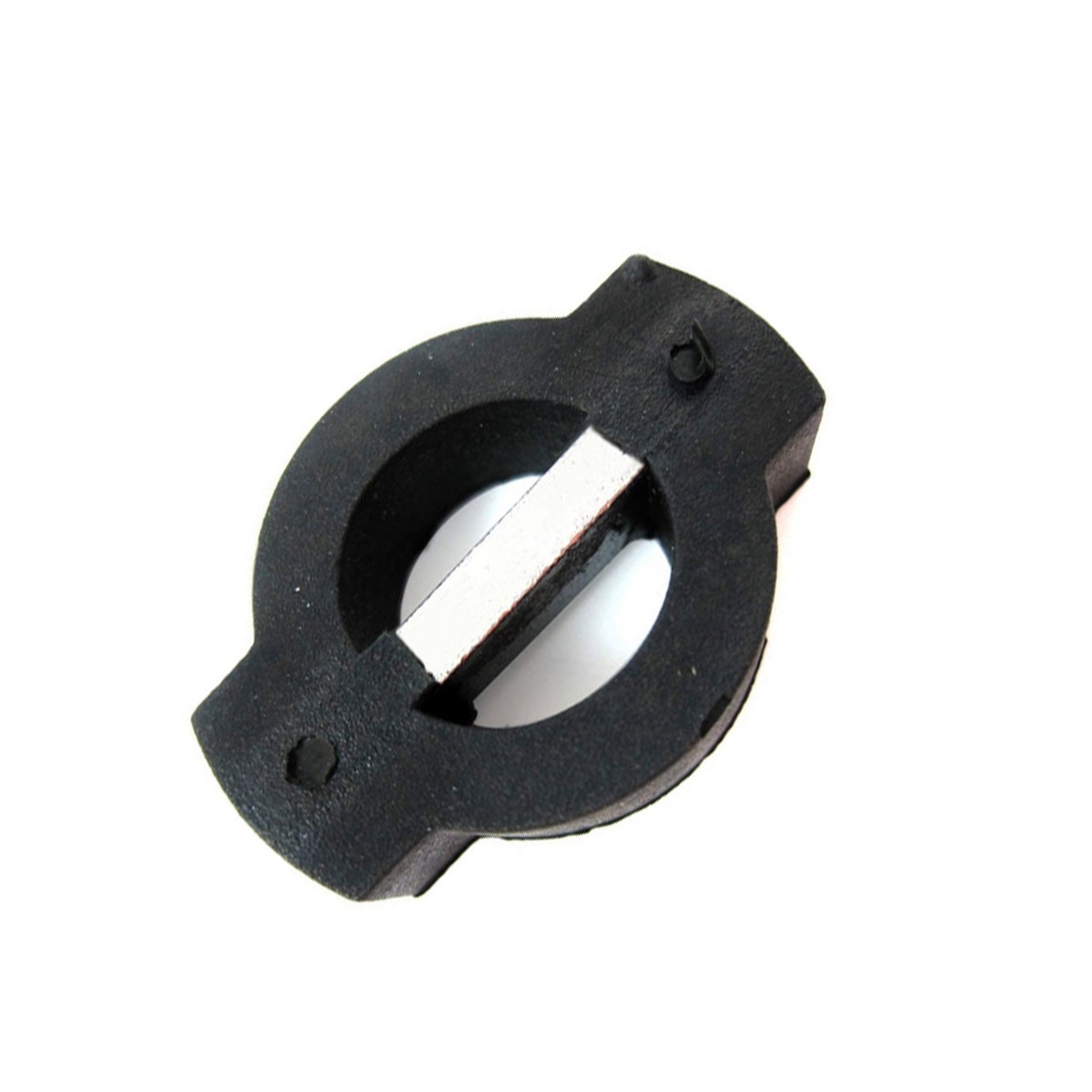

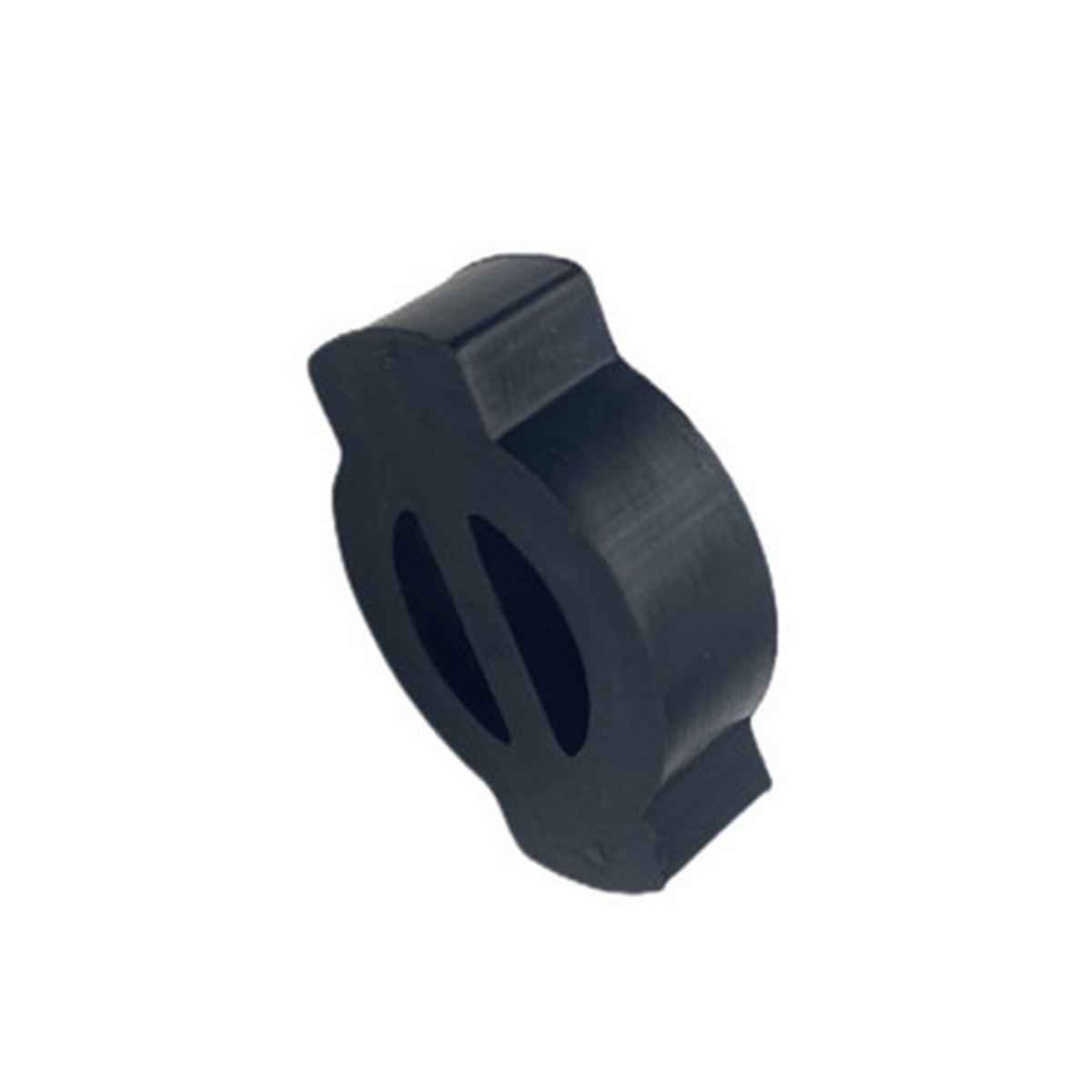

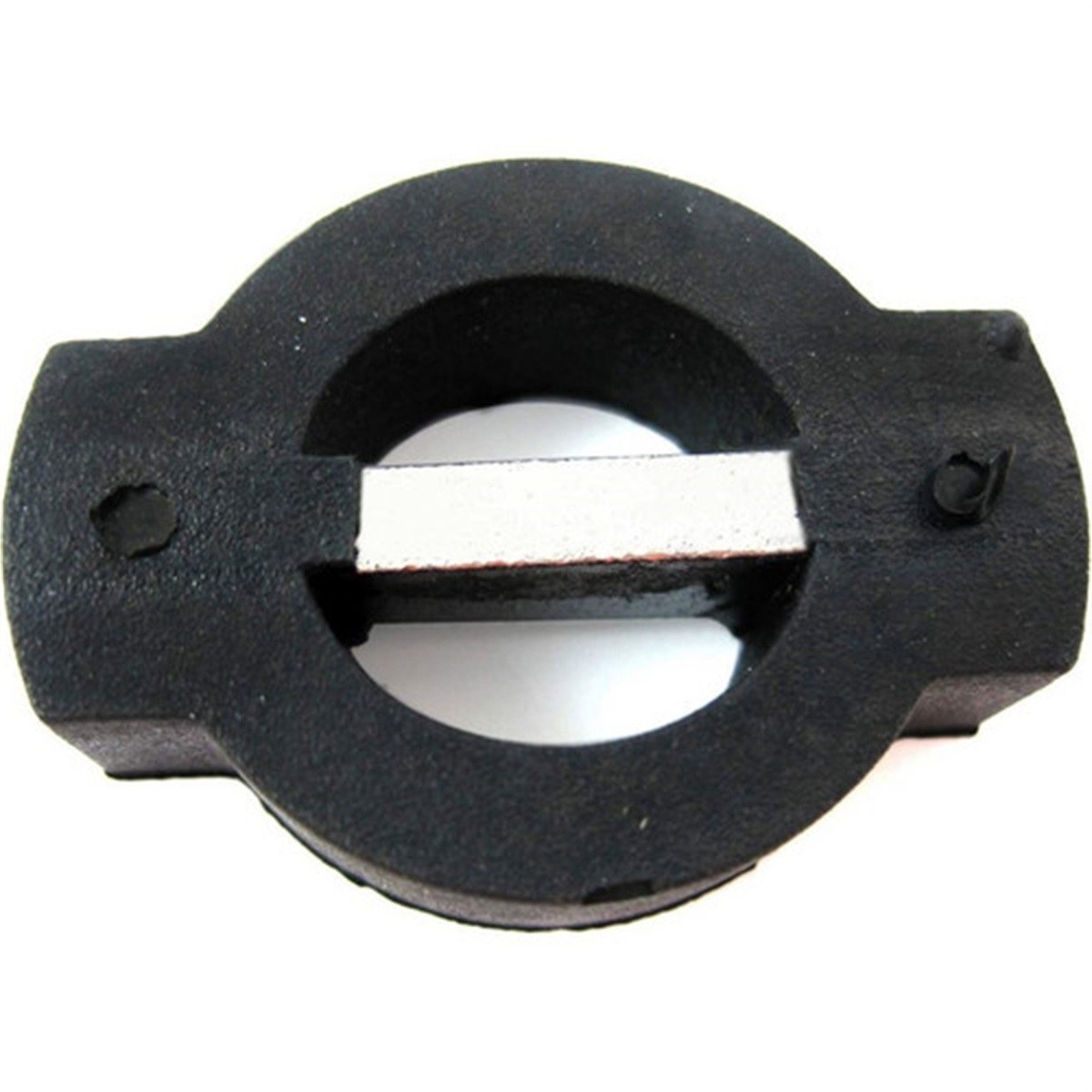

Product Installation Instructions for Water Pump Coupler Compatible with AQ95, AQ100, AQ105A, AQ110, AQ115, AQ145, AQ151, AQ171, 806256

Tools Required:

1. Socket Set
2. Screwdriver Set (Flathead and Phillips)
3. Adjustable Wrench
4. Torque Wrench
5. Pliers
   6.Clean Cloth
6. Lubricant (for ease of installation)

Installation Steps:

1. Preparation:

   • Before starting the installation, ensure that the water pump is turned off and disconnected from any power source.
   • Gather all the tools listed above to streamline the installation process.

2. Remove the Existing Coupler:

   • Use the socket set and screwdriver to carefully remove the bolts securing the old coupler.
   • Once removed, gently pull the coupler away from the pump and motor shaft.

3. Clean the Area:

   • Using a clean cloth, wipe down the motor shaft and pump connection area to remove any debris or residue from the old coupler.

4. Install the New Coupler:

   • Align the new coupler with the motor shaft and pump connection point.
   • Slide the coupler onto the shaft, ensuring that it seats properly.

5. Secure the Coupler:

   • Use the socket set to insert and tighten the bolts into place.
   • Ensure the coupler is secured evenly and tightly, making use of the torque wrench for correct specifications.

6. Final Checks:

   • Inspect the installation to ensure everything is aligned and securely fastened.
   • Apply a small amount of lubricant to reduce friction and wear in the future.

7. Reconnect and Test:

   • Reconnect the water pump to its power source.
   • Power on the pump to test the functionality and check for any unusual noises or leaks.

Maintenance Tips:

• Regularly inspect the coupler for signs of wear or damage.
• Keep the area clean and free of debris to promote optimal performance.

By following these steps, you can successfully install the Water Pump Coupler and ensure a smooth operation for your water pump models. Enjoy the enhanced performance and durability!
