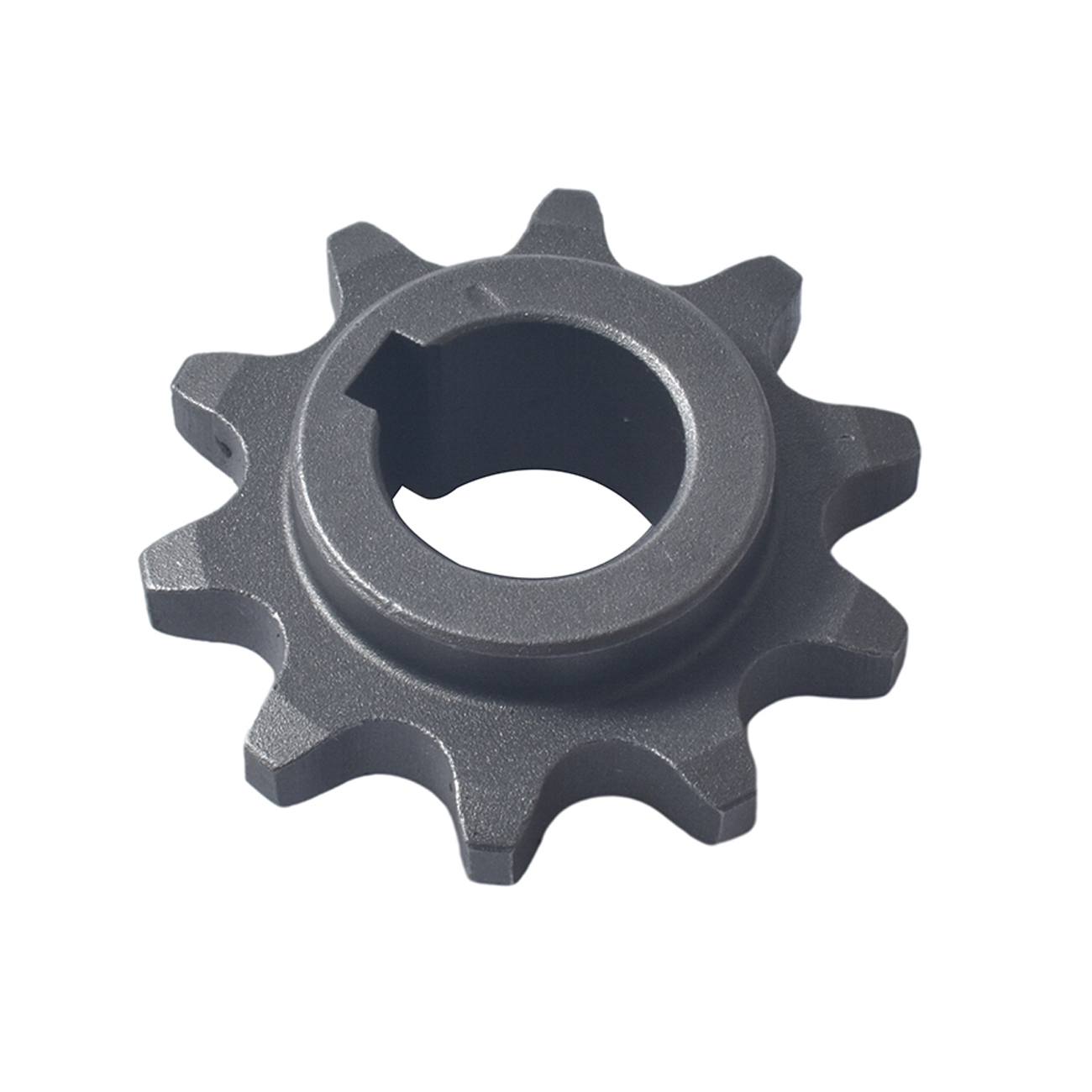

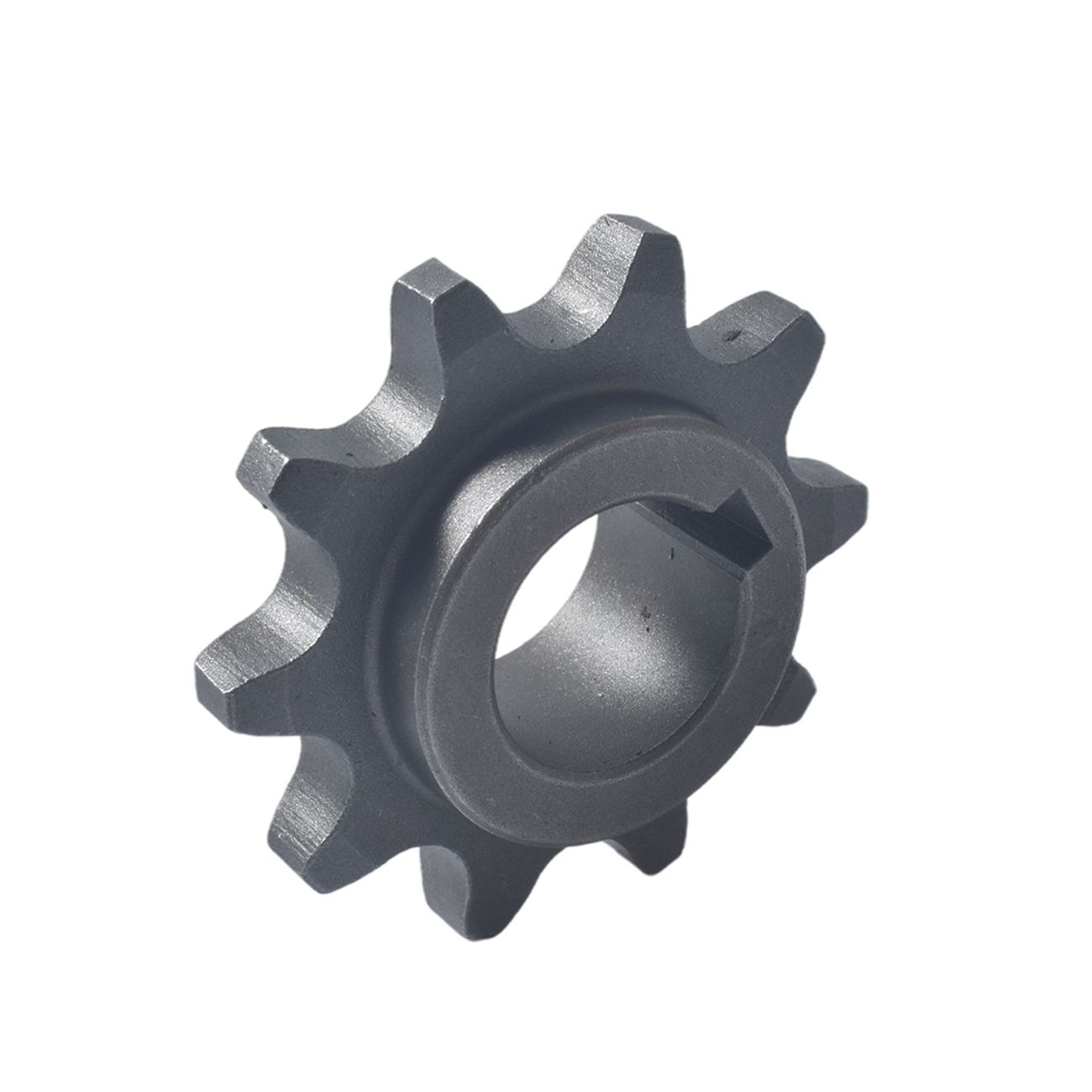

Installation Instructions for Compatible 10 Tooth 420 Front Sprocket for 196cc Mini Bikes

Compatible Models: CN BX200X, CT200U, CT200U EX

Tools Required:

1. Socket wrench set
2. 10mm socket or adjustable wrench
3. Torque wrench
4. Screwdriver (flathead or Phillips, depending on your bike)
5. Chain breaker tool (if needed)
6. Lint-free cloth or rag (for cleaning)
7. Safety goggles
   8.Gloves

Installation Steps:

1. Preparation:

   • Ensure the bike is on a stable surface and is turned off.
   • Wear safety goggles and gloves for protection.
   • If necessary, clean the area around the sprocket with a lint-free cloth.

2. Remove the Rear Wheel:

   • Use a socket wrench to loosen and remove the axle nuts on the rear wheel.
   • Carefully slide the wheel out, being cautious not to damage the chain.

3. Remove the Chain:

   • If your chain has a master link, use the chain breaker tool to remove it.
   • If not, you may need to break the chain at another link using the chain breaker.

4. Remove the Old Sprocket:

   • Unscrew the bolts holding the old sprocket in place using a socket wrench.
   • If the sprocket is stubborn, applying penetrating oil can help loosen it.

5. Install the New 10 Tooth Sprocket:

   • Align the new sprocket with the mounting holes on the hub.
   • Use the socket wrench to securely fasten the bolts, tightening them in a crisscross pattern to ensure even pressure.

6. Reattach the Chain:

   • If you removed the chain, reinstall it by threading it around the new sprocket.
   • Ensure the chain is properly aligned and tensioned according to your bike’s specifications.

7. Reinstall the Rear Wheel:

   • Slide the rear wheel back into the swingarm, ensuring the chain is positioned correctly on the sprocket.
   • Tighten the axle nuts securely with the socket wrench.

8. Final Checks:

   • Use a torque wrench to ensure all bolts are tightened to the manufacturer’s specifications.
   • Inspect the chain alignment and tension once more.

9. Test Ride:

   • Take your mini bike for a short test ride to ensure everything is functioning correctly.
   • Check for any unusual noises and inspect the setup after the ride.

Note:

Always consult your bike's manual for specific torque settings and procedures related to your model. Proper maintenance and installation will enhance the performance and longevity of your mini bike.

Enjoy your enhanced riding experience with the new front sprocket!
