Installation Instructions for Compatible Pull Choke Assembly for ZSDTRP Manual or Automatic Dellorto PHBE, PHBH, and PHBL Carburetor

Overview:
This pull choke assembly is designed for compatibility with ZSDTRP manual or automatic Dellorto PHBE, PHBH, and PHBL carburetors. It ensures seamless connection and operation, improving engine performance and control.

Tools Required:
To successfully install the pull choke assembly, you will need the following basic tools:

1. Screwdriver Set (Phillips and flathead)
2. Wrench Set (Metric/Standard depending on your vehicle)
3. Pliers (for gripping and bending)
4. Allen Keys (if applicable to your assembly)
5. Cable Ties (optional, for securing cables)
6. Cleaning Cloth (to keep the area clean during installation)

Installation Steps:

1. Preparation:

   • Ensure that the engine is turned off and cooled down before starting the installation.
   • Disconnect the battery to prevent accidental starting of the vehicle.

2. Remove the Existing Choke:

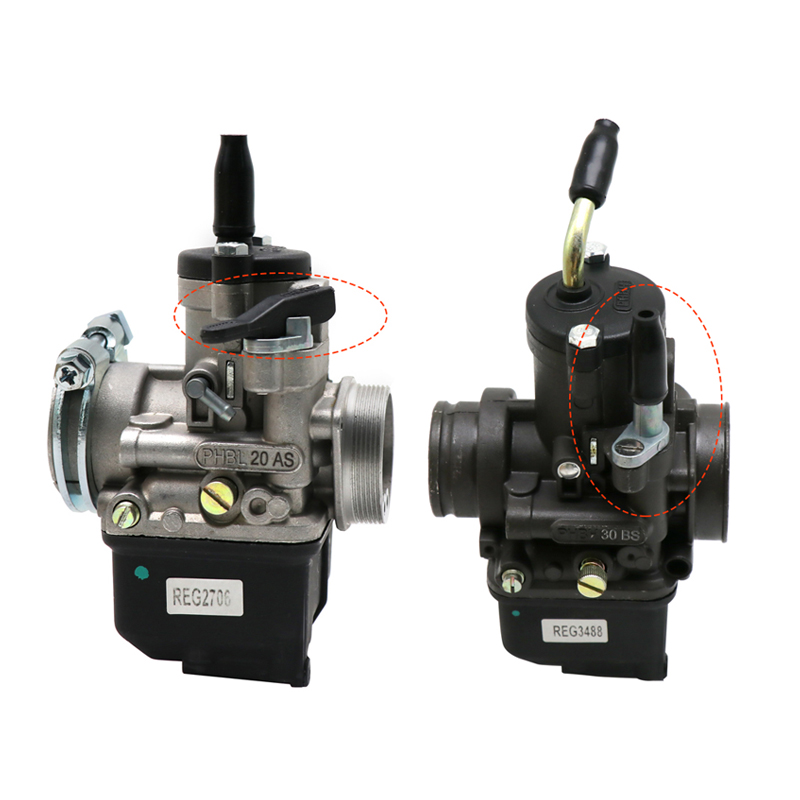

   • Locate the current choke assembly on the carburetor.
   • Use the appropriate screwdriver or wrench to remove any mounting screws or bolts.
   • Carefully detach the existing choke cable and disconnect it from the carburetor.

3. Install the New Pull Choke Assembly:

   • Take the new compatible pull choke assembly and position it in place.
   • Secure it to the carburetor using the screws or bolts you previously removed. Ensure it is tightly fastened to prevent any vibrations.

4. Connect the Choke Cable:

   • Attach the choke cable to the pull choke mechanism according to the manufacturer’s instructions.
   • Make sure it moves freely and is not pinched by any components.

5. Adjustment:

   • Adjust the cable tension as necessary to ensure smooth operation of the choke. This may require some trial and error to find the optimal setting.
   • Perform precise adjustments to the fuel-air mixture if needed, to optimize engine response and fuel efficiency.

6. Final Checks:

   • Double-check all connections and ensure everything is secured properly.
   • Reconnect the battery and start the engine to test the new choke assembly.
   • Make further adjustments if necessary.

Conclusion:
With this installation, your new pull choke assembly should enhance the performance and control of your engine. Remember to periodically check the assembly for wear or needed adjustments to maintain optimal functionality.
