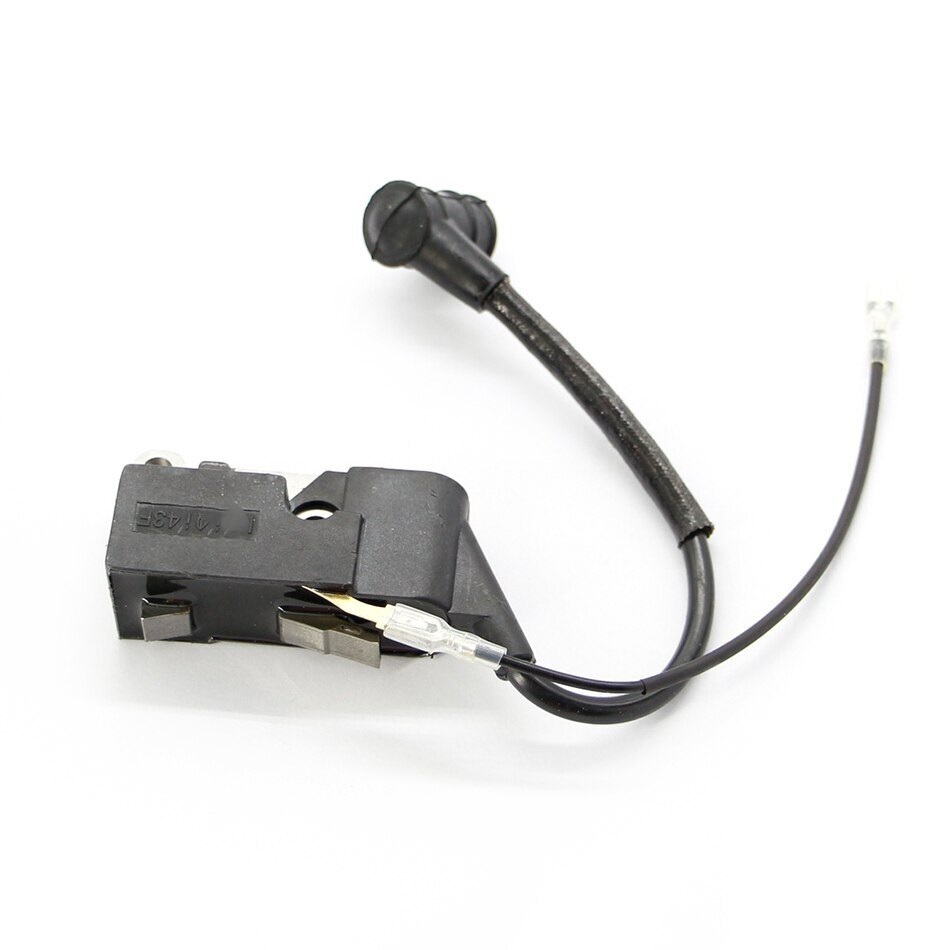

Product Installation Instructions for Ignition Coil Components

Compatibility:
Compatible with 45cc, 52cc, and 58cc chainsaw models, including 4500, 5200, and 5800.

High Performance:
Provides a stable power supply, ensuring smooth engine start and operation, enhancing tool efficiency.

Durable Materials:
Made from durable materials that can withstand high temperatures and vibrations, ensuring long-lasting performance.

Easy Installation:
Designed for easy installation and can be completed with basic tools, requiring no specialized skills.

Essential for Maintenance and Repair:
An ideal replacement part for maintaining and repairing chainsaws, extending equipment life and maintaining optimal working condition.

Tools Required:

1. Screwdriver Set

   • Flathead screwdriver (for removing screws)
   • Phillips screwdriver (for various screws)

2. Wrench/Socket Set

   • Adjustable wrench or socket set for loosening and tightening bolts.

3. Pliers

   • Needle-nose pliers or standard pliers for gripping small components and wires.

4. Torque Wrench (optional)

   • For ensuring bolts are tightened to the manufacturer’s specifications.

5. Safety Gloves

   • To protect your hands during installation.

6. Safety Glasses

   • To shield your eyes from debris.

7. Work Surface

   • A clean, flat work surface or bench for assembling parts safely.

8. Manual or Instructions (if available)

   • Reference for specific assembly details and torque specifications.

Installation Steps:

1. Prepare Your Workspace
   Ensure a clean and organized area to work, with all necessary tools at hand.

2. Remove the Old Ignition Coil

   • Use a screwdriver to remove screws securing the old ignition coil.
   • Disconnect any wiring carefully.

3. Install the New Ignition Coil

   • Position the new ignition coil in place.
   • Reconnect any wiring, ensuring a secure fit.
   • Fasten with screws using the screwdriver.

4. Test the Installation

   • Before putting the chainsaw back into full operation, check all connections.
   • Reassemble any parts removed during installation.

5. Start the Chainsaw

   • Test the operation of the chainsaw to ensure proper functioning.

Conclusion:
By following these instructions and using the required tools, you can effectively install the ignition coil components, maintain your chainsaw's performance and extend its life.
