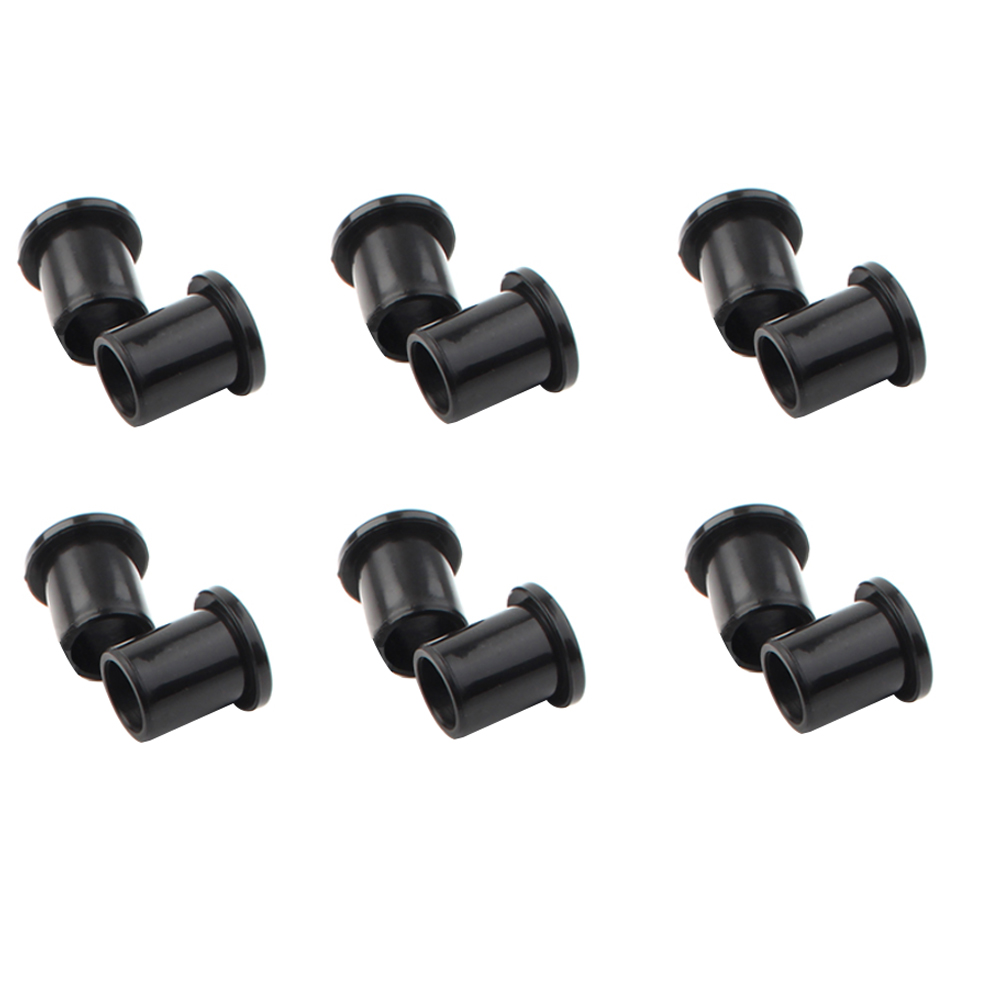

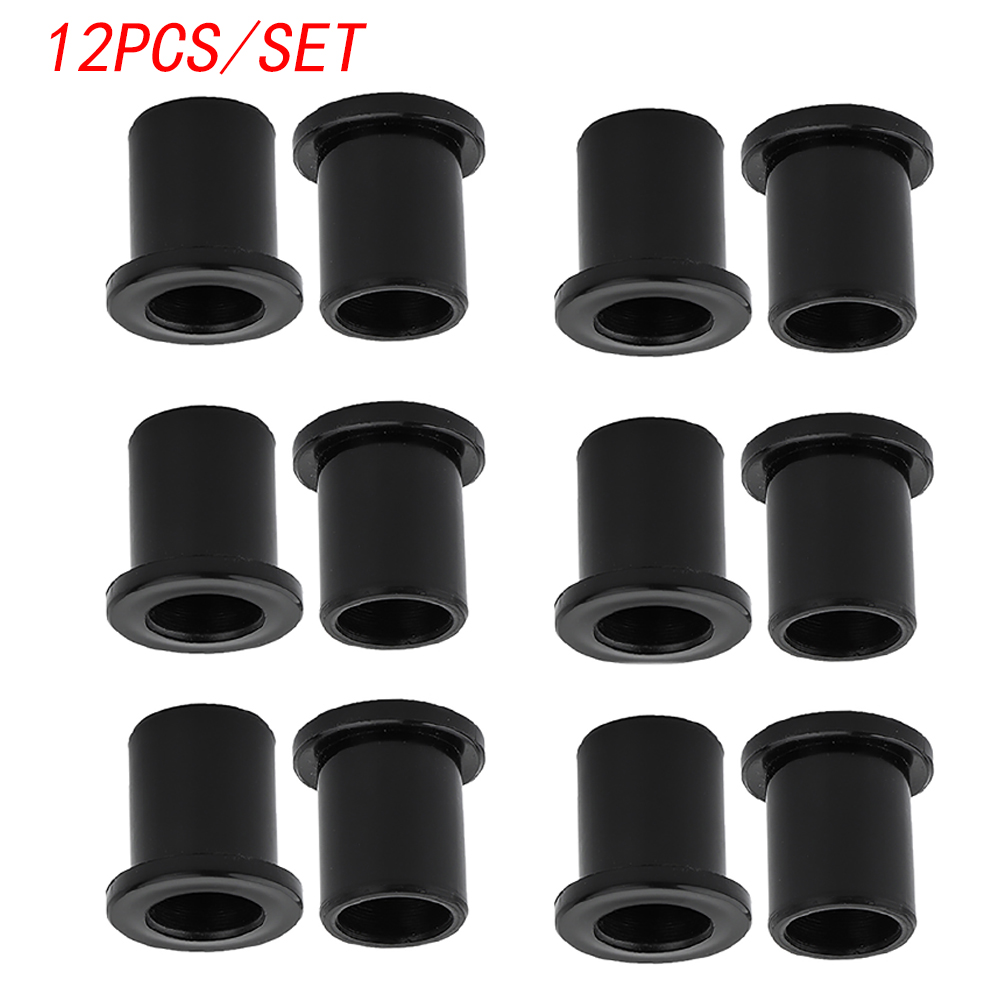

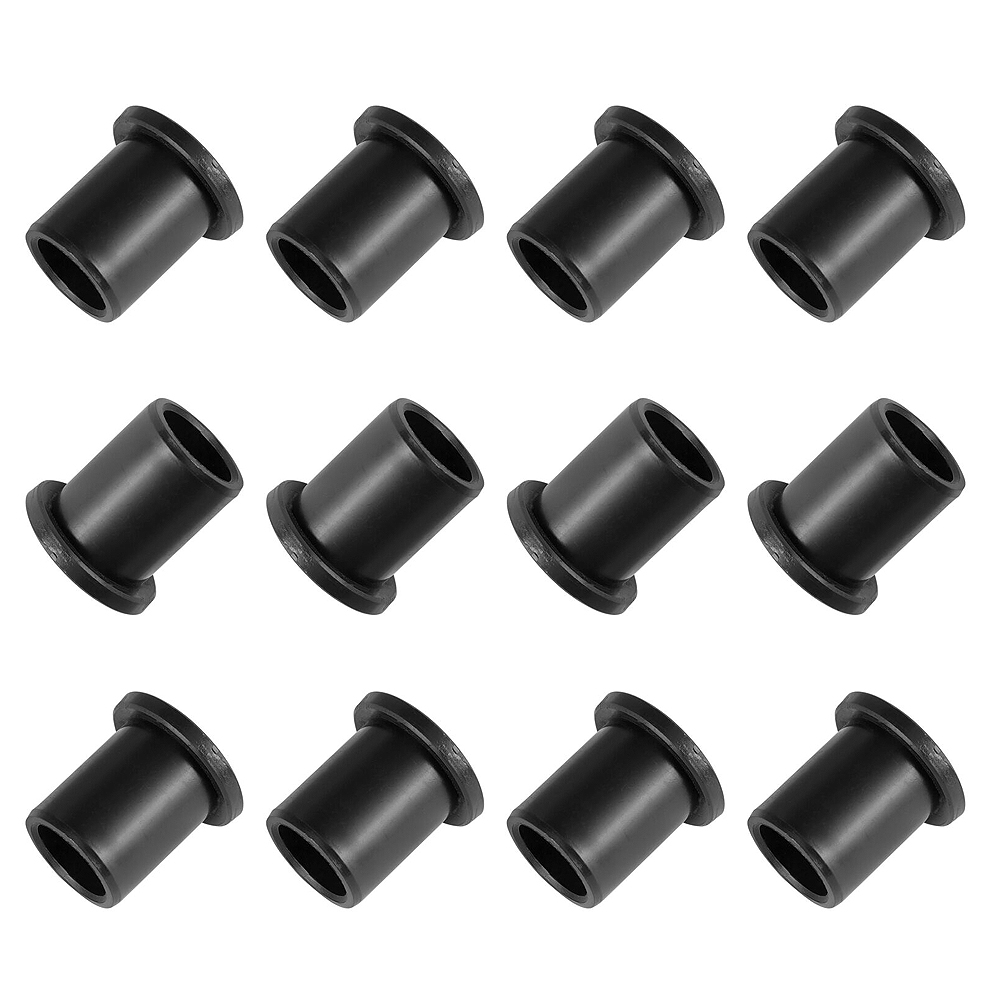

Installation Instructions for 12PCS A-Arm Bushing Kit

Introduction:
This A-Arm Bushing Kit is designed for the front and rear suspension of ATVs compatible with models such as 350 CC, 366 CC, 425 CC SE EFI, and 400 XC450 4x4. Follow the steps below for an easy and efficient installation process.

Tools Required:

1. Socket Set (including standard and metric sizes)
   2.Wrench Set
2. Torque Wrench
3. Rubber Mallet
4. Screwdriver Set (flathead and Phillips)
5. Pliers
6. Grease or Lubricant
7. Safety Goggles
   9.Gloves
8. Floor Jack and Jack Stands (for lifting the ATV)

Installation Steps:

1. Preparation:

   • Park the ATV on a flat surface and turn off the engine.
   • Wear safety goggles and gloves for protection.
   • Use the floor jack to lift the front or rear of the ATV and support it securely with jack stands.

2. Remove Old Bushings:

   • Use the appropriate socket and wrench to remove the bolts securing the A-arms.
   • Gently tap the A-arms to detach them from the frame if they are stuck.
   • Remove the old bushings from the A-arms using pliers and a rubber mallet if necessary.

3. Install New Bushings:

   • Apply a thin layer of grease or lubricant to the new bushings for easier installation.
   • Insert the new bushings into the A-arms, ensuring they are seated properly.

4. Reattach A-Arms:

   • Align the A-arms with the frame and secure them back in place using the original bolts.
   • Tighten the bolts to the manufacturer’s specified torque using a torque wrench.

5. Final Checks:

   • Once all bushings are installed and bolts tightened, check for any movement or slack.
   • Lower the ATV back to the ground and perform a quick visual inspection.

6. Test Ride:

   • Take a short test ride to ensure everything is functioning properly and check for any unusual noises or handling issues.

Conclusion:
With the 12PCS A-Arm Bushing Kit installed, you will enjoy enhanced stability and control while riding your ATV. Regular maintenance will ensure long-lasting performance.
