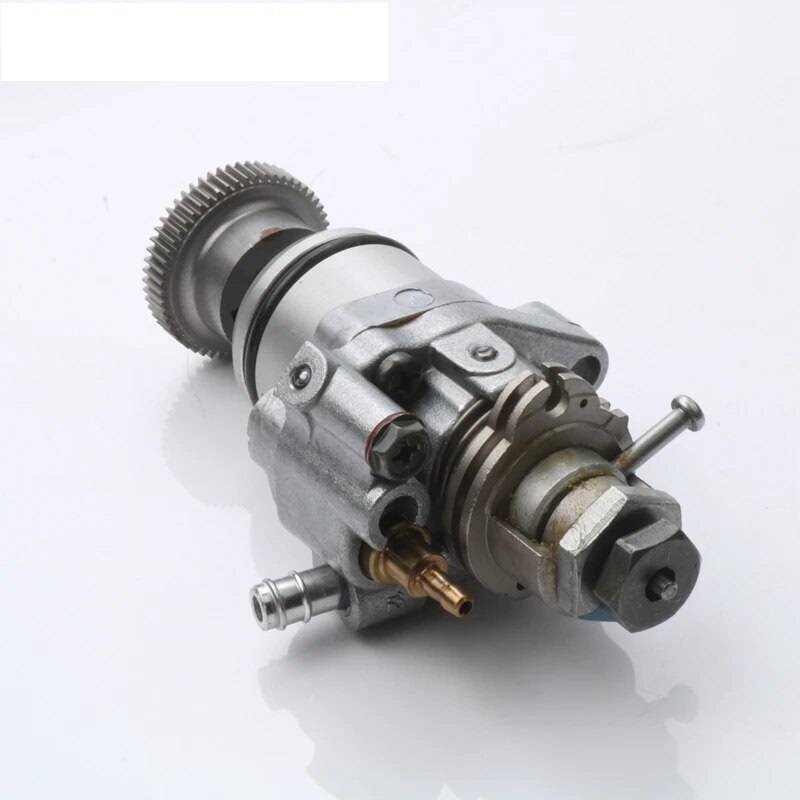

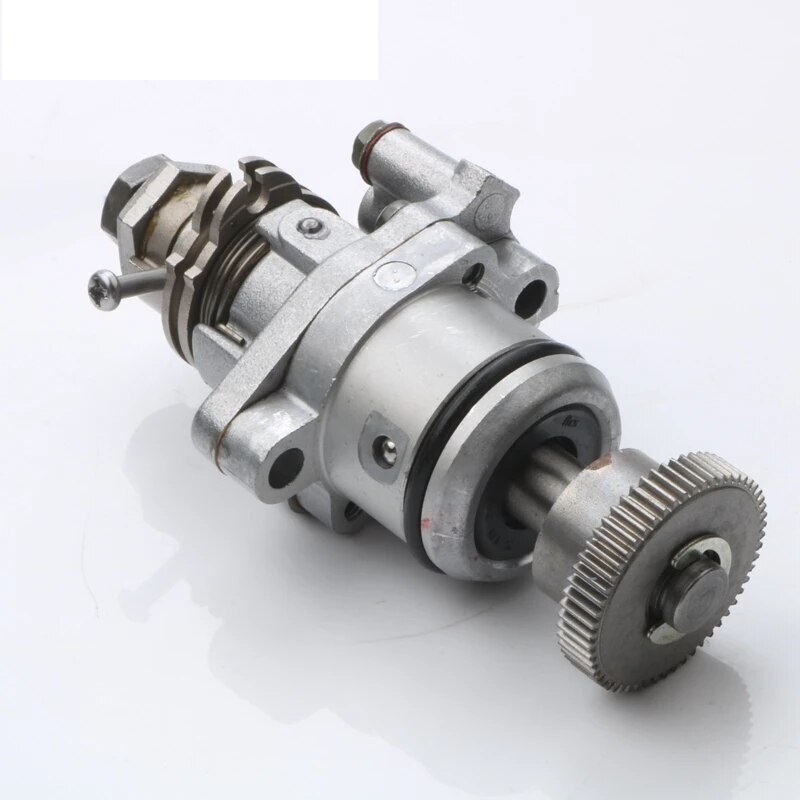

Product Installation Instructions for Compatible Motorcycle Oil Pump (2005-2009 PW80, CY80, V80 Models: 2T8-13101-01-00, 3KX131010100)

Tools Required:

1. Socket Wrench Set - To remove and install the oil pump.
2. Screwdriver Set - For any screws that may need to be removed during installation.
3. Pliers - To grip and hold parts in place as needed.
4. Torque Wrench - To ensure bolts are tightened to the correct specifications.
5. Oil Drain Pan - To catch any oil when removing the old pump.
6. Rags or Shop Towels - For cleaning up any spills and wiping down surfaces.
7. Gasket Scraper - To remove any old gasket material if applicable.

Installation Steps:

1. Preparation

   • Make sure the motorcycle is on a stable surface and secured with a stand.
   • Place the oil drain pan under the oil pump area to catch any leaking oil.

2. Remove the Old Oil Pump

   • Use the socket wrench to remove the bolts securing the old oil pump.
   • Carefully disconnect any hoses or connectors attached to the pump.
   • Remove the old oil pump from the motorcycle.

3. Clean the Connection Area

   • Use the gasket scraper to clean the surface where the old pump was attached.
   • Ensure that there are no remnants of the old gasket or oil residue.

4. Install the New Oil Pump

   • Position the new oil pump in place and connect any hoses or connectors.
   • Secure the pump with the appropriate bolts using the socket wrench.

5. Torque Specifications

   • Use the torque wrench to tighten the bolts to the manufacturer’s specified torque settings. Refer to the motorcycle’s service manual for exact values.

6. Check for Leaks

   • Before starting the engine, inspect all connections and hoses for any signs of leakage.

7. Final Checks

   • Double-check all tools are removed from the working area.
   • Start the engine and observe the oil pump function; ensure it operates smoothly without excessive noise.

By following these instructions and using the listed tools, you will successfully install the oil pump and enhance the performance of your motorcycle. Enjoy a smoother ride!
