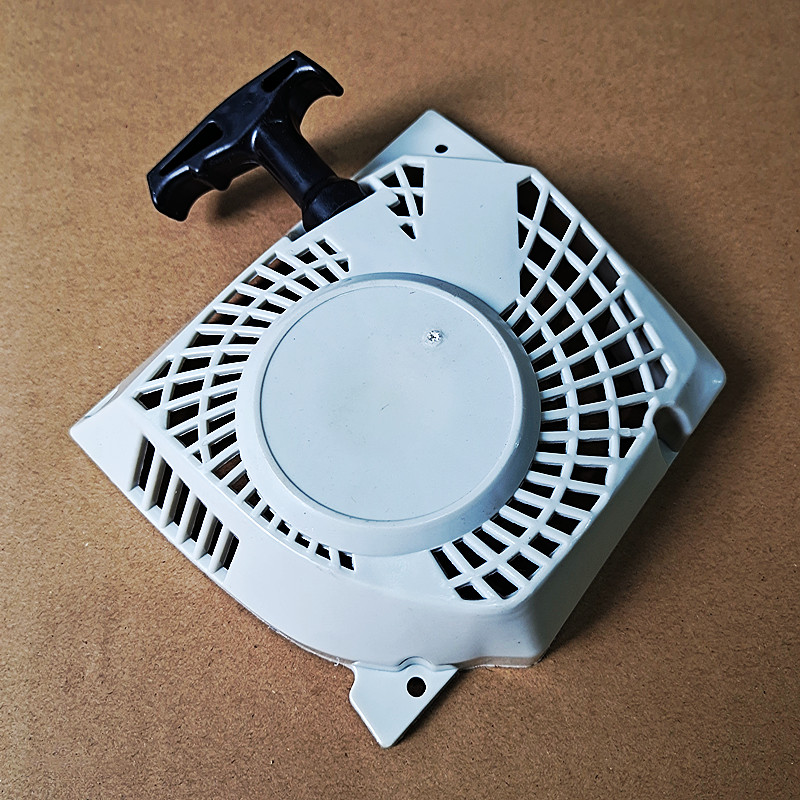

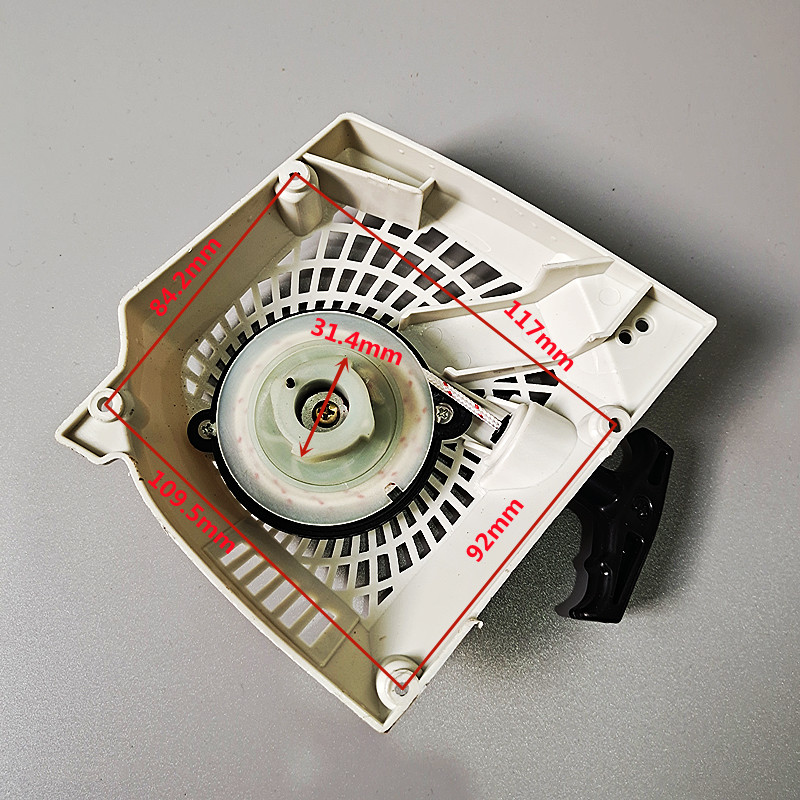

Product Installation Instructions for Recoil Starter 4 Teeth Replacement for Chainsaw Model ZM Z 4000 CS-4000 4200

Tools Required:

1. Screwdriver set (both flathead and Phillips)
   2.Wrench set
2. Pliers
   4.Cleaning cloth
3. Safety gloves
4. Safety goggles

Installation Steps:

1. Preparation:

   • Ensure that the chainsaw is turned off and disconnect from any power source.
   • Wear safety gloves and goggles for protection.

2. Remove the Old Recoil Starter:

   • Use the screwdriver to remove screws securing the old recoil starter.
   • Carefully detach the recoil starter from the chainsaw body.
   • Make sure to keep all screws and components in a safe place for reinstallation.

3. Inspect Components:

   • Clean the area where the recoil starter was mounted using the cleaning cloth.
   • Inspect the surrounding components for any signs of wear or damage.

4. Install the New Recoil Starter:
   -Align the new recoil starter with the mounting points on the chainsaw.

   • Secure the recoil starter in place using the screws you previously removed, tightening them as necessary.

5. Test the Installation:

   • Before fully assembling the chainsaw, manually pull the recoil starter to ensure it operates smoothly.
   • If it feels stiff or gets stuck, double-check the alignment and installation.

6. Final Assembly:

   • Once you confirm that the recoil starter is functioning correctly, reassemble any other removed parts.
   • Ensure all screws are tightened appropriately.

7. Safety Check:

   • Perform a final safety check to ensure everything is secure and in working order.

8. Ready to Use:

   • Reconnect the chainsaw to its power source.
   • Test the chainsaw to ensure it starts and operates properly with the new recoil starter.

Maintenance Tip:
It is recommended to regularly inspect the recoil starter and other components of your chainsaw to maintain optimal performance.

Now you're all set to enjoy the reliability of your chainsaw with the newly installed recoil starter!
