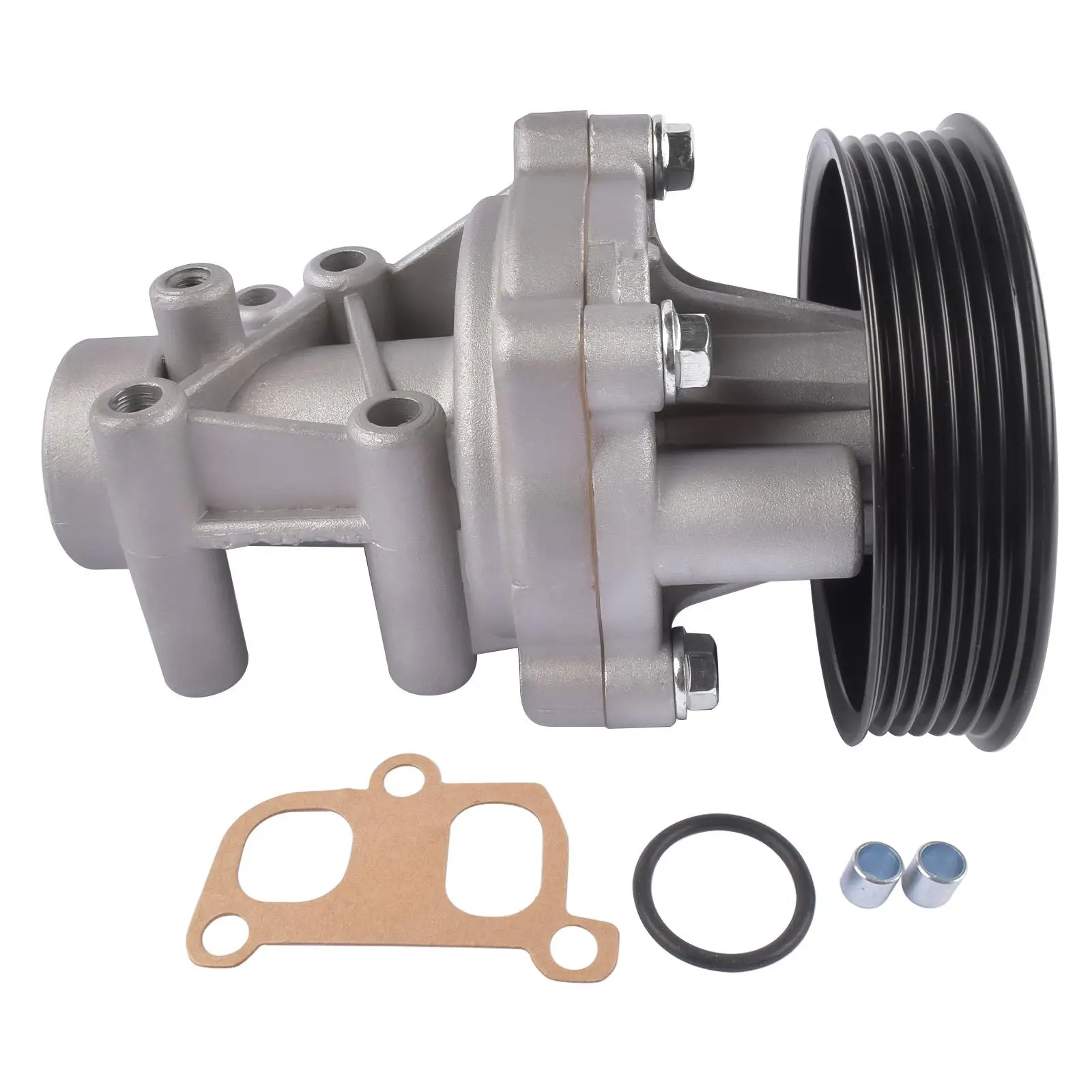

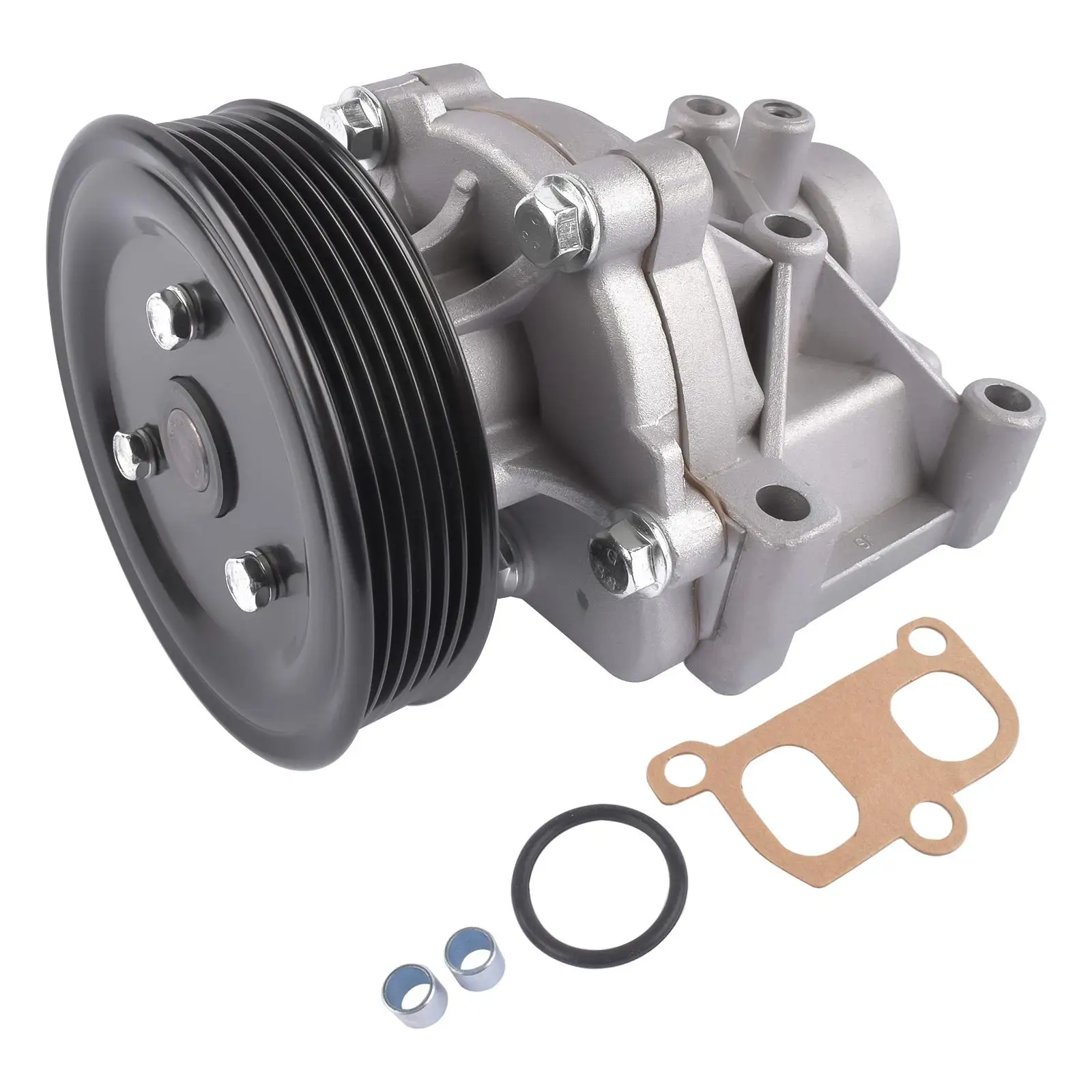

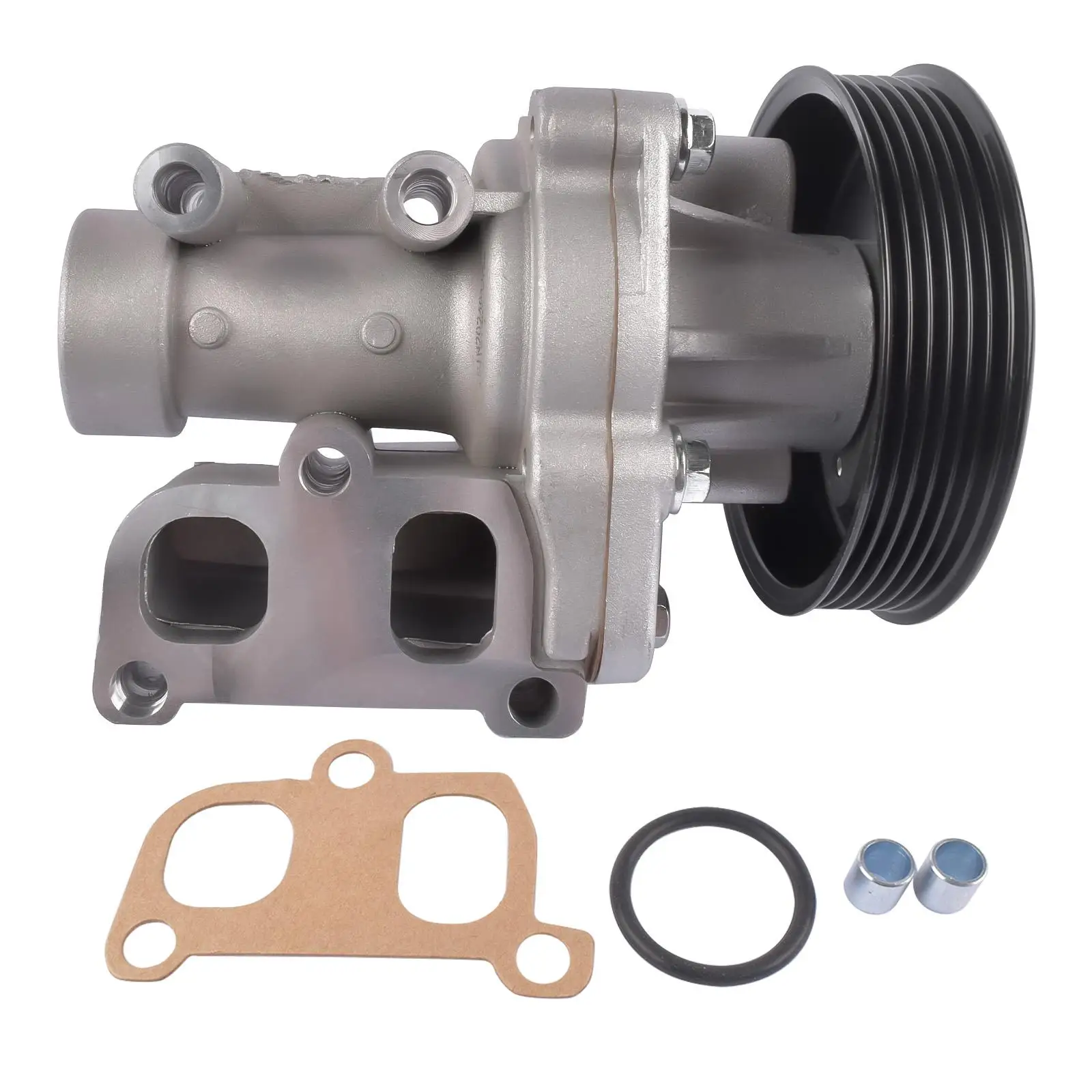

Installation Instructions for Water Pump Compatible with 2.4L L4 Engine (Hyundai Santa Fe Sport and Kia Optima 2011-2016)

Tools Required:

1. Basic Hand Tools:

   • Socket set (including extensions)
   • Ratchet wrench
     -Torque wrench
   • Screwdrivers (flathead and Phillips)
     -Pliers

2. Additional Tools:

   • Oil catch pan
     -Funnel
   • Gasket scraper or razor blade
   • Piping or hose clamps
   • Belt tensioner tool (if needed)
   • Cooling system pressure tester (optional)

3. Safety Equipment:

   • Safety goggles
   • Gloves
   • Mechanic’s creeper (optional)

Preparation Steps:

1. Ensure Vehicle Safety:

   • Park the vehicle on a flat surface, engage the parking brake, and disconnect the negative battery terminal to prevent electrical shorts.

2. Drain the Coolant:

   • Place an oil catch pan under the vehicle and remove the radiator cap. Open the drain plug on the radiator and allow the coolant to completely drain.

3. Remove Obstructions:

   • If necessary, remove components such as the serpentine belt, alternator, or timing cover to gain access to the water pump.

4. Remove the Old Water Pump:

   • Disconnect hoses from the water pump and remove bolts securing the pump. Carefully detach the old pump, ensuring not to damage surrounding components.

5. Clean the Mounting Surface:

   • Use a gasket scraper or razor blade to clean the mounting surface on the engine to ensure a proper seal for the new water pump.

6. Install the New Water Pump:

   • Position the new water pump onto the engine block, ensuring all mounting holes align. Secure the pump with bolts and tighten them to the manufacturer’s specified torque.

7. Reconnect Hoses:

   • Reattach all hoses and ensure clamps are secured tightly.

8. Reassemble Removed Components:

   • If you removed any parts during the installation, reassemble them carefully.

9. Refill Coolant:

   • Using a funnel, refill the cooling system with the appropriate mixture of coolant. Be sure to check for leaks.

10. Reconnect the Battery:

    • Reconnect the negative battery terminal and start the engine to allow the cooling system to circulate and check for any leaks.

11. Final Check:

    • Monitor the vehicle for proper operation and check fluid levels after a short drive.

Note: Always refer to the vehicle’s service manual for specific torque specifications and detailed instructions relevant to your model. If in doubt, consider consulting a professional mechanic for assistance.
