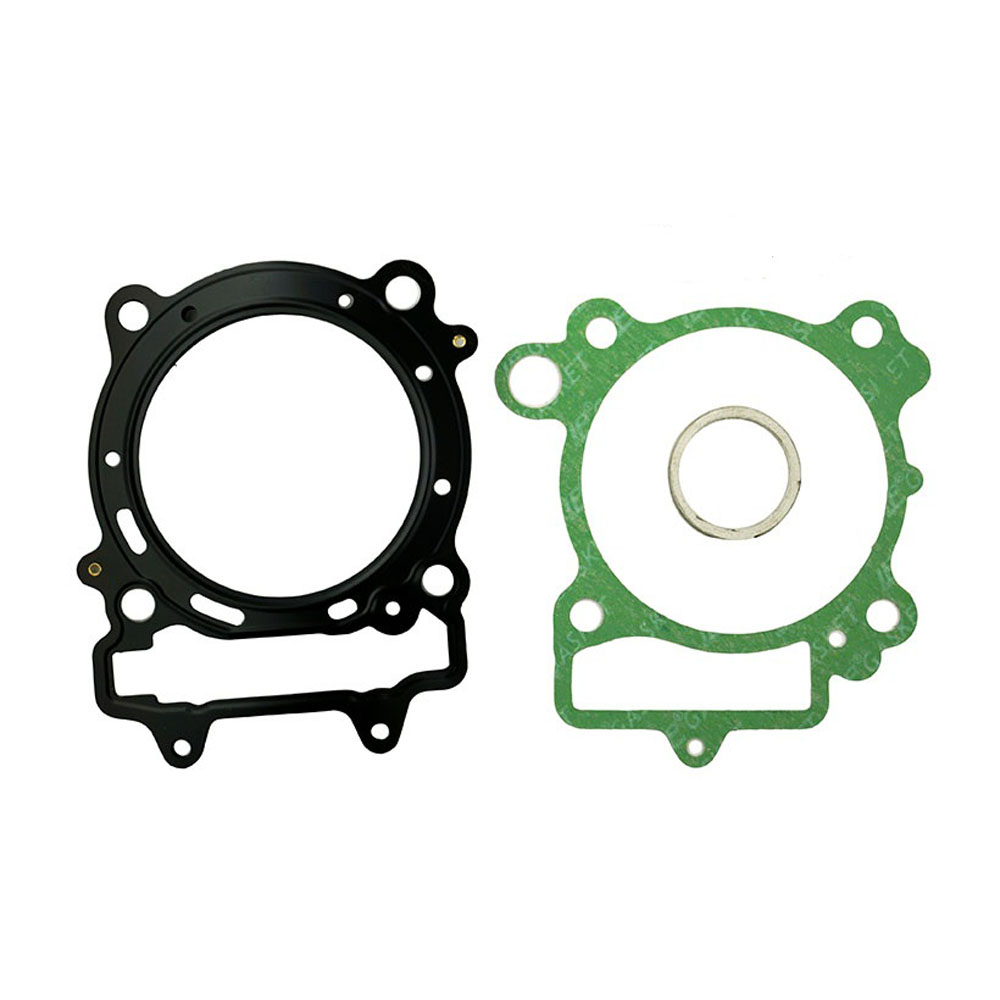

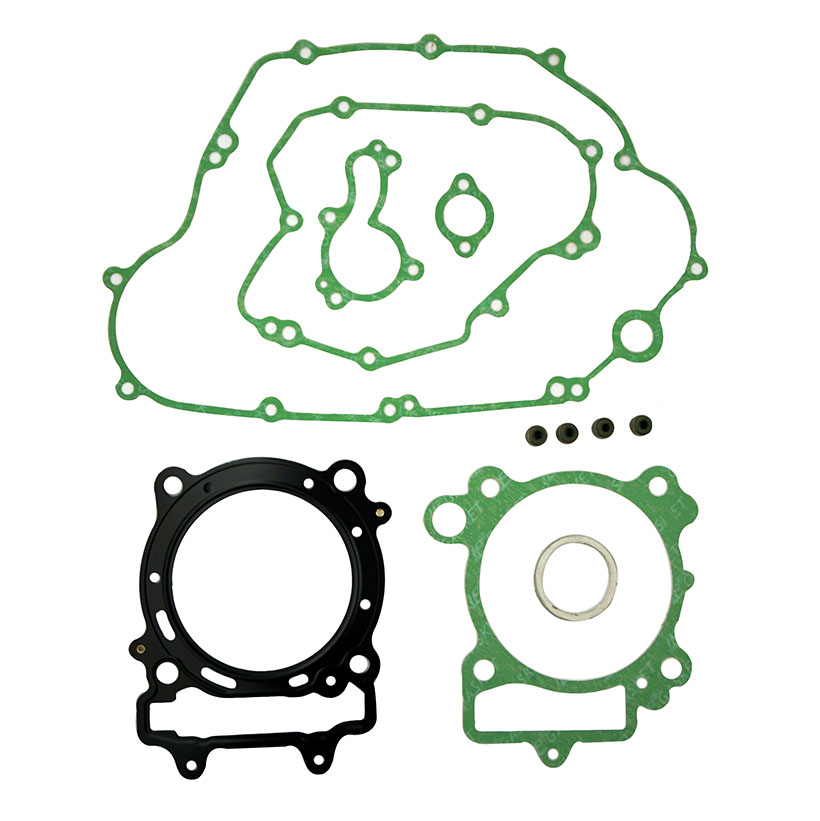

Installation Instructions for Engine Crankcase Clutch Cover Cylinder Gasket Kit Set for 450F Models (2009-2015)

Tools and Materials Needed:

1. Basic Hand Tools:

   • Socket set (metric)
   • Wrench set (metric)
   • Screwdrivers (Phillips and flathead)

2. Torque Wrench:

   • For tightening bolts to the manufacturer-specified torque.

3. Pliers:

   • To handle any small components or clips.

4. Gasket Scraper:

   • To remove old gasket material from the surfaces.

5. Clean Rags:

   • For cleaning surfaces and wiping down excess oils or fluids.

6. Engine Oil:

   • To lubricate any moving parts during reassembly.

7. Sealant (optional):

   • Depending on the specific needs of your installation, a gasket sealant may be useful.

Installation Steps:

1. Preparation:

   • Ensure the engine is cool and the vehicle is secured on a flat surface.
   • Disconnect the battery to prevent any electrical issues during the installation.

2. Remove the Existing Cover:

   • Using the appropriate sockets and wrenches, carefully remove the bolts securing the clutch cover and gently lift it off.

3. Clean the Surface:

   • Use a gasket scraper to remove any remnants of the old gasket. Ensure the surface is clean and free from debris.

4. Install New Gasket:

   • Place the new gasket from the kit onto the clean surface. Make sure it aligns properly with the bolt holes.

5. Reinstall Clutch Cover:

   • Carefully position the clutch cover back onto the engine, ensuring it sits evenly on the new gasket.

6. Tighten Bolts:

   • Using a torque wrench, tighten the bolts to the manufacturer’s specified torque values, following a crisscross pattern for even pressure.

7. Final Checks:

   • Ensure all tools are removed from the engine area and double-check that all connections are secure.

8. Reconnect Battery:

   • Once installation is complete and everything is secure, reconnect the battery.

9. Testing:

   • Start the engine and check for any leaks. Allow the engine to run for a short period and inspect again to ensure everything is functioning properly.

Safety Precautions:

• Always wear safety gloves and goggles during installation.
• Dispose of old gaskets and materials responsibly.

Thank you for choosing our Engine Crankcase Clutch Cover Cylinder Gasket Kit Set for your 450F model. Happy riding!
