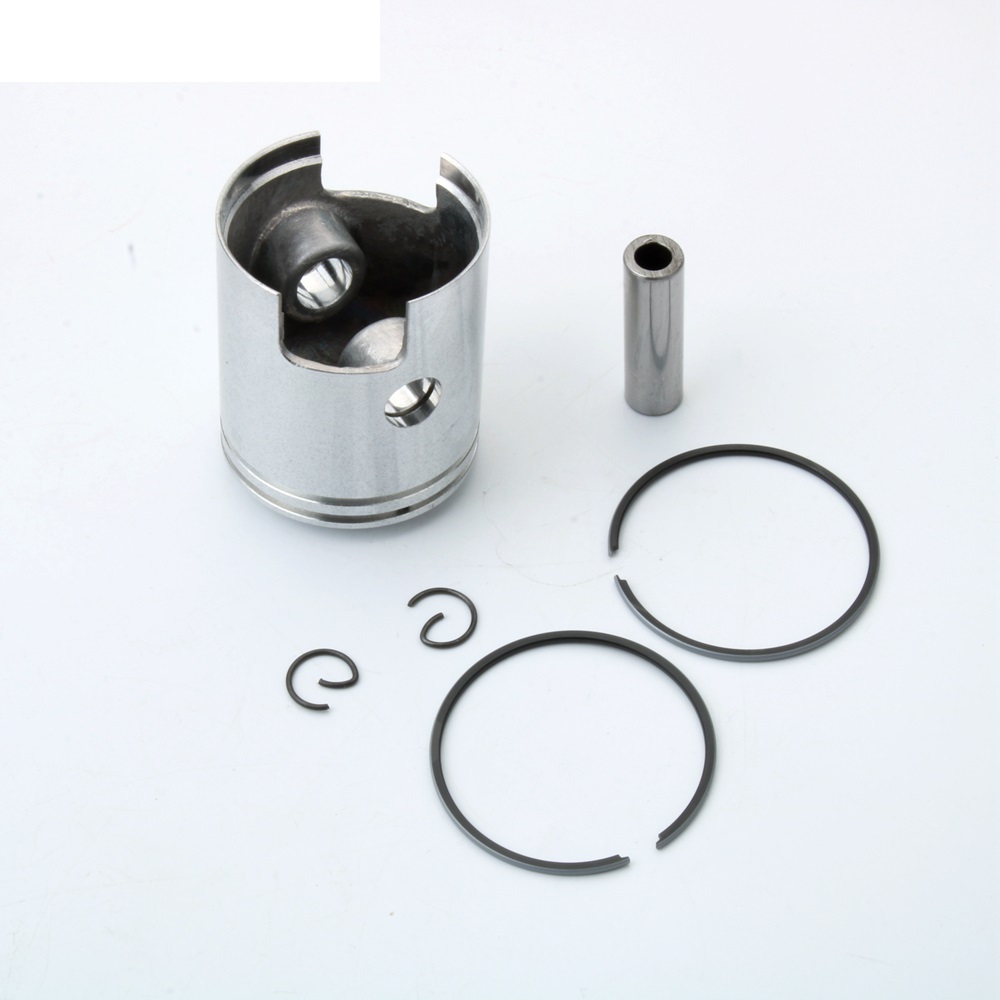

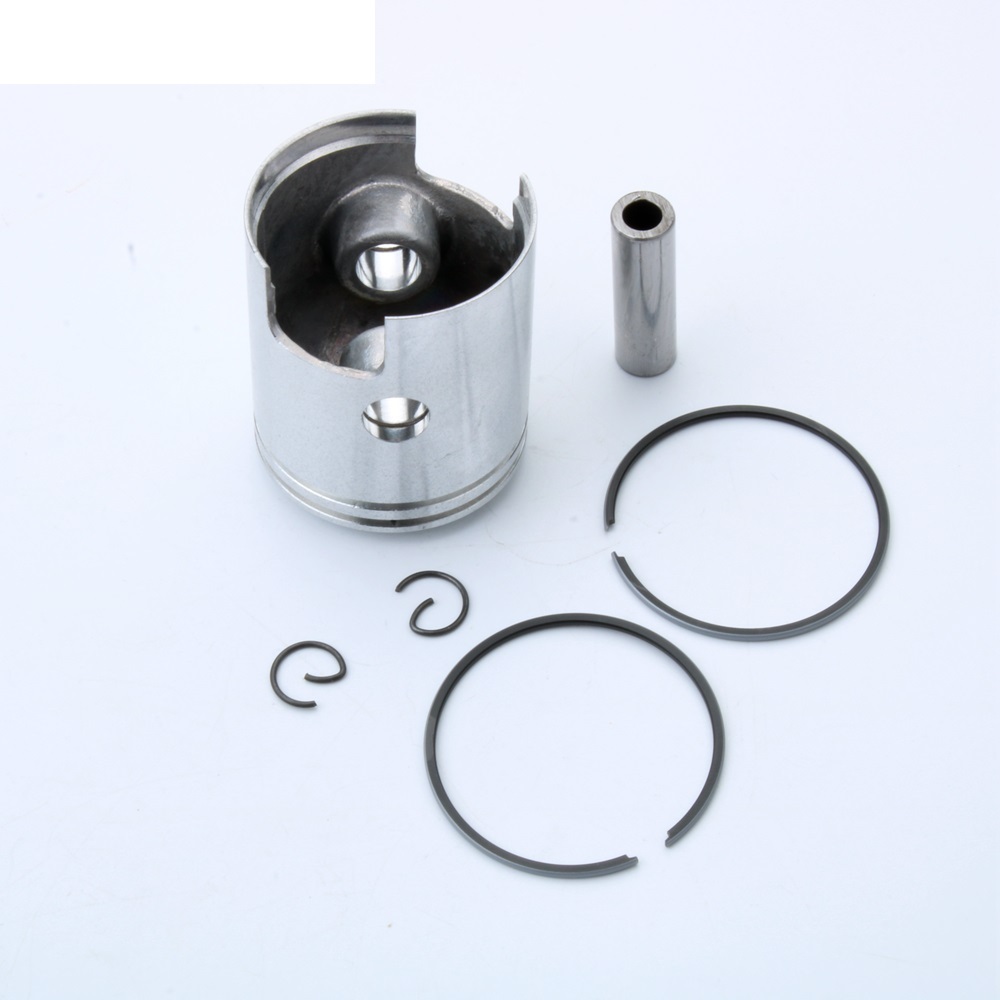

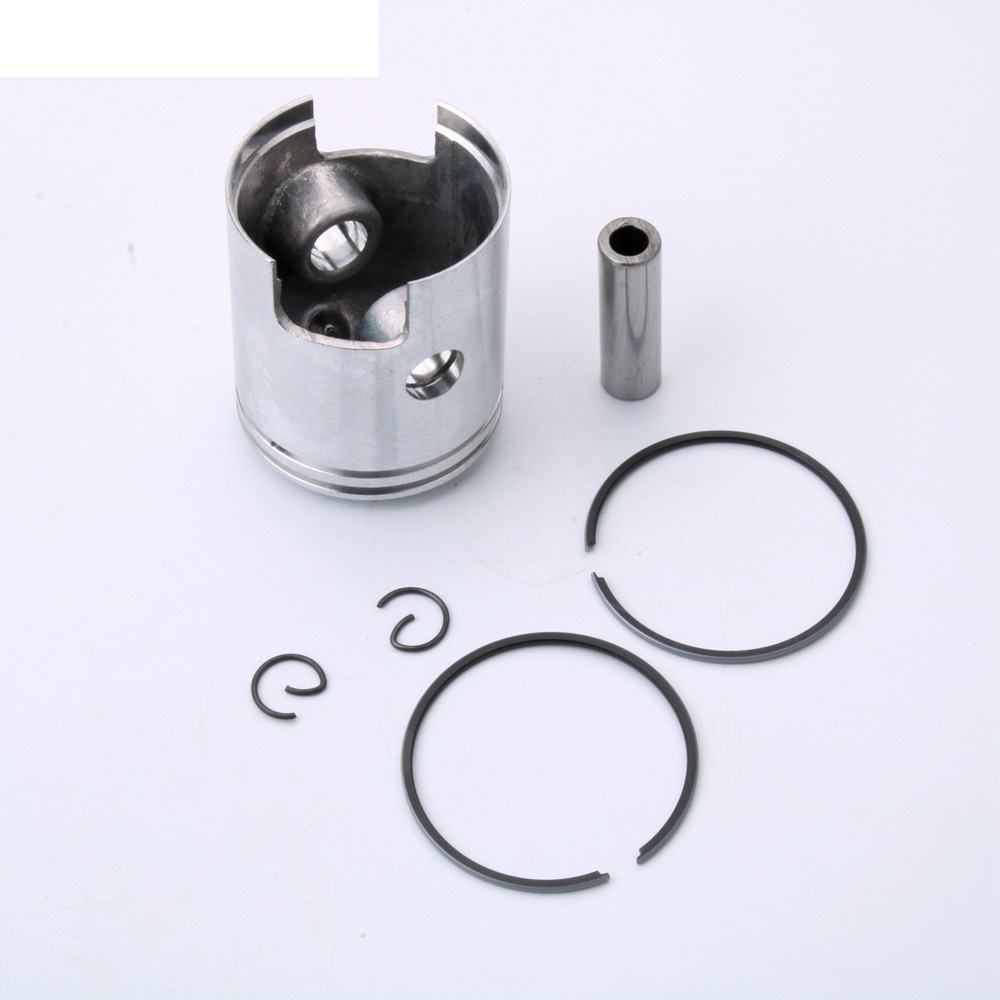

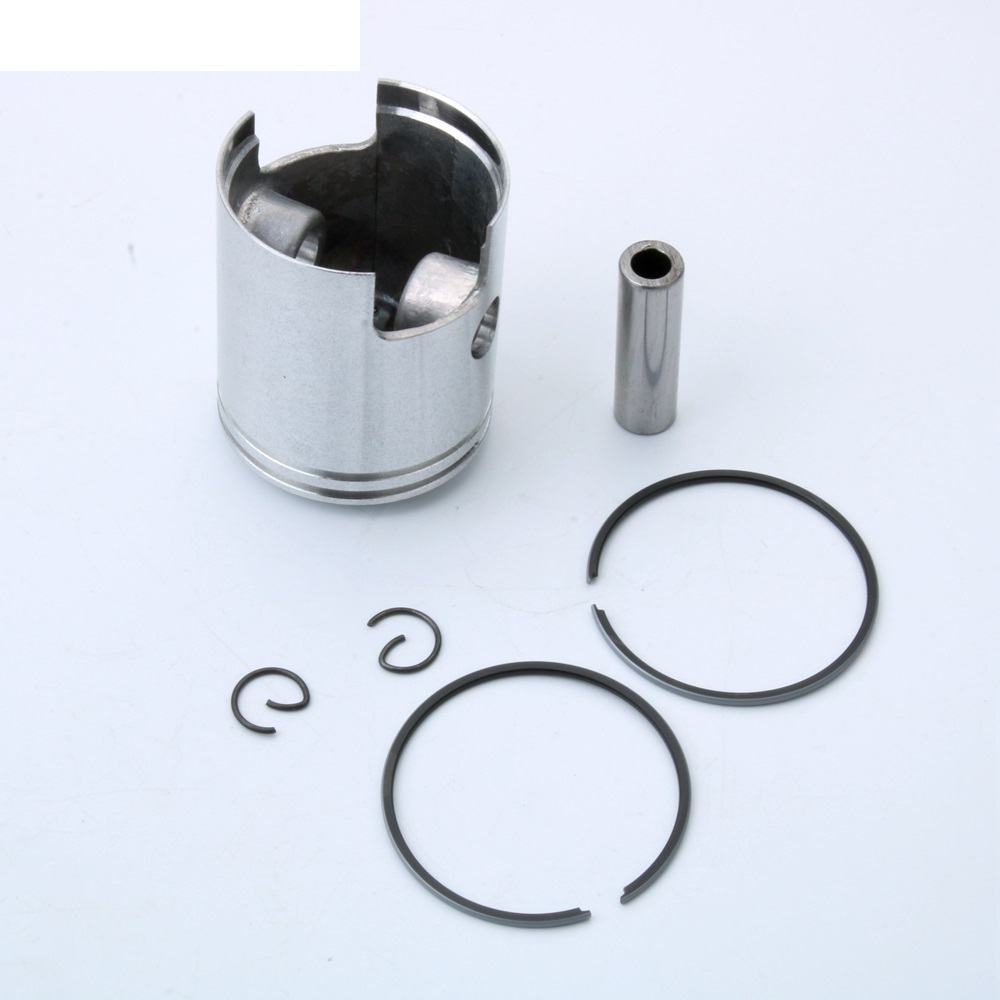

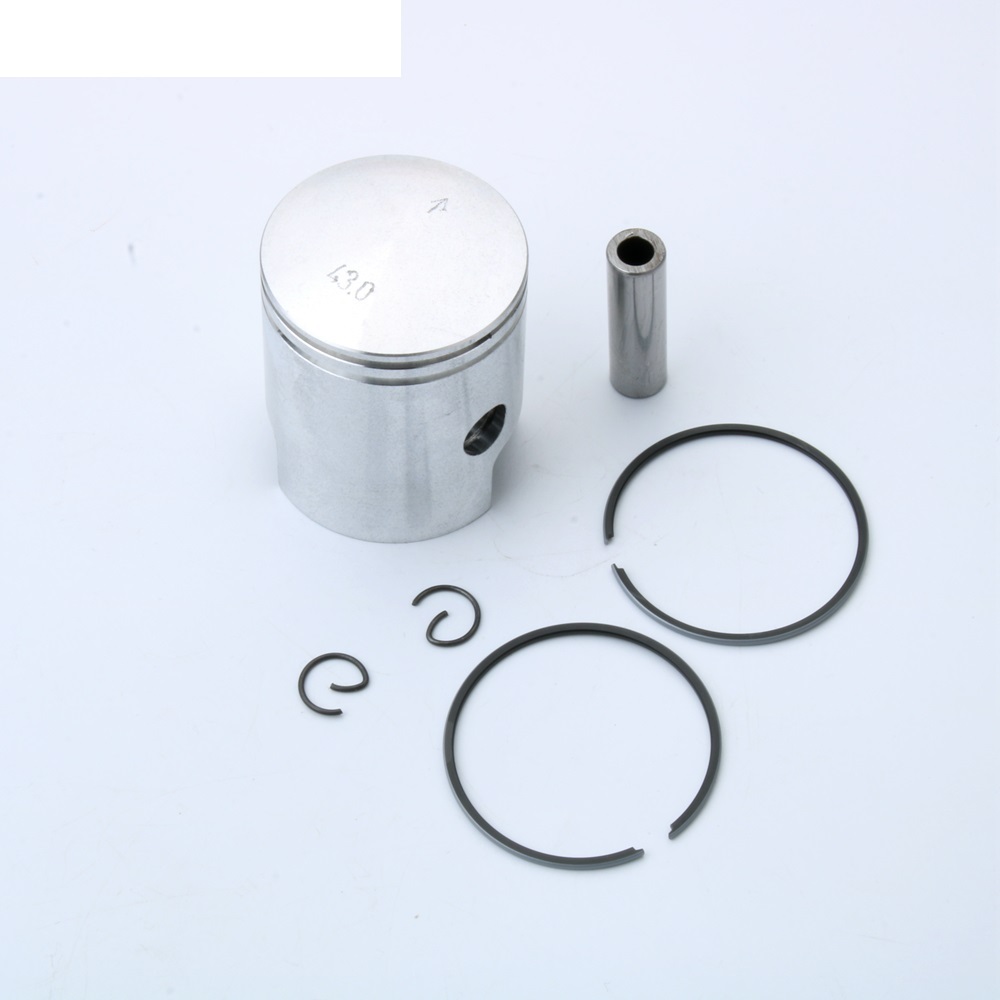

Installation Instructions for the 65cc 43mm Piston Kit

Overview:
This 65cc 43mm piston kit is compatible with a variety of 50cc two-stroke engine types, offering great flexibility for users. Follow this guide to install the kit easily and enhance your engine performance.

Tools Required:

1. Socket wrench set
2. Torque wrench
3. Screwdriver set (both flathead and Phillips)
4. Piston ring compressor
5. Gasket scraper or razor blade
6. Cleaning clothes
7. Engine oil (for lubrication)
8. Measuring caliper (optional, for measuring piston and bore sizes)
9. Safety goggles
   10.Gloves

Installation Steps:

1. Preparation:

   • Ensure the engine is cool before beginning the installation.
   • Disconnect the spark plug wire to prevent accidental starting.
   • Remove the existing cylinder head and cylinder from the engine.

2. Remove Old Piston:

   • Use the socket wrench to detach the connecting rod cap and remove the old piston from the engine.
   • Carefully remove the piston rings from the old piston, making sure not to damage them if you plan to reuse them.

3. Clean the Surface:

   • Use the gasket scraper to remove any old gasket material from the cylinder and engine block.
   • Wipe down surfaces with cleaning cloths to ensure there is no debris.

4. Install New Piston:

   • Lubricate the new piston and piston rings with engine oil.
   • Use the piston ring compressor to fit the piston rings onto the new piston.
   • Insert the new piston into the cylinder, ensuring it is oriented correctly (usually indicated by a notch).

5. Reattach the Connecting Rod:

   • Reattach the connecting rod cap and tighten it to the manufacturer’s specifications using a torque wrench.

6. Install Cylinder:

   • Place a new gasket on the engine block, then carefully align and install the cylinder over the piston.
   • Secure the cylinder in place using the appropriate fasteners.

7. Reassemble Engine:

   • Reattach the cylinder head and any other components that were removed during disassembly.
   • Ensure everything is tightened properly.

8. Final Checks:

   • Reconnect the spark plug wire and double-check all connections.
   • Pull the manual starter a few times to ensure that the piston moves freely.

9. Test the Engine:

   • Start the engine and let it run for a few minutes, checking for any unusual noises or leaks.

Congratulations! You have successfully installed the 65cc 43mm piston kit. Enjoy your enhanced engine performance!

Note: Always refer to your engine’s manual for specific torque specifications and any additional details related to your engine model.
