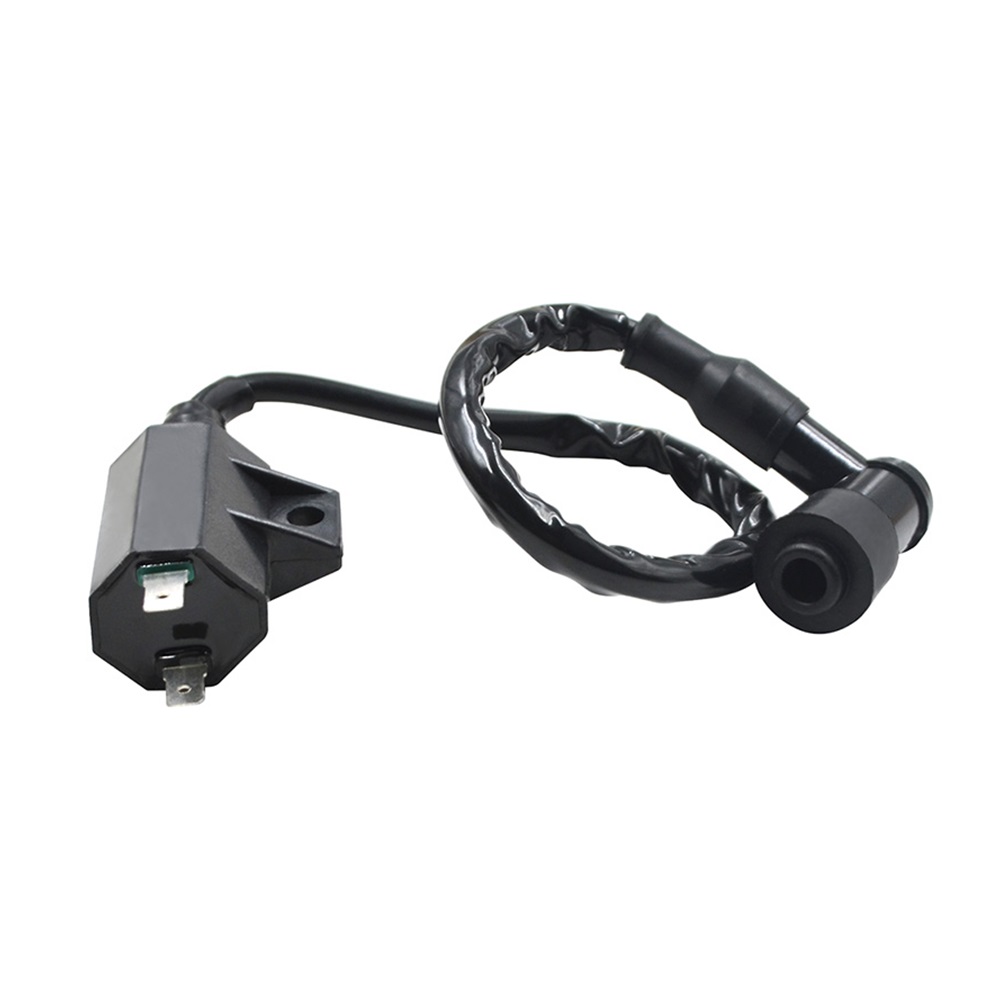

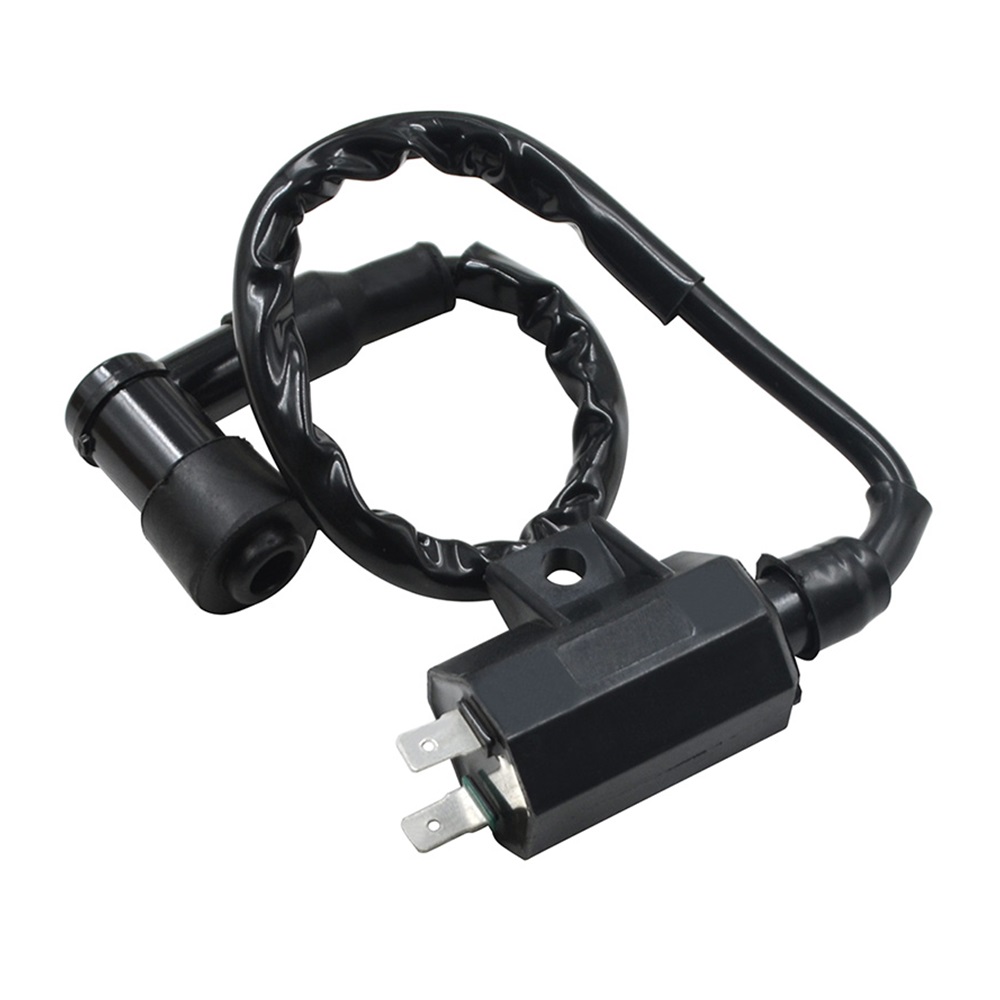

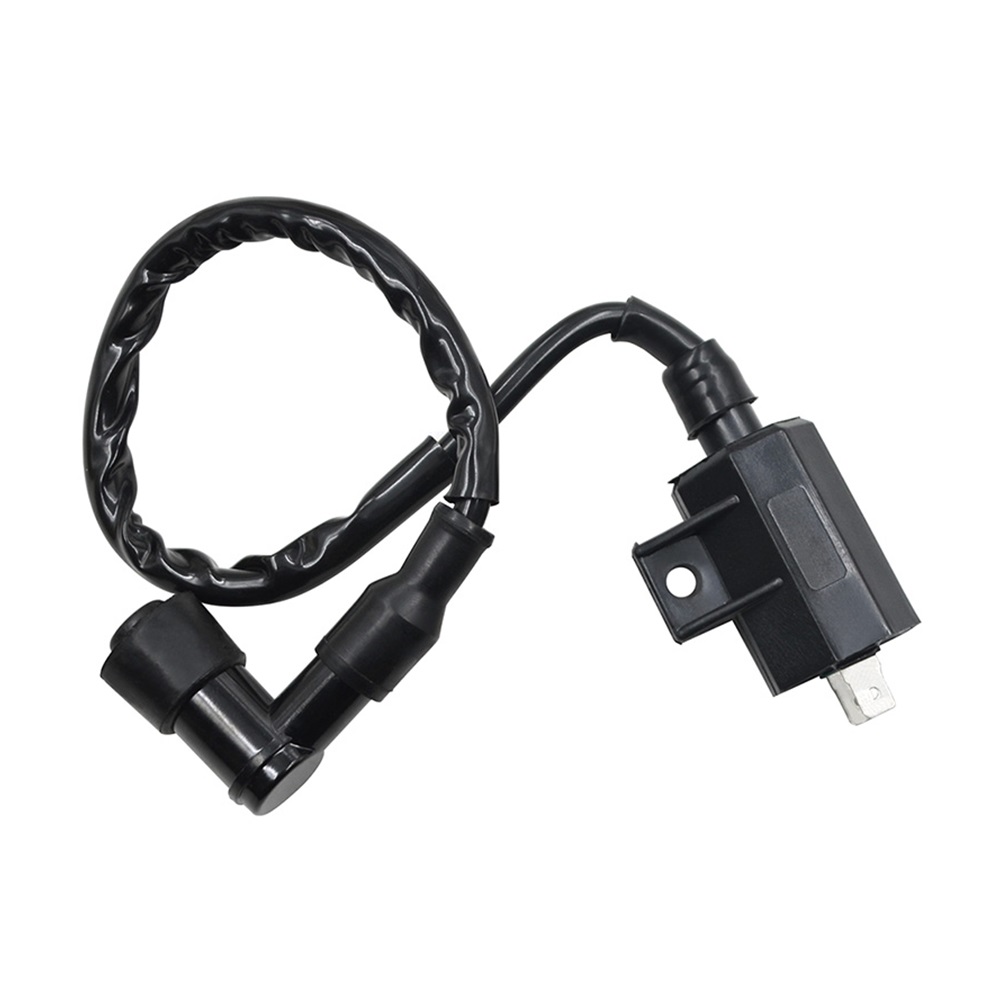

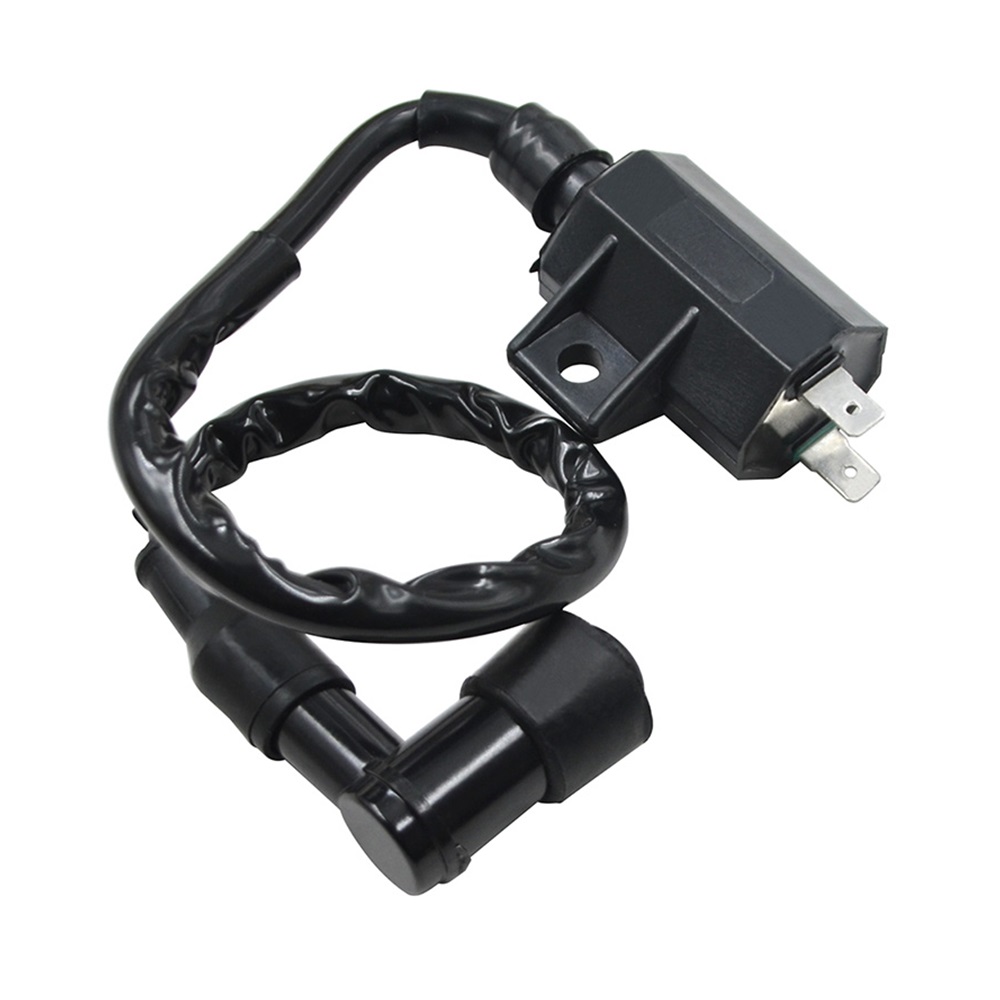

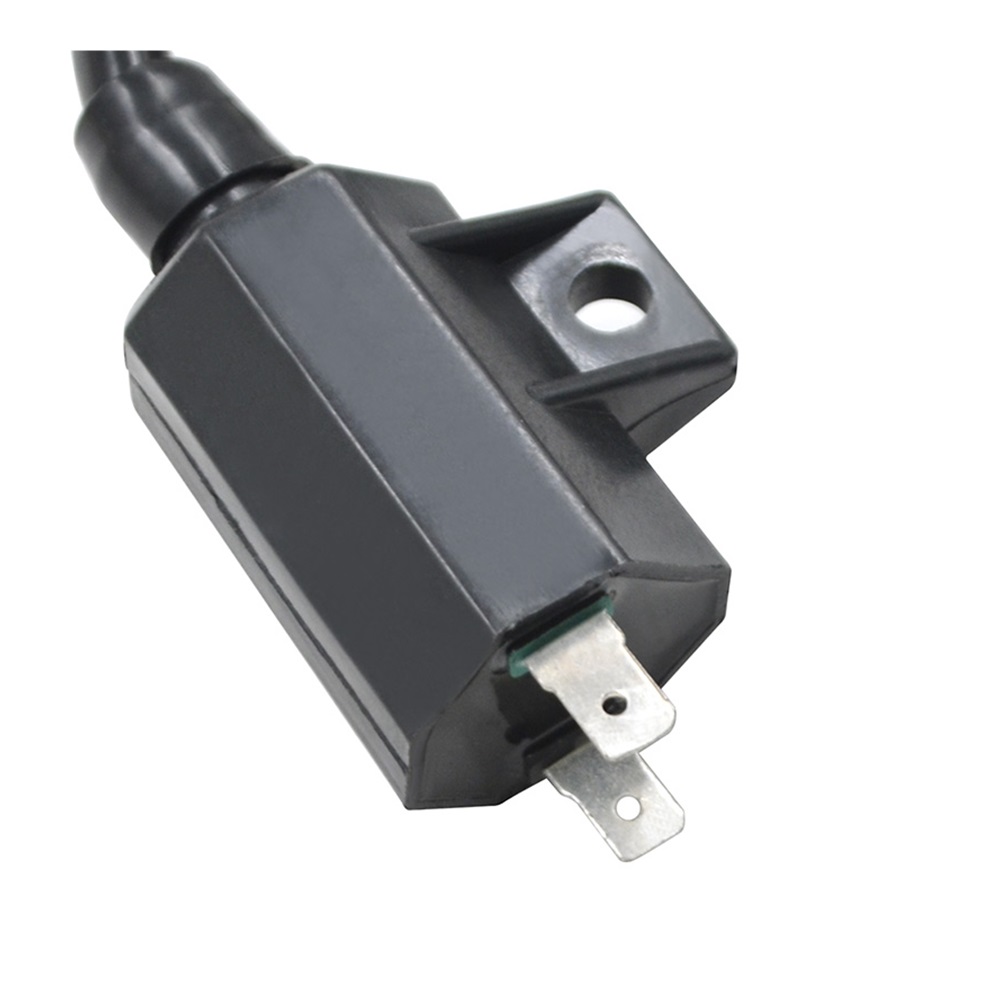

Installation Instructions for Universal Motorcycle Ignition Coil for ATVs (220cc Models, 1988-2002)

Compatibility:
This ignition coil is specifically designed for 220cc ATV models manufactured between 1988 and 2002, ensuring a perfect fit with a wide range of vehicles.

Tools Required:
Before you start the installation process, please gather the following tools:
-Socket wrench set

• Screwdriver set (flathead and Phillips)
  -Pliers
• Wire cutters/strippers
• Electrical tape
• Safety gloves
• Safety goggles

Installation Steps:

1. Preparation:

   • Ensure the ATV is turned off and cooled down.
   • Disconnect the battery by removing the negative (-) terminal first to avoid any electrical short.

2. Remove the Old Ignition Coil:

   • Locate the existing ignition coil on your ATV.
   • Use a screwdriver or socket wrench to remove any screws or bolts securing it.
   • Carefully disconnect the wires from the old ignition coil. Note the wiring configuration for reinstallation.

3. Install the New Ignition Coil:

   • Position the new ignition coil in place, ensuring it aligns with the mounting holes.
   • Connect the wires to the new ignition coil, following the notes you made during the removal of the old coil.

4. Secure the Ignition Coil:

   • Use the screwdriver or socket wrench to fasten the screws or bolts, ensuring the coil is tightly secured.

5. Reconnect the Battery:

   • Reattach the negative (-) terminal of the battery.

6. Testing:

   • Start the ATV to test the new ignition coil. Ensure the engine runs smoothly and check for any irregularities in performance.

7. Final Touches:

   • If everything is functioning properly, use electrical tape to secure any exposed wire connections, ensuring they are protected.

Maintenance Tips:

• Regularly check the ignition coil for signs of wear.
• Consider replacing the ignition coil every few years or if you notice performance issues.

By following these steps, you should experience enhanced performance and fuel efficiency in your ATV, thanks to the improved ignition system provided by the new ignition coil. Happy riding!
